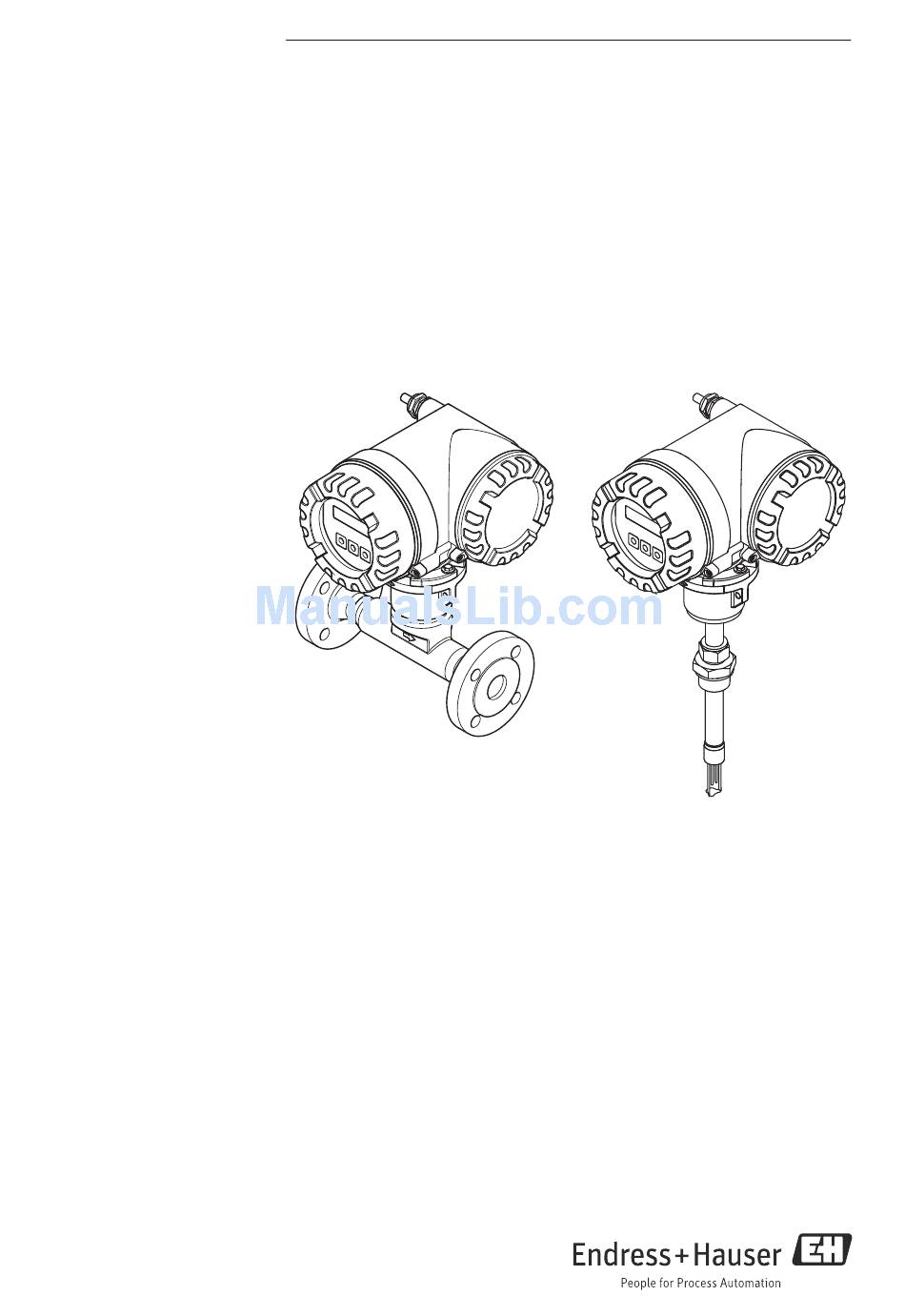

Brief Operating Instructions
Proline t-mass 65
Thermal mass flowmeter
These Brief Operating Instructions are not intended to replace
the Operating Instructions provided in the scope of supply.
Detailed information about the measuring device is provided in
the Operating Instructions and the additional documentation:
• On the CD-ROM supplied (is not included in the delivery for all
device versions).
• Available for all measuring device versions via:
– Internet:
www.endress.com/deviceviewer
– Smartphone/tablet: Endress+Hauser Operations App
Solutions
Services
