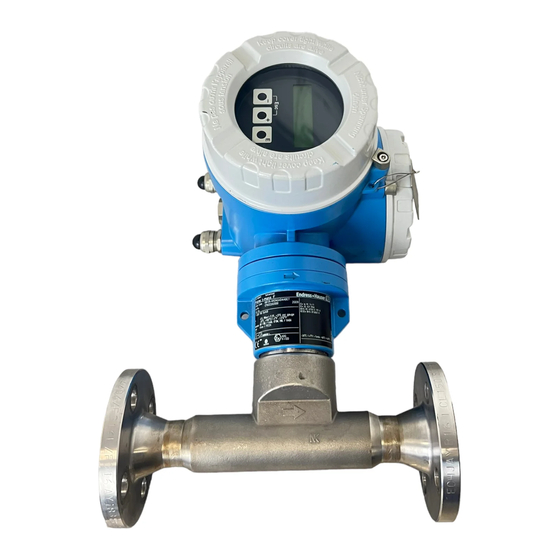

Endress+Hauser Proline t-mass 65 Operating Instructions Manual

Endress+Hauser Proline t-mass 65 Operating Instructions Manual

Thermal mass flow measuring system
Hide thumbs Also See for Proline t-mass 65:
Table of Contents

Advertisement

Quick Links

Download this manual

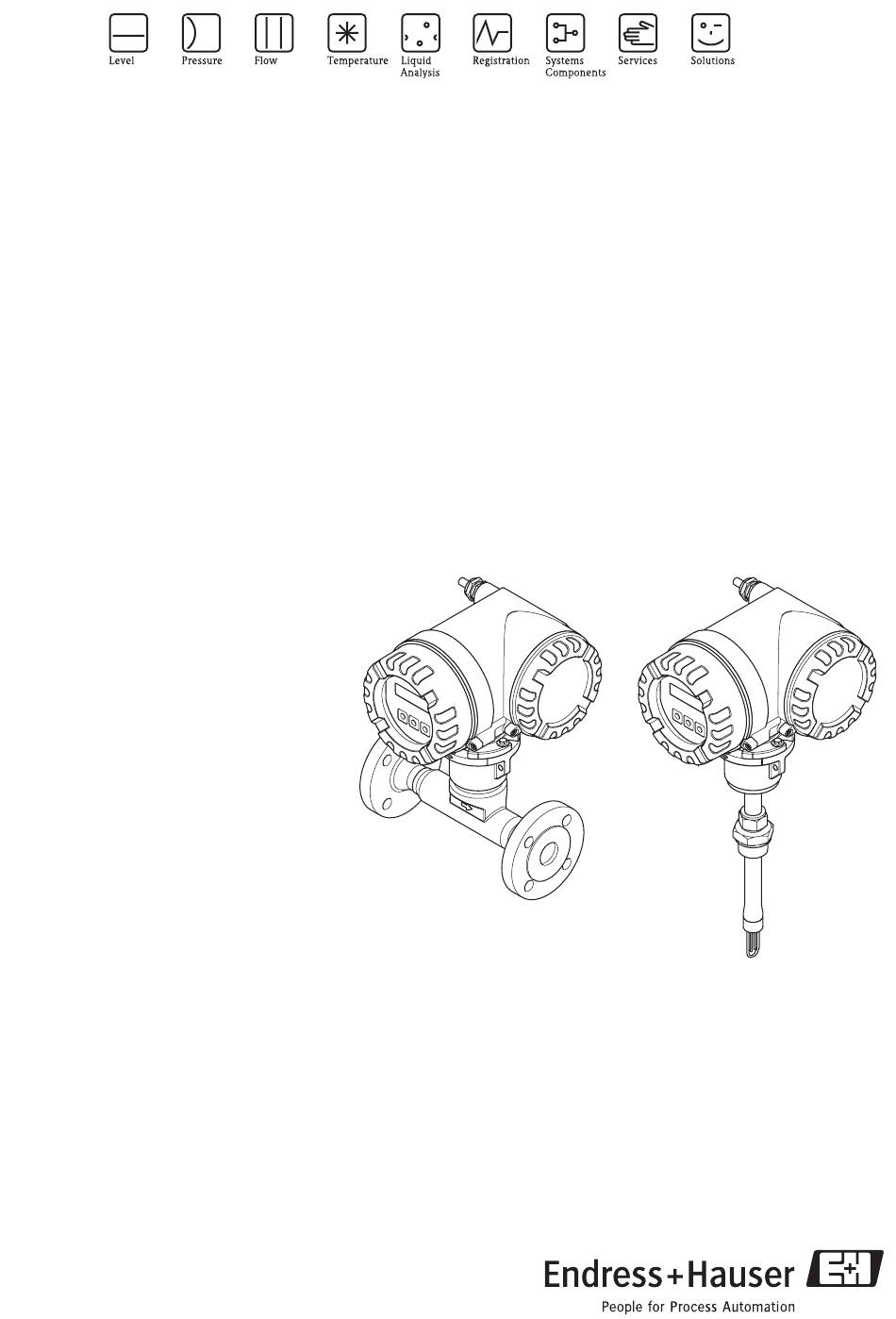

Operating Instructions
Proline t-mass 65
MODBUS RS485
Thermal Mass Flow Measuring System
BA115D/06/en/02.06
71021612
Valid as of version
V 3.02.XX (Device software)

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Proline t-mass 65

Summary of Contents for Endress+Hauser Proline t-mass 65

  • Page 1 Operating Instructions Proline t-mass 65 MODBUS RS485 Thermal Mass Flow Measuring System BA115D/06/en/02.06 71021612 Valid as of version V 3.02.XX (Device software)

  • Page 3: Table Of Contents

    Proline t-mass 65 MODBUS RS485 Table of contents Table of contents Safety instructions ....5 Wiring ......29 Designated use .
  • Page 4 Proline t-mass 65 MODBUS RS485 Table of contents Commissioning ....57 Technical data ....85 Function check .

  • Page 5: Safety Instructions

    • The device must be operated by persons authorised and trained by the facility's owner-operator. Strict compliance with the instructions in the Operating Instruction is mandatory. • Endress+Hauser is willing to assist in clarifying the chemical resistance properties of parts wetted by special fluids, including fluids used for cleaning. However small changes in temperature, concentration or the degree of contamination in the process can result in changes of the chemical resistance properties.

  • Page 6: Operational Safety

    Category II, III or IV installations in accordance with the Pressure Equipment Directive. • The manufacturer reserves the right to modify technical data without prior notice. Your Endress+Hauser distributor will supply you with current information and updates to these Operating Instructions.

  • Page 7: Identification

    Proline t-mass 65 MODBUS RS485 Identification Identification Device designation The “t-mass 65” flow measuring system consists of the following components: • t-mass 65 transmitter • t-mass F, t-mass I sensors Two versions are available: • Compact version: transmitter and sensor form a single mechanical unit.

  • Page 8: Nameplate Of The Sensor

    Identification Proline t-mass 65 MODBUS RS485 2.1.2 Nameplate of the sensor Proline t-mass F Order Code: 65F50-XXXXXXXXXXXX IP67 / NEMA/Type 4X 12345678901 Ser.No.: ABCDEFGHIJKLMNOPQRST TAG-No.: DN50 DIN/EN PN40 -0.5...40bar / -7.25...+580 psi gauge -40°C...+100°C / -40°F...+212°F 316/316L/1.4404/Alloy C 22 Materials:...

  • Page 9: Nameplate For Connections

    Proline t-mass 65 MODBUS RS485 Identification 2.1.3 Nameplate for connections active See Operating manual passive Betriebsanleitung beachten normally open contact Observer Manuel d'Instruction normally closed contact 12345678912 Ser. No.: L1 / L+ Supply / Versorgung / N / L- Tension d'alimentation...

  • Page 10: Certificates And Approvals

    Laboratory Procedures” and with the EMC requirements of EN 61326/A1. The measuring system described in these Operating Instructions thus complies with the statutory requirements of the EC Directives. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark.

  • Page 11: Installation

    Proline t-mass 65 MODBUS RS485 Installation Installation Incoming acceptance, transport and storage 3.1.1 Incoming acceptance On receipt of the goods, check the following points: • Check the packaging and the contents for damage. • Check the shipment, make sure nothing is missing and that the scope of supply matches your order.

  • Page 12: Installation Conditions

    Installation Proline t-mass 65 MODBUS RS485 Installation conditions Note the following points: • The thermal dispersion principle is very sensitive to low flow rates and disturbed flow conditions. • Observe the recommended inlet and outlet requirements. • Good engineering practice is necessary for the associated pipe work and installation.

  • Page 13: Orientation

    Proline t-mass 65 MODBUS RS485 Installation 3.2.3 Orientation The device can generally be installed in any position in the piping. In the case of wet/dirty gases, upward flow is prefered in vertical pipes to minimise condensation/contamination. Where free condensation can occur (e.g. Biogas) the sensor should be orientated to prevent water collecting on or around the transducer.

  • Page 14: Inlet And Outlet Runs

    Installation Proline t-mass 65 MODBUS RS485 3.2.4 Inlet and outlet runs The sensitivity of the thermal dispersion principle to low flow rates means the flowmeter can also be sensitive to internal disturbances in the flowing gas stream (e.g. swirl), especially in the larger pipe diameters ≥...
  • Page 15 Proline t-mass 65 MODBUS RS485 Installation 15 x DN 2 x DN 20 x DN 5 x DN 15 x DN 2 x DN 20 x DN 5 x DN 15 x DN 2 x DN 20 x DN 5 x DN...

  • Page 16: Outlet Runs With Pressure

    Flow conditoner (19 hole) for use with flanged sensors This is a special Endress+Hauser version designed specially for use with the t-mass F sensor (Sizes DN 25 to 100 /1" to 4"). The flow conditioner should be fitted immediately upstream of the flanged sensor.

  • Page 17: The Flanged Version

    Proline t-mass 65 MODBUS RS485 Installation a0005116 Fig. 8: Flow conditioner mounting arrangement (example) 1 = Perforated plate flow conditioner 2 = Seal/gasket 3 = Notch Note! The flow conditioner has a notch to indicate the alignment position (mount vertically).

  • Page 18: Insertion Depth For The Insertion Version

    Installation Proline t-mass 65 MODBUS RS485 Vertical alignment It is important that the sensor mounting boss is welded to the pipe or duct such that the sensor is mounted at 90 degrees to the flow direction. Any deviation from this angle in any plane may cause flow disturbances around the measuring point that could cause errors.

  • Page 19: Low Pressure Retractable Process Connection

    Proline t-mass 65 MODBUS RS485 Installation Note! These mounting guidelines assume that a standard mounting boss provided by Endress+Hauser is being used (see Accessories on Page 66). Warning! The following tightening tensions for the compression fitting must be observed: • Locking nut: Hand tight, then 1¼ turns with a wrench •...
  • Page 20 Installation Proline t-mass 65 MODBUS RS485 Installing The mounting location is determined by the installation requirements for an insertion type sensor. Pay particular attention to mounting orientation and inlet and outlet length. See this chapter for details. Warning! Stop the process gas flow and de-pressurize the process line. Purge the line with an inert gas to remove any hazardous or toxic gases.
  • Page 21 Proline t-mass 65 MODBUS RS485 Installation a0005130 Fig. 13: Mounting the insertion sensor into the cold tap. Warning! The following tightening tensions for the compression fitting must be observed: - Locking nut: Hand tight, then 1¼ turns with a wrench...

  • Page 22: System Pressure

    Installation Proline t-mass 65 MODBUS RS485 Removing Warning! • The insertion sensor can only be safely removed at atmospheric conditions. • Stop the process gas flow and de-pressurize the process line. Purge the line with an inert gas to remove any hazardous or toxic gases. Allow the installation to cool to a safe temperature before handling any metal parts.

  • Page 23: External Pressure Compensation

    Proline t-mass 65 MODBUS RS485 Installation 3.2.12 External pressure compensation An external pressure compensating via MODBUS communication is useful in cases where: • Large variations of pressure are likely to occur e.g. 2 to 8 bar (30 to 120 psi) with air applications •...

  • Page 24: Thermal Insulation

    Installation Proline t-mass 65 MODBUS RS485 3.2.15 Thermal insulation When the gas is very humid or saturated with water (eg. Bio Gas) the pipeline and flowmeter body should be insulated to prevent water droplets condensing on the pipe wall and/or flow transducer.

  • Page 25: Installation Instructions

    Carefully lift the transmitter housing as far as it will go. Turn the transmitter housing to the desired position (max. 2 x 90° in either direction). Lower the housing into position and re-engage the bayonet catch. Retighten the two securing screws (only Endress+Hauser screws to be used). a0004302 Fig. 16: Turning the transmitter housing (aluminium field housing) 3.3.2...
  • Page 26 Installation Proline t-mass 65 MODBUS RS485 Mounted directly on the wall Drill the holes as illustrated in the diagram. Remove the cover of the connection compartment (a). Push the two securing screws (b) through the appropriate bores (c) in the housing.

  • Page 27: Turning The Local Display

    Proline t-mass 65 MODBUS RS485 Installation Pipe mounting The assembly should be performed by following the instructions in the diagram. " Caution! If a warm pipe is used for installation, make sure that the housing temperature does not exceed the max.

  • Page 28: Post-Installation Check

    Installation Proline t-mass 65 MODBUS RS485 Post-installation check Perform the following checks after installing the measuring device in the pipe: Device condition and specifications Notes Is the device damaged (visual inspection)? – → Page 88 ff. Does the device correspond to specifications at the measuring point, including process temperature and pressure, ambient temperature, measuring range, etc.?

  • Page 29: Wiring

    Wiring Wiring Warning! When connecting Ex-certified devices, see the notes and diagrams in the Ex-specific supplement to these Operating Instructions. Please do not hesitate to contact your Endress+Hauser representative if you have any questions. Cable specification MODBUS RS485 4.1.1 Cable type In the EIA/TIA-485 standard, two versions (cable type A and B) are specified for the bus line and can be used for all transmission rates.

  • Page 30: Shielding And Grounding

    Wiring Proline t-mass 65 MODBUS RS485 4.1.2 Shielding and grounding When planning the shielding and grounding for a fieldbus system, there are three important points to consider: • Electromagnetic compatibility (EMC) • Explosion protection • Safety of the personnel To ensure the optimum electromagnetic compatibility of systems, it is important that the system components and above all the cables, which connect the components, are shielded and that no portion of the system is unshielded.

  • Page 31: Connecting The Remote Version

    Proline t-mass 65 MODBUS RS485 Wiring Connecting the remote version 4.2.1 Connecting connecting cable for sensor/transmitter Warning! • Risk of electric shock. Switch off the power supply before opening the device. Do not install or wire the device while it is connected to the power supply.

  • Page 32: Cable Specification, Connecting Cable

    Wiring Proline t-mass 65 MODBUS RS485 4.2.2 Cable specification, connecting cable The specifications of the cable connecting the transmitter and the sensor of the remote version are as follows: • 2 x 2 x 0.5 mm² (AWG 20) PVC cable with common shield (2 twisted pairs) •...

  • Page 33: Modbus Rs485 Connection Diagram

    Proline t-mass 65 MODBUS RS485 Wiring 4.3.3 MODBUS RS485 connection diagram STATUS-IN N (L–) – L1 (L+) RxD/TxD-P A (RxD/TxD-N) A (RxD/TxD-N) RxD/TxD-P – STATUS-IN 20 21 22 23 24 25 26 27 N (L-) L1 (L+) a0005383 Fig. 22: Connecting the transmitter, cable cross-section: max.

  • Page 34: Degree Of Protection

    Wiring Proline t-mass 65 MODBUS RS485 Degree of protection The devices fulfill all the requirements for IP 67. Compliance with the following points is mandatory following installation in the field or servicing, in order to ensure that IP 67 protection is maintained: •...

  • Page 35: Post-Connection Check

    Proline t-mass 65 MODBUS RS485 Wiring Post-connection check Perform the following checks after completing electrical installation of the measuring device: Device condition and specifications Notes Are cables or the device damaged (visual inspection)? Electrical connection Notes Does the supply voltage match the specifications on the nameplate?

  • Page 36: Operation

    Operation Proline t-mass 65 MODBUS RS485 Operation Quick operation guide The user has a number of options for configuring and commissioning the device: Local display (option) → Page 37 The local display enables you to read all important variables directly at the measuring point, configure device parameters in the field and perform commissioning.

  • Page 37: Local Display

    Proline t-mass 65 MODBUS RS485 Operation Local display 5.2.1 Display and operating elements The local display enables you to read all important parameters directly at the measuring point and configure the device using the function matrix. The display consists of two lines; this is where measured values and/or status variables (process/system error messages, bar graph, etc.) are...

  • Page 38: Brief Operating Instructions To The Function Matrix

    Operation Proline t-mass 65 MODBUS RS485 Brief operating instructions to the function matrix Note! • See the general notes → Page 39. • Function descriptions → see the “Description of Device Functions” manual HOME position → F → Entry into the function matrix Select a function group (e.g.

  • Page 39: General Notes

    • If programming is disabled and the P operating elements are pressed in any function, a prompt for the code automatically appears on the display. • If “0” is entered as the customer's code, programming is always enabled. • Your Endress+Hauser representative can be of assistance if you mislay your personal code. " Caution! Changing certain parameters such as all sensor characteristics, for example, influences numerous functions of the entire measuring system, particularly measuring accuracy.

  • Page 40: Error Messages

    Operation Proline t-mass 65 MODBUS RS485 Error messages 5.4.1 Type of error Errors that occur during commissioning or measuring are displayed immediately. If two or more system or process errors occur, the error with the highest priority is the one shown on the display.

  • Page 41: Modbus Rs485 Communication

    Proline t-mass 65 MODBUS RS485 Operation MODBUS RS485 communication 5.5.1 MODBUS RS485 technology The MODBUS is an open, standardized fieldbus system which is deployed in the areas of manufacturing automation, process automation and building automation. System architecture The MODBUS RS485 is used to specify the functional characteristics of a serial fieldbus system with which distributed, digital automation systems are networked together.
  • Page 42 Operation Proline t-mass 65 MODBUS RS485 Master/slave communication A distinction is made between two methods of communication with regard to master/slave communication via MODBUS RS485: • Polling (request-response-transaction) The master sends a request telegram to one slave and waits for the slave's response telegram.

  • Page 43: Modbus Telegram

    Proline t-mass 65 MODBUS RS485 Operation 5.5.2 MODBUS telegram General The master-slave process is used for data exchange. Only the master can initiate data transmission. Following the prompt, the slave sends the master the necessary data as a response telegram or executes the command requested by the master.

  • Page 44: Modbus Function Codes

    Operation Proline t-mass 65 MODBUS RS485 5.5.3 MODBUS function codes The function code determines which read, write and test operations should be executed by means of the MODBUS protocol. The measuring device supports the following function codes: Function Name in accordance...

  • Page 45: Maximum Number Of Writes

    Proline t-mass 65 MODBUS RS485 Operation 5.5.4 Maximum number of writes If a nonvolatile device parameter is modified via the MODBUS function codes 06, 16 or 23, this change is saved in the EEPROM of the measuring device. The number of writes to the EEPROM is technically restricted to a maximum of 1 million. Attention must be paid to this limit since, if exceeded, it results in data loss and measuring device failure.
  • Page 46 Operation Proline t-mass 65 MODBUS RS485 Function Access Register in accordance with: Register in accordance with: code type “MODBUS Applications Protocol “Modicon MODBUS Protocol Specification” Reference Guide” → 4XXXX Write XXXX Example: reset totalizer 1 = 2608 Example: reset totalizer 1 = 42608...
  • Page 47 Proline t-mass 65 MODBUS RS485 Operation Byte transmission sequence Byte addressing, i.e. the transmission sequence of the bytes, is not specified in the MODBUS specification. For this reason, it is important to coordinate the addressing method between the master and slave during commissioning. This can be configured in the measuring device by means of the “BYTE ORDER”...

  • Page 48: Modbus Error Messages

    Operation Proline t-mass 65 MODBUS RS485 5.5.6 MODBUS error messages If the MODBUS slave detects an error in the request telegram from the master, it sends a reply to the master in the form of an error message consisting of the slave address, function code, exception code and check sum.
  • Page 49 Proline t-mass 65 MODBUS RS485 Operation Configuration of the scan list During configuration, the MODBUS register addresses of the device parameters to be grouped must be entered in the scan list. The scan list can contain up to 16 entries. Float and Integer-type device parameters with read and write access are supported.
  • Page 50 Operation Proline t-mass 65 MODBUS RS485 Access to data via MODBUS The MODBUS master uses the register addresses 5051 to 5081 to access the data area of the auto-scan buffer. This data area contains the values of the device parameters defined in the scan list.
  • Page 51 Proline t-mass 65 MODBUS RS485 Operation Example The following device parameters should be grouped via the auto-scan buffer and read out by the master with just one request telegram: • Mass flow → Register address 2007 • Totalizer 1 → Register address 2610 •...
  • Page 52 Operation Proline t-mass 65 MODBUS RS485 2. Access to data via MODBUS By specifying the register start address 5051 and the number of registers, the MODBUS master can read out the measured values with just one request telegram. Data area...

  • Page 53: Operating Options

    The Fieldcheck tester/simulator is used for testing flowmeters in the field. When used in conjunction with the “ToF Tool - Fieldtool Package” software package, test results can be imported into a database, printed and used for official certification. Contact your Endress+Hauser representative for more information.

  • Page 54: Hardware Settings

    Operation Proline t-mass 65 MODBUS RS485 Hardware settings 5.7.1 Hardware write protection, switching on and off A jumper on the I/O board provides the means of switching hardware write protection on or off. When the write protection is switched on, it is not possible to write to the device parameters via MODBUS communication.

  • Page 55: Configuring The Device Address

    Proline t-mass 65 MODBUS RS485 Operation 5.7.2 Configuring the device address The device address must always be configured for a MODBUS slave. The valid device addresses are in a range from 1 to 247. In a MODBUS RS485 network, each address can only be assigned once.

  • Page 56: Configuring The Terminating Resistors

    Operation Proline t-mass 65 MODBUS RS485 5.7.3 Configuring the terminating resistors It is important to terminate the MODBUS RS485 line correctly at the start and end of the bus segment since impedance mismatch results in reflections on the line which can cause faulty communication transmission.

  • Page 57: Commissioning

    Proline t-mass 65 MODBUS RS485 Commissioning Commissioning Function check Make sure that all final checks have been completed before you start up your measuring point: • Checklist for “Post-installation check” → Page 28 • Checklist for “Post-connection check” → Page 35...

  • Page 58: Quick Setup

    Commissioning Proline t-mass 65 MODBUS RS485 Quick Setup 6.3.1 Quick Setup “Commissioning” If the device is equipped with a local display, the Commissioning Quick Setup menu can be used to configure all the important device parameters for standard measuring quickly and easily.
  • Page 59 Proline t-mass 65 MODBUS RS485 Commissioning QUICK SETUP - COMMISSION Use the O or S key at the prompt “QS-COMMISSION NO” and the device access code entry appears. Enter the device access code “65” and press F; programming is enabled.

  • Page 60: Communication

    Commissioning Proline t-mass 65 MODBUS RS485 6.3.2 Quick Setup “Communication” To establish serial data transfer, various arrangements between the MODBUS master and MODBUS slave are required which have to be taken into consideration when configuring various functions. These functions can be configured quickly and easily by means of the Communication Quick Setup.
  • Page 61 Proline t-mass 65 MODBUS RS485 Commissioning Functions of the Quick Setup “Communication” YES → After F is pressed by way of confirmation, the Quick Setup menu calls up all the SETUP COMMUNICATION subsequent functions in succession. FIELDBUS ADDRESS For entering the device address.

  • Page 62: Data Back-Up With T-Dat Save/Load Function

    Commissioning Proline t-mass 65 MODBUS RS485 6.3.3 Data back-up with T-DAT SAVE/LOAD function The T-DAT SAVE/LOAD function can be used to store all the settings and parameters of the device to the HistoROM/T-DAT data storage device. XXX.XXX.XX Quick Setup HOME...

  • Page 63: Adjustment

    Proline t-mass 65 MODBUS RS485 Commissioning Adjustment 6.4.1 Zero point adjustment At zero flow conditions, the output of most thermal mass flow devices has a strong dependency on the process pressure. The effect on the true zero point of the device, by the static line pressure, is dependant on the gas type and the application demands and in many cases the use of the low flow cut-off function is adequate to zero the device output.

  • Page 64: Data Storage Device (Historom)

    The zero point adjustment is now reset. Data storage device (HistoROM) At Endress+Hauser, the term HistoROM refers to various types of data storage modules on which process and measuring device data are stored. By plugging and unplugging such modules, device configurations can be duplicated onto other measuring devices to cite just one example.

  • Page 65: Maintenance

    The compression fitting and bonded seal are available as spare parts. In-situ calibration The t-mass flowmeters are designed to support in-situ calibration using a reference meter signal, thus saving time and cost by reducing the need for factory re-calibration. Please discuss your specific requirements with your Endress+Hauser service representative.

  • Page 66: Accessories

    Accessories Proline t-mass 65 MODBUS RS485 Accessories Various accessories, which can be ordered separately from Endress+Hauser, are available for the transmitter and the sensor. Detailed information on the order code in question can be obtained from your Endress+Hauser representative. Device-specific accessories...

  • Page 67: Service-Specific Accessories

    Contact your Endress+Hauser representative for more information. FieldCare FieldCare is Endress+Hauser's FDT based Plant Asset Please refer to the product page of the Management Tool. It can configure all intelligent field Endress+Hauser Internet page: devices in your plant and supports you in managing www.endress.com...

  • Page 68: Trouble-Shooting

    Trouble-shooting Proline t-mass 65 MODBUS RS485 Trouble-shooting Trouble-shooting instructions Always start trouble-shooting with the following checklist if faults occur after commissioning or during operation. The routine takes you directly to the cause of the problem and the appropriate remedial measures.

  • Page 69: System Error Messages

    In the event of a serious fault, a flowmeter might have to be returned to the manufacturer for repair. Important procedures must be carried out before you return a flowmeter to Endress+Hauser. → Page 6. Always enclose a duly completed "Declaration of contamination" form. You will find a preprinted blank of this form at the back of this manual.

  • Page 70: List Of System Error Messages

    Trouble-shooting Proline t-mass 65 MODBUS RS485 9.2.1 List of system error messages MODBUS communication Device status message Cause Remedy / spare part (local display) Register: Register: 6859 6821 Data type: Data type: Integer String (18 byte) Response to a fault message:...
  • Page 71 Proline t-mass 65 MODBUS RS485 Trouble-shooting MODBUS communication Device status message Cause Remedy / spare part (local display) Register: Register: 6859 6821 Data type: Data type: Integer String (18 byte) TRANSM. HW-DAT S: TRANSM. HW-DAT Transmitter DAT 1. Replace the T-DAT.
  • Page 72 Trouble-shooting Proline t-mass 65 MODBUS RS485 MODBUS communication Device status message Cause Remedy / spare part (local display) Register: Register: 6859 6821 Data type: Data type: Integer String (18 byte) No. # 2xx → Error in DAT/no communication LOAD T-DAT...
  • Page 73 Proline t-mass 65 MODBUS RS485 Trouble-shooting MODBUS communication Device status message Cause Remedy / spare part (local display) Register: Register: 6859 6821 Data type: Data type: Integer String (18 byte) Application error SW.-UPDATE ACT S: SW.-UPDATE ACT New amplifier or Wait until process is finished.

  • Page 74: Process Error Messages

    Trouble-shooting Proline t-mass 65 MODBUS RS485 Process error messages Note! Also observe the information on the following pages: → Page 40 and → Page 68 9.3.1 List of process error messages MODBUS communication Device status message Cause Remedy / spare part...

  • Page 75: Process Errors Without Messages

    – Nameplate specifications : Order code and serial number → Page 7 ff. Returning devices to Endress+Hauser The procedures on must be carried out before you return a flowmeter requiring repair or calibration to Endress+Hauser. → Page 6 Always enclose a duly completed “Declaration of contamination” form with the flowmeter. You will find a preprinted “Declaration of contamination”...

  • Page 76: Response Of Totalizers And Modbus

    Trouble-shooting Proline t-mass 65 MODBUS RS485 Response of totalizers and MODBUS communication to errors Note! The failsafe mode of totalizers can be customized by means of various functions in the FAILSAFE MODE function. You will find detailed information on these procedures in the “Description of Device Functions”...

  • Page 77: Spare Parts

    The illustration below shows the available scope of spare parts. Note! You can order spare parts directly from your Endress+Hauser representative by providing the serial number printed on the transmitter's nameplate. → Page 7 Spare parts are shipped as sets comprising the following parts: •...

  • Page 78: Removing And Installing

    Trouble-shooting Proline t-mass 65 MODBUS RS485 9.6.1 Removing and installing printed circuit boards Field housing Warning! • Risk of electric shock. Exposed components carry dangerous voltages. Make sure that the power supply is switched off before you remove the cover of the electronics compartment.
  • Page 79 Proline t-mass 65 MODBUS RS485 Trouble-shooting a0005385 Fig. 42: Field housing: removing and installing printed circuit boards Local display Latch Ribbon cable (display module) Screws of electronics compartment cover Aperture for installing/removing boards Power unit board Amplifier board Signal cable (sensor)
  • Page 80 Trouble-shooting Proline t-mass 65 MODBUS RS485 Wall-mount housing Warning! • Risk of electric shock. Exposed components carry dangerous voltages. Make sure that the power supply is switched off before you remove the cover of the electronics compartment. • Risk of damaging electronic components (ESD protection). Static electricity can damage electronic components or impair their operability.
  • Page 81 Proline t-mass 65 MODBUS RS485 Trouble-shooting A0005387 Fig. 43: Wall-mount housing: removing and installing printed circuit boards Housing cover Electronics module Ribbon cable (display module) Screws of electronics compartment cover Aperture for installing/removing boards Power unit board Amplifier board Signal cable (sensor)
  • Page 82 Trouble-shooting Proline t-mass 65 MODBUS RS485 Electronics housing sensor remote version Warning! • Risk of damaging electronic components (ESD protection). Static electricity can damage electronic components or impair their operability. Use a workplace with a grounded working surface purposely built for electrostatically sensitive devices! •...

  • Page 83: Replacing The Device Fuse

    Proline t-mass 65 MODBUS RS485 Trouble-shooting 9.6.2 Replacing the device fuse Warning! Risk of electric shock. Exposed components carry dangerous voltages. Make sure that the power supply is switched off before you remove the cover of the electronics compartment. The main fuse is on the power unit board.

  • Page 84: Return

    Endress+Hauser: • Always enclose a duly completed “Declaration of contamination” form. Only then can Endress+Hauser transport, examine and repair a returned device. • Enclose special handling instructions if necessary, for example a safety data sheet as per EN 91/ 155/EEC.

  • Page 85: Technical Data

    The tables below define the ranges available for air without flow conditoner. Please refer to your Endress+Hauser representative or to Applicator (the Endress+Hauser sizing and selection software) for other gases and process conditions. Measuring range for the flanged version, metric units: kg/h /h at 0°C, 1.013 bar a...
  • Page 86 Technical data Proline t-mass 65 MODBUS RS485 Measuring range for the flanged version, US units: lb/h /h at 59 °F, 14.7 psi a scf/min. at 59 °F, 14.7 psi a min. max. min. max. min. max. ½" 0.23 1" 1 ½"...

  • Page 87: Output

    To correctly size and select a meter, it is recommended that you either contact your local Endress+Hauser representative or refer to Applicator (the Endress+Hauser sizing and selection software).

  • Page 88: Power Supply

    Technical data Proline t-mass 65 MODBUS RS485 10.1.5 Power supply → Page 29 ff. Electrical connections Supply voltage 85 to 260 V AC, 45 to 65 Hz 20 to 55 V AC, 45 to 65 Hz 16 to 62 V DC...

  • Page 89: Operating Conditions: Installation

    Proline t-mass 65 MODBUS RS485 Technical data 10.1.7 Operating conditions: Installation Installation instructions see Page 12 ff. Inlet and outlet runs see Page 14 ff. Length of connecting cable Max. 100 meters (328 feet), remote version System pressure see Page 22 10.1.8...

  • Page 90: 10.1.10 Mechanical Construction

    Technical data Proline t-mass 65 MODBUS RS485 Medium pressure range t-mass F: (nominal pressure) –0.5 to 40 bar (–7.25 to 580 psi) gauge t-mass I: –0.5 to 20 bar (–7.25 to 290 psi) gauge See “Measuring range” section. → Page 85 ff.
  • Page 91 Proline t-mass 65 MODBUS RS485 Technical data Material Transmitter housing: • Compact housing: powder coated die-cast aluminium • Wall-mount housing: powder coated die-cast aluminium • Remote field housing: powder coated die-cast aluminium Connection housing, sensor (remote version): powder coated die-cast aluminium...

  • Page 92: 10.1.11 Human Interface

    Technical data Proline t-mass 65 MODBUS RS485 Bonded seals: EPDM, Kalrez, Nitrile 316/316L (outer ring) Low pressure retractable insertion fitting (Cold tap): Lower tube section: 1.4404 to EN 10272 and 316/316L to A479 Upper tube section: 1.4404 to EN 10216-5 and 316/316L to A312 Ball valve: 1.4408 to EN 10213-4 and CF8M...

  • Page 93: 10.1.12 Certificates And Approvals

    CE mark The measuring system is in conformity with the statutory requirements of the EC Directives. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. C-Tick mark The measuring system meets the EMC requirements of the Australian Communications and Media Authority (ACMA).

  • Page 94: 10.1.13 Ordering Information

    10.1.14 Accessories Various accessories, which can be ordered separately from Endress+Hauser, are available for the transmitter and the sensor. → Page 66 Your Endress+Hauser representative can provide detailed information on the order codes of your choice.

  • Page 95: Index
