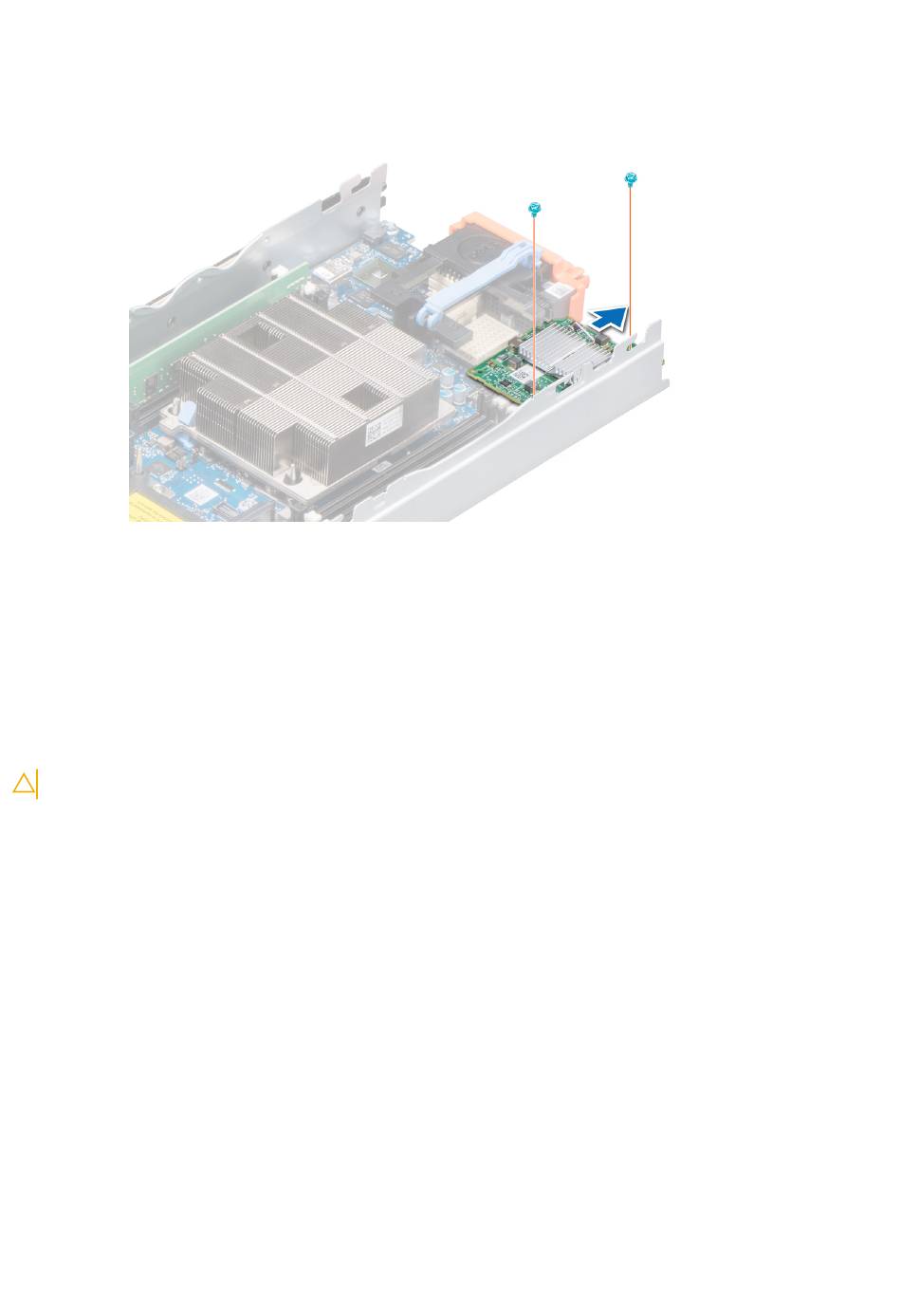

Figure 42. Removing the Network Daughter Card
Next steps
1.
Install the
NDC.
Installing the Network Daughter Card
Prerequisites
CAUTION:
To prevent damage to the Network Daughter Card (NDC), you must hold the card only by its edges.
1. Follow the safety guidelines listed in
Steps
1. Align the following:
a. The slots on the card edge with the projection tabs on the plastic bracket covering the mezzanine card slots.
b. Screw holes on the card with the standoffs on the system board.
2. Lower the card into place until the card connector fits into the corresponding connector on the system board.
3. Using the Phillips #2 screwdriver, replace the screws to secure the card.
82
Installing and removing system components
Safety instructions
on page 46.
