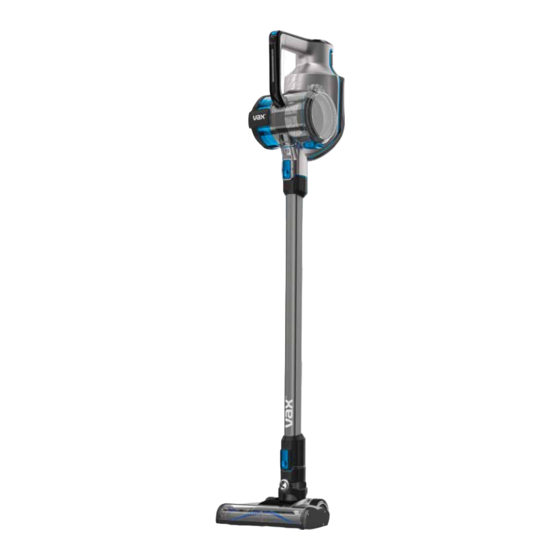

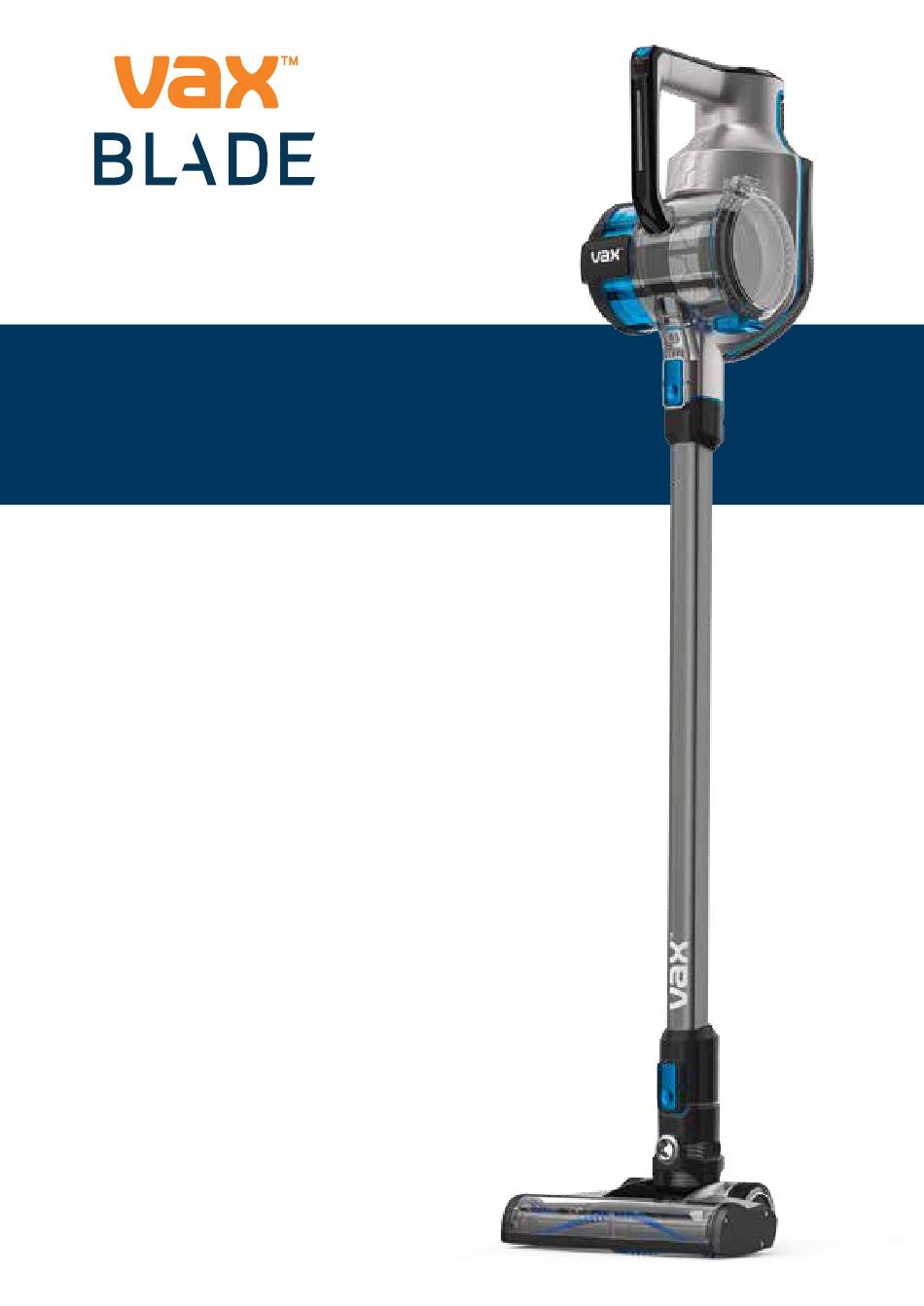

- Page 1 C O R D L E S S CORDLESS SLIM VAC WITH DETACHABLE HANDHELD LET’S GET STARTED. TBT3V1B1 TBT3V1P1 TBT3V1P2 TBT3V1B2 TBT3V1F1 TBT3V1H1 TBT3V1T1 TBT3V1T2...
-
Page 2: Let's Talk Safety
Let’s talk safety This slim vac is intended for household use only and NOT for commercial or industrial use. • This slim vac does not stay upright without constant support. Basic Between uses, lie flat on the floor in a suitable location so that it safety does not become a trip hazard or can be stepped on. - Page 3 Cleaning and user maintenance should not be made by children without supervision. • Only Vax recommended charger, tools and accessories should be used with this slim vac. • The battery must be removed from the appliance before it is scrapped.
- Page 4 Thank you for buying this Vax Cordless Blade. Taking care of your carpets and hard floors The Vax Cordless Blade series is designed to make vacuuming carpets and hard floors regularly, as effective and efficient as possible and this user guide will help you get the most out of your machine.
-
Page 5: Table Of Contents
Contents Included with your machine Let’s talk safety Cordless Blade 32V Getting to know your machine Cordless Blade 24V Getting started Crevice Tool Using your machine Dusting Brush Taking care of your machine Let’s talk technical Cordless Blade 32V Pro Accessories Cordless Blade 32V Ultra What to do if it goes wrong... -
Page 6: Getting To Know Your Machine
Powered Head/ accessory release clip Powered Head Brushbar Technical Specification Accessories & Consumables Name Vax Cordless Blade 24V Name Vax Cordless Blade 32V Foam filter 1-7-138744 Battery voltage See product rating label Battery voltage See product rating label Run time 35 minutes... -
Page 7: Getting Started
Getting started PLEASE READ ‘LET’S TALK SAFETY’ AT THE BEGINNING BEFORE USE Before you begin CAUTION: Always switch off the slim vac before connecting or disconnecting the handheld/attachments or removing and emptying the dirt container. IMPORTANT: The slim vac is equipped with a thermal cut-out. If for any reason the slim vac does overheat, the thermostat will automatically turn the slim vac off. - Page 8 Getting started Fixing the wall bracket Fully assemble Line up the wall bracket with the back of the handheld. Choose a location for the the slim vac. Slot the bracket into the handheld and push upwards slim vac to be stored, to lock into place.
- Page 9 Getting started PLEASE READ ‘LET’S TALK SAFETY’ BEFORE USE CAUTION: The battery used in this device may present a risk of fire or chemical burn if mistreated. Do not disassemble or heat above manufacturer’s maximum temperature limit (60°C/140°F) or incinerate. Use of another battery may present a risk of fire or explosion.
- Page 10 Getting started Charging the battery When the charger is connected, both the battery charging light on the back of the handheld and battery indicator light on the handle will illuminate: Red light - the slim vac is charging White light - the slim vac is charged The battery level gauge lights will illuminate in turn as the battery charges, until all four lights are illuminated.
-
Page 11: Using Your Machine
Using your machine NOTE: The slim vac has a constantly rotating brushbar when activated. Never leave the slim vac in one spot for an extended period of time as this may damage the floor surface. Always turn the brushbar off when cleaning hard floors. - Page 12 Using your machine Using the slim vac reach wand The reach wand can be used for hard to reach places. Press the Powered Head/ Choose an accessory Push the chosen accessory release clip (pictures illustrated accessory into the and pull to remove the depending on model).
- Page 13 Using your machine Using the slim vac as a handheld NOTE: The slim vac has a constantly rotating brushbar when activated. Never leave the slim vac in one spot for an extended period of time as this may damage the floor surface. Always turn the brushbar off when cleaning hard floors.
-
Page 14: Taking Care Of Your Machine
Taking care of your machine Emptying and cleaning the dirt container CAUTION: Always switch off the slim vac and unplug from the charger and mains before carrying out any maintenance or troubleshooting. WARNING: Don’t over fill the dirt container to avoid blocking the air flow through the slim vac. Press the handheld The reach wand, when Hold the handheld over a bin and press the dirt release... - Page 15 Taking care of your machine Cleaning the filters and separator CAUTION: Always remove the reach wand/accessories from the handheld and empty the dirt container before cleaning the filters and separator. DO NOT use the slim vac without both the filters in place. For best cleaning results, the filters should be tapped over a bin every 4-6 uses to remove dirt and debris and washed every 3 months depending on the level of use.
- Page 16 Taking care of your machine Cleaning the separator and foam filter Press the handheld Hold the handheld over a bin and press the dirt release release clip. Pull and button to allow dirt/debris to fall out. remove the reach wand or the accessory that is attached to the handheld.
-
Page 17: Let's Talk Technical
Let’s talk technical Removing blockages from the handheld and reach wand Press the handheld To test for a blockage in the reach wand, drop a small release button and ball of paper into the wand. The paper will drop through remove the reach wand. - Page 18 Let’s talk technical Removing and replacing the brushbar On the base of the Using a cross head Slide the brushbar out Clear any threads or floorhead, find letter A screwdriver, unscrew the from the brushbar housing. hair from around the to indicate the side of three screws and remove brushbar and any dirt/...
-
Page 19: Accessories
Accessories Also available Vax Cordless Blade Tools Order at: www.vax.co.uk/spares-and-solutions Refer to ‘Using your machine’ section for tool assembly instructions. Vax Cordless Blade tools Crevice Tool 1-9-138758 The crevice tool is ideal for use all around the home. It’s perfect for those tricky corners and crevices. -
Page 20: What To Do If It Goes Wrong
What to do if it goes wrong Problem Solution There is an • Check the contents panel on the box to make sure the part is included accessory missing with your slim vac. • The battery may not be charged. Go to ‘Getting Started’. •... -
Page 21: Getting In Touch
Getting in touch † Registration required. Terms and conditions apply, see vax.co.uk for details. - Page 22 Notes...
- Page 23 Notes...
- Page 24 Local Authority or retailer for recycling advice. © 2017 Vax Limited. All rights reserved. The VAX trade mark and Vax lozenge are the property of Techtronic Floor Care Technology Ltd and are registered in the EU and may be pending or registered in other countries.
