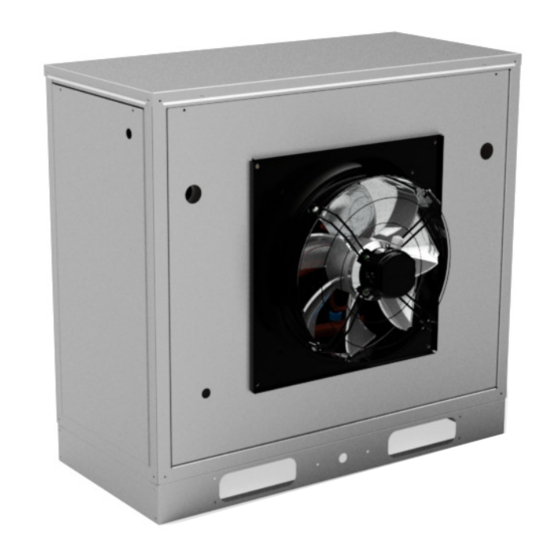

- Page 1 Installation, Operation and Maintenance Manual Group: Chiller Part number: IOM CLIV Date: 16 November 2022 CLIV Series Air-Cooled Fixed Compressor Chilled Water Chiller Unit Model 3,5 and 10 TR Refrigerant HFC-410A 50/60 Hz...
-
Page 2: Table Of Contents
WARNINGs de Seguridad.........4 Descripción General............5 Installation and Application Information....6 Refrigeration Schematics........13 Dimensions and Weights - Packaged Units....................15 Refrigerant Charge ..........17 Refrigerant Charge / Caída De Presión.....18 Datos Eléctricos............19 Unit Controller Operation..................24 Sequence Operation.........26 Funciones De La Unidad...........30 Funciones De Los Circuitos........31 Alarmas..............33 Uso Del Controlador..........35 Procedimientos De Arranque Y Apagado....38... - Page 3 Pre-Start-Up Checklist - Fixed Compressor Chillers Must be completed, signed and submitted to Clima Flex at least 2 weeks prior to the requested start date. Job name Place of installation Customer order number Model number(s) G.O. Number(s) Iniciales Chilled water and condensing water for water-cooled chillers Complete piping Water strainer(s) installed in piping according to manual requirements Water system: flushing, filling and draining;...
-
Page 4: Warnings De Seguridad
Safety Warnings This manual contains safety instructions that must be followed during installation and maintenance of the unit. Read this manual before installing or operating this unit. NOTE: Installation and maintenance should be performed only by qualified personnel who are familiar with local codes and regulations and who have experience with this type of equipment. -
Page 5: Descripción General
General Description Clima Flex’s CLIV series air-cooled chilled water generators are The electrical control center includes all operating controls and complete, self-contained, automatic chillers designed for outdoor equipment protection necessary for reliable automatic operation. installation. The package units are fully assembled, factory wired, Components housed in a weatherproof control panel. -
Page 6: Installation And Application Information
Installation and Application Information Table 1. Limites De Funcionamiento Y Espera Maximum standby ambient temperature 130°F (54°C) Maximum operating ambient temperature 105°F (41°C) Minimum operating ambient temperature (standard control) 32°F(0°) Outgoing chilled water temperature 40°F A 65°F (4°C to 18°C) Outgoing chilled fluid temperatures (with antifreeze) - Note that in cases of high ambient temperature, 15°F A 65°F (-9°C to 18°C) the lowest outgoing water temperature settings may be outside the chiller operating envelope. - Page 7 Installation and Application Information PLACEMENT OF THE UNIT A. Sides The equipment must be installed in accordance with national • 4 fan models: Minimum of 1.2 m (4 ft.) and local safety standards. If no local standards are applicable, • 6 to 14 fan models: It is strongly recommended that a minimum installation must be in accordance with national standards.
- Page 8 Installation and Application Information Figure 5. Three or more units, side by side. CAUTION The performance of the unit may be affected if the operating clearance is not sufficient. Case 1. Building or wall on one side of the unit. NOTES: Assumes a solid height wall higher than the unit.
- Page 9 Installation and Application Information • Piping for units with brazed plate evaporators must have a drain and vent connection at the bottom of the bottom CAUTION connection piping and at the top of the top connection piping, respectively, see Figure 6. To prevent damage to the evaporator and possible failure of •...
- Page 10 Installation and Application Information It is recommended that the field-installed water piping for the Figure 7. Factory installed strainer. chiller include: • Temperature sensors evaporator inlet outlet connections. • Water pressure gauge connection taps and pressure gauges on evaporator inlet and outlet connections to measure water pressure drop.
- Page 11 Installation and Application Information gpm” is often used. A storage tank may have to be added to the system to achieve the recommended volume. CAUTION The quality of water supplied by the owner/occupant/operator/ user to a cooling system should minimize corrosion, scale buildup, Adding glycol or draining the system is the recommended erosion, and biological growth to achieve optimum efficiency method of freeze protection.
- Page 12 Installation and Application Information GLYCOL SOLUTIONS CONDENSER COIL OPTIONS AND COATING Considerations The use of glycol can affect system performance depending on its concentration and should be taken into account during initial system design. When glycol is added to the chilled water system The standard CLIV Series chiller coils have an aluminum alloy to protect against freezing, it should be noted that the refrigerant microchannel design with a series of flat tubes containing...
-
Page 13: Refrigeration Schematics
Refrigeration Schematics Figure 8. Refrigeration Schematics CLIV. www.clima-flex.com iom-cliv-cf-eng... - Page 14 Refrigeration Schematics Figure 9. CLIV heat pump cooling scheme. iom-cliv-cf-eng www.clima-flex.com...
-
Page 15: Dimensions And Weights - Packaged Units
Dimensions and Weights - Packaged Units Figure 10. CLIV. www.clima-flex.com iom-cliv-cf-eng... - Page 16 Dimensions and Weights - Packaged Units Figure 11. CLIV heat pump. iom-cliv-cf-eng www.clima-flex.com...
-
Page 17: Refrigerant Charge
Refrigerant Charge EMPTYING PROCEDURE WARNING Any system that has been exposed to the atmosphere must be The pump oil should be changed periodically to ensure properly dehydrated. This is achieved with a proper vacuum vacuum efficiency. procedure. To achieve a proper vacuum, a VACUUM PUMP (not a REFRIGERANT CHARGE compressor) and a VACUOMETER are required. - Page 18 Refrigerant Charge / Pressure Drop Table 4. Refrigerant Charge. FAMILY R410A (Lb) R410A (Kg) CLIV 3 TR 3.56 1.61 CLIV 5 TR 3.52 1.60 CLIV 10 TR 3.52 1.66 Figure 12. Diagram to obtain the vacuum and for the Refrigerant Charge. OUTLET VALVE LOAD...
-
Page 19: Datos Eléctricos
Electrical Data ELECTRICAL CONNECTION CAUTION CLIV units can be ordered with standard multi-point power connections or with optional single-point connections and various Static discharge during handling of the circuit boards can disconnect and circuit breaker options. Wiring inside the unit is cause damage to the components. - Page 20 Electrical Data Figure 13. Typical field wiring diagram of the 220v slave only cold unit (single point connection with all options shown) iom-cliv-cf-eng www.clima-flex.com...
- Page 21 Electrical Data www.clima-flex.com iom-cliv-cf-eng...
- Page 22 Electrical Data Figure 14. Typical field wiring diagram of the 440v slave single cold unit (single point connection with all options shown) iom-cliv-cf-eng www.clima-flex.com...
- Page 23 Electrical Data www.clima-flex.com iom-cliv-cf-eng...
-
Page 24: Unit Controller Operation
Unit Controller Operation GENERAL DESCRIPTION The CAREL “APPLICA” app, available on Google Play for the Android operating system, facilitates parameter configuration and unit commissioning operations in the field. μChiller is Carel’s solution for the complete management of chiller units, air-to-water heat pumps, water-to-water heat pumps and SYSTEM ARCHITECTURE motor condensing units. - Page 25 Unit Controller Operation INPUTS AND OUTPUTS Tabla 6. Analog inputs Physical address Electrical diagram label Name Return Sensor Injection Sensor Condenser Sensor Tabla 7. Digital inputs Physical address Electrical diagram label Name Flow sensor Heating / cooling switch High pressure switch Low pressure switch System Cliv unit on/off switch...
-
Page 26: Sequence Of Operation
Sequence Of Operation Figure 16. Sequence of operation of the unit - Cool mode. Unit Power up Wait the time for the start up compressor Unit in OFF state The contactor auxiliar remains on while chiller is enabled Is unit enabled? Is the protection module or... - Page 27 Sequence Of Operation Operation run need more Operation of circuit in capacity?? stabilization Increase unit capacity Load is abatied? Unit turn up full capacity? Shut down the circuit. Operation of circuit in stabilization Unit turn down full capacity? Decrease unit capacity Is unit running at minimun...
- Page 28 Sequence Of Operation Figure 17. Sequence of operation of the unit - heat pump mode. Unit Power up Wait the time for the start up compressor Unit in OFF state The contactor auxiliar remains on while chiller is enabled Is unit enabled? Is the protection module or...
- Page 29 Sequence Of Operation Operation run need more Operation of circuit in capacity?? stabilization Increase unit capacity Load is abatied? Unit turn up full capacity? Shut down the circuit. Operation of circuit in stabilization Unit turn down full capacity? Decrease unit capacity Is unit running at minimun...
-
Page 30: Funciones De La Unidad
Unit Functions CIRCUIT LOGIC CONTROL The calculations in this section are used in unit-level control logic or all-circuit control logic. Circuit enablement EVAPORATOR DELTA T A circuit must be enabled to start if the following conditions are The Delta T of the evaporator water is calculated as the met: temperature of the water entering minus that leaving through all circuits. -
Page 31: Funciones De Los Circuitos
Circuit Functions CIRCUIT STATES T6 - Pre-open to Off The circuit will always be in one of four states: Any of the following is required: Off - The circuit is not running. Pre-open - The circuit is preparing to start up Running - The •... - Page 32 Circuit Functions Dimensions (Mm) Figure 19. Fan sequence according to capacity. Adjustable - ODF connections with 1/4” equalizer OVERHEATING CONTROL STATUS OPERATION TXV Operation The measurement of refrigerant flow to the evaporator is the exclusive function of a TXV. It must measure this flow at precisely Non-adjustable - Odf connections with 1/4”...
-
Page 33: Alarmas
Alarms ALARMS Pressing the Alarm key silences the buzzer and displays the alarm code. Pressing UP/DOWN scrolls through the list of other possible alarms. Alarms that require technical assistance intervention indicate the request on the display by the flashing of the key icon. The lit key icon indicates that a device has reached the programmed threshold of the number of operating hours, and a maintenance intervention is required (the alarm code indicates which device is... - Page 34 Alarms Alarm Description This alarm indicates when the water return sensor or water return probe is damaged or broken. This alarm indicates when the water injection sensor is damaged or broken. This alarm indicates when there is a census or water flow problem. This alarm usually appears together with the A10 alarm as it depends on the configuration at which the pump was com- missioned, otherwise the current equipment containing this controller simply has a pump configured in this case this alarm goes together with the current pump configuration.
-
Page 35: Uso Del Controlador
Controller Use DISPLAY Status Source devices (pump Active Manual operation / fan) Compressor Manual operation (with Active status ExV) Anti-Icing Active Resistance Heating Cooling High tem. Water Mode of operation Defrosting Dripping after defrosting Legend Free cooling Keyboard Demand for Serious alarm, request exceeding the Main field... - Page 36 Controller Use SHORTCUT FUNCTIONS Only basic configuration parameters such as direct commands and active alarms can be accessed through the user terminal without password, or with password to those dedicated to unit configuration and optimization. Press DOWN for 3 s to access the direct access functions: •...
- Page 37 Controller Use Press PGR: the value flashes, press UP/DOWN PRsGolf for heat Press DOWN: the command to cancel the alarm log (ClrH) pump units, confirm. appears - Assistance level only. Press DOWN to display the heating set point (SEtH). Press DOWN: the selection of units of measurement (UoM) appears.
-
Page 38: Procedimientos De Arranque Y Apagado
Startup and shutdown procedures PRE-START-UP CHECKLIST The following data should be checked before putting the unit into operation. Date: Place of Work: Location: Installing Contractor: Technician/Company: Unit Commissioning: Unit model: Serial number: PHYSICAL INSPECTION (BEFORE ELECTRICAL CONNECTION) Check that the unit has not been damaged by handling or transport. Visually check for refrigerant leaks. - Page 39 Startup and shutdown procedures Check that the water filter is clean. Check that all service valves are open. Check the correct structure of the water supply. Check that all pipes are filled with water and that air has been evacuated. Check thermometers (not included from factory).
- Page 40 Startup and shutdown procedures INSPECTION OF THE CONTROL PANEL Check that the control panel is free of foreign objects. Power supply unit with three-phase electrical current. Phase unbalance should be less than 2% of average. Turn on each fan to ensure proper rotation. Turn on the water pump (if applicable) to make sure it is running.
-
Page 41: Mantenimiento De La Unidad
Unit Maintenance MAINTENANCE COMPRESSOR MAINTENANCE Service or maintenance of these units should be performed The internal pressure and surface temperature of the compressor by experienced personnel with specific refrigeration training. are DANGERs and can cause permanent injury. Safety devices should be checked repeatedly and cycling control components should be analyzed and corrected before resetting Operators, installers and maintenance personnel require proper is initiated. - Page 42 Unit Maintenance FILTER DRIER WARNING Any particles from the condenser piping, compressor or various components are swept by the refrigerant into the liquid line and Risk of electric shock, can cause injury and death. trapped by the filter drier. It is recommended that the filter drier be replaced each time a Disconnect all power sources before inspecting the fan.
- Page 43 Unit Maintenance ELECTRICAL MAINTENANCE Re-tighten connectors and terminals on the Plan electrical panel, control parts, power and junction boxes (quarterly). Real Physical inspection of all electrical panel Plan connectors and relays (monthly). Real Check amperage of all electric motors, Plan compare them according to the equipment nameplate for anomalies (quarterly).
-
Page 44: Cuadro De Resolución De Problemas
Troubleshooting Chart Problem Possible causes Possible corrective actions Main compressor disconnect Switch closed. switch open. Check the electrical circuit and possible short circuit, line to ground, loss of Damaged fuse, open circuit brakes. connections or motor windings causing the failure. Replace the fuse and reset the compressor brakes, only after detecting and correcting the cause of the failure. - Page 45 Troubleshooting Chart Problem Possible causes Possible corrective actions Voltage unbalance or out of range. Correct power supply. Check the electrical circuit for possible problems. Then re- Faulty or grounded wiring on motor. Motor overload place the compressor. relays or circuit Loose power wiring or faulty Check all connections and tighten them, if necessary replace breakers open.
- Page 46 iom-cliv-cf-eng www.clima-flex.com...
