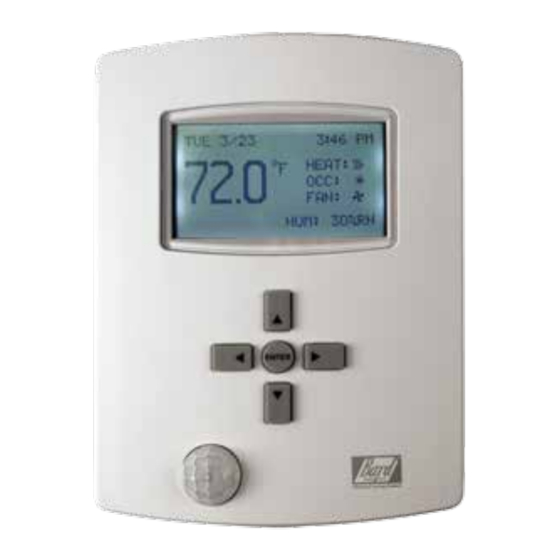

- Page 1 INSTALLATION INSTRUCTIONS CONTROLLER INSTALLATION, OPERATION & QUICK START GUIDE Bard CompleteStat Models: CS9B-THO CS9BE-THO CS9B-THOC CS9BE-THOC Bard Manufacturing Company, Inc. Manual: 2100-566F Bryan, Ohio 43506 Supersedes: 2100-566E Date: 9-1-16 www.bardhvac.com Page 1 of 24...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INSTALLATION ............3 FIGURES Mounting Controller ..........3 Figure 1 CompleteStat Buttons and Screens ..5 CompleteStat Setup Information......4 Figure 2 CompleteStat Terminal Descriptors and Optional Inputs ....... 9 BASIC OPERATION ..........5 Basic Setup ............5 TABLES Quick Start Programming ........ -
Page 3: Installation
INSTALLATION IMPORTANT: For optimum temperature sensor 3. Route completed wiring through base plate. performance, the Bard CompleteStat must be 4. With the embossed “UP” arrows of the base plate mounted on an interior wall and away from any heat pointing in the appropriate direction, fasten the sources, sunlight, windows, air vents, air circulation base plate to the desired wall location. -
Page 4: Completestat Tm Setup Information
CompleteStat Setup at Time of Installation Determine the following information prior to installation. 1. Degrees Scale: °F °C 2. Unit Type: A/C 3. Options: A/C – 1H/1C 2H/2C 1H/2C 2H/1C HP – 1 Stage 2 Stage 4. Economizer: Yes 5. Fan: Off Delay (seconds) Unoccupied: Auto Occupied: Auto 6. -
Page 5: Basic Operation
4. Controller will ask for Admin Level Password. Enter 12. Press ENTER button to select/save appropriate BARD or 1914. Press ENTER button. model stage. 5. Press ENTER button to choose DEGREES SCALE 13. Press DOWN button to scroll to ADDITIONAL (if neccessary). -
Page 6: Air Conditioner Applications
(factory 4. Controller will ask for Admin Level Password. default). Enter BARD or 1914. Press ENTER button. • Occ: “ON” = System fan will run continuously 5. Press DOWN button to scroll to ADDITIONAL during all operational modes (factory default);... - Page 7 To • Unocc: “ON” = System fan will run install Bard 8403-061 Outdoor Air Temperature Sensor, continuously during all operational modes; attach the leads to terminals “OAT” and “GND”. To set “AUTO” = System fan will operate during call...
-
Page 8: System Enable
HVAC system will cycle heating in reference point. For further controller enhancement or operation to heating setpoint only. Unit will not activate detail, please consult the latest edition of the Bard cooling sequence. CompleteStat Advanced Programming & Features manual P/N 2100-567. -
Page 9: Figure 2 Completestat
FIGURE 2 CompleteStat Terminal Descriptors and Optional Inputs Field-Installed Jumper Field-Installed Jumper Field-Installed Jumper 8403-062 Indoor Remote Air Temperature Sensor 8403-061 Outdoor Air Temperature Sensor NOTE: Use twisted shielded pair for optional outdoor and indoor air sensors. Connect shield (drain) to 24V common. -
Page 10: Sequence Of Operation
SEQUENCE OF OPERATION Conventional 1H/1C, 2H/1C, 1H/2C or 2H/2C without Economizer Operation W1/E Fan Only Stage Cooling Stage Cooling (if employed) Stage Heating Stage Heating (if employed) Dehumidification Ventilation CS9B(E)-THOC (CO Sensing Capability) models will activate both G and A terminals upon a ventilation call; however, the CS9B(E)-THOC (Non-CO Sensing) models will activate the A terminal only if there is an existing call for the indoor blower, whether through space conditioning or through constant fan operation. - Page 11 Single Stage Heat Pump without Economizer Operation W1/E Fan Only Stage Cooling Stage Heating Stage Heating Emergency Heat Dehumidification Ventilation CS9B(E)-THOC (CO Sensing Capability) models will activate both G and A terminals upon a ventilation call; however, the CS9B(E)-THOC (Non-CO Sensing) models will activate the A terminal only if there is an existing call for the indoor blower, whether through space conditioning or through constant fan operation.
- Page 12 SEQUENCE OF OPERATION (CONT.) Single Stage Heat Pump with Economizer Operation W1/E Fan Only Stage Cooling Stage Cooling Stage Heating Stage Heating Emergency Heat Dehumidification Ventilation CS9B(E)-THOC (CO Sensing Capability) models will activate both G and A terminals upon a ventilation call; however, the CS9B(E)-THOC (Non-CO Sensing) models will activate the A terminal only if there is an existing call for the indoor blower, whether through space conditioning or through constant fan operation.
-
Page 13: Table 2 Wiring Diagram Index
Manual 2100-566F Page 13 of 24... -
Page 14: Wiring Diagrams
WIRING DIAGRAMS IMPORTANT: Be sure to connect these field-installed jumpers for proper operation IMPORTANT: Be sure to connect these field-installed jumpers for proper operation EIFM Manual 2100-566F Page 14 of 24... -
Page 15: Wd3: Conventional 1H/1C Or 2H/1C With Honeywell W7220 Jade Tm Control Economizer, With Or Without Dehumidification
IMPORTANT: Be sure to connect these field-installed jumpers for proper operation JADE IMPORTANT: Be sure to connect these field-installed jumpers for proper operation EIFM Manual 2100-566F Page 15 of 24... -
Page 16: Wd6: Heat Pump 2H/1C Or 3H/1C, With Or Without Dehumidification And Ventilation
WIRING DIAGRAMS (CONT.) IMPORTANT: Be sure to connect these field-installed jumpers for proper operation JADE IMPORTANT: Be sure to connect these field-installed jumpers for proper operation Manual 2100-566F Page 16 of 24... -
Page 17: Wd7: Heat Pump 2-Stage, With Or Without Dehumidification And Ventilation
IMPORTANT: Be sure to connect these field-installed jumpers for proper operation IMPORTANT: Be sure to connect these field-installed jumpers for proper operation EIFM Manual 2100-566F Page 17 of 24... -
Page 18: Wd10: Heat Pump 2-Stage With Honeywell W7459A Control Economizer, With Or Without Dehumidification
WIRING DIAGRAMS (CONT.) IMPORTANT: Be sure to connect these field-installed jumpers for proper operation JADE IMPORTANT: Be sure to connect these field-installed jumpers for proper operation EIFM Manual 2100-566F Page 18 of 24... -
Page 19: Wd11: Heat Pump 2-Stage With W7220 Jade Tm Control Economizer, With Or Without Dehumidification
IMPORTANT: Be sure to connect these field-installed jumpers for proper operation JADE IMPORTANT: Be sure to connect these field-installed jumpers for proper operation Manual 2100-566F Page 19 of 24... -
Page 20: Wd13: Gas/Electric 1H/2C, With Or Without Dehumidification And Ventilation
WIRING DIAGRAMS (CONT.) IMPORTANT: Be sure to connect these field-installed jumpers for proper operation IMPORTANT: Be sure to connect these field-installed jumpers for proper operation EIFM Manual 2100-566F Page 20 of 24... -
Page 21: Wd15: Gas/Electric 1H/2C, With Honeywell W7459A Control Economizer With Or Without Dehumidification
IMPORTANT: Be sure to connect these field-installed jumpers for proper operation EIFM IMPORTANT: Be sure to connect these field-installed jumpers for proper operation Manual 2100-566F Page 21 of 24... -
Page 22: Wd17: I-Tec ® 2-Stage Heat Pump Series With Crv Ventilation Package
WIRING DIAGRAMS (CONT.) IMPORTANT: Be sure to connect these field-installed jumpers for proper operation IMPORTANT: Be sure to connect these field-installed jumpers for proper operation Manual 2100-566F Page 22 of 24... -
Page 23: Wd19: Q-Tec Tm Qa**/Q**A Series 1-Stage Air Conditioner, With Or Without Ventilation And Dehumidification
IMPORTANT: Be sure to connect these field-installed jumpers for proper operation IMPORTANT: Be sure to connect these field-installed jumpers for proper operation Manual 2100-566F Page 23 of 24... -
Page 24: Honeywell W7220 Jade Tm Control Economizer
WIRING DIAGRAMS (CONT.) IMPORTANT: Be sure to connect these field-installed jumpers for proper operation Wiring Diagram 22: C**H Heat Pump 2-Stage, with Honeywell W7220 Jade Control Economizer, with or w/o dehum. CompleteStat IMPORTANT: Be sure to connect these field-installed jumpers for proper operation W2 W1/E SC GND L COM 24V D SC...
