Nortel BayStack 100-S Reference

Reference for the baystack instant internet remote access commands version 7.11
Hide thumbs Also See for BayStack 100-S:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Installation Manual

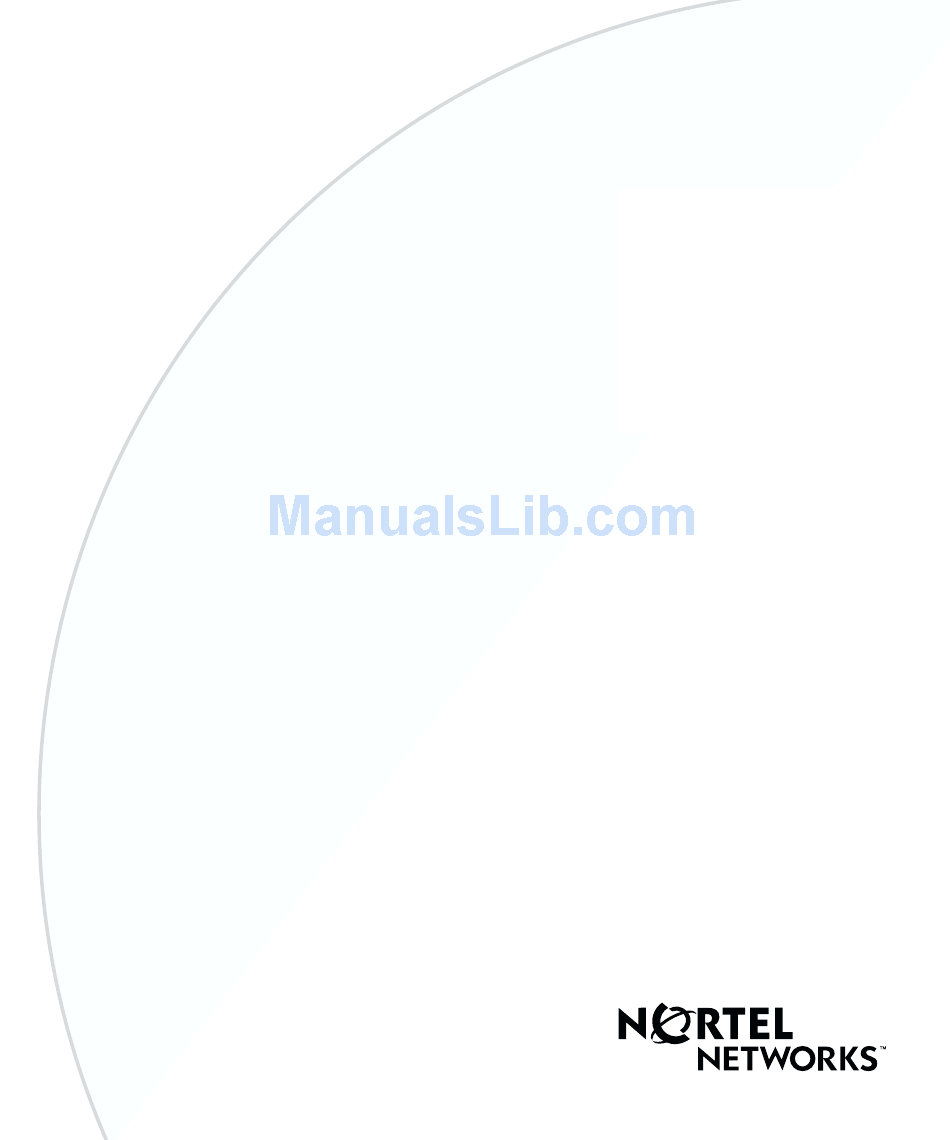

Reference for the
BayStack Instant Internet
Remote Access Commands
Version 7.11
Part No. 302005-F
November 2000
4401 Great America Parkway
Santa Clara, CA 95054

Advertisement

Table of Contents
loading

Related Manuals for Nortel BayStack 100-S

Summary of Contents for Nortel BayStack 100-S

  • Page 1 Reference for the BayStack Instant Internet Remote Access Commands Version 7.11 Part No. 302005-F November 2000 4401 Great America Parkway Santa Clara, CA 95054...

  • Page 2: Restricted Rights Legend

    Nortel Networks NA Inc. does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.
  • Page 3 Software is provided will be free from defects in materials and workmanship under normal use for a period of 90 days from the date Software is first shipped to Licensee. Nortel Networks will replace defective media at no charge if it is returned to Nortel Networks during the warranty period along with proof of the date of shipment.
  • Page 4 7. Term and termination. This license is effective until terminated; however, all of the restrictions with respect to Nortel Networks’ copyright in the Software and user manuals will cease being effective at the date of expiration of the Nortel Networks copyright; those restrictions relating to use and disclosure of Nortel Networks’ confidential information shall continue in effect.

  • Page 5: Table Of Contents

    Contents Preface ............13 Before you begin .
  • Page 6 Contents hostname command ..........38 icmp command .
  • Page 7 webserver command ..........76 winsockserver command .
  • Page 8 Contents 302005-F...
  • Page 9 Figures Figure 1 Command prompt ......... . . 24 Figure 2 Sample valid options .
  • Page 10 Figures 302005-F...
  • Page 11 Tables Table 1 alias command options ........28 Table 2 dhcp command options .
  • Page 12 Tables Table 30 telnetd command options ........71 Table 31 webproxy command options .

  • Page 13: Preface

    Preface BayStack ™ access the Internet safely and efficiently using management tools for tracking and blocking user activities. Before you begin If you are responsible for configuring Instant Internet, you need to read this manual. The information in this manual can help you: •...

  • Page 14: Text Conventions

    Preface Text conventions This manual uses the following text conventions: angle brackets (< >) Indicate that you choose the text to enter based on the bold courier text braces ({}) brackets ([ ]) ellipsis points (. . . ) Indicate that you repeat the last element of the command as 302005-F description inside the brackets.

  • Page 15: Acronyms

    Example: ipsec defaultnetwork <ipadr> Indicates system output, for example, prompts and system messages. Example: Instant Internet (tm) version 7.11 Copyright (c) 1995-2000 Nortel Networks Corporation ii> Shows menu paths. Example: File > Exit File menu. Separates choices for command keywords and arguments.
  • Page 16 Preface CHAP DDNS DHCP ICMP ISDN ITU-T PPPoE SNMP 302005-F Basic Rate Interface Central Daylight Time Challenge Handshake Authentication Protocol Channel Service Unit Dynamic Domain Name Service Data Encryption Standard Dynamic Host Configuration Protocol Domain Name Service Extended SuperFrame Format Eastern Standard Time Greenwich Mean Time Internet Control Message Protocol...

  • Page 17: Related Publications

    SPID Related publications For more information about using Instant Internet, refer to the following publications: • Important Notice for the BayStack Instant Internet Version 7.11 (Part number (307603-E) Provides instructions for viewing documentation and installing the Instant Internet software and third-party applications (Adobe Acrobat Reader, Netscape Communicator, and AniTa Terminal Emulator).
  • Page 18 Go to the Adobe Systems Web address www.adobe.com You can purchase selected documentation sets, CDs, and technical publications though the Internet at the 302005-F www25.nortelnetworks.com/library/tpubs/ to download a free copy of Acrobat Reader. www1.fatbrain.com/documentation/nortel/ URL. Find the URL.

  • Page 19: How To Get Help

    How to get help If you purchased a service contract for your Nortel Networks product from a distributor or authorized reseller, contact the technical support staff for that distributor or reseller for assistance. If you purchased a Nortel Networks service program, contact one of the following...
  • Page 20 Preface 302005-F...

  • Page 21: Using The Remote Administration Utility

    Chapter 1 Using the Remote Administration utility This chapter explains how use Instant Internet’s remote administration utility to set up, view, or modify the unit configuration. There are two ways to use remote administration: out-of-band management and Telnet. Using out-of-band management Out-of-band management is only available on the Instant Internet 100-S and 400-S units.
  • Page 22 Chapter 1 Using the Remote Administration utility In the Instant Internet Setup software (Setup), you must activate the Telnet service so that the Instant Internet unit can accept connections from a remote Telnet application. To enable the Telnet service in Setup: From the Windows menu, choose Programs >...

  • Page 23: Accessing And Using The Remote Host

    Accessing and using the remote host If you plan to use the Telnet application provided with Instant Internet (called AniTa), then use the following steps; otherwise, set the port in your Telnet application to 23. For instructions on installing AniTa, refer to Chapter 4 of Installing the BayStack Instant Internet Management Software Version 7.11.

  • Page 24: Entering Commands

    Chapter 1 Using the Remote Administration utility Figure 1 Command prompt BayStack Instant Internet(tm) version 7.11 Copyright (c) 1995-2000 Nortel Networks Corporation ii> Note: If you enter an incorrect password, the message “Incorrect Login” is displayed and you are prompted to enter a correct password.

  • Page 25: Figure 3 Sample Command Statistics

    • Commands are not case-sensitive. For example, same as DIALERD ISDN DOWN • The command line interpreter maintains a history of entered commands. Press the up arrow to place previously entered commands on the command line. • To interrupt the command, press [Ctrl] + C. •...
  • Page 26 Chapter 1 Using the Remote Administration utility 302005-F...

  • Page 27: Using Configuration Commands

    Chapter 2 Using configuration commands This chapter provides definitions and examples of Instant Internet’s remote access configuration commands for Telnet and out-of-band management. Commands take effect immediately but are not preserved if a restart is performed unless you enter the commit Available commands Instant Internet divides the remote access commands into three categories:...

  • Page 28: Character Commands

    Chapter 2 Using configuration commands Character commands The question mark ( Config commands Config commands are used to set up and manipulate interfaces. alias command command allows you to have two or more IP addresses and subnet alias masks for one physical interface. This capability is helpful because it provides a means for having both public and private IP addresses on the same LAN interface.

  • Page 29: Dhcp Command

    dhcp command Use the command to view the status of or configure the state of the dhcp Dynamic Host Configuration Protocol (DHCP) client. dhcp [configure <interface> renew <interface> release <interface> bootp <interface> Table 2 describes the Table 2 dhcp command options Option Definition Instructs the specified interface to DHCP to retrieve its IP address,...

  • Page 30: Dialerd Command

    Chapter 2 Using configuration commands dialerd command dialerd specified interface. dialerd [<interface> [answer backup command delay demand idletimeout <seconds> mode nodisable number down start stop]] Table 3 describes the Table 3 dialerd command options Option interface answer backup command delay 302005-F command displays or configures demand-dialing settings for the callback | disable | enable | only...
  • Page 31 Table 3 dialerd command options (continued) Option Definition Sets the dial and hang up thresholds and the demand timeout. demand dialthreshold must be in use before an additional interface can dial. hangupthreshold below which an interface hangs up. These options are relevant only when you use the PPP Multilink Protocol.

  • Page 32: Dns Command

    Chapter 2 Using configuration commands dns command Use the maintenance. server <ipadr> dns [add drop server <ipadr> cache flush suffix <suffix> ] Table 4 describes the Table 4 dns command options Option add server drop server cache flush suffix Example ii>...

  • Page 33: Encapsulation Command

    encapsulation command encapsulation interface. This command is normally used only for synchronous interfaces (for example, V.35, X.21, T1, and E1). encapsulation [<interface> [ppp | framerelay | terminal] Table 5 describes the Table 5 encapsulation command options Option Definition The physical interface name. interface The ppp encapsulation protocol.

  • Page 34: Table 6 Filter Command Options

    There is an implied deny at the end of each filter list. Packets matching the criteria are passed to the layer 4 switch. This option is useful only for Web traffic. Web traffic passed to the layer 4 switch can then be redirected to the transparent Web cache.
  • Page 35 Table 6 filter command options (continued) Option Definition Specifies matching criteria of source IP address, source port, or both. source address bits you want to allow or deny. ports deny. Specifies matching criteria of destination IP address, destination port, destination or both.
  • Page 36 Chapter 2 Using configuration commands Example 4 filter inet allow icmp Allows any ICMP traffic. Example 5 filter inet allow tcp dest 10.0.0.99:80 Allows TCP traffic destined to 10.0.0.99 port 80. Example 6 filter inet allow tcp source:1024-5000 dest 10.0.0.99:1024-5000 Allows TCP traffic with a source port from 1024 to 5000, destined to 10.0.0.90 with a port from 1024 to 5000.

  • Page 37: Framerelay Command

    Example 7 This complex example shows how to apply many filters at one time. Filter test1 deny source-route Filter test1 deny source 199.200.201.0/24 Filter test1 allow icmp Filter test1 allow tcp established Filter test1 allow tcp dest:6 Filter test1 allow tcp dest:echo Filter test1 allow tcp dest:discard Filter test1 allow tcp dest:chargen Filter test1 allow tcp dest:mail.mydomain.com:smtp...

  • Page 38: Hostname Command

    Chapter 2 Using configuration commands Table 7 describes the Table 7 framerelay command options Option interface dlcilen inarp type hostname command hostname host name directly by providing the interface. If an interface is provided, a reverse name lookup is performed on the IP address of the interface.

  • Page 39: Icmp Command

    Example ii> hostname ii.test.com ii> hostname eth1 ii> hostname ii.test.com icmp command command modifies settings or displays statistics for Internet Control icmp Message Protocol (ICMP) messages. icmp [echo on | off redirect on | off] Table 9 describes the Table 9 icmp command options Option Definition Enables or disables echo response messages.

  • Page 40: Ifconfig Command

    Chapter 2 Using configuration commands ifconfig command ifconfig configuration. ifconfig [ <interface> [disable Table 10 describes the Table 10 ifconfig command options Option interface disable enable infilter hwaddress 302005-F command displays or sets parameters for the interface [ <hhmm> | clear] [ <hhmm>...
  • Page 41 Table 10 ifconfig command options (continued) Option Definition Sets the interface’s IP address and netmask. ipaddress ipadr netmask Sets the Maximum Transmission Unit (MTU) for a packet. (default: 1500) size - Sets the output filter applied to outgoing traffic. outfilter filterlist clear When...
  • Page 42 Chapter 2 Using configuration commands Example ii> ifconfig eth1 type Ethernet adminStatus inOctets inNUcastPkts inErrors outOctets outNUcastPkts outErrors eth2 type Ethernet adminStatus inOctets inNUcastPkts inErrors outOctets outNUcastPkts outErrors tok1 type Token Ring adminStatus inOctets inNUcastPkts inErrors outOctets outNUcastPkts outErrors ifconfig eth1 infilter net ifconfig eth1 ipaddress 10.160.92.1 255.255.255.0 ifconfig eth2 ipaddress 10.160.97.2 255.255.255.0 ifconfig tok1 ipaddress 10.160.96.1 255.255.255.0...

  • Page 43: Ip Command

    ip command command displays or sets the Internet Protocol (IP) parameters. ip [defaultnetwork <ipadr> forwarding on | off] Table 11 describes the Table 11 ip command options Option defaultnetwork forwarding Example ii> ip forwarding inReceives inAddrErrors inUnknownProtos inDelivers outDiscards reasmTimeout reasmOKs fragOKs fragCreates...

  • Page 44: Ipsec Command

    Chapter 2 Using configuration commands command in Utility shows several counters relating to errors that discard packets. Table 12 describes the ip counters. Table 12 ip counters Option inHdrErrors inAddrErrors inUnknownProtos Packet to machine’s address with protocol not TCP, UDP, or ICMP, inDiscards outDiscards outNoRoutes...

  • Page 45: Table 13 Ipsec Command Options

    You can specify to use as many of the three encryption types or as many of the three authorization types as you like. You can also specify the order in which you would like these encryption or authorization types used. Table 13 describes the ipsec Table 13 ipsec command options...
  • Page 46 Chapter 2 Using configuration commands Table 13 ipsec command options (continued) Option remote encrypt authorize group timeout disconnect 302005-F Definition Specifies the subnet(s) that will be received over the tunnel. For more details, on how this option is used, refer to Using the BayStack Instant Internet Management Software Version 7.11.

  • Page 47: Isdn Command

    ISDN is the aggregate of ISDN-B1 and ISDN-B2. isdn [<interface> [calltype <val> inboundvoice pots | dovbs number priority speed spid switch trace voice logging Reference for the BayStack Instant Internet Remote Access Commands Version 7.11 Chapter 2 Using configuration commands Definition Deletes the specified tunnel and removes the configuration settings.

  • Page 48: Table 14 Isdn Command Options

    Options listed include: none, auto, att, aus, dms, etsi, ins64, ltr6, net3, nil, nti, sing, vn3. Turns on D-Channel tracing. Note: Use this option only as directed by Nortel Networks support personnel. When voice is on, all outbound calls are no longer made as data calls, but as voice calls (data over voice).

  • Page 49: Name Command

    Example ii> isdn isdn ISDN switch ni1 spid 015550000001 speed 128 channel 1=active call state=idle (0) channel 2=active call state=idle (0) name command command sets or displays the name of the unit. name name [<name>] Example ii> name name SERVER0000000...

  • Page 50: Table 15 Nat Command Options

    Chapter 2 Using configuration commands Table 15 describes the Table 15 nat command options Option drop flush timeout 302005-F command options. Definition Adds a static network address translation entry. local - The legal (or public) IP address that will reach the Instant Internet unit.

  • Page 51: Ppp Command

    ppp command command displays or sets the Point-to-Point Protocol (PPP) parameters. ppp <interface> authentication [local | remote ] disable | pap | chap | any dns on | off echo on | off mp on | off password <password> username <username> reset Table 16 describes the...

  • Page 52: Pppoe Command

    Chapter 2 Using configuration commands Table 16 ppp command options (continued) Option username reset Example ii> ppp :ISDN-B1 :starting ipcp :initial queue:0 state:down :ISDN-B2 :starting ipcp :initial queue:0 state:down :ISDN :opened ipcp :initial ppp ISDN username "user" password "password" pppoe command command is added to the advanced TCP/IP settings when you pppoe complete the advanced configuration for PPPoE in Setup.

  • Page 53: Route Command

    Table 17 describes the Table 17 pppoe command options Option Definition Specifies the name for the virtual pppoe interface. pppoe Specifies the name of the interface used for pppoe. interface Sets the demand timeout. The interface hangs up when the demand idletimeout Use the ppp command to assign a user name and password to the PPP protocol.

  • Page 54: Sync Command

    Chapter 2 Using configuration commands Table 18 describes the Table 18 route command options Option default drop Example ii> route Type localhost broadcast directed local remote directed local remote gateway gateway sync command command sets or displays the parameters for a synchronous (T1, V.35, sync or X.21) interface.

  • Page 55: Table 19 Sync Command Options

    sync [<interface> clock framing format coding rate data autoloopback enable | disable crc4 nfas fractional Table 19 describes the sync Table 19 sync command options Option Definition The physical interface name. interface Specifies the source of the clock. clock (default: external) Selects the type of framing.

  • Page 56: Tcp Command

    Chapter 2 Using configuration commands Table 19 sync command options (continued) Option autoloopback crc4 nfas fractional Example 1 sync t1 fractional 0xffffff Enables the use of all 24 channels. Example 2 sync t1 fractional 0x000fff Enables the use of channels 1 to12. Example 3 sync t1 framing ESF sync t1 coding b8zs...

  • Page 57: Time Command

    <value> tcp [mss window <value> ] Table 20 describes the Table 20 tcp command options Option Definition Sets the maximum segment size. (default: 1460) Sets the advertised window size. window (default: 7300) Example ii> tcp State Local Socket listen 0.0.0.0:19 listen 0.0.0.0:9 listen...

  • Page 58: Timezone Option

    Chapter 2 Using configuration commands Table 21 describes the Table 21 time command options Option hhmm timezone Example ii> time 1904 Wed Aug 9 19:04:00 2000 ii> time cst6cdt Wed Aug 9 19:04:00 2000 timezone option timezone display the current setting of the timezone option, use the stdoffset[dst[offset][,rule]] Table 22 describes the...

  • Page 59: Offset: Hh[:Mm[:Ss]] Option

    Table 22 timezone command options (continued) Option Definition Indicates the value that should be added to the local time to arrive at offset Coordinated Universal Time (UTC). The offset has the form hh[:mm[:ss]] for more information. Indicates when to change to and from daylight saving time (dst). rule The rule has the form “rule: date[/time],date[/time] option”...

  • Page 60: Table 23 Timezone Command Date Formatting Methods

    Chapter 2 Using configuration commands • The format of the date may be shown in one of three ways. See more information. Table 23 timezone command date formatting methods Method Definition Indicates Julian day Leap days are not counted. That is, in all years (including leap years) February 28 is day 59 and March 1 is day 60.

  • Page 61: Wan Command

    Chapter 2 Using configuration commands Eastern Standard Time is 5 hours earlier than Coordinated Universal Time (UTC). Standard time and daylight saving time both apply to this locale. Eastern Daylight Time (EDT) is one hour ahead of standard time. Daylight saving time starts on the first (1) Sunday (0) of April (4) at 2:00 a.m.

  • Page 62: Server Commands

    Chapter 2 Using configuration commands Table 24 wan command options Option interface diffserve Example ii> wan T1 diffserve on Server commands Server commands are commands for servers that run in the unit. backup command backup connection if the first interface fails. If the first interface fails, Instant Internet attempts to establish a connection on the second interface.

  • Page 63: Chargend Command

    chargend command chargend executes a diagnostic facility that accepts TCP connections on port 19 and sends data to the client at the maximum possible rate. chargend start | stop Example ii> chargend start dhcpd command command displays or configures the unit’s Dynamic Host dhcpd Configuration Protocol (DHCP) service.

  • Page 64: Table 26 Dhcpd Command Options

    Chapter 2 Using configuration commands Table 26 describes the Table 26 dhcpd command options Option start scope exclude lease domain relay delete wins node stop 302005-F command options. dhcpd Definition Starts the DHCP service. Note: You must use the start the DHCP service, which differs from many of the other services where the command is implied when any command is issued.

  • Page 65: Discardd Command

    Example ii> dhcpd DHCP Server is enabled Lease period: 259200 seconds DNS Server: 10.116.116.1 Scope name: net Subnet: 10.116.116.0 Range: 10.116.116.1-10.116.116.254 Total addresses in Scope: 254 exclude: 10.116.116.1-10.116.116.2 10.116.116.3 0000AABBCCD8 dhcpd scope net 10.116.116.1 10.116.116.254 255.255.255.0 10.116.116.1 dhcpd exclude 10.116.116.1 10.116.116.2 dhcpd lease 259200 dhcpd dns 10.116.116.1 dhcpd start...

  • Page 66: Echod Command

    Chapter 2 Using configuration commands echod command command starts or stops the echo service. This diagnostic facility echod accepts TCP connections on port 7 and echoes all incoming data back to the sender. echod start | stop Example ii> echod start identd command identd servers with the actual name of the connecting client;...

  • Page 67: Ntpd Command

    ntpd command command provides a means for the user to select the external clock to ntpd be used for the unit’s time. The Instant Internet unit synchronizes time to this external clock using the NTP protocol. The clock is synchronized on a regular basis (every 12 hours), but provisions are included so that a demand-based Internet connection such as ISDN or analog is not initiated solely for the purpose of synchronizing the clock.

  • Page 68: Ripd Command

    Chapter 2 Using configuration commands Example ii> plserver eth1 ripd command command configures the use of the Routing Information Protocol ripd (RIP). ripd [start accept drop multicast on | off refuse version stop] Table 28 describes the Table 28 ripd command options Option start accept...

  • Page 69: Snmpd Command

    Table 28 ripd command options (continued) Option Definition Cancels a previously entered refuse used to cancel all of the previously entered announcements are accepted from all interfaces. Specifies the version of RIP used by the unit. Note: Multicast is now version supported in version 2.

  • Page 70: Socksd Command

    Chapter 2 Using configuration commands socksd command socksd socksd [start log on | off stop] Table 29 describes the Table 29 socksd command options Option start stop Example ii> socks Address 10.0.0.247 tcpserver command tcpserver (Setup, Admin, Monitor, Tools, and AutoLog) to communicate with the unit over IP.

  • Page 71: Telnetd Command

    telnetd command command starts or stops the Telnet service. telnetd telnetd [start port <value> rows <value> timeout <seconds> stop] Table 30 describes the Table 30 telnetd command options Option Definition Starts the Telnet service. start Sets the Telnet port. port value: The actual port number to be used.

  • Page 72: Webproxy Command

    Chapter 2 Using configuration commands webproxy command webproxy webproxy [start active on | off activetime <minutes_from_midnight_to_start_the_Active_Refresh> activeend <minutes_from_the_start_time_to_stop_the_Active_Refresh> activedays <bit_map_of_the_days_to_run_the_Active_Refresh> (bit 1=Sunday, 2=Monday, . . . 7=Saturday) address <proxy_address> binpercent <expiry_percent_for_binary> bintime <min_expiry_time_for_binary (in minutes)> bypass on | off on | off level 1 | 2 | 3 (conservative | moderate (default) | aggressive) binpercent, bintime, cgi, nocache, query, textpercent, and...
  • Page 73 Table 31 webproxy command options (continued) Option Definition Sets the number of minutes from midnight that you want to start the activetime active refresh. (default: 460 (8:00 AM)) minutes Refresh. Sets the number of minutes from the start time to stop the active activeend refresh.
  • Page 74 Chapter 2 Using configuration commands Table 31 webproxy command options (continued) Option level maxentries maxsize nocache port query 302005-F Definition Sets the expiration and request and response options for Instant Internet for binpercent bintime textpercent , and time (Conservative) - This level reduces Internet traffic with minimal risk of returning “stale”...
  • Page 75 Table 31 webproxy command options (continued) Option Definition Enables or disables the return of a potentially stale response from the refresh Web cache. A stale response may occur after the cache received an error from the real server trying to verify that it is up to date. Set this value to (default: on) Number of bytes reserved for use by other parts of the system.

  • Page 76: Webserver Command

    Chapter 2 Using configuration commands Example ii> webproxy webproxy start transparent on webserver command webserver webserver [start Table 32 describes the Table 32 webserver command options Option start port stop Example ii> webserver webserver is running on port 80 winsockserver command winsockserver parameter specifies the IPX frame type.

  • Page 77: Utility Commands

    Table 33 describes the Table 33 winsockserver command options Option interface Example winsockserver eth1 winsockserver eth1 802.3 winsockserver eth1 802.2 winsockserver eth1 SNAP Utility commands You can use the Utility commands to determine the status of processes on a particular unit or to control a Telnet or out-of-band management session. Utility commands are also useful to restart a unit or to start tracing and logging.

  • Page 78: Cat Command

    Chapter 2 Using configuration commands Example ii> arp Seconds IP Address 10.0.0.32 10.0.0.99 10.0.0.137 cat command command displays the contents of the specified file. cat <filename> Table 35 describes the Table 35 cat command option Option filename 302005-F MAC Address 026AABBCCD93 006AABBCCD76 008AABBCCD99...

  • Page 79: Commit Command

    Example ii> cat a:config dns add server 10.0.0.32 dns add server 10.0.0.99 dns suffix test.com isdn isdn switch ni1 spid 015550000001 speed 128 name SERVER0000000 dialerd isdn number "555-0000" dialerd isdn idletimeout 60 ppp isdn username "user" password "password" ifconfig eth1 ipaddress 10.0.0.61 255.255.255.0...

  • Page 80: Config Command

    Example ii> config dns add server 10.0.0.32 dns add server 10.0.0.99 dns suffix test.com isdn isdn switch ni1 spid 015550000001 speed 128 name SERVER0000000 dialerd isdn number "555-0000" dialerd isdn idletimeout 60 ppp isdn username "user" password "password" ifconfig eth1 ipaddress 10.0.0.61 255.255.255.0...

  • Page 81: Csu Command

    csu command command displays diagnostic information for the T1 channel service unit (CSU). This command provides information that is helpful in diagnosing T1 lines that are down or slow. csu <interface> Table 37 describes the Table 37 csu command option Option Definition The physical interface name.

  • Page 82: Dir Command

    Chapter 2 Using configuration commands Table 38 describes the Table 38 date command option Option mmddyyyy Example ii> date Wed Aug 16 15:56:35 2000 ii> date 02292000 Tue Aug 29 15:57:19 2000 dir command command displays the files in the temporary or nonvolatile storage. dir [<path>] Table 39 describes the...

  • Page 83: Exit Command

    Example 2 ii> dir a: ibmbio.com 50818 15:51 11/01/96 command.com 27543 06:22 10/24/96 boot.bat 163 14:53 05/26/98 config 657 14:49 07/15/98 finali.exe 11331 09:48 04/29/98 iiuser.grp 272 08:27 04/10/98 ptos.map 17575 23:03 07/07/98 reboot.com 16 11:50 05/25/95 services 9211 10:25 04/10/98 testswch.exe 7139 17:09 06/30/97 config.rst...

  • Page 84: Memory Command

    Chapter 2 Using configuration commands memory command memory memory Example ii> memory bytes used 2191384 free 3123992 password command password password is case-sensitive and will allow up to 15 characters, including spaces. This command defines the new password immediately. The not required.

  • Page 85: Ping Command

    ping command command sends a packet to the specified host name or IP address. The ping option specifies the length to extend the packet beyond its normal header. length Note: Running the Telnet or out-of-band management session which could time out before the ping ping [<hostid>...

  • Page 86: Restart Command

    Chapter 2 Using configuration commands Table 40 ping command options (continued) Option control monitor background Example ii> ping 10.0.0.1 count 10 interval 3 pinging 10.0.0.1 succeeded Note: Press [Ctrl + C] to stop a restart command restart restart confirm Note: To perform a restart, you must spell out rows command command sets the number of rows of output displayed in a Telnet or rows...

  • Page 87: Sap Command

    sap command command displays a list of known Instant Internet units. Example ii> sap Time system command command displays the unit serial number, total installed memory, system firmware version, system start time, current system time, and system uptime. system Example ii>...

  • Page 88: Table 41 Trace Command Options

    Chapter 2 Using configuration commands Table 41 describes the Table 41 trace command options Option interface flags file size Example ii> trace dialup io Tracing dialup ii> trace eth1: tracing off dialup: out+in eth2: tracing off 302005-F command options. trace Definition Specifies the name of the interface to be traced.

  • Page 89: Traceroute Command

    When attempting to debug problems with Admin access control lists, you can use the access trace log, which contains information about what was happening in the access control logic. The information from this trace is stored in the access.log file which can be retrieved with Setup.

  • Page 90: Udp Command

    Chapter 2 Using configuration commands udp command command displays User Datagram Protocol (UDP) statistics. Example ii> udp 0.0.0.0:1024 0.0.0.0:53 0.0.0.0:3006 inDatagrams noPorts inErrors outDatagrams winsock command winsock winsock Example ii> winsock IPXUSER threads 2 sockets 1 302005-F command displays winsock statistics.
