BODY / FRAME

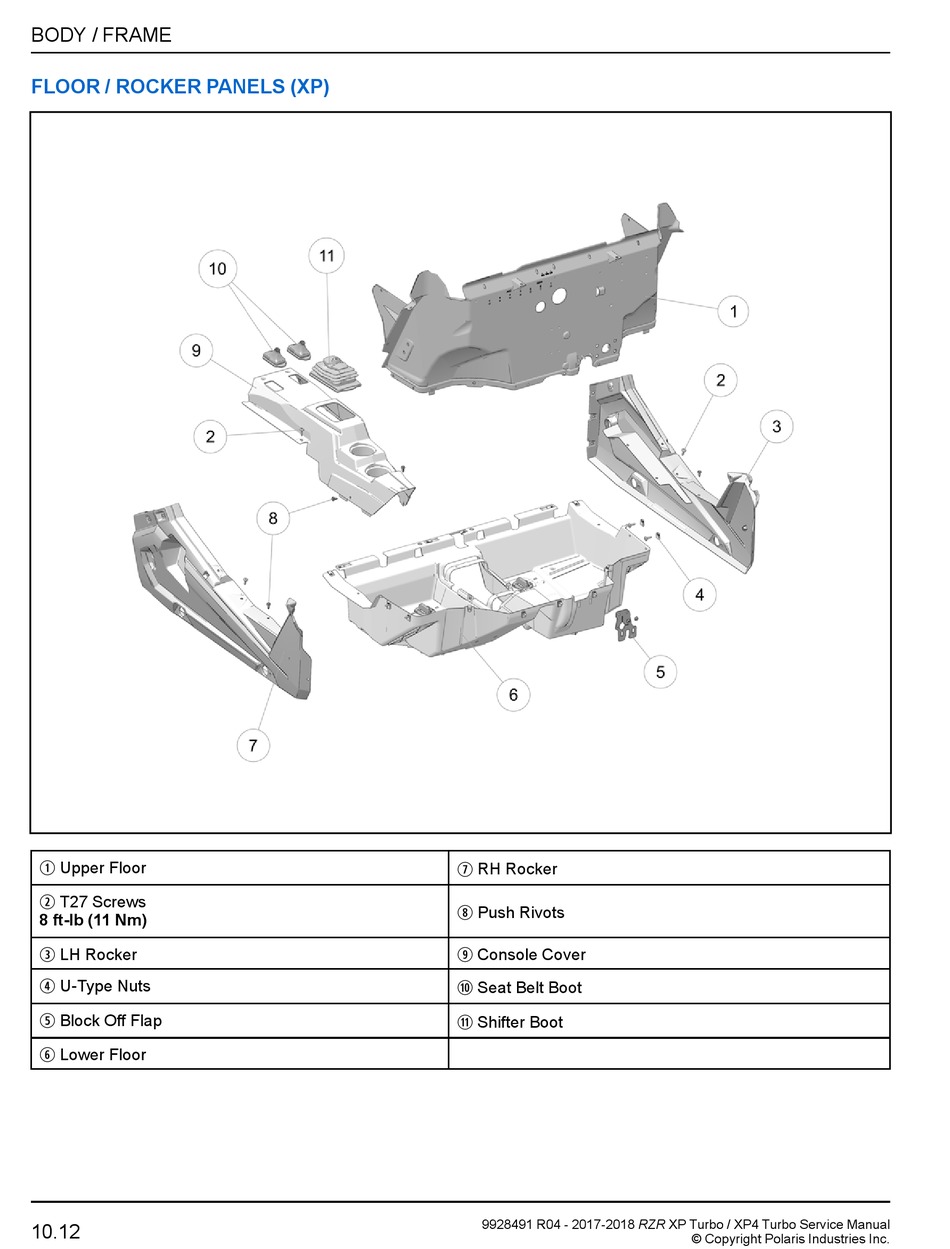

FLOOR / ROCKER PANELS (XP)

q
Upper Floor
w
T27 Screws
8 ft-lb (11 Nm)
e
LH Rocker
r
U-Type Nuts
t
Block Off Flap
y
Lower Floor
10.12
u
RH Rocker
i
Push Rivots
o
Console Cover
a
Seat Belt Boot
s
Shifter Boot
