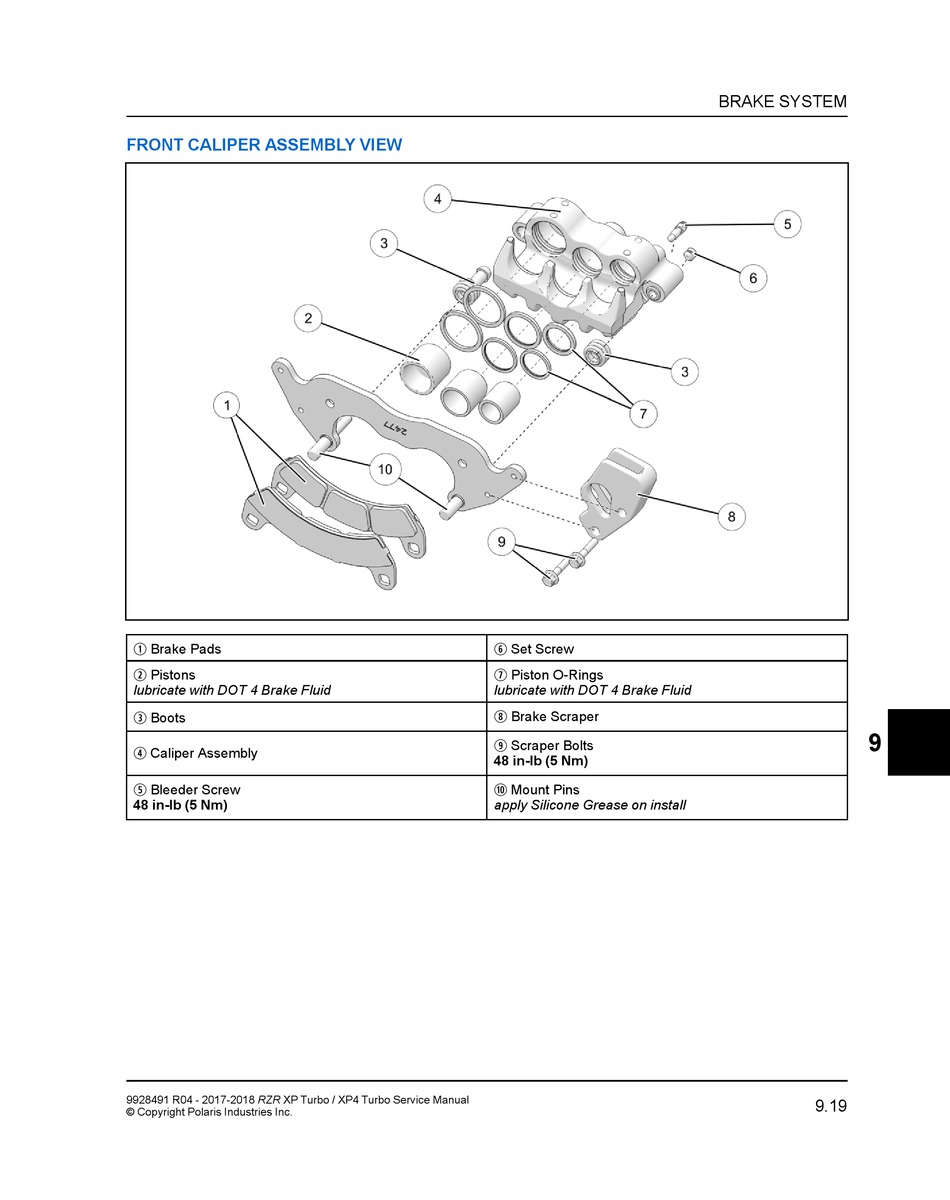

FRONT CALIPER ASSEMBLY VIEW

q
Brake Pads
w
Pistons
lubricate with DOT 4 Brake Fluid
e
Boots
r
Caliper Assembly
t
Bleeder Screw
48 in-lb (5 Nm)
9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.
y
Set Screw
u
Piston O-Rings
lubricate with DOT 4 Brake Fluid
i
Brake Scraper
o
Scraper Bolts
48 in-lb (5 Nm)
a
Mount Pins
apply Silicone Grease on install
