PVT SYSTEM
DRIVE CLUTCH DISASSEMBLY /
INSPECTION

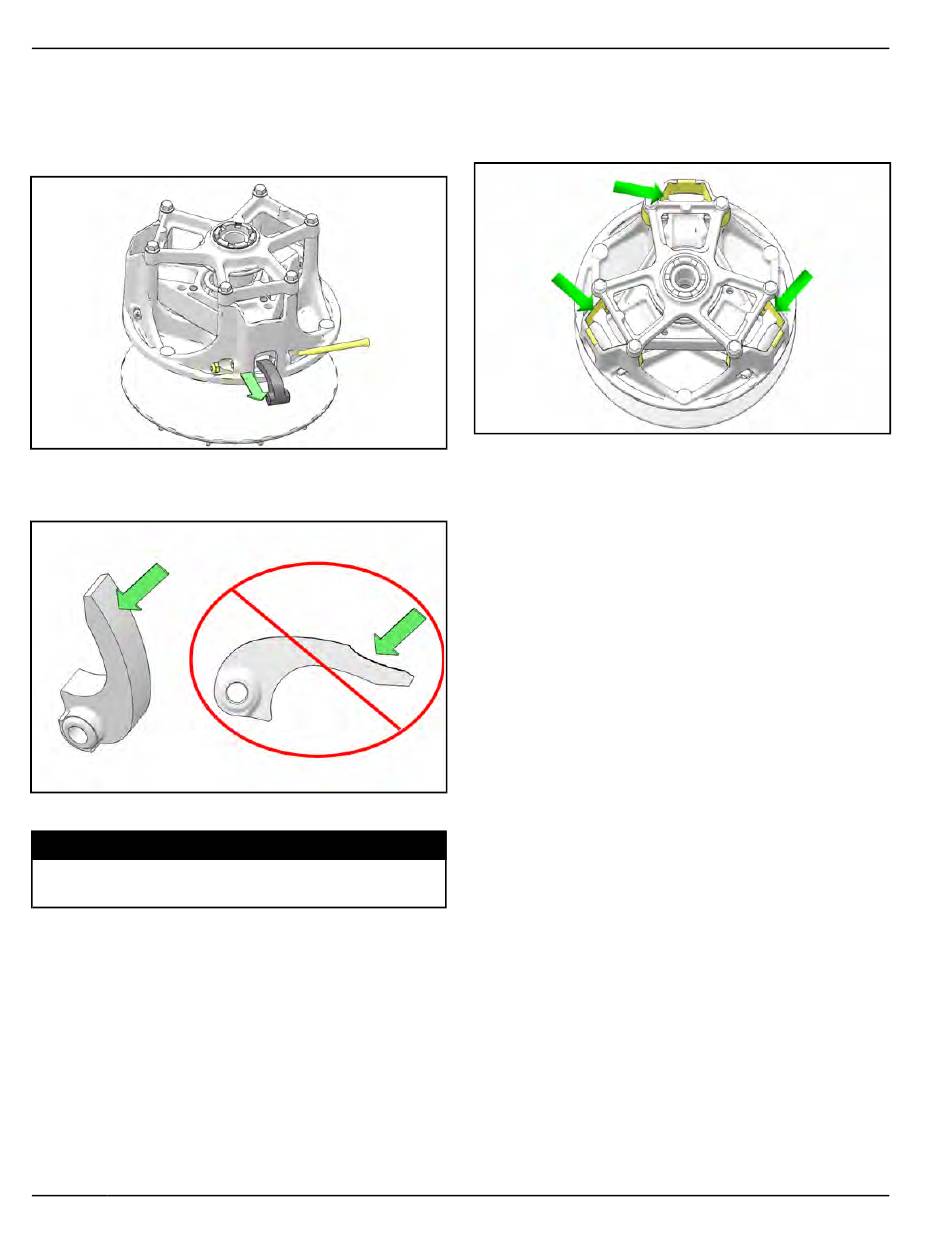

SHIFT WEIGHT INSPECTION
• Remove the fasteners retaining the shift weights.
• Inspect the contact surface of the weights. Some wear
is normal but if the weights start cupping on the contact
surface, then they should be replaced.
• Install weights and torque fasteners to specification.
TORQUE
Shift Weight Fasteners:
20 in-lb (2 Nm)
5.8
SLIDER PLATE INSPECTION
Inspect the contact surface of the three slider plates.
Some wear is normal but if the slider plates start to
groove, then they should be replaced.
9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.
