Chapter 4 - MultiVOIP Software
Changing IP Parameters

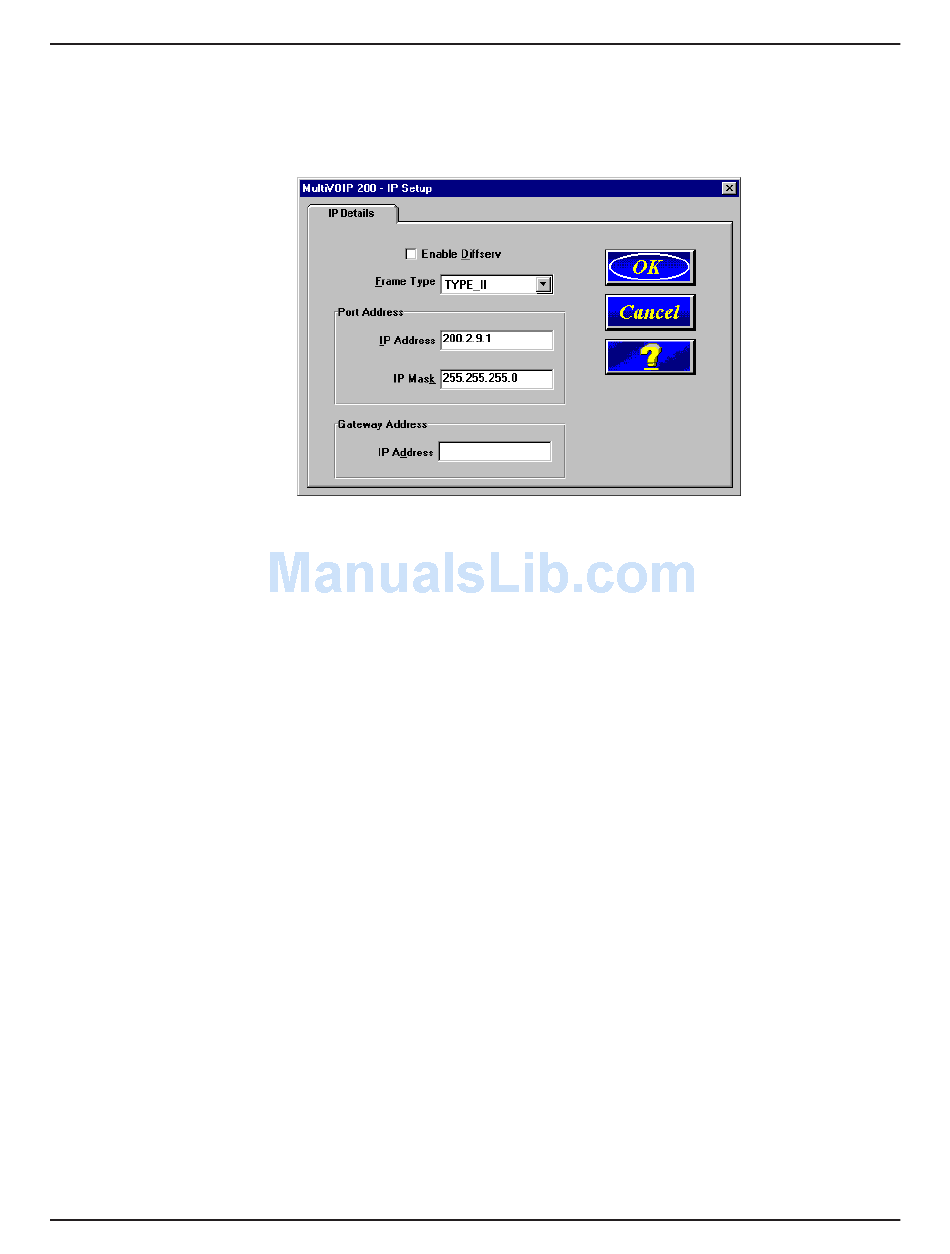

The IP Setup dialog box establishes the IP addressing for the local Ethernet LAN and defines the
Internet gateway address. The IP Setup dialog box is accessed by clicking the IP button on the
MultiVOIP 200 Setup menu.
With IP Setup dialog box displayed you can change the status of differential services, the Ethernet
Frame Type, the IP address and IP Mask of your H.323 endpoint, and the Gateway Address of the IP
address of the device connected to the Internet.
Clicking (checking) the Enable Diffserv box enables Differentiated Services (default is disabled).
Differentiated Services provides priority to voice packets so that they are not delayed whenever large
data files need to be downloaded. You will need to check with your systems administrator to
determine if any routers in the VOIP network support this feature. If the answer is yes, then you would
want to enable this function.
The Frame Type drop-down list enables you to change the Ethernet Frame Type so that it matches
your IP network. If the current entry does not match your IP network, change the Frame Type by
clicking the drop-down arrow. The Frame Type choices are TYPE_II and SNAP.
The Port Address group enables you to change the unique IP Address and IP Mask of the local
LAN.
The Gateway Address group enables you to change the gateway IP Address of the device
connected to the Internet/Intranet.
65
