Installing a 250-sheet or
Tray labels
Lexmark T522 label
(colored triangle)
Support unit
Paper tray
Tab
4
500-sheet drawer
Square
hole
Round peg

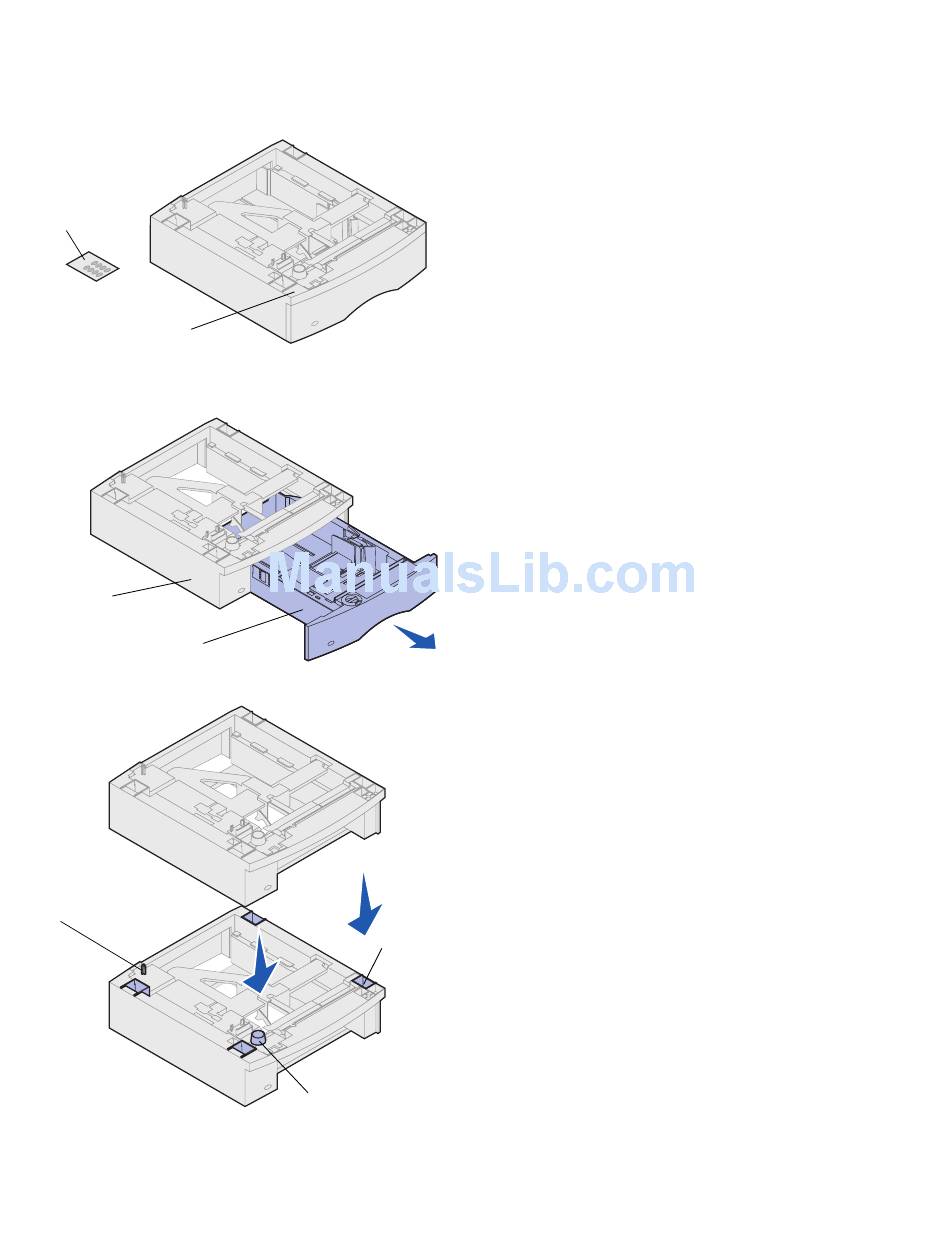

Paper drawers attach under the printer and optional
duplex unit. The printer automatically recognizes any
drawer that has been installed.
A drawer consists of a paper tray and a support unit. The
250-sheet drawer and the 500-sheet drawer are installed
the same way.
1
Remove the tray from the support unit. Remove all
packing material and tape from both the support unit
and the tray.
2
Place the support unit on top of any previously
installed paper drawers, or the table or printer
cabinet where you plan to use the printer.
The tab, round peg, and square holes on top of any
drawer help you seat the support unit so the edges
are aligned properly. Make sure the support unit is
securely in place.
3
Attach another optional drawer, a duplex unit, or the
printer:
• To attach a drawer, repeat steps 1 and 2.
• To attach a duplex unit, see "Installing a duplex
unit" on page 5.
• To attach the printer, see "Setting up the printer"
on page 6.
