8

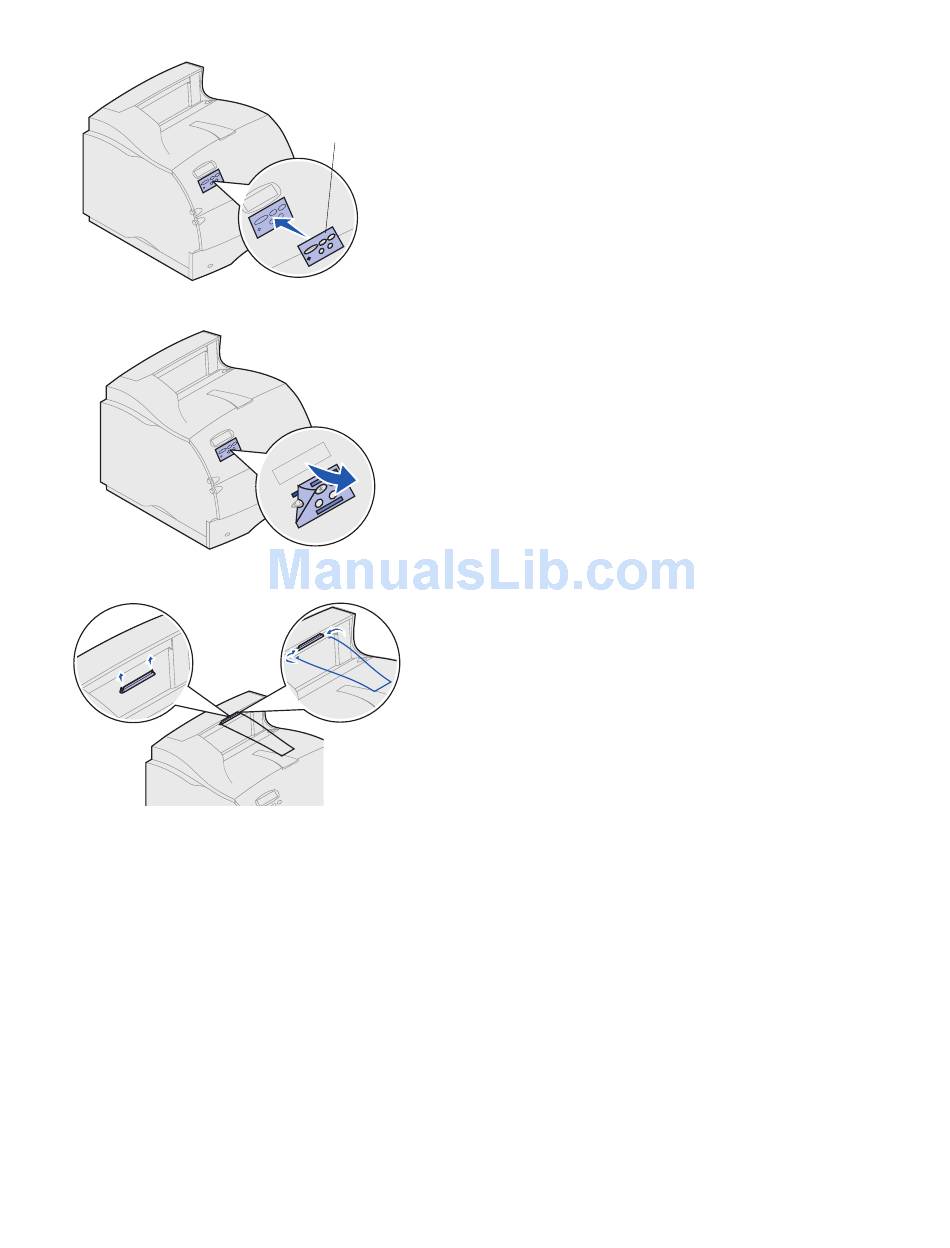

Operator panel
overlay
4
Attach the operator panel overlay.
If English is not your preferred language, attach the
overlay with the appropriately translated names for
the operator panel.
a
Peel the protective backing off the overlay.
b
Align the holes in the overlay with the buttons on
the operator panel and press it into place.
c
Rub the overlay firmly to make sure it adheres
securely to the operator panel.
d
Peel the protective covering away from the over-
lay.
5
Attach the paper bail.
a
Remove the printer top cover and slide the plas-
tic bracket onto the static brush holder. Adjust
the bracket so it is centered over the area where
paper exits.
b
Place the tips of the wire paper bail into the ends
of the plastic bracket so that the bail curves
downward.
c
Replace the top cover.
