Local Printing - Lexmark Optra T522 Setup Manual

Local printing

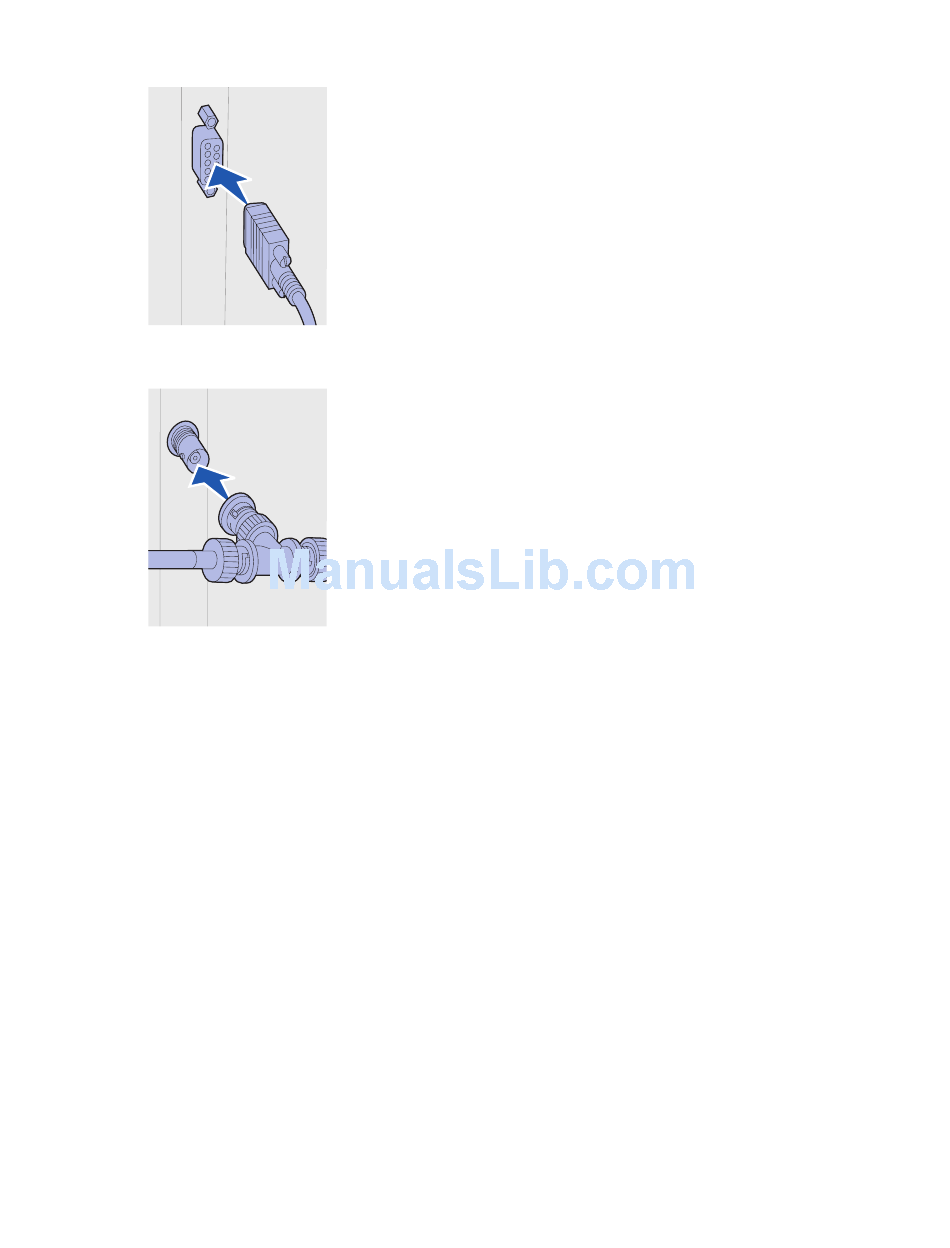

– Token-Ring networks (Shielded Twisted Pair)
use a DB9 connector.
– Ethernet 10Base2 networks (Thin Coax) use
a BNC T-connector.
You can attach your printer locally using either the USB
port or parallel port. A USB port is standard on all printer
models. The parallel port is standard on the base (non-
network) model. The parallel port requires an IEEE-1284
compliant parallel cable. We recommend Lexmark part
number 1329605 (10 ft) or 1427498 (20 ft).
If you add a parallel port by installing an optional USB/Par-
allel Interface Card, you need a 1284 A-C parallel cable,
such as Lexmark part number 43H5171 (9.8 ft).
Note: Some UNIX, Linux, and Macintosh computers also
support USB connections. Consult your computer
documentation to see if your system supports USB.
