Si121561E

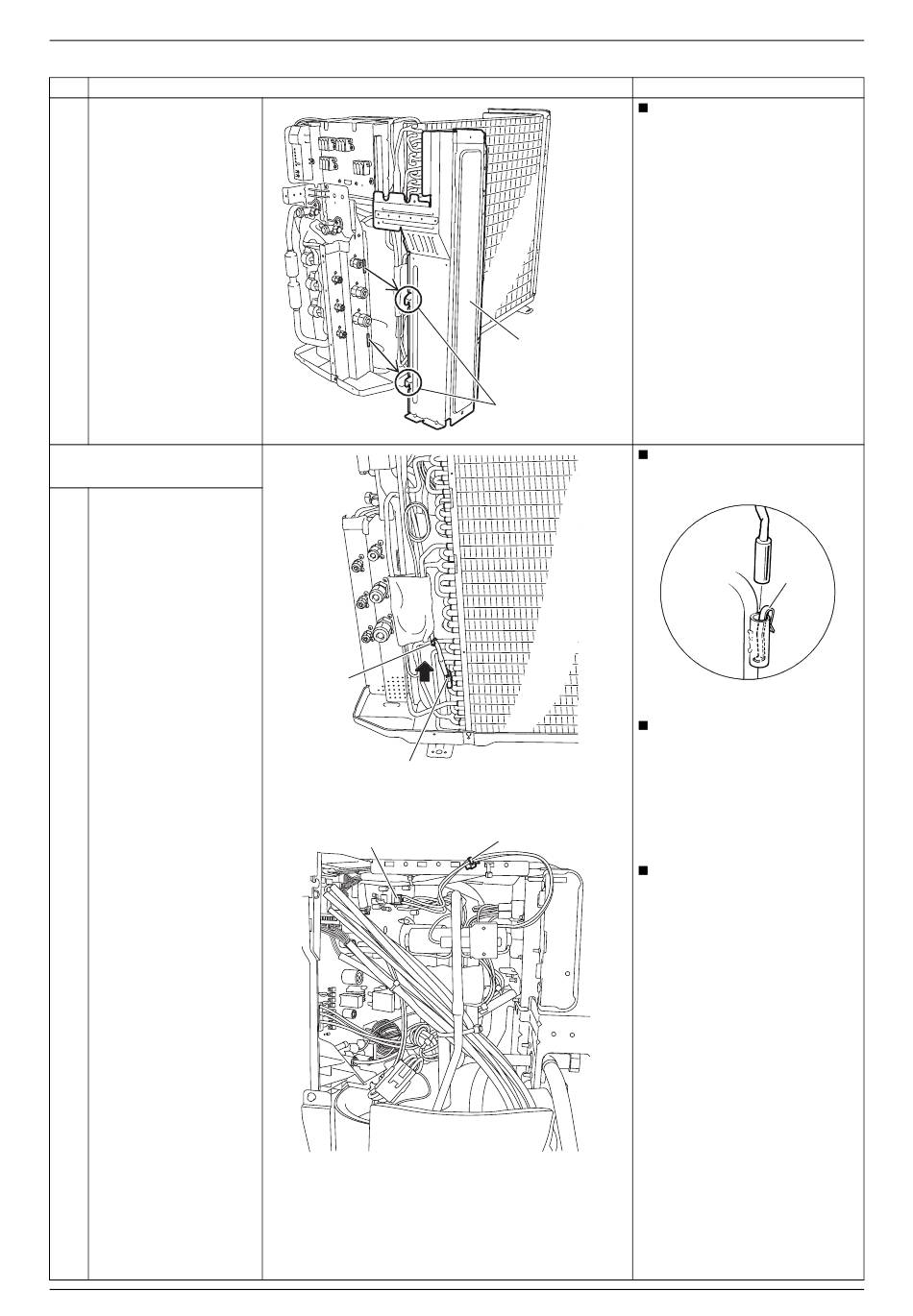

Step
7 Unfasten the 2 hooks
and remove the rear
plate ASSY.
2. Remove the electrical
box.
1 Cut the clamp and pull
out the outdoor heat
exchanger thermistor.
2 Disconnect the
connector [S80] and
pull out the clamp.
Removal Procedure
Procedure
Clamp
Outdoor heat exchanger thermistor
[S80]
Rear Plate ASSY / Electrical Box
When reassembling, make
sure that the 2 hooks are
securely fastened.
Rear plate ASSY
Hook
(R22464)
Be careful not to lose the clip
for the thermistor.
When reassembling, insert
the thermistor harness
(R22465)
through the heat exchanger
pipes.
[S80]: four way valve
Clamp
Cooling only models have no
harness for [S80].
(R22466)
Points
Clip
(R3264)
7
