Daikin MKM24PV2S Service Manual page 5

Si121561E

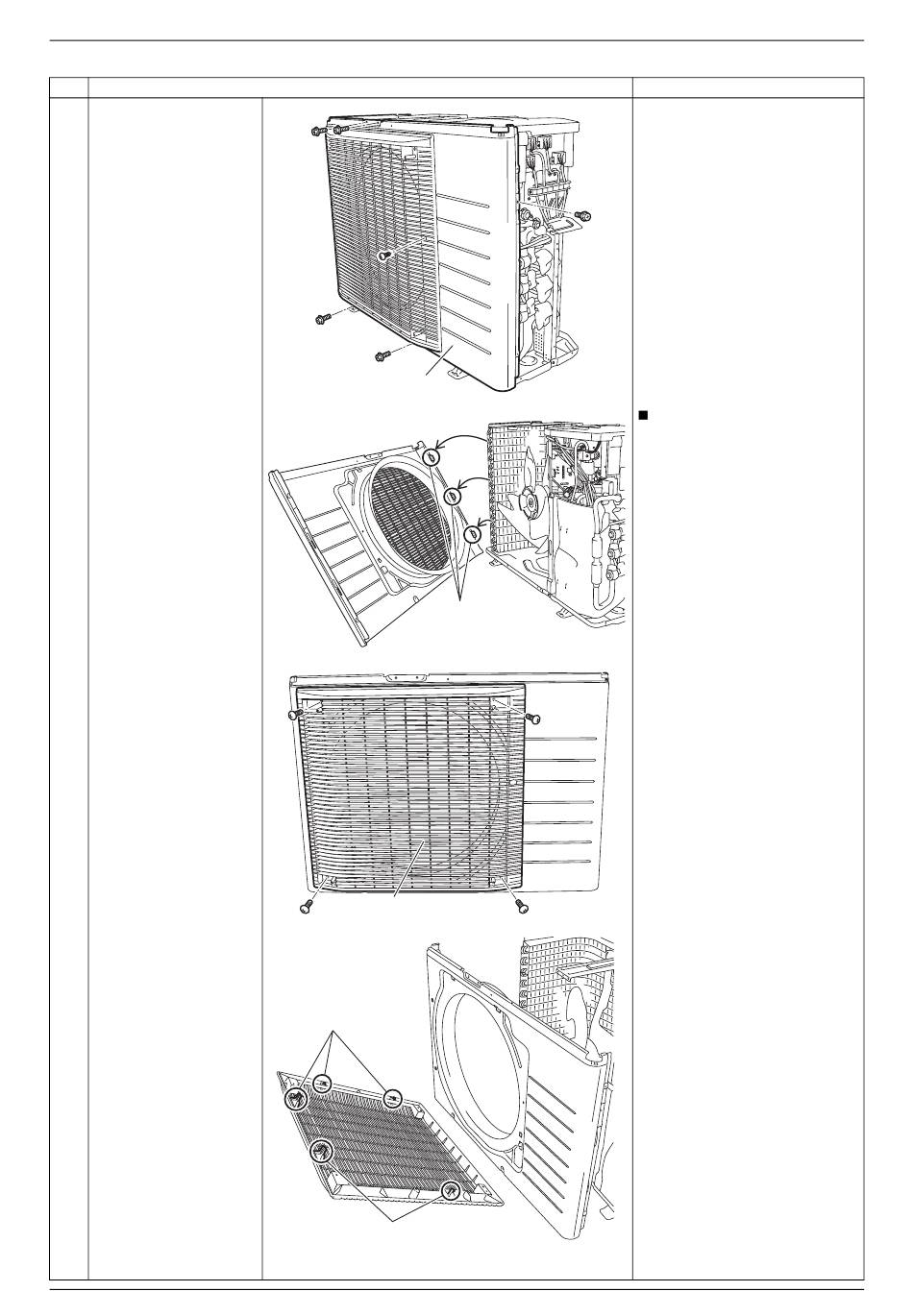

Step
5 Remove the 6 screws
of the front panel.
6 Unfasten the 3 hooks
on the left side.
7 Remove the front panel.
8 Remove the 4 screws
of the discharge grille.
9 Unfasten the 5 hooks
and remove the
discharge grille.
Removal Procedure
Procedure
Front panel
Hook
Discharge grille
Hook
Hook
Points
(R22449)
When reassembling, make
sure that the 3 hooks are
securely fastened.
(R22450)
(R22451)
(R22452)
Outer Panels
3
