Daikin MKM24PV2S Service Manual page 16

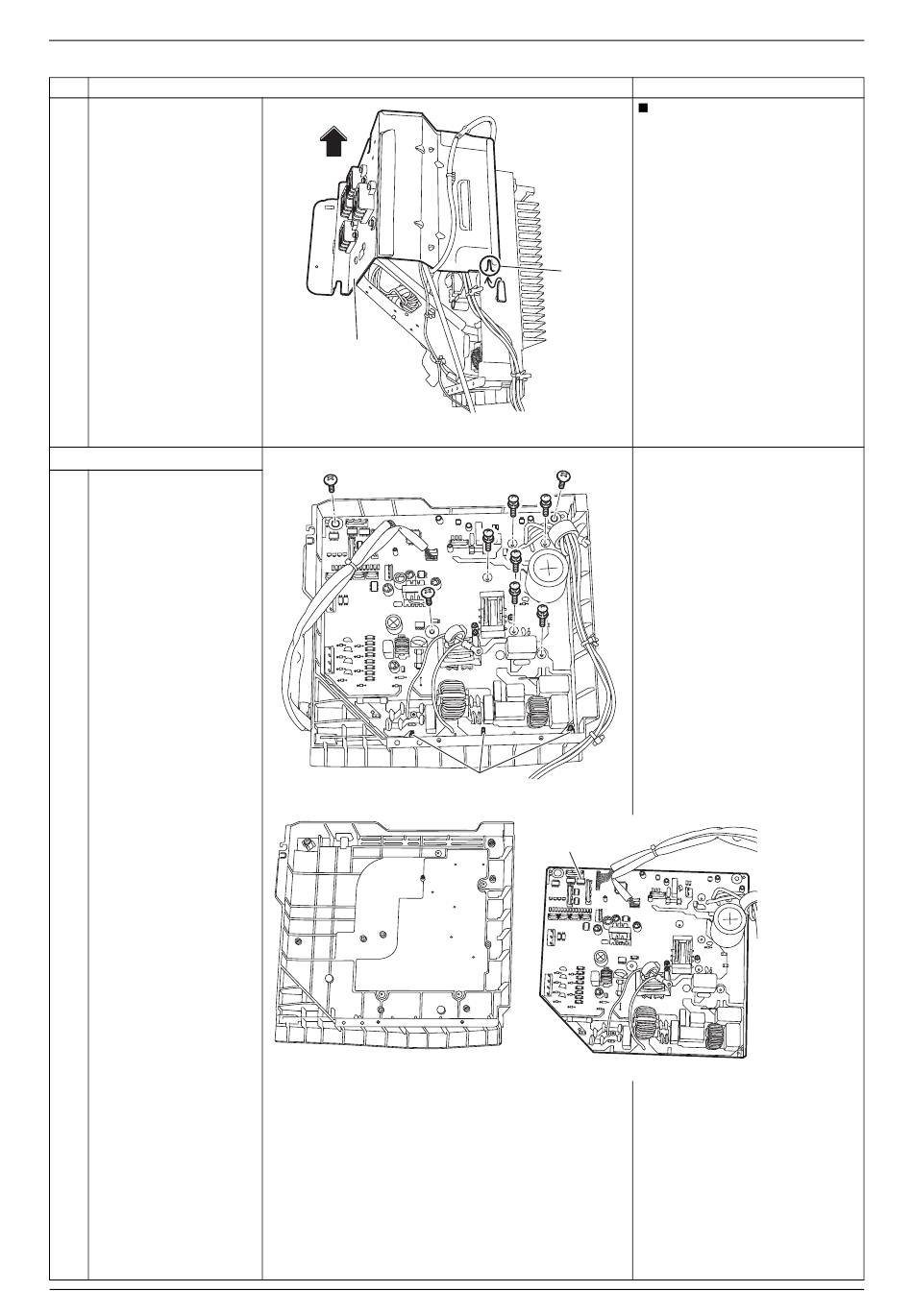

PCBs
Step
5 Slide the terminal board
mounting plate up to
unfasten the hook and
remove it.
3. Remove the main PCB.
1 Remove the 9 screws.
2 Unfasten the 3 hooks
and remove the main
PCB.
14
Procedure
Terminal board
mounting plate
Hook
When reassembling, make
sure to fasten the hook with
the notch.
Hook
(R22484)
(R22485)
Main PCB
(R22486)
Si121561E
Points
Removal Procedure
