Daikin MKM24PV2S Service Manual page 10

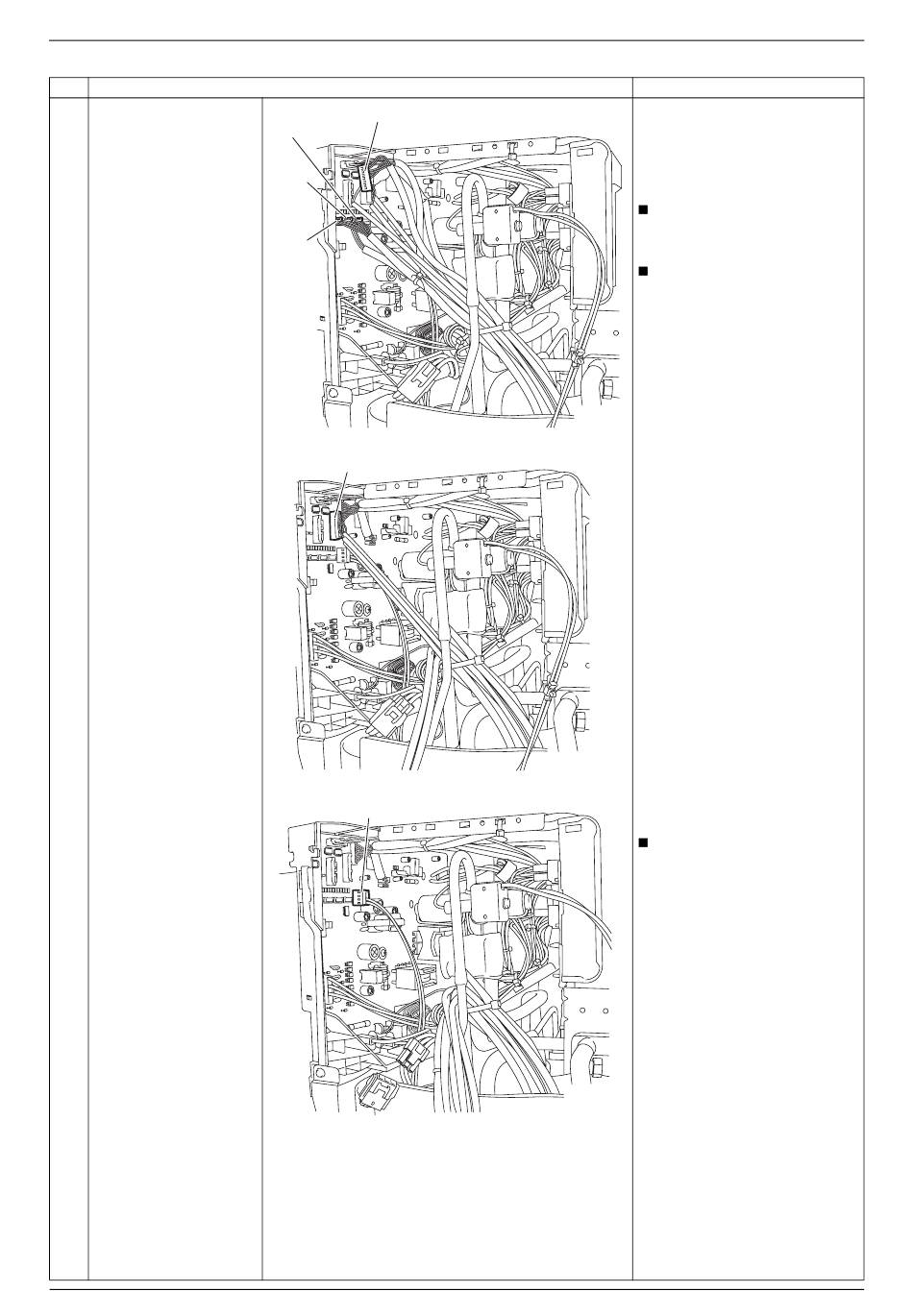

Rear Plate ASSY / Electrical Box
Step
3 Disconnect the
connector [S92] and 3
connectors for
electronic expansion
valve coil.
4 Disconnect the
connector [S93].
5 Disconnect the
connector [S40].
8
Procedure
[S92]
[S22]
[S21]
[S20]
[S93]
[S40]
Points
[S20] (white): room A
[S21] (red): room B
[S22] (blue): room C
[S92]: gas pipe thermistor
The 2-room models do not
have [S22].
The 4-room models have
[S23] (yellow) for room D.
(R22467)
[S93]: liquid pipe thermistor
(R22468)
[S40]: overload protector
When reassembling,
connect the connectors in
the reverse order.
(R22469)
Removal Procedure
Si121561E
