Si121561E

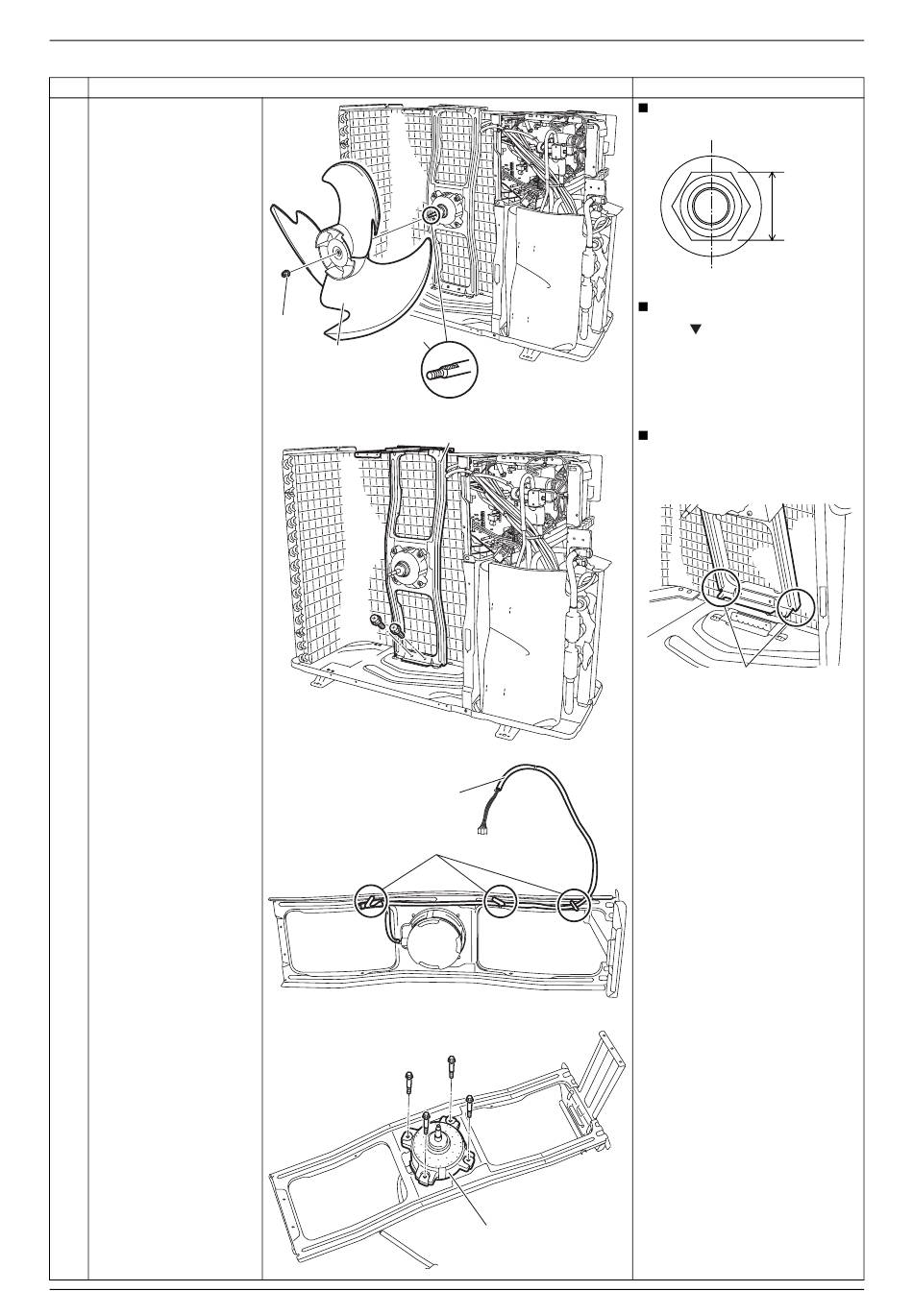

Step
4 Remove the nut and
remove the outdoor fan.
5 Remove the 2 screws
and remove the fan
motor fixing frame.
6 Unfasten the 3 hooks
on the fan motor fixing
frame and release the
fan motor lead wire.
7 Remove the 4 screws
and remove the fan
motor.
Removal Procedure
Procedure
Nut
D-cut
Outdoor fan
Fan motor fixing frame
Fan motor lead wire
Hook
(R22456)
(R22457)
(R22458)
Fan motor
(R22459)
Outdoor Fan / Fan Motor
Points
Nut size : M8
13 mm
(0.51 inch)
(R18965)
When reassembling, align
the mark of the fan rotor
with the D-cut section of the
motor shaft.
When reassembling, fit the 2
lower hooks into the bottom
frame.
Hook
(R22212)
5
