Daikin MKM24PV2S Service Manual page 14

PCBs
Step

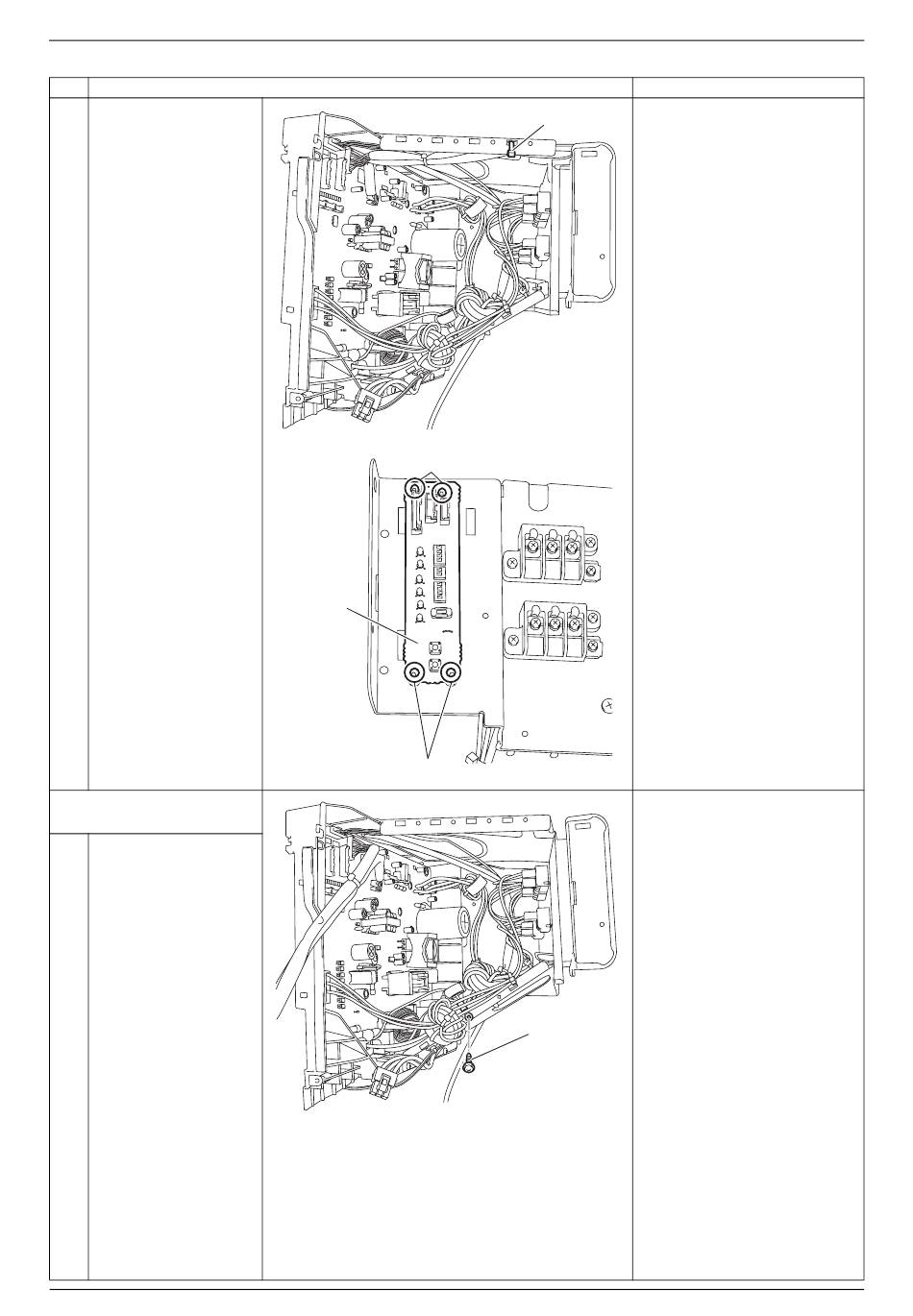

4 Cut the clamp.
5 Unfasten the 4
projections and remove
the service monitor
PCB.
2. Remove the terminal
board mounting plate.
1 Remove the earth /
ground screw.
12
Procedure
Projection
Service
monitor PCB
Projection
Clamp
(R22478)
(R22479)
Earth / ground
screw
(R22480)
Si121561E
Points
Removal Procedure
