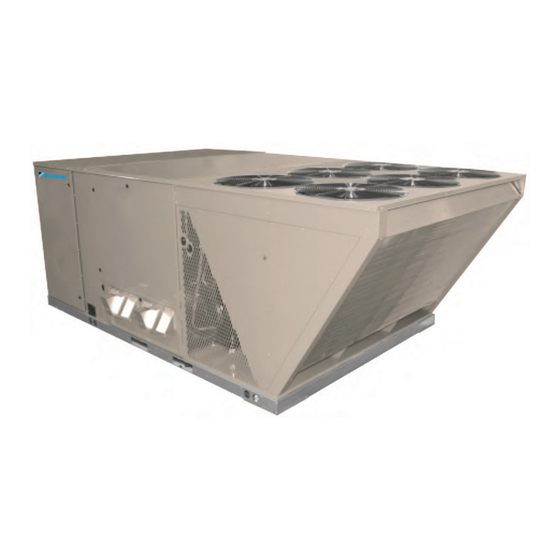

Daikin Maverick I Installation And Maintenance Manual

Commercial packaged rooftop systems
Hide thumbs Also See for Maverick I:
Table of Contents

Advertisement

Quick Links

Installation and Maintenance Manual
Maverick™ I
Commercial Packaged Rooftop Systems
Heating & Cooling
Models MPS015B - MPS025B
15 to 25 Tons
R-410A Refrigerant
© 2010 Daikin
IM 972-1
Group: Applied Air Systems
Part Number: IM 972-1
Date: July 2010
