Getting to know your monitor

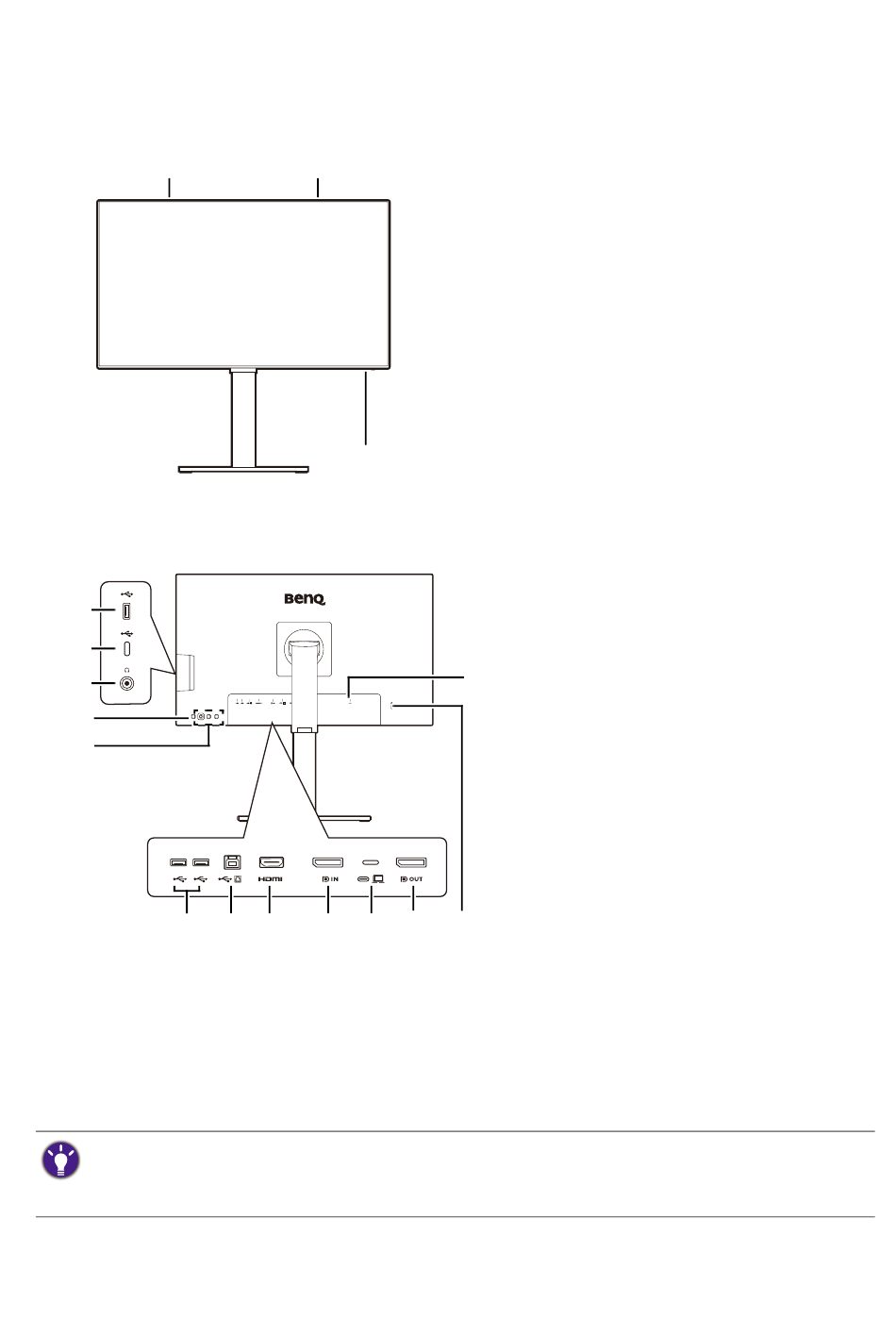

Front view

1

Back view

3
4
5
6
7
8
• The USB data transmission speed varies according to you selection in
• Above diagram may vary depending on the model.
• Picture may differ from product supplied for your region.
1
2
9 10 11 12
1. Speakers
2. Power LED indicator
3. USB 3.2 Gen 1 port (downstream;
connecting to the USB devices)
4. USB-C™ port (for data transfer
only)
5. Headphone jack
15
6. Power button
7. Control keys
8. USB 3.2 Gen 1 port x 2
(downstream; connecting to the
USB devices)
9. USB 3.2 Gen 1 port (upstream;
connecting to the PC)
10. HDMI socket
11. DisplayPort socket
13 14
12. USB-C™ port (for video, data
transfer and power delivery up to
65W)
13. DisplayPort output socket (for
Multi-Stream Transport, MST)
14. Kensington lock slot
15. AC power input jack
USB-C Configuration on page
Getting to know your monitor
53.
15
