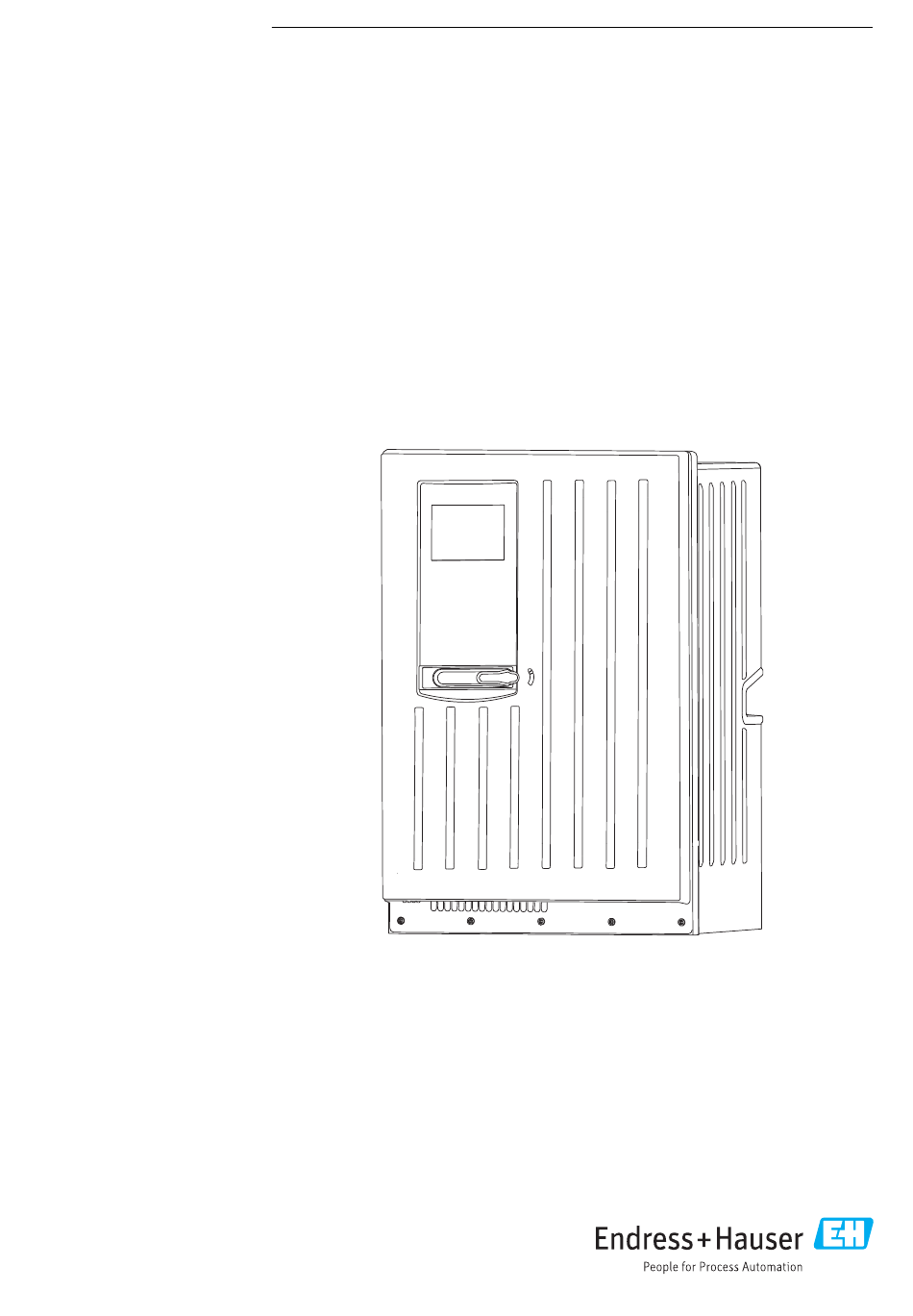

BA01585C/07/EN/03.20
71462496
2020-01-31
Valid as of version
01.07.00
Products
Operating Instructions
Liquiline System CA80AL
Colorimetric analyzer for aluminum
Solutions
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Liquiline System CA80AL

Summary of Contents for Endress+Hauser Liquiline System CA80AL

  • Page 1 Products Solutions Services BA01585C/07/EN/03.20 71462496 2020-01-31 Valid as of version 01.07.00 Operating Instructions Liquiline System CA80AL Colorimetric analyzer for aluminum...

  • Page 3: Table Of Contents

    Liquiline System CA80AL Table of contents Table of contents Access to the operating menu via the local About this document ....5 display ......
  • Page 4 Table of contents Liquiline System CA80AL 13.3 Disposal ......Accessories ..... . 155 14.1 Sample preparation .

  • Page 5: About This Document

    Liquiline System CA80AL About this document About this document Warnings Structure of information Meaning This symbol alerts you to a dangerous situation. DANGER Failure to avoid the dangerous situation will result in a fatal or serious Causes (/consequences) injury. If necessary, Consequences of non-compliance (if applicable) ‣...

  • Page 6: Documentation

    About this document Liquiline System CA80AL Documentation The following instructions complement these Operating Instructions and are available on the product pages on the Internet: • Brief Operating Instructions Liquiline SystemCA80AL, KA01236C • Operating Instructions Memosens, BA01245C • Software description for Memosens inputs •...

  • Page 7: Basic Safety Instructions

    Designated use The Liquiline System CA80AL is a wet-chemical analyzer for the almost continuous determination of the concentration of aluminum in liquid media. The analyzer is designed for use in the following applications: •...

  • Page 8: Product Safety

    Basic safety instructions Liquiline System CA80AL CAUTION Activities while the analyzer is in operation Risk of injury and infection from medium, reagents or cleaner! ‣ Before you release any hoses, make sure that no actions, such as the pumping of sample, are currently running or are due to start shortly.

  • Page 9: Product Description

    Photometer Controller Measuring system A complete measuring system comprises: • Analyzer Liquiline System CA80AL with the configuration ordered • reagents cleaner and standard solution (to be ordered separately) • Liquiline System CAT8x0 sample preparation (optional) Microfiltration (Liquiline System CAT810) • Function: pressure pipe sampling and filtration •...
  • Page 10 Product description Liquiline System CA80AL Membrane filtration (Liquiline System CAT860) • Function: sampling and filtration • Ceramic membrane filter cartridge; pore size 0.1 µm • Communication via Memosens protocol, control via CA80 • Automatic backflush function with cleaning solution and compressed air •...
  • Page 11 Liquiline System CA80AL Product description A0028789 A0028788  5 Measuring system with Liquiline System  6 Measuring system with Liquiline System CAT820 CAT860 Pump Pump Liquiline System CA80 Valve Sample collecting vessel Liquiline System CA80 Sample collecting vessel overflow Sample...

  • Page 12: Equipment Architecture

    Product description Liquiline System CA80AL A0028787  8 Measuring system with Liquiline System CA80, Liquiline System CAT820 and second analyzer Backflushing with compressed air (optional) Second analyzer Valve (optional) Sample to second analyzer Pump Filter (ceramic) Liquiline System CA80 Medium...
  • Page 13 Liquiline System CA80AL Product description 3.3.2 Terminal diagram The unique terminal name is derived from: Slot no. : Port no. : Terminal Example, NO contact of a relay Device with 4 inputs for digital sensors, 4 current outputs and 4 relays •...

  • Page 14: Incoming Acceptance And Product

    Incoming acceptance and product identification Liquiline System CA80AL Incoming acceptance and product identification Incoming acceptance 1. Verify that the packaging is undamaged.  Notify the supplier of any damage to the packaging. Keep the damaged packaging until the issue has been resolved.

  • Page 15: Scope Of Delivery

    Liquiline System CA80AL Incoming acceptance and product identification Interpreting the order code The order code and serial number of your product can be found in the following locations: • On the nameplate • In the delivery papers Obtaining information on the product 1.

  • Page 16: Installation

    Installation Liquiline System CA80AL Installation CAUTION Incorrect transportation can cause injury and damage the device ‣ Always use a lifting truck or a fork-lift to transport the analyzer. Two people are needed for the installation. ‣ Lift the device by the recessed grips.
  • Page 17 Liquiline System CA80AL Installation 654 (25.74) A0028821  15 Liquiline System CA80 with base, dimensions in mm (in) 1800 (70.9) 8 (0.31) A0041592  16 Post (accessory) for "Outdoor" version, dimensions in mm (inch) 5.1.2 Mounting location Note the following when erecting the device: ‣...

  • Page 18: Mounting The Analyzer On A Wall

    Installation Liquiline System CA80AL ‣ Ensure that the unit can drain freely, without any siphoning effects. ‣ Make sure air can circulate freely at the front of the housing. ‣ Open analyzers (i.e. analyzers that are supplied without a door) may only be erected in closed areas or in a protective cabinet or similar facility.

  • Page 19: Installing Version With Analyzer Stand

    Liquiline System CA80AL Installation The mounting materials required to secure the device to the wall are not supplied. ‣ Provide the mounting materials to secure the device to the wall (screws, wall plugs) onsite.  20 Securing the holder unit on the housing A0036781 ...
  • Page 20 Installation Liquiline System CA80AL 624 (24.57) 530 (20.87) A0036783  22 Foundation plan Fasteners (4 x M10) Dimensions of Liquiline System CA80 A0036785  23 Securing the base 1. Screw the base to the ground. 2. With 2 people, lift the analyzer and fit it on the base. Use the recessed grips.

  • Page 21: Outdoor" Version: Mounting On A Post

    Liquiline System CA80AL Installation "Outdoor" version: mounting on a post 5.4.1 Erecting the post 4 x 12 (0.47) 250 (9.84) A0041437  24 Foundation plan, dimensions in mm (in) When installing outdoors, consideration must be given to providing correct protection against lightning.
  • Page 22 Installation Liquiline System CA80AL 5.4.3 Mounting analyzer on the post A0041425 A0041426  25 Analyzer mounted on post (from front)  26 Analyzer mounted on post (from behind) Fit the clamp of the post retainer on the retaining rods and post using the nuts.
  • Page 23 Liquiline System CA80AL Installation Mount the wall holder unit (included in the delivery with the analyzer) on the post retainer. Insert the spacer. Screw the suspension bracket of the wall holder unit (included in the delivery with the analyzer) onto the analyzer.

  • Page 24: Post-Installation Check

    Installation Liquiline System CA80AL Hook in the analyzer. Fix the upper wall holder unit in place with the screw provided. Post-installation check After mounting, check all the connections to ensure they are secure. Endress+Hauser...

  • Page 25: Electrical Connection

    Liquiline System CA80AL Electrical connection Electrical connection WARNING Device is live! Incorrect connection may result in injury or death! ‣ The electrical connection may be performed only by an electrical technician. ‣ The electrical technician must have read and understood these Operating Instructions and must follow the instructions contained therein.
  • Page 26 Electrical connection Liquiline System CA80AL Connection of analog inputs and outputs, Memosens sensors or digital fieldbuses Remove the bottle tray: Lift up the recessed grip slightly and pull it towards the front. Remove the cover that is hooked into place.
  • Page 27 Liquiline System CA80AL Electrical connection 6 x Ph2 Release the 6 screws on the electronics compartment cover using a Phillips-head screwdriver and fold out the cover towards the front. 8. Only for order versions with G or NPT glands: Replace the pre-installed M-thread cable glands with the G or NPT cable glands that are enclosed.
  • Page 28 Electrical connection Liquiline System CA80AL After connecting: 1. Secure the electronics compartment cover with the 6 screws. 2. Fold up the carrier board and use the 6 screws to secure it after connecting. 3. Tighten the cable glands on the bottom of the device to secure the cables.

  • Page 29: Connecting Sample Preparation

    Liquiline System CA80AL Electrical connection 6.2.3 "Outdoor" version: connecting the power supply and hose heater The power supply cable is not included with the delivery and must be provided by the customer. 1. Guide the power supply cable and the cable of the hose heater from below through the cable gland on the inner rear panel of the device and feed them up into the electronics compartment (→...
  • Page 30 Electrical connection Liquiline System CA80AL 5. Comply with the instructions for protective grounding when installing the analyzer. 6. Remove the protective cover in the upper right-hand corner.  A0028925 7. Connect the cleaning valve to the following plug-in terminals: ...
  • Page 31 Liquiline System CA80AL Electrical connection 2. To fold out the carrier board towards the front, proceed as described in the "Routing the cables" section . 3. Release a suitable hose gland on the right-hand underside of the analyzer and remove the dummy plug from the gland.

  • Page 32: Connecting The Sensors And Additional Modules

    Electrical connection Liquiline System CA80AL Connecting the sensors and additional modules 6.4.1 Overview of connection compartment in the controller housing The controller has a separate connection compartment. ‣ 6 x Ph2 Release the 6 screws on the electronics compartment cover using a Phillips-head screwdriver and fold out the cover towards the front.
  • Page 33 Liquiline System CA80AL Electrical connection Base module E – – – – – – Power L/+ N/– PE L/+ N/– * A0015871 A0015873  35 Base module E  36 Base module E wiring diagram Power supply for digital fixed cable sensors with...
  • Page 34 Electrical connection Liquiline System CA80AL 4. Ground the outer shield of the cable via the metal gland on the grounding rail below the base module E.  A0028930  38 Terminal strip 6.4.3 Connecting additional inputs, outputs or relays WARNING Module not covered No shock protection.
  • Page 35 Liquiline System CA80AL Electrical connection Current inputs Module 2AI – –  41 Module  42 Wiring diagram Current outputs – – – – – –  44 Wiring  45 Module  46 Wiring  43 Module diagram diagram...
  • Page 36 Electrical connection Liquiline System CA80AL Relay Module 2R Module 4R  47 Module  48 Wiring  49 Module  50 Wiring diagram diagram Endress+Hauser...
  • Page 37 Liquiline System CA80AL Electrical connection Example: Connecting the cleaning unit 71072583 for CAS40D NOTICE Power consumption too high for the Liquiline alarm relay! Can cause irreparable damage to the base module ‣ Connect the cleaning unit only to terminals of an additional module (AOR, 2R or 4R), not to the alarm relay of the base module.
  • Page 38 Electrical connection Liquiline System CA80AL Terminal PROFIBUS DP Modbus RS485 Not connected DGND DGND LEDs on front of module Designation Color Description RJ45 LNK/ACT • Off = Connection is not active • On = Connection is active • Flashing = Data transmission...

  • Page 39: Hardware Settings

    Liquiline System CA80AL Electrical connection LEDs on front of module Designation Color Description RJ45 LNK/ACT • Off = Connection is not active • On = Connection is active • Flashing = Data transmission RJ45 10/100 • Off = Transmission rate 10 MBit/s •...

  • Page 40: Ensuring The Degree Of Protection

    Electrical connection Liquiline System CA80AL DGND B/B' A/A'  57 Structure of internal termination 2. External termination Leave the DIP switches on the module board in the "OFF" position (factory setting). ‣ Connect the external termination to terminals 81 and 82 on the front of module 485 for 5‐V power supply.

  • Page 41: Post-Connection Check

    Liquiline System CA80AL Electrical connection • Modules are not fully secured • The display is not fully secured (risk of moisture entering due to inadequate sealing) • Loose or insufficiently tightened cables/cable ends • Conductive cable strands are left in the device...

  • Page 42: System Integration

    System integration Liquiline System CA80AL System integration Web server 7.1.1 Connection ‣ Connect the computer' s communication cable to the RJ45 port of module 485 or module ETH. 485 / ETH Web Browser A0026779  61 Web server/Ethernet connection 7.1.2...

  • Page 43: Service Interface

    12. Enter the following address(es) to download logbooks:  192.168.1.212/logbooks_csv.fhtml (for logbooks in CSV format) 192.168.1.212/logbooks_fdm.fhtml (for logbooks in FDM format) Downloads in FDM format can be securely transmitted, saved and visualized with Endress+Hauser' s "Field Data Manager Software". (→ www.endress.com/ms20) 7.1.3 Operation The menu structure of the web server corresponds to the onsite operation.

  • Page 44: Fieldbuses

    System integration Liquiline System CA80AL FieldCare Service FXA291 A0029231  63 Connection overview 7.2.2 Establishing the data connection 1. Start FieldCare. 2. Establish a connection to the Commubox. To do so, select the "CDI Communication FXA291" ComDTM. 3. Then select the "Liquiline CM44x" DTM and start configuration.
  • Page 45 Liquiline System CA80AL System integration 7.3.3 EtherNet/IP With the fieldbus module 485 or the ETH module and the appropriate device version, you can communicate via EtherNet/IP. ‣ Connect the EtherNet/IP data cable to the RJ45 socket of module 485 or ETH.

  • Page 46: Operation Options

    Operation options Liquiline System CA80AL Operation options Structure and function of the operating menu Menu/Language English Čeština Nederlands Français Deutsch Italiano Polski A0040682 A0036773  65 Display (example)  64 Display (example) Menu path and/or device designation Soft key (press function)
  • Page 47 Liquiline System CA80AL Operation options 8.2.2 Configuration options Display only • You can only read the values but cannot change them. • Typical read-only values are: analyzer data, sensor data and system information • Example: Menu/Setup/Analyzer/../Measuring parameter Picklists • You receive a list of options. In a few cases, these also appear in the form of multiple choice boxes.
  • Page 48 Operation options Liquiline System CA80AL Free text • You are assigning an individual designation. • Enter a text. You can use the characters in the editor for this purpose (upper-case and lower-case letters, numbers and special characters). • Using the soft keys, you can: •...

  • Page 49: Commissioning

    Liquiline System CA80AL Commissioning Commissioning Preparatory steps Prior to connecting the device to the power supply On account of the device design, high switch-on currents occur when the device is commissioned at low temperatures. The power value indicated on the nameplate refers to the power consumption after one minute of operation when the device is commissioned at 5 °C (41 °F) .
  • Page 50 Commissioning Liquiline System CA80AL optional dilution A0029089  67 Liquiline System CA80AL, single-channel device Reagent RN Photometer/measuring cell Cleaner Cuvette Standard 1 Sample Reagent RK 2, 3, 4, 5, Dispensers Reagent RB Outlet Outlet Sample collecting vessel T-piece optional dilution A0029033 ...

  • Page 51: Function Check

    Liquiline System CA80AL Commissioning optional dilution A0033652  69 Liquiline System CA80AL, self-priming Reagent RN Photometer/measuring cell Cleaner Cuvette Standard 1 Sample Reagent RK 2, 3, 4, 5, Dispensers Reagent RB Outlet Outlet T-piece 9.1.2 Connecting the sample inlet hose 1.

  • Page 52: Switching On The Measuring Device

    Commissioning Liquiline System CA80AL 4. Check that the hoses of the sample preparation system are mounted correctly in the hose glands. It should not be possible to remove the hoses without the application of force. 5. Visually inspect all the hose connections to ensure everything is correct.
  • Page 53 Liquiline System CA80AL Commissioning 5. To return to the measuring mode: press the soft key for ESC for at least one second.  Your analyzer now works with your basic settings. The sensors connected use the factory settings of the sensor type in question and the individual calibration settings that were last saved.

  • Page 54: Operation

    Operation Liquiline System CA80AL Operation 10.1 Display 10.1.1 Soft keys in the measurement mode On the bottom row of the display you can find four soft keys in the measuring screens: • With MENU and DIAG take you directly to the specific software menu.

  • Page 55: General Settings

    Liquiline System CA80AL Operation Icon Location Description At measured value The measured value is influenced by a simulated value At measured value The displayed measured value is simulated (for sensors) Header bar Controller is active Only pH or ORP measurement...
  • Page 56 Operation Liquiline System CA80AL 10.2.2 Date and time Menu/Setup/General settings/Date/Time Function Options Info Set date Depends on the format Editing mode: Day (two-digit): 01 to 31 Month (two-digit): 01 to 12 Year (four-digit): 1970 to 2106 Set time Depends on the format...
  • Page 57 Liquiline System CA80AL Operation Menu/Setup/General settings/Hold settings Function Options Info ‣ Setup menu Selection Decide whether the device outputs should • Disabled switch to the defined hold state when the Diagnostics menu • Enabled particular menu is opened. Factory setting...
  • Page 58 Operation Liquiline System CA80AL Menu/Setup/General settings/Logbooks Function Options Info Analyzer event logbook Selection All diagnostic messages are recorded • Ring buffer Ring buffer • Fill up buffer If the memory is full, the most recent entry Factory setting automatically overwrites the oldest entry.
  • Page 59 Liquiline System CA80AL Operation Menu/Setup/General settings/Logbooks Function Options Info Data logbooks For connected Memosens sensors (optional) You can create a maximum of 8 data logbooks. Logbook name Customized text, 20 characters ‣ Source of data Selection Select a data source for the logbook entries.
  • Page 60 Operation Liquiline System CA80AL Menu/Setup/General settings/Logbooks Function Options Info Source of data Read only This is for information purposes only. If you want to record another value, delete this logbook Measured value and create a new data logbook. Log time left...
  • Page 61 Liquiline System CA80AL Operation • Logbook name Assign a name. Example: "01". • Source of data Select a data source. Example: Signal of binary input 1. • Measured value Select the measured value to be recorded. Example: pH value. • Scan time Specify the time interval between two logbook entries.
  • Page 62 Operation Liquiline System CA80AL Menu/Setup/(General settings or Inputs<Sensor channel>)/Extended setup/Diagnostics settings/Diag. behavior Function Options Info Diag. output Selection Before being able to assign the message to an • None output you must first configure a relay output to • Alarm relay Diagnostics .
  • Page 63 Liquiline System CA80AL Operation Modbus Menu/Setup/General settings/Extended setup/Modbus Function Options Info Enable Selection You can switch off communication at this point. • Off The software can then only be accessed via local • On operation. Factory setting Termination Read only If the device is the last in the bus, you can terminate via the hardware.
  • Page 64 Operation Liquiline System CA80AL Menu/Setup/General settings/Extended setup/Webserver Function Options Info User administration List of users already View/edit You can change user names or passwords or created delete users. A user is already created at the factory: "admin" with password "admin".
  • Page 65 Liquiline System CA80AL Operation Menu/Setup/General settings/Extended setup/Ethernet Function Options Info Netmask xxx.xxx.xxx.xxx On the basis of the IP address of a device, the netmask specifies which IP addresses this device searches for in its own network and which addresses it could access in other networks via a router.
  • Page 66 Operation Liquiline System CA80AL Saving the setup Saving a setup offers the following advantages, among others : • Copying settings for other devices • Quick and easy switching between various setups, e. g. for different user groups or for recurring sensor type changes •...
  • Page 67 Liquiline System CA80AL Operation 5. Use OK to confirm or cancel and assign a new file name.  Your setup is saved on the SD card in the "Device" folder. You cannot upload the exported setup to the device again. You must use the Save setup .

  • Page 68: Analyzer

    Operation Liquiline System CA80AL 3. Enter the new password again.  The lock password has been changed successfully. Press the navigator for longer to return to the measuring mode. 10.3 Analyzer Menu/Setup/Analyzer Function Options Info Mode Read only Manual, automatic or fieldbus ‣...
  • Page 69 Liquiline System CA80AL Operation Menu/Setup/Analyzer/Extended setup Function Options Info Signal for sample request Lead time SP%C Selection In the automatic mode, each measurement only 0.00 to 30.00 (MM:SS) starts once the lead time has elapsed. The request sample signal is active from the start of...
  • Page 70 Operation Liquiline System CA80AL Menu/Setup/Analyzer/Extended setup Function Options Info Cleaner C Selection 100 to 1000 ml Factory setting 500 ml Standard S1 Selection 100 to 1000 ml Factory setting 1000 ml Reagent RB Selection 100 to 1000 ml Factory setting...
  • Page 71 Liquiline System CA80AL Operation Menu/Setup/Analyzer/Extended setup Function Options Info Reagent RB Selection 1 to 40 % Factory setting 10 % Reagent RK Selection 1 to 40 % Factory setting Reagent RN Selection 1 to 40 % Factory setting Diag. code 727...
  • Page 72 Operation Liquiline System CA80AL Menu/Setup/Analyzer/Measurement Function Options Info Date 01.01.1970 to 07.02.2106 Factory setting DD.MM.YYYY Time 00:00:00 to 23:59:59 Factory setting HH:MM:SS (24 h) Measuring interval Factory setting For configuring the time interval of the 0:10 measurement Sequence of measurements...

  • Page 73: Sample Preparation

    Liquiline System CA80AL Operation Menu/Setup/Analyzer/Calibration Function Options Info Calibration factor Read only Relationship of the measured concentration to the pre-specified concentration of the calibration standard. Settings Nominal concentration 1.00 to 1000.00 (μg/l) For configuring the concentration of the calibration standard solution.
  • Page 74 Operation Liquiline System CA80AL Menu/Setup/Sample preparation Function Options Info Installation type Selection Others: • Others e.g. Liquiline System CAT820 / CAT860 • Pressurized pipe Pressurized pipe sampling: sampling Sample preparation that is installed in a Factory setting pressure pipe, e.g. Liquiline System CAT810.
  • Page 75 Liquiline System CA80AL Operation Menu/Setup/Sample preparation Function Options Info Pump time Selection Ratio between the pumping duration and the 10 to 20 s pumping interval of the peristaltic pump. This affects the volume of the pumped sample. Factory setting 10 s...
  • Page 76 Operation Liquiline System CA80AL Menu/Setup/Sample preparation Function Options Info Diag. code 729 Read only Warning limit Selection 01‐00 to 99‐00 (DD‐HH) Factory setting 60-00 Limit change hose(CAT820, CAT860) Function Selection • On • Off Factory setting Diag. code 337 Read only...

  • Page 77: Current Inputs

    Liquiline System CA80AL Operation 10.5 Current inputs The input can be used as the data source for limit switches and logbooks, for example. Furthermore, external values can be made available as set points for controllers. Menu/Setup/Inputs/Current input x:y Function Options Info ‣...

  • Page 78: Binary Inputs And Outputs

    Operation Liquiline System CA80AL 10.6 Binary inputs and outputs Hardware options, such as the "DIO" module with 2 digital inputs and 2 digital outputs or fieldbus module "485" enable the following: • Via a digital input signal • measuring range switching for conductivity (upgrade code required, ) •...
  • Page 79 Liquiline System CA80AL Operation Utilize the advantage of the effectively wear-free control with binary outputs versus a control system with relay. With pulse frequency modulation (PFM), it is possible to achieve virtually continuous dosing using a dosing pump with higher input frequency.
  • Page 80 Operation Liquiline System CA80AL 2. The cleaning trigger is transferred to another device via a binary output. This does not have its own connected cleaning unit, but its sensors are installed in the medium affected by cleaning the master and are set to hold by the trigger.
  • Page 81 Liquiline System CA80AL Operation For this, connect the Signal for process access to a binary input of the "DIO" module and set the starting time of the measurements to Continuous . A measurement starts immediately as soon as the signal at the binary input is active. The only exception is if a...
  • Page 82 Operation Liquiline System CA80AL Menu/Setup/Outputs/Binary output x:y Function Options Info Binary output Selection Signal type Selection Static signal Function Selection Analyzer Assignments Selection Here select which binary outputs output the Measurement active SP1 system status for a measurement currently Function = Analyzer running.
  • Page 83 Liquiline System CA80AL Operation 5.  The output signal level High indicates that sample is required. 10.6.2 Binary input configuration Menu/Setup/Inputs/Binary input x:y Function Options Info Binary input Selection Switches the input on/off • Off • On Factory setting ‣...
  • Page 84 Operation Liquiline System CA80AL Menu/Setup/Inputs/Binary input x:y Function Options Info Input variable Selection Frequency • Frequency Display in Hz in the measuring menu • Parameter Parameter • Flow rate You subsequently determine the parameter Factory setting name and unit. These are then displayed in the Frequency measuring menu.
  • Page 85 Liquiline System CA80AL Operation Menu/Setup/Outputs/Binary output x:y Function Options Info Signal type = Static signal Function Selection Source for the outputted switching state • None The following functions depend on the option • Limit switches selected. • Diagnostics message Function = None Switches off the function.

  • Page 86: Signal Outputs

    Operation Liquiline System CA80AL Menu/Setup/Outputs/Binary output x:y Function Options Info Source of data Selection Source, whose value should be read out as a • None frequency over the binary output. • Sensor inputs • Binary inputs • Controller • Fieldbus signals •...
  • Page 87 Liquiline System CA80AL Operation Menu/Setup/Outputs/Current output x:y Function Options Info Current output Selection Use this function to activate or deactivate a • Off variable being output at the current output • On Factory setting Source of data Selection The sources of data on offer depend on your •...
  • Page 88 Operation Liquiline System CA80AL Source of data Measured value Oxygen (amp.) Selection • Temperature Oxygen (opt.) • Partial pressure • Concentration liquid • Saturation • Raw value nA (only Oxygen (amp.)) • Raw value μs (only Oxygen (opt.)) Cond i Selection •...
  • Page 89 Liquiline System CA80AL Operation Outputting the controller manipulated variable via the current output Unipolar+ Assign to the output to which an actuator that can increase the measured value is connected. Unipolar- Assign to the output to which an actuator that can decrease the measured value is connected.
  • Page 90 Operation Liquiline System CA80AL Outputting the status of a limit contactor Function = Limit switch Function Options Info Source of data Selection Select the limit switch via which the status of the Limit switch 1 ... 8 relay is to be output.
  • Page 91 Liquiline System CA80AL Operation 1. PWM (pulse width modulation): The duty cycle is varied within a period T (T=t ). The cycle duration remains constant. y = t / T 10 % 50 % 100 % 1 "High" 0 "Low"...
  • Page 92 Operation Liquiline System CA80AL Function = Controller Function Options Info Maximum frequency 1 to 180 min Maximum number of pulses per minute The controller calculates the pulse duration Operating mode = PFM Factory setting based on this setting. 60 min ‐1...
  • Page 93 Liquiline System CA80AL Operation Outputting the status of a cleaning function Function = Cleaning(for sensors) Function Options Info Assignments Selection Here you can specify how a cleaning function • None should be displayed for the relay. • Depends on the type of...
  • Page 94 Operation Liquiline System CA80AL Please note that if you select Hold behavior= Freeze , the system not only flags the status but also actually "freezes" the measured value. In addition, you can define 8 binary variables (DI Blocks): 1. Define the data source.

  • Page 95: Additional Functions

    Liquiline System CA80AL Operation In addition you can define 8 digital device variables (DI): ‣ Define the data source.  You can choose from relays, binary inputs and limit switches. For further information on "EtherNet/IP", see the Guideline for Communication via EtherNet/IP, SD01293C 10.8...
  • Page 96 Operation Liquiline System CA80AL Source of data Measured value Cond i Selection • Temperature Cond c • Conductivity • Resistance (only Cond c) • Concentration (only Cond i and Cond c 4-pol) Disinfection Selection • Temperature • Sensor current • Concentration Selection •...
  • Page 97 Liquiline System CA80AL Operation Menu/Setup/Additional functions/Limit switches/Limit switch 1 ... 8 Function Options Info Cleaning program Selection Use this function to choose which cleaning • None instance should start when the limit switch is • Cleaning 1 ... 4 active.
  • Page 98 Operation Liquiline System CA80AL Menu/Setup/Additional functions/Limit switches/Limit switch 1 ... 8 Function Options Info Range lower value Settings depend on the Operating mode = Out of range check or In measured value range check Range upper value A0028524  75...
  • Page 99 Liquiline System CA80AL Operation Menu/Setup/Additional functions/Limit switches/Limit switch 1 ... 8 Function Options Info Delta value Settings depend on the Operating mode = Change rate measured value The slope of the measured value (MV) is monitored in this mode. Delta time 00:00:01 ...
  • Page 100 Operation Liquiline System CA80AL integral section (middle) also comprises an anti‐windup mechanism for limiting the integrator. A low-pass filter is added to the D‐section to damp hard D‐terms in the manipulated variable. The sum of the 3 sections results in the internal controller manipulated variable which is limited according to the settings (for PID‐2s to ‐100% to...
  • Page 101 Liquiline System CA80AL Operation Menu/Setup/Additional functions/Controller 1 ... 2 Function Options Info ‣ Control Selection First configure the controller and leave the • Off switch at the factory setting (Off). • Automatic Once you have made all the settings, you can •...
  • Page 102 Operation Liquiline System CA80AL Menu/Setup/Additional functions/Controller 1 ... 2 Function Options Info Controller type Selection Depending on which actuator you have • PID 1-sided connected, you influence the process in only one • PID 2-sided direction (e.g . heating) or in both directions (e. g.
  • Page 103 Liquiline System CA80AL Operation Menu/Setup/Additional functions/Controller 1 ... 2 Function Options Info Effective direction Selection In what direction should the controller influence • Direct the measured value? Controller type = PID 1-sided • Reverse • The measured value should increase as a result of dosing (e. g.
  • Page 104 Operation Liquiline System CA80AL Menu/Setup/Additional functions/Controller 1 ... 2 Function Options Info In the case of "flowing medium" (in-line) controls, the flow rate may not be constant. In some circumstances, strong fluctuations are possible. In the case of a settled control system in which the flow rate is suddenly halved, it is desirable that the dosed quantity from the controller is also directly halved.
  • Page 105 Liquiline System CA80AL Operation Menu/Setup/Additional functions/Controller 1 ... 2 Function Options Info ‣ Measured value Selection Specify the measured value that should be Depends on Source of data your disturbance variable. Factory setting You can use different measured values None depending on the data source.
  • Page 106 Operation Liquiline System CA80AL Menu/Setup/Additional functions/Controller 1 ... 2 Function Options Info 0.1 to 999.9 s Time constant for anti‐windup feedback The lower the value the greater the integrator Factory setting inhibition. Exercise extreme caution when 20.0 s making changes.
  • Page 107 Liquiline System CA80AL Operation Menu/Setup/Additional functions/Controller 1 ... 2 Function Options Info XHyst 0.0 to 99.9 % Width of the hysteresis range of the neutral zone, relative component of x Factory setting 0.0 % hyst e = w-x The graphic illustrates the manipulated variable (with a pure P‐controller) over the control deviation e (set point minus controlled variable).
  • Page 108 Operation Liquiline System CA80AL Types of cleaning The user can choose from the following cleaning types: • Standard clean • Chemoclean • Chemoclean Plus State of cleaning: Indicates whether the cleaning program is active or not. This is for information purposes only.
  • Page 109 Liquiline System CA80AL Operation Chemoclean Plus An example is the use of the CYR10 injector unit to clean pH glass sensors. (CYR10 connection →  37) Menu/Setup/Additional functions/Cleaning/Cleaning 1 ... 4/Chemoclean Plus/ChemoCleanPlus setup Function Options Info Cleaning steps setup Table to create a time...
  • Page 110 Operation Liquiline System CA80AL Defining the cleaning cycle Menu/Setup/Additional functions/Cleaning/Cleaning 1 ... 4 Function Options Info ‣ Cleaning cycle Selection Choose from a cleaning routine that is • Off restarted at set intervals and a user- • Interval definable weekly program.
  • Page 111 Liquiline System CA80AL Operation The "virtual" process values can be: • Output via a current output or a fieldbus • Used as a controlled variable • Assigned as a measured variable to a limit switch • Used as a measured variable to trigger cleaning •...
  • Page 112 Operation Liquiline System CA80AL Menu/Setup/Additional functions/Mathematical functions/MF1 to 6/Mode = Redundancy Function Options Info Deviation control Selection You can monitor the redundancy. Specify an • Off absolute limit value that must not be exceeded. • On Factory setting Deviation limit...
  • Page 113 Liquiline System CA80AL Operation Menu/Setup/Additional functions/Mathematical functions/MF1 to 6/Mode = Degassed conductivity Function Options Info Calculation Selection On/off switch for the function • Off • On Factory setting Cation conductivity Connected conductivity Cation conductivity is the sensor downstream sensor from the cation exchanger and upstream from the "degassing module", Degassed conductivity...
  • Page 114 Operation Liquiline System CA80AL Calculated pH value The pH value can be calculated from the measured values of two conductivity sensors under certain conditions. Areas of application include power stations, steam generators and boiler feedwater. Menu/Setup/Additional functions/Mathematical functions/MF1 to 6/Mode = pH calculation from...
  • Page 115 Liquiline System CA80AL Operation Symbol Operation Type of operands Type of result Example Sine Numerical Numerical SIN(A) Cosine Numerical Numerical COS(B) Exponential function e Numerical Numerical EXP(A) Natural logarithm Numerical Numerical LN(B) Decadic logarithm Numerical Numerical LOG(A) Maximum of two values...
  • Page 116 Operation Liquiline System CA80AL Menu/Setup/Additional functions/Mathematical functions/MF1 to 6/Mode = Formula Function Options Info Result unit Free text You may enter a unit for the calculated value if desired. Result format Selection Select the number of decimal places. • # •...
  • Page 117 Liquiline System CA80AL Operation 5. Connect the valve or pump. Endress+Hauser...

  • Page 118: Diagnostics And Troubleshooting

    Diagnostics and troubleshooting Liquiline System CA80AL Diagnostics and troubleshooting 11.1 General troubleshooting The analyzer continuously monitors its functions itself. If a diagnostic message occurs, the display alternates between the diagnostic message and the measured value in the measuring mode. The color of the display background changes to red if a diagnostic message for error category "F"...

  • Page 119: Diagnostic Information On Local Display

    Liquiline System CA80AL Diagnostics and troubleshooting Problem Possible cause Tests and/or remedial measures No reagents / sample Check levels Check the hoses of the reagents Check sample (only if self-priming) Cell dirty Perform calibration with zero- standard Clean using manual cleaning routine, then repeat calibration with zero standard ‣...

  • Page 120: Adapting The Diagnostic Information

    Diagnostics and troubleshooting Liquiline System CA80AL 11.5 Adapting the diagnostic information 11.5.1 Classification of diagnostic messages In the DIAG/Diagnostics list menu you can find more detailed information on the current diagnostic messages displayed. In accordance with Namur specification NE 107, the diagnostic messages are characterized •...
  • Page 121 Liquiline System CA80AL Diagnostics and troubleshooting Menu/Setup/Run the ../Extended setup/Diagnostics settings/Diag. behavior Function Options Info ‣ List of diagnostic messages Select the message to be changed. Only then can you make the settings for this message. Diag. code Read only...

  • Page 122: Overview Of Diagnostic Information

    Diagnostics and troubleshooting Liquiline System CA80AL 11.6 Overview of diagnostic information 11.6.1 Device-specific, general diagnostic messages Message Factory settings Tests or remedial action Selftest active Wait for self-test to be finished Hold active Output values and status of the channel are on...
  • Page 123 Liquiline System CA80AL Diagnostics and troubleshooting Message Factory settings Tests or remedial action Pump hose warning End of pump hose service life will be reached shortly Display under Menu/Diagnostics/Operating time information/Pump tube life Schedule replacement. After replacing, reset the operating time under Menu/Diagnostics/Operating time information.
  • Page 124 Diagnostics and troubleshooting Liquiline System CA80AL Message Factory settings Tests or remedial action Temperature sensor Temperature sensor defective in reactor, cuvette or sample pre-heating system ‣ Contact the Service Department and quote the number displayed. Valve defective Indicated valve is defective ‣...
  • Page 125 Liquiline System CA80AL Diagnostics and troubleshooting Message Factory settings Tests or remedial action Language change Language change failed ‣ Contact the Service Department. ‣ Diag. setup active Wait for maintenance to be finished. Logbook at 80% Save the logbook to the SD card and then delete the logbook in the device.
  • Page 126 Diagnostics and troubleshooting Liquiline System CA80AL Message Factory settings Tests or remedial action Cuvette covering Photometer check High degree of contamination - reliable measurement will not be possible soon Clean analyzer manually. Contact the Service Department. Cuvette covering Photometer check buildup, high degree of contamination - measurement no longer possible Start cleaning.
  • Page 127 Liquiline System CA80AL Diagnostics and troubleshooting Message Factory settings Tests or remedial action Wear parts alarm One or more wear parts has exceeded its service life. ‣ Replace the wear parts in question and reset the counter in Diagnostics/Operating time information.
  • Page 128 Diagnostics and troubleshooting Liquiline System CA80AL Message Factory settings Tests or remedial action Controlled variable Controller input warning Status of the controller variable is not OK ‣ Check application. Controller setpoint Controller input warning Status of set point is not OK ‣...

  • Page 129: Pending Diagnostic Messages

    Liquiline System CA80AL Diagnostics and troubleshooting Message Factory settings Tests or remedial action PFM/PWM value high Pulse frequency modulation: output signal exceeded/undershot. Measured value outside the PFM/PWM value low specified range. • Sensor in air • Air pockets in assembly •...

  • Page 130: Logbooks

    Diagnostics and troubleshooting Liquiline System CA80AL 11.9 Logbooks 11.9.1 Available logbooks Types of logbooks • Logbooks physically available (all apart from the overall logbook) • Database view of all logbooks (=overall logbook) Logbook Visible in Max. Can be Logbook Entries...
  • Page 131 Liquiline System CA80AL Diagnostics and troubleshooting DIAG/Logbooks Function Options Info Calibration events Chronological list of the calibration events Show Events are displayed Select a particular event to display more detailed information. Go to date User entry Use this function to go directly to a specific time •...
  • Page 132 Diagnostics and troubleshooting Liquiline System CA80AL 126.00 126.00 34.00 34.00 09.11.2011 09.11.2011 23.11.2011 23.11.2011 14:02:20 14:02:20 11:25:32 11:25:32 12.00 6.00 09.11.2011 09.11.2011 23.11.2011 23.11.2011 14:02:20 14:02:20 11:25:32 11:25:32 A0016688  81 Simultaneous display of two graphs, the top one is "selected"...
  • Page 133 Liquiline System CA80AL Diagnostics and troubleshooting DIAG/Logbooks Function Options Info Analyzer data logbooks Data logbooks for the data of the wet-chemical analyzers Data logbook SP1 In the case of two-channel devices, data logbook SP2 is also displayed Source of data...
  • Page 134 Diagnostics and troubleshooting Liquiline System CA80AL DIAG/Logbooks Function Options Info Set plotting window Here you can specify the start and end times of range the logbook entries to be displayed graphically. Plotter begin Selection • First entry: Defines the first entry saved in •...

  • Page 135: 11.10 System Information

    Liquiline System CA80AL Diagnostics and troubleshooting DIAG/Logbooks Function Options Info All data logbooks Action, Use this function to save the logbook to an SD Data logbook SP1 commences as soon as the card. Absorption data logbook option is selected ‣...
  • Page 136 Diagnostics and troubleshooting Liquiline System CA80AL DIAG/System information Function Options Info Sample preparation 1 ... 2 Read only Depends on the type and number of • SP type sample preparations • Order code • Serial number • Hardware version • Software version •...

  • Page 137: 11.11 Sensor Information

    Liquiline System CA80AL Diagnostics and troubleshooting DIAG/System information Function Options Info Save system information Save to SD card File name assigned The information is saved on the SD automatically (includes a card in a "sysinfo" subfolder. time stamp) The csv file can be read and edited in MS Excel, for example.

  • Page 138: 11.13 Device Test

    Diagnostics and troubleshooting Liquiline System CA80AL DIAG/Simulation Function Options Info Alarm relay Simulation of a relay state Relay x:y This menu appears once for each relay. Simulation Selection If you simulate the relay state, this is indicated • Off on the display by a simulation icon in front of •...
  • Page 139 Liquiline System CA80AL Diagnostics and troubleshooting DIAG/System test Function Options Info Automatic The heating is automatically switched on and off in line with the housing temperature. Hose heating filter Tests the hose heating (filter to pump) Ambient Read only Displays the current outside temperature...

  • Page 140: 11.14 Resetting

    Diagnostics and troubleshooting Liquiline System CA80AL DIAG/System test Function Options Info Towards sample This menu item is also displayed for two-channel collector 2 devices. The valve for sample supply is opened towards collecting vessel 2. Towards analyzer 1 This menu item is additionally displayed in the case of 2 cascaded analyzers.

  • Page 141: 11.16 Firmware History

    Liquiline System CA80AL Diagnostics and troubleshooting DIAG/Operating time information Function Options Info Dispenser 2, Read only Dispenser 3, Dispenser 4, Dispenser 5, Dispenser 7 Operating time sample preparation 1 (CAT820, In the case of two-channel devices, sample CAT860) preparation 2 is also displayed...

  • Page 142: Maintenance

    Maintenance Liquiline System CA80AL Maintenance Effects on process and process control ‣ Take all the necessary precautions in time to ensure the operational safety and reliability of the entire measuring point. WARNING Process pressure and temperature, contamination, electrical voltage Risk of serious or fatal injury ‣...

  • Page 143: Cleaning

    Liquiline System CA80AL Maintenance Interval Maintenance work Every 2 to 3 years (Where necessary) replace hoses: • C-Flex, white ID 3.2 mm • C-Flex, white ID 6.4 mm Every 2 or 4 years Measuring interval < 1 hour: Replace Liquid Manager every 2 years Measuring interval ≥...

  • Page 144: Replacing Reagents, Standard And Cleaner

    Maintenance Liquiline System CA80AL 4. Menu/Operation Select /Maintenance/Decommissioning/Sample collector/ Empty sample collector/Start .  The system is automatically rinsed with sample and emptied. This process takes approx. 4 minutes. Rinsing the analyzer with water Trigger the rinsing and draining of the collecting vessel before you rinse the analyzer .

  • Page 145: Carrying Out Zero Point Calibration

    Liquiline System CA80AL Maintenance Replacing bottles 1. Replace the removed bottles with fresh reagent , standard solution or cleaner .  Reagents must be prepared according to the instructions for mixing a reagent. 2. Reconnect the hoses to the Liquid Manager.

  • Page 146: Replacing The Hoses

    Maintenance Liquiline System CA80AL Using the standard calibration solution again 1. Replace the zero standard with the standard. Use either an additional hose in order to reconnect the standard calibration solution, or allow the hose to drain and dry the hose well.

  • Page 147: Replacing Dispensers

    Liquiline System CA80AL Maintenance 1. Open and remove the fan screen on the right and left underside of the analyzer. 2. Remove the used filter mats and replace them with new ones from the maintenance kit. 3. Fit the fan screens back on.

  • Page 148: Replacing The Liquid Manager

    Maintenance Liquiline System CA80AL 12.8 Replacing the Liquid Manager You require the following parts: CAV800-N1xx+PU for CA80AL Preparations to replace the Liquid Manager 1. Rinse the system (see the "Rinsing the system" section). 2. Remove the bottles and the bottle tray.

  • Page 149: Taking Out Of Service

    Liquiline System CA80AL Maintenance 12.9 Taking out of service CAUTION Activities while the analyzer is in operation Risk of injury and infection from medium, reagents or cleaner! ‣ Before you release any hoses, make sure that no actions, such as the pumping of sample, are currently running or are due to start shortly.
  • Page 150 Maintenance Liquiline System CA80AL 7. Remove the hoses from the beaker and dry them with a clean paper towel. 8. Select Menu/Operation/Maintenance/Decommissioning/Rinse analyzer once again to rinse the hoses with air. 9. The analyzer can now be disconnected from the mains supply.

  • Page 151: Repair

    Liquiline System CA80AL Repair Repair 13.1 Spare parts Contact your Endress+Hauser Service Department if you have any questions about the spare parts. 111 117 128 A0028752 A0028753  82  83 A0028754 A0028755  84  85 A0028756 A0028757  86 ...
  • Page 152 Repair Liquiline System CA80AL Item No. Description and contents Order number Spare parts kit Kit CA8x: controller with display 71218395 Kit instructions, CA8x housing parts Kit CA8x/860: wall holder unit 71218400 Kit instructions, CA8x housing parts Kit CA8x/860: housing base...

  • Page 153: Return

    The product must be returned if repairs or a factory calibration are required, or if the wrong product was ordered or delivered. As an ISO-certified company and also due to legal regulations, Endress+Hauser is obliged to follow certain procedures when handling any returned products that have been in contact with medium.

  • Page 154: Disposal

    Repair Liquiline System CA80AL 13.3 Disposal The device contains electronic components. The product must be disposed of as electronic waste. ‣ Observe the local regulations. Batteries must always be disposed of in accordance with local regulations on battery disposal. CAUTION Danger of injury if used reagents and reagent waste are disposed of incorrectly ‣...

  • Page 155: Accessories

    Liquiline System CA80AL Accessories Accessories The following are the most important accessories available at the time this documentation was issued. ‣ For accessories not listed here, please contact your Service or Sales Center. 14.1 Sample preparation Liquiline System CAT810 • Pressure pipe sampling and microfiltration •...

  • Page 156: Maintenance Kit Cav800

    Accessories Liquiline System CA80AL 14.3.2 Standard solution CY80AL 1 l (34 fl.oz.) standard solution in each case with different concentrations of aluminum. • 0 mg/l (ppm) Al; Order No. CY80AL-N1+TA • 0.1 mg/l (ppm) Al; Order No. CY80AL-N1+TH • 0.5 mg/l (ppm) Al; Order No. CY80AL-N1+TK •...

  • Page 157: Sensors

    Liquiline System CA80AL Accessories Kit for upgrade for second, downstream analyzer • Valve for switching sample flow • Hoses, connection adapters • Activation code • Order No. CAZ800-N1M1 Kit for dilution function Order No. CAZ800‐AAN5 Kit for upgrading the dilution function •...
  • Page 158 Accessories Liquiline System CA80AL Orbipac CPF81D • Compact pH sensor for installation or immersion operation • In industrial water and wastewater • Product Configurator on the product page: www.endress.com/cpf81d Technical Information TI00191C 14.7.2 ORP electrodes Orbisint CPS12D • ORP sensor for process technology •...
  • Page 159 Liquiline System CA80AL Accessories 14.7.5 Oxygen sensors Oxymax COS51D • Amperometric sensor for dissolved oxygen • With Memosens technology • Product Configurator on the product page: www.endress.com/cos51d Technical Information TI00413C Oxymax COS61D • Optical oxygen sensor for drinking water and industrial water measurement •...

  • Page 160: Additional Functionality

    Accessories Liquiline System CA80AL Turbimax CUS52D • Hygienic Memosens sensor for turbidity measurement in drinking water, process water and in utilities • With Memosens technology • Product Configurator on the product page: www.endress.com/cus52d Technical Information TI01136C 14.7.9 SAC and nitrate sensors Viomax CAS51D •...

  • Page 161: Measuring Cable

    Liquiline System CA80AL Accessories Retrofit kits 71135633 Kit CM442/CM444/CM448/CSF48/CA80: extension module 4AO; 4 x 0/4 to 20 mA analog output 71135631 Kit CM444/CM448/CSF48/CA80: extension module 2DS; 2 x digital sensor, Memosens 71135634 Kit CM442/CM444/CM448/CSF48/CA80: extension module 485; Ethernet configuration; can be extended to PROFIBUS DP or Modbus RS485 or Modbus TCP or EtherNet/IP.

  • Page 162: 14.11 Other Accessories

    Accessories Liquiline System CA80AL 14.11 Other accessories 14.11.1 SD card • Industrial Flash Drive, 1 GB • Order No. 71110815 14.11.2 Cable junction with Velcro strip • 4 pieces, for sensor cable • Order No. 71092051 Endress+Hauser...

  • Page 163: Technical Data

    Liquiline System CA80AL Technical data Technical data 15.1 Input Measured variables Al [µg/l, ppb] Measuring range 15 to 1000 µg/l (ppb) Al Types of input • 1 or 2 measuring channels (analyzer main parameter) • 1 to 4 digital sensor inputs for sensors with Memosens protocol (optional) •...

  • Page 164: Current Outputs, Active

    Technical data Liquiline System CA80AL Modbus RS485 Galvanic isolation Bus termination Internal slide switch with LED display Web server and Modbus TCP Signal encoding IEEE 802.3 (Ethernet) Data transmission rate 10 / 100 MBd Galvanic isolation Connection RJ45, M12 optional...

  • Page 165: Relay Outputs

    Liquiline System CA80AL Technical data 15.4 Relay outputs Electrical specification Relay types • 1 single-pin changeover contact (alarm relay) • 2 or 4 single-pin changeover contacts (optional with extension modules) Maximum load • Alarm relay: 0.5 A • All other relays: 2.0 A...

  • Page 166: Protocol-Specific Data

    Technical data Liquiline System CA80AL 15.5 Protocol-specific data Modbus RS485 Protocol RTU/ASCII Function codes 03, 04, 06, 08, 16, 23 Broadcast support for function codes 06, 16, 23 Output data 16 measured values (value, unit, status), 8 digital values (value,...

  • Page 167: Power Supply

    Liquiline System CA80AL Technical data Rockwell Add-on-Profile Level 3, Faceplate for Factory Talk SE IO data Input (T → O) Device status and diagnostic message with highest priority Measured values: • 16 AI (analog input) + Status + Unit • 8 DI (discrete input) + Status Output (O →...

  • Page 168: Performance Characteristics

    Technical data Liquiline System CA80AL NPT½" 6 to 12 mm (0.24 to 0.48") G½ 7 to 12 mm (0.28 to 0.48") Cable glands mounted at the factory are tightened with 2 Nm. Sensor connection Sensors with Memosens protocol (optional) Sensor types...

  • Page 169: Environment

    Liquiline System CA80AL Technical data Sample requirement 20.5 ml (0.69 fl.oz)20.5 ml (0.69 fl.oz) /measurement Reagent requirement RB, RK: 60 µl (0.002 fl.oz) per 0.173 l (5.85 fl.oz) per month measurement given a measuring interval of 15 minutes 100 µl (0.003 fl.oz) per 0.288 l (9.74 fl.oz) per month...

  • Page 170: Process

    Technical data Liquiline System CA80AL 15.9 Process Sample temperature 4 to 40 °C (39 to 104 °F) Consistency of the sample Low solids content (turbidity < 50 NTU), aqueous, homogenized pH value of the sample < 6, measurement according to DIN ISO 10566:1999...
  • Page 171 Liquiline System CA80AL Technical data Sample collecting vessel (optional) • Beaker • Plastic PMMA • Cover • Plastic PP • Level detector pins • Stainless steel 1.4404 (V4A) • Seal • EPDM Valve (optional) PVDF Endress+Hauser...

  • Page 172: Index

    Index Liquiline System CA80AL Index Configure Actions ....... . 47 Accessories Free text .
  • Page 173 Liquiline System CA80AL Index Dual conductivity ......113 Measured variables ......163 Measuring mode .
  • Page 174 Index Liquiline System CA80AL Mechanical construction ....170 Output ....... . 163 Reagent set .
  • Page 176 www.addresses.endress.com...

Table of Contents
