Orient XC Manual

ENGLISH
DOUBLE MOVEMENT
(MECHANICAL WATCH & ANALOGUE QUARTZ WATCH) [XC]
Thank you for choosing our product.
This watch uses two movements, each of which can adjust time independently.
● Disk display : This section is an automatic-winding mechanical watch (with a hand-winding
mechanism).
● Hands display : This section is an analogue quartz watch.

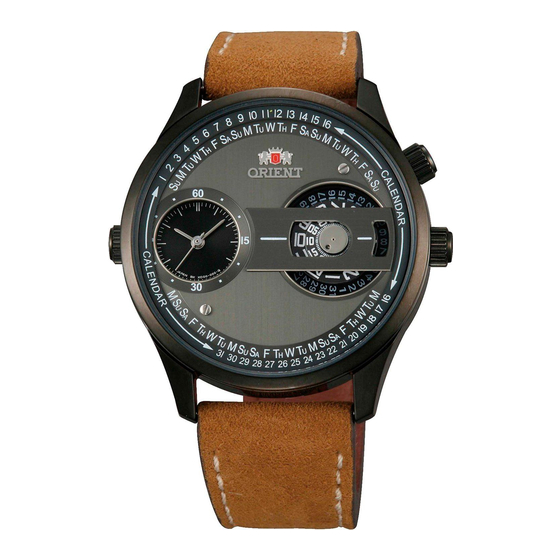

<Product Example>
Automatic winding
mechanical watch
(with a hand winding mechanism)
Analogue quartz watch
[ TYPE-A ]
[Supplementary notes for the disk display (Part of the automatic-winding
mechanical watch)]
It displays the time in hours and minutes using different disks.
 HOW TO USE THE WATCH
[Names and functions of individual component parts]
Hour disk
Time reading indicator
Minute disk
Second hand
* The position of the crown and date indicator, and the shapes of the date indicator and hands may vary
depending on the model.
8
60
45 15
30
[ TYPE-B ]
Crown
2nd step : Time adjustment
1st step : Date adjustment
0 step : Normal position
Date indicator
 HOW TO READ THE TIME
The current time is indicated by the ▲ (time reading indicator) which points to the numbers for the time
set.
* The minute disk and hour disk are interlocking such that they move together. (This is the same as for a
standard watch hand display.)
Therefore, the hour disk display may not point directly at the right number. Either disk may be shifted slightly
ahead or behind.
(Ex.: For a time of 8:30 a.m., the indicator points at 30 on the minute disk and lies between 08 and 09 on
the hour disk.)
<Example time display>
Inner ring crown
* When setting the time, first move the disks back a few minutes before the current time and then slowly
Inner ring
advance the disks to the correct time.
* Please check
correctly.
 HOW TO SET THE MONTHLY CALENDAR [TYPE-B]
Some models come with a calendar function which uses an inner ring or bezel on the exterior of the case
to indicate the date (as shown in the illustration below).
The monthly calendar can be used by turning the crown to set the rotating ring inside the watchcase and
aligning it with the day of the week that is printed on the dial.
Turn the crown to align the first day of the month to the appropriate day of the week.
* Note that when setting the first day of the month, if the days at the end of the month (31st, etc.) are
aligned with the section that does not have the days of the week printed on the dial (3 - 4 o'clock side),
days of the week will not be indicated at the end of the month.
* The position of the inner ring crown and details of the date indicator may vary depending on the model.
8:00 8:30
HOW TO READ THE TIME for further details, and make sure to adjust the time and date

8:50
