Trane IntelliPak WEHE Series Installation, Operation And Maintenance Manual page 19

Casing Furnace
2 Size/MBH
Low = 235
20 & 25 Ton
High = 500
Note: The length dimension is from the exhaust end of the unit. The height dimension
is from the bottom of the unit base rail.

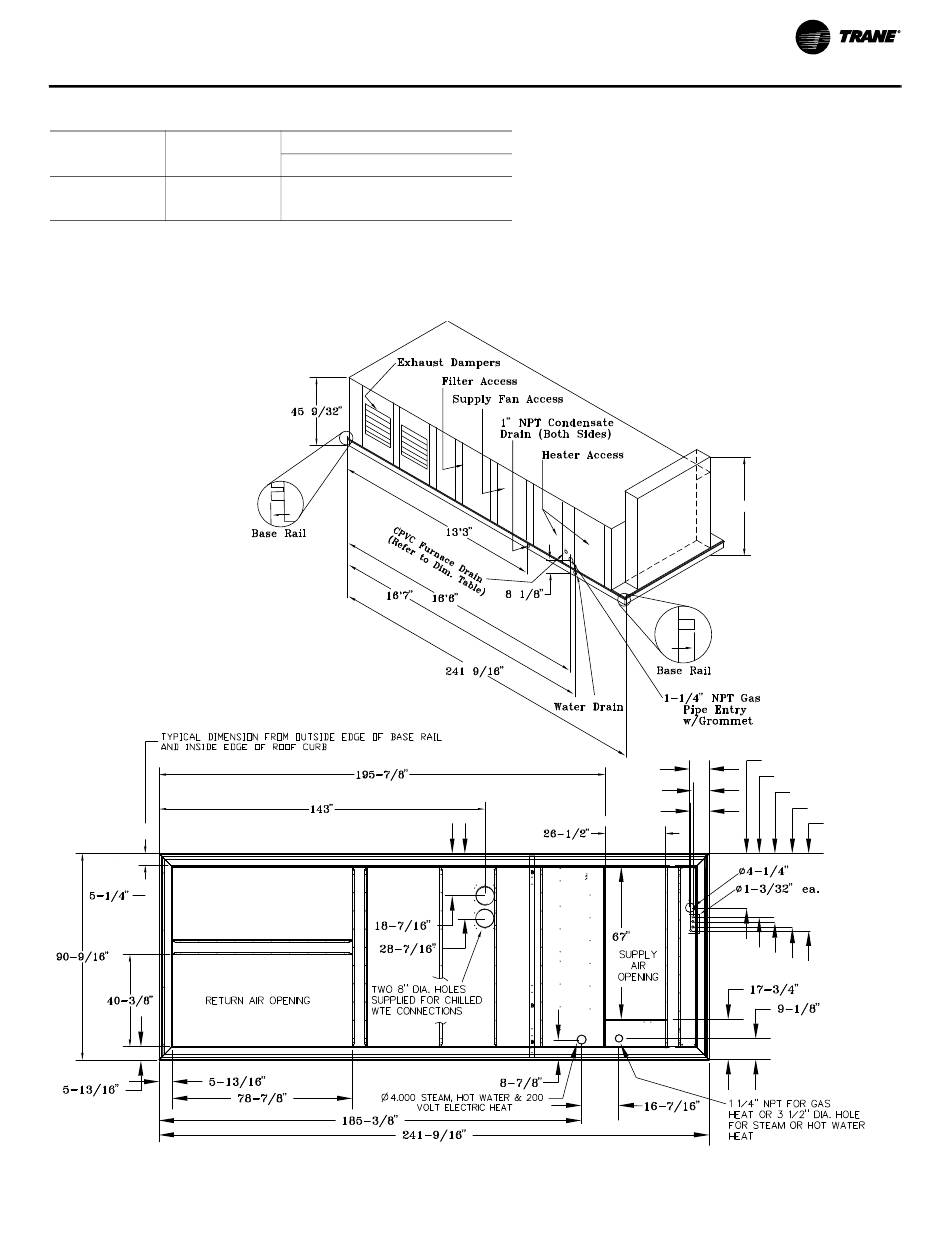

Figure 4. W_HE casing 2 (20 and 25 ton)
RT-SVX35H-EN
Dimensions (Note)
Length Height
195-5/32 "9-5/32"
195-5/32 "9-5/32"
73 9/16"
24-1/8"
9-7/16"
30-3/32"
7-15/16"
8-15/16"
Installation
32-3/32"
34-5/8"
36-3/8"
19
