Installation

Shipping Fasteners

Removing Supply and Exhaust Fan Shipping
Channels (Motors >5Hp)
Each supply fan assembly and exhaust fan assembly for
W_HE (casings 2 through 6) units shipped with a motor
larger than 5 hp is equipped with rubber isolators, (as
standard), or optional spring isolators. Each supply fan
assembly and exhaust fan assembly for W_HE (casing 9)
unit is equipped with spring isolators. Shipping channels
are installed beneath each fan assembly and must be
remove. To locate and remove these channels, refer to
Figure 13, p. 32 and use the following procedures.

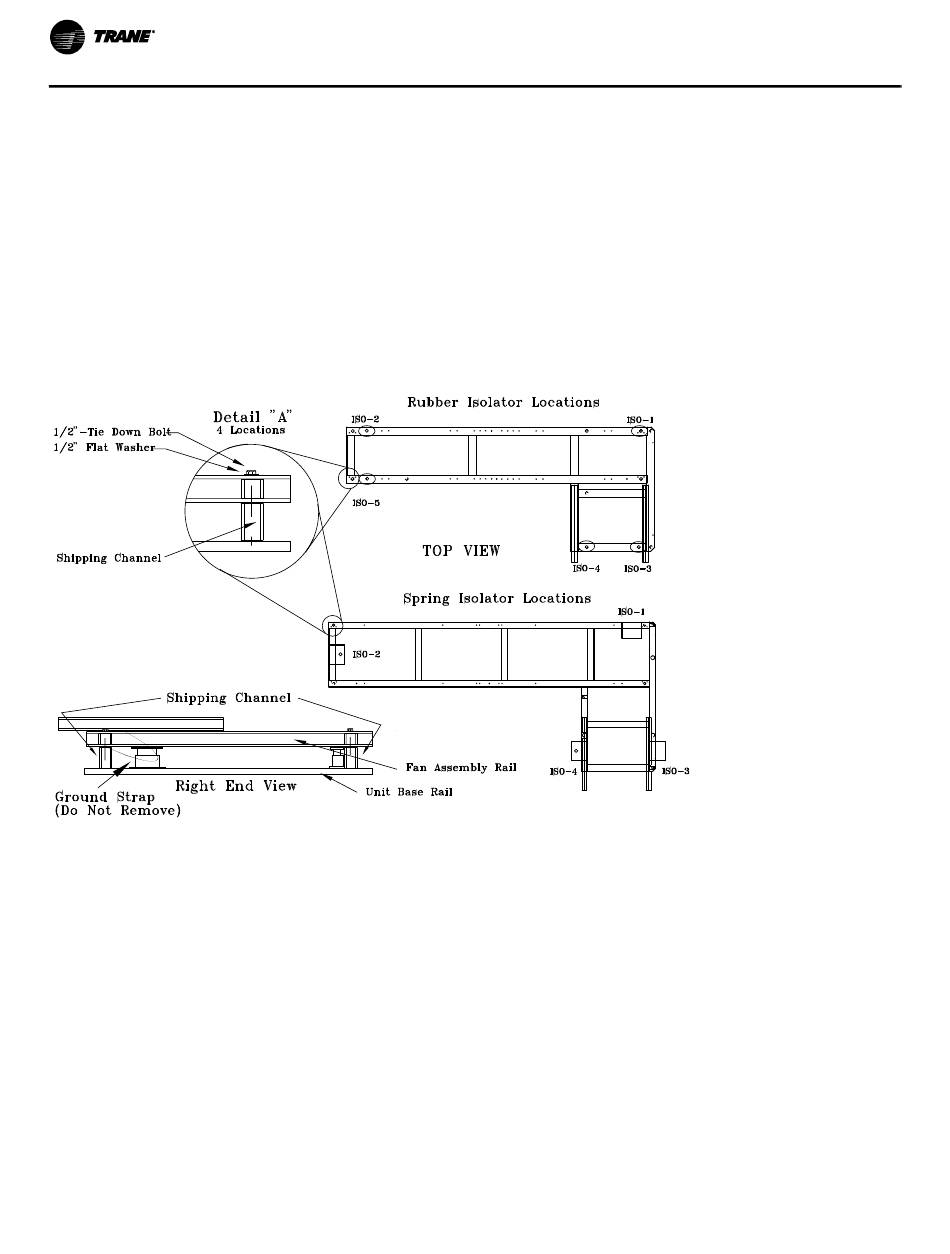

Figure 13. Removing fan assembly shipping hardware — W_HE casings 2-6
32
1. Remove and discard the shipping bolts from the fan
assembly rails.
2. Elevate the fan-and-motor assembly and slide the
shipping channels out from between the fan assembly
rails and the unit's base rail.
3. Lower the fan-and-motor assembly onto the isolators.
Make sure that the pins at the top of the isolators are
engaged in the corresponding holes on the fan
assembly.
4. Verify that the fan assembly is being supported by the
isolators.
