TD-W8968

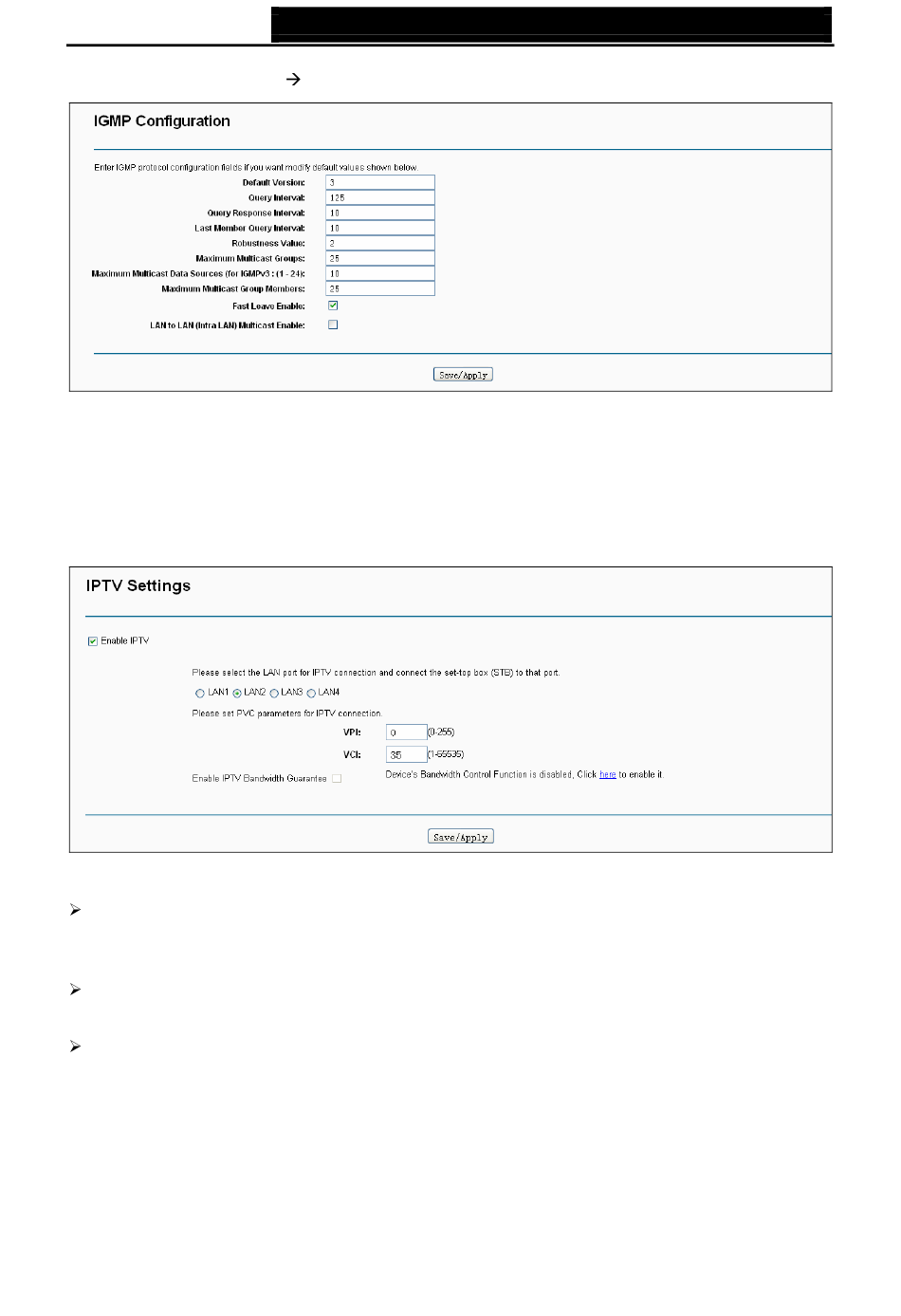

Choose "Advanced Setup" "Multicast", you can configure the IGMP protocol on the screen.
Click Apply/Save to save your settings.
4.6 IPTV
Choose "IPTV", and you will see the screen as shown in Figure 4-71.
Enable IPTV: Check this box to enable IPTV. If this checkbox is selected, please set the
following parameters as shown in the figure below. Make sure the following settings are
correct.
VPI (0~255): Identifies the virtual path between endpoints in an ATM network. The valid range
is from 0 to 255. Please input the value provided by your ISP.
VCI (1~65535): Identifies the virtual channel endpoints in an ATM network. The valid range is
from 1 to 65535 (1 to 31 is reserved for well-known protocols). Please input the value
provided by your ISP.
Click the Save/Apply button to save your settings.
300Mbps Wireless N USB ADSL2+ Modem Router User Guide
Figure 4-70
Figure 4-71
62
