TD-W8968
300Mbps Wireless N USB ADSL2+ Modem Router User Guide

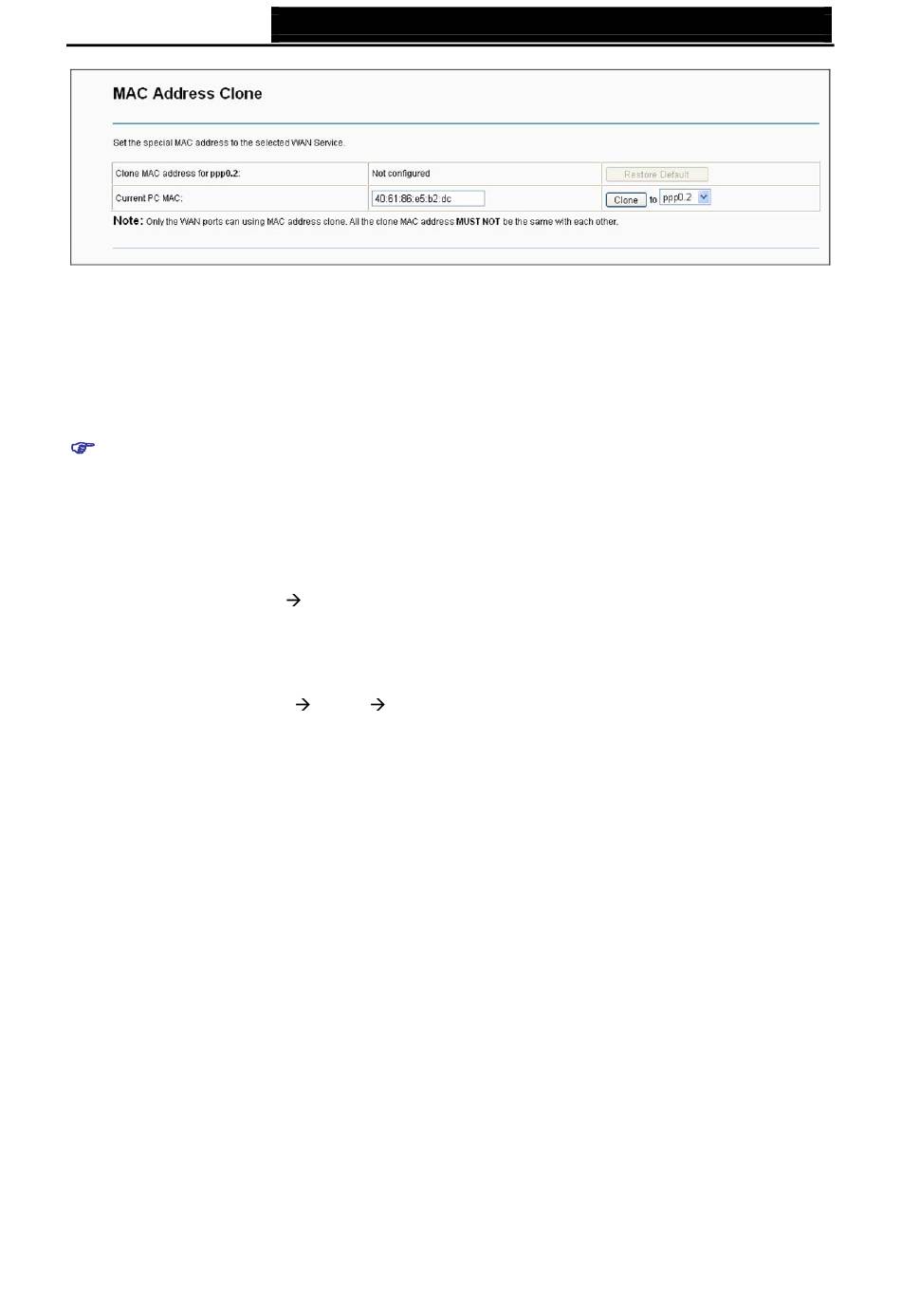

Figure 4-26
Type the new value for the WAN Interface who's MAC Address you want to change.
You can select corresponding WAN Interface from the drop-down list and click Clone button to
clone your current PC MAC.
Click Restore Default button to restore the WAN Interface's default MAC Address.
Note:
Only the WAN Ports can use MAC Address Clone function. All the clone MAC addresses must not
be the same with each other.
4.5.5 LAN
Choose "Advanced Setup" "LAN", and you will see the LAN screen including IPv4 LAN Config
and IPv6 LAN Config. The section allows you to configure the modem router's LAN ports settings.
4.5.5.1 IPv4 LAN Config
Choose "Advanced Setup" "LAN"
"IPv4LAN Config", and you will see the LAN screen
(shown in Figure 4-27), here you can configure LAN IPv4interface for your modem router.
32
