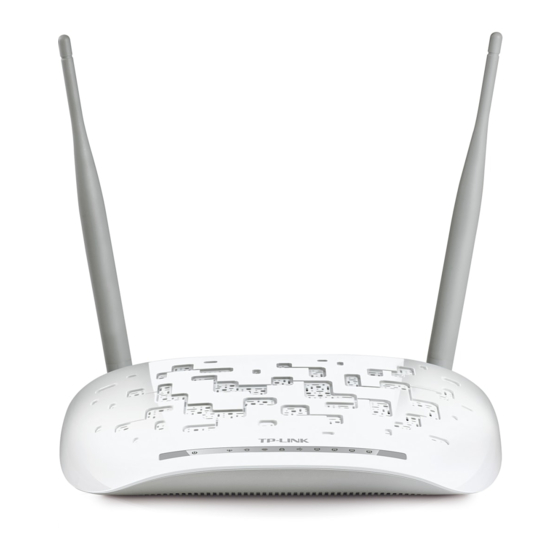

TP-Link TD-W8968 Quick Installation Manual

300mbps wireless n usb adsl2+ modem router

Hide thumbs Also See for TD-W8968:

Download this manual See also: User Manual

Quick Installation Guide

300Mbps Wireless N USB ADSL2+ Modem Router

TD-W8968

7106506038 REV4.0.0

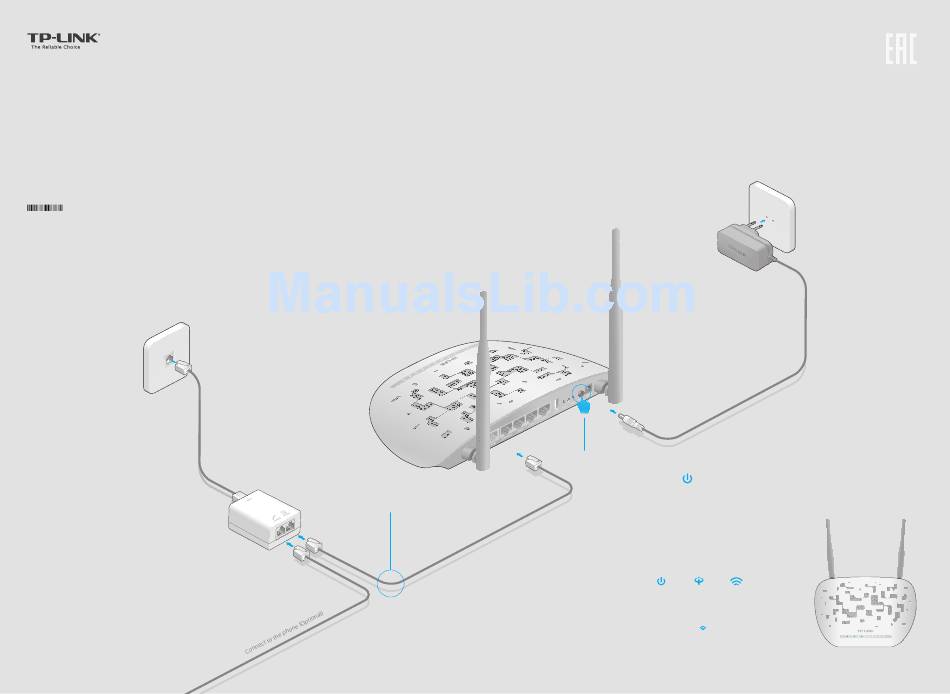

Connecting the Hardware

If you don't need the phone service, just skip step 1 and directly connect

the modem router to the phone jack with a phone cable, then follow steps

3 and 4 to complete the hardware connection.

Phone Jack

Connect the ADSL splitter to

the phone jack.

Modem Router

ADSL Splitter

Connect the modem router

to the ADSL splitter.

Power Adapter

Push in this button to turn on the modem router

and the Power LED

lights up.

Verify that the hardware connection

is correct by checking these LEDs.

Power

ADSL

Wi-Fi

Notes:

1) The ADSL LED takes about 1 to 2 minutes to stabilize.

is off, please press the WiFi button on the

2) If the Wi-Fi LED

rear panel for 2 seconds, then check the LEDs again in a few

seconds.

Page 1: Connecting The Hardware
Quick Installation Guide 300Mbps Wireless N USB ADSL2+ Modem Router TD-W8968 7106506038 REV4.0.0 Connecting the Hardware If you don’t need the phone service, just skip step 1 and directly connect the modem router to the phone jack with a phone cable, then follow steps Power Adapter 3 and 4 to complete the hardware connection.
Page 2 Select your Country and ISP from the drop-down list. Complete the WAN settings with the information provided by your ISP and click Next. Here we To learn more about the USB features, use PPPoE for demonstration. visit http://tp-link.com/app/usb or simply scan the QR code. ©2016 TP-LINK...
