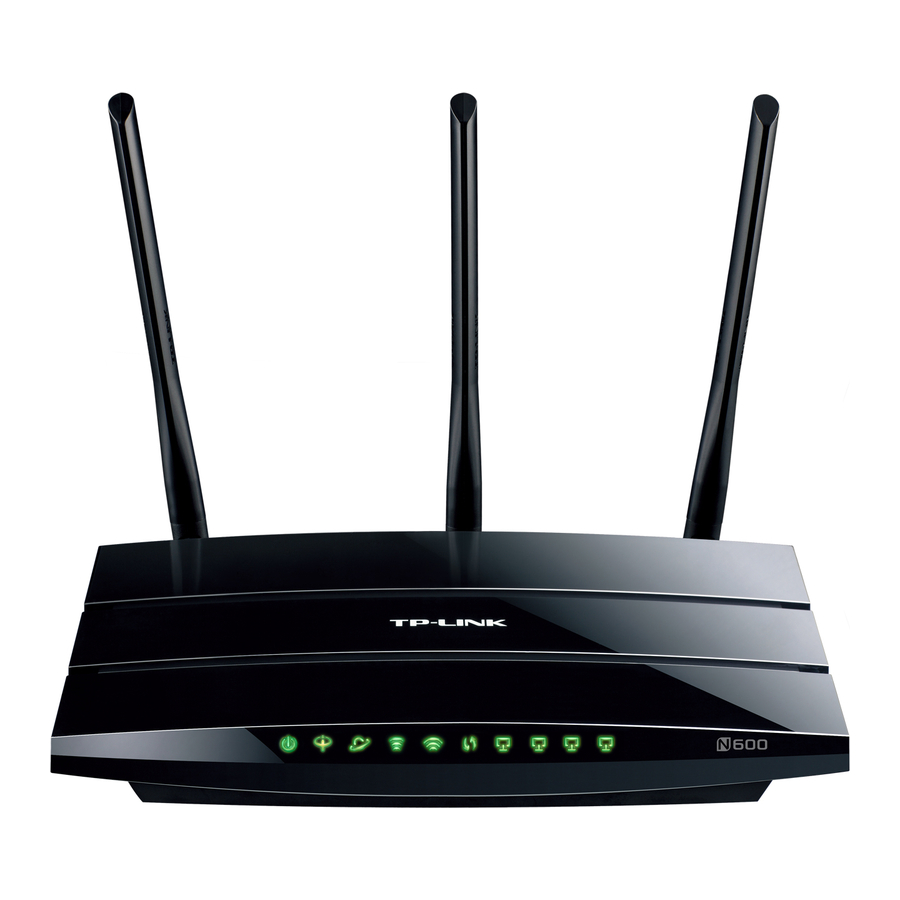

TP-Link TD-W8980 Application Manual

Ftp (file transfer protocol) server feature
Hide thumbs Also See for TD-W8980:

Advertisement



FTP Server Application Guide
TD-W8968
TD-W8970 / TD-W8970B
TD-W8980 / TD-W8980B
Rev: 1.0.1
1910010771

Advertisement

Table of Contents
loading

Summary of Contents for TP-Link TD-W8980

  • Page 1     FTP Server Application Guide TD-W8968 TD-W8970 / TD-W8970B TD-W8980 / TD-W8980B Rev: 1.0.1 1910010771...
  • Page 2: Table Of Contents

                                                                                                                                                                                                                                                          Contents Overview ..................
  • Page 3: Overview

      Overview FTP (File Transfer Protocol) server feature allows you to share a USB storage device that’s connected to the modem router, to users in the local or public network. Typical Topology Here in this guide, we take the configuration procedures of TD-W8968 for example. Before setting up the FTP Server, make sure you have the following devices: Computer with Windows 2000/ XP/ Vista/ 7/ 8/ Mac OS X/ Linux Storage devices with USB 2.0/3.0 port...
  • Page 4: How To Access Ftp Server

      How to access FTP Server LAN Access The modem router’s FTP Server function for Local PC is enabled by default, when the storage device is plugged into its USB port. Please follow the steps to access the FTP server. •...
  • Page 5   • Input the default username and password: admin, admin • Click Log On  ...
  • Page 6   • For Mac OS X Users: • On the top tray, go to Go > Connect to Server • Input Server Address ftp://192.168.1.1 • Click Connect   • Select Registered User • Input the default username and password: admin, admin •...
  • Page 7   • For Linux Users: • On the top tray, go to Places > Connect to Server • Choose Service type FTP(with login) • Input Server 192.168.1.1 • Click Connect • Select Connect as user • Input the default username and password: admin, admin •...
  • Page 8   For third party FTP client software users • (Here we take CuteFTP Professional 8 for example.) • Open the CuteFTP • Go to File >New >FTP Site or press Ctrl+N to open a new Site properties. • Set the dialog box as shown in the figure and click Connect.
  • Page 9: Wan Access

      WAN Access For WAN access to FTP server, please configure the modem router first. Log onto the web-based management page, then go to USB Settings > FTP Server and follow the steps in the figure below. Now your modem router has been configured. The IP behind Internet Address would be used to access the FTP server. Here we  ...
  • Page 10   • For Windows Users: Windows XP: • Go to Start > My Computer • Input ftp://218.18.0.163 in the address field • Press Enter Windows Vista/7: • Go to Start > Computer • Input ftp://218.18.0.163 in the address field • Click Go or press Enter Windows 8: •...
  • Page 11   • Input the default username and password: admin, admin • Click Log On  ...
  • Page 12   • For Mac OS X Users: • On the top tray, go to Go > Connect to Server • Input Server Address ftp://218.18.0.163 • Click Connect • Select Registered User • Input the default username and password: admin, admin •...
  • Page 13   • For Linux Users: • On the top tray, go to Places > Connect to Server • Choose Service type FTP(with login) • Input Server 218.18.0.163 • Click Connect • Select Connect as user • Input the default username and password: admin, admin •...
  • Page 14   For third party FTP client software users • (Here we take CuteFTP Professional 8 for example.) • Open the CuteFTP • Go to File >New >FTP Site or press Ctrl+N to open a new Site properties. • Set the dialog box as shown in the figure and click Connect.
  • Page 15: Extended Application

      Extended Application How to create a user account Log onto the web-based management page, then go to USB Settings > User Accounts and follow the steps in the figure below. Note: (1) The status of the new user is disabled by default. You need to click Enable in the Action column of user account table to enable -13-  ...
  • Page 16   folders access. (2) User name “admin*” is a “Super User” with full-access permission. Its action that could access all active volumes and shared folders is enabled by default. (3) The default user name/password of the Super User is admin/admin. (4) Currently, there is quantitative restriction of FTP Server user.
  • Page 17: How To Add A Shared Folder

      How to add a shared folder Log onto the web-based management page, then go to USB Settings ->FTP Server and follow the steps in the figures below. -15-  ...
  • Page 18                                 -16-  ...
  • Page 19         -17-  ...
  • Page 20         -18-  ...
  • Page 21     Note: The default shared folder volume share entire partition of the storage device plugged into the USB port. You can share up to 10 folders simultaneously. If you want to share a new folder when the number has reached 10, you can delete an existing share folder and then add a new one.
  • Page 22: Set Access Authorization

      Set Access Authorization There are three access authorization levels: full-access, read-only and no-access. The full-access user (i.e.   super user) has full-access permission to add, delete and modify files on the FTP server. The read-only user just has file-reading permission. And the no-access user is unable to access the FTP server. If you want to set access authorization for a user (e.g.
  • Page 23     -21-  ...
  • Page 24: Troubleshooting

      Troubleshooting What can I do if I forget the password to access the FTP server? Log onto the web-based management page, and then go to USB Settings ->User Accounts, please configure it according to the steps in the following figure. -22-  ...
