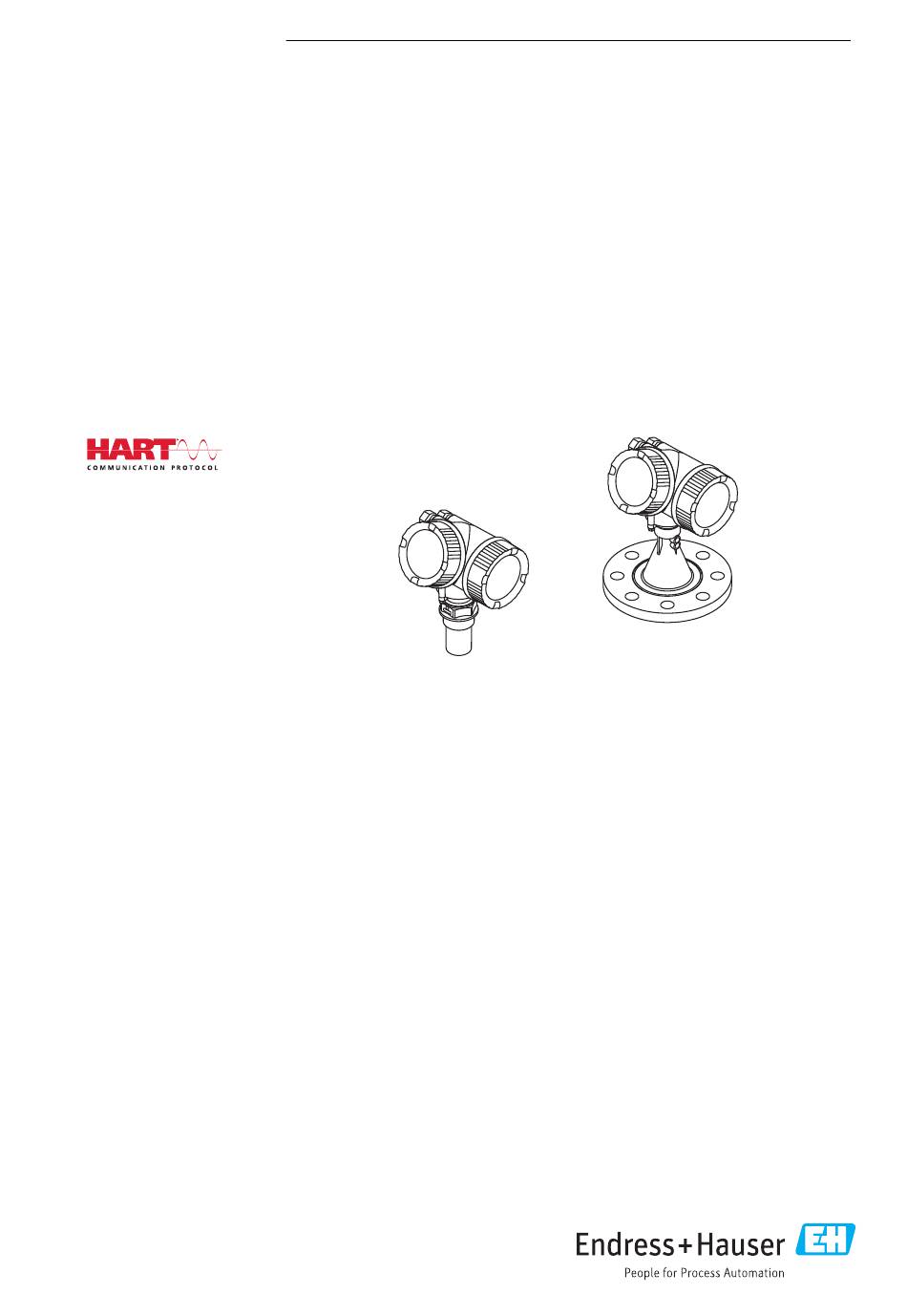

Brief Operating Instructions

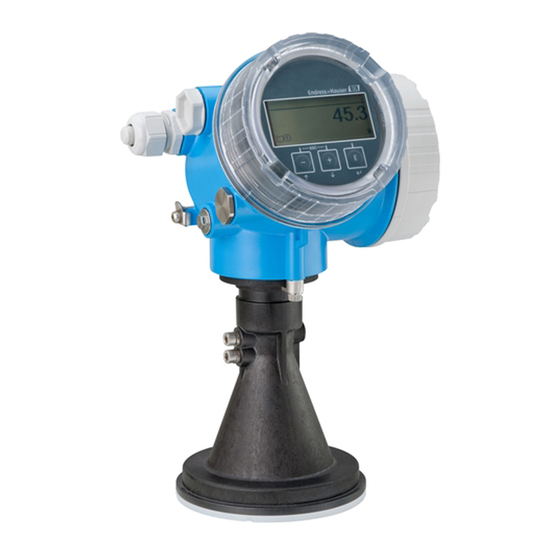

Micropilot FMR50
HART
Free space radar
These Instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Detailed information about the device can be found in the
Operating Instructions and the other documentation:
Available for all device versions via:
• Internet:
www.endress.com/deviceviewer
• Smart phone/tablet: Endress+Hauser Operations App
Solutions
Services
Advertisement
Table of Contents
Related Manuals for Endress+Hauser HART Micropilot FMR50
Summary of Contents for Endress+Hauser HART Micropilot FMR50
- Page 1 Operating Instructions pertaining to the device. Detailed information about the device can be found in the Operating Instructions and the other documentation: Available for all device versions via: • Internet: www.endress.com/deviceviewer • Smart phone/tablet: Endress+Hauser Operations App...
-
Page 2: Associated Documentation
Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 About this document Symbols used 2.1.1 Safety symbols DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. - Page 3 Symbols for certain types of information and graphics Permitted Procedures, processes or actions that are permitted Forbidden Procedures, processes or actions that are forbidden Tip Indicates additional information Reference to documentation Reference to graphic Notice or individual step to be observed Endress+Hauser...
-
Page 4: Basic Safety Instructions
‣ Measured process variables: level, distance, signal strength ‣ Calculated process variables: volume or mass in vessels of any shape; flow rate through measuring weirs or channels (calculated based on the level using the linearization functionality) Endress+Hauser... -
Page 5: Workplace Safety
Clarification in the case of borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability. -
Page 6: Incoming Acceptance And Product Identification
• Does the data on the nameplate match the order specifications on the delivery note? • Is the DVD with the operating tool present? If required (see nameplate), have the Safety Instructions (XA) been provided? If one of these conditions is not met, please contact your Endress+Hauser sales office. Storage and transport 4.2.1 Storage conditions •... - Page 7 Pay attention to the center of gravity of the device so that it does not tilt or slip unintentionally. ‣ Follow the safety instructions and transport conditions for devices over 18 kg (39.6 lbs), (IEC61010). A0016875 Endress+Hauser...
-
Page 8: Mounting Location
15 cm (5.91 in) to the tank wall. Use of a weather protection cover; protection from direct sunlight or rain Installation in the center, interference can cause signal loss Do not install above the filling curtain Endress+Hauser... - Page 9 Mounting Orientation Internal vessel fittings α A0018944 Avoid the location of internal fittings (limit switches, temperature sensors, struts, vacuum rings, heating coils, baffles etc.) inside the signal beam. Take into account the beam angle. Avoiding interference echoes α A0016890 Endress+Hauser...
-
Page 10: Beam Angle
2 . . tan A0016891 1 Relationship between beam angle α, distance D and beam diameter W The beamwidth diameter W depends on the beam angle α and the distance D. Endress+Hauser... - Page 11 • A marking is provided on the threaded connection to aid the alignment. This marking must be aligned towards the tank wall as much as possible. 90° 90° 90° 90° 90° A0019434 Depending on the device version the marking may be a circle or two parallel lines. Endress+Hauser...
- Page 12 • The end of the nozzle must be smooth and free from burrs. The edge of the nozzle should be rounded if possible. • Mapping must be performed. • Please contact Endress+Hauser for applications with nozzles that are higher than indicated in the table. Endress+Hauser...
-
Page 13: Container With Heat Insulation
350° 8 mm 8 mm A0032242 Unscrew the securing screw using an open-ended wrench. Rotate the housing in the desired direction. Tighten the securing screw (1.5 Nm for plastic housing; 2.5 Nm for aluminum or stainless steel housing). Endress+Hauser... -
Page 14: Turning The Display
Turn the display module to the desired position: Max. 8 × 45 ° in each direction. Feed the coiled cable into the gap between the housing and main electronics module and plug the display module into the electronics compartment until it engages. Endress+Hauser... -
Page 15: Electrical Connection
Without integrated overvoltage protection With integrated overvoltage protection Connection 4 to 20 mA, HART passive: terminals 1 and 2, without integrated overvoltage protection Connection 4 to 20 mA, HART passive: terminals 1 and 2, with integrated overvoltage protection Terminal for cable shield Endress+Hauser... - Page 16 Connection, switch output (open collector): terminals 3 and 4, without integrated overvoltage protection Connection, switch output (open collector): terminals 3 and 4, with integrated overvoltage protection Connection 4 to 20 mA, HART passive: terminals 1 and 2, with integrated overvoltage protection Terminal for cable shield Endress+Hauser...
- Page 17 Connection current output 2, 4 to 20 mA: terminals 3 and 4, with integrated overvoltage protection Connection current output 1, 4 to 20 mA HART passive: terminals 1 and 2, with integrated overvoltage protection Terminal for cable shield Endress+Hauser...
- Page 18 Terminal assignment, 4-wire: 4 to 20 mA HART (10.4 to 48 V A0036516 9 Terminal assignment, 4-wire: 4 to 20 mA HART (10.4 to 48 V Connection 4 to 20 mA HART (active): terminals 3 and 4 Connection, supply voltage: terminals 1 and 2 Terminal for cable shield Endress+Hauser...
- Page 19 Terminal assignment, 4-wire: 4 to 20 mA HART (90 to 253 V A0036519 11 Terminal assignment, 4-wire: 4 to 20 mAHART (90 to 253 V Connection 4 to 20 mA HART (active): terminals 3 and 4 Connection, supply voltage: terminals 1 and 2 Terminal for cable shield Endress+Hauser...
- Page 20 Cable screen; observe cable specification Measuring device Supply voltage; observe terminal voltage, observe cable specification 6.1.2 Device plug In the case of the device versions with a plug, the housing does not need to be opened to connect the signal cable. Endress+Hauser...
- Page 21 3) 4) 5) A: 2-wire; • Non-Ex 10.4 to 35 V [Ω 4-20mA • Ex nA HART • Ex ic • CSA GP 3) 4) 5) Ex ia / IS 10.4 to 30 V U 0 [V] 10.4 21.4 Endress+Hauser...
- Page 22 At ambient temperatures T ≤ -30 °C, a terminal voltage ≥ U 16 V is required to start the device with the minimum error current (3.6 mA). When using the Bluetooth module, this minimum supply voltage increases by 3 V. Endress+Hauser...
-
Page 23: Connecting The Device
Check to ensure that the power supply matches the information on the nameplate. ‣ Switch off the power supply before connecting the device. ‣ Connect the potential matching line to the outer ground terminal before applying the power supply. Endress+Hauser... - Page 24 Push the cable through the cable entry . To ensure tight sealing, do not remove the sealing ring from the cable entry. Remove the cable sheath. Strip the cable ends 10 mm (0.4 in). In the case of stranded cables, also fit ferrules. Firmly tighten the cable glands. Endress+Hauser...
- Page 25 Using a flat-blade screwdriver ≤ 3 mm, press down on the slot between the two terminal holes Simultaneously pull the cable end out of the terminal. 6.2.4 Closing the cover of the connection compartment 3 mm 2,5 Nm A0021491 Endress+Hauser...
-
Page 26: Operation Options
2.5 Nm. Operation options The device can be operated as follows: • Operation via operating menu (display) • DeviceCare / FieldCare, see Operating Instructions • SmartBlue (app), Bluetooth (optional), see Operating Instructions A0033202 17 Download link Endress+Hauser... -
Page 27: Structure And Function Of The Operating Menu
Visualization of a parameter (here: parameter with picklist) 3.1 Header containing parameter name and error symbol (if an error is active) 3.2 Picklist; marks the current parameter value. Input matrix for numbers Input matrix for alphanumeric and special characters Endress+Hauser... - Page 28 • If present, opens the help text for the function of the parameter. • In a text and numeric editor: Pressing the key briefly: • Opens the selected group. • Carries out the selected action. • Carries out the selected action. Endress+Hauser...
-
Page 29: Opening The Context Menu
The context menu is closed and the operational display appears. Calling up the menu via the context menu Open the context menu. Press to navigate to the desired menu. Press to confirm the selection. The selected menu opens. Endress+Hauser... -
Page 30: Operating Menu
FMR5x, HART has been defined. Disabling write protection If the device is write-protected, it must first be unlocked, see Operating Instructions. BA01045F - Operating Instructions, FMR50, HART Setting the operating language Factory setting: English or ordered local language Endress+Hauser... - Page 31 Main menu 0104-1 Display language English Operation Setup Display language 0104-1 English à Deutsch Español Français Display language 0104-1 à English Deutsch Español Français Hauptmenü 0104-1 Sprache Deutsch Betrieb Setup A0029420 20 Taking the example of the local display Endress+Hauser...
-
Page 32: Configuring Level Measurement
Continuous level monitoring in the upper third of a tank or silo. Note: For tanks with conical outlet, this parameter should not be changed as in this type of applications ' E mpty calibration' is usually not << the tank or silo height. Endress+Hauser... -
Page 33: User-Specific Applications
The reaction time of the device is preconfigured via the Tank type parameter. Advanced configuration is possible in the Advanced setup submenu. User-specific applications To configure the parameters for user-specific applications, see: BA01045F - Operating Instructions, FMR50, HART Also, for the Expert submenu: GP01014F - Description of device parameters, FMR5x, HART Endress+Hauser... - Page 36 *71575720* 71575720 www.addresses.endress.com...
