UPS
Connections

Terminal Block

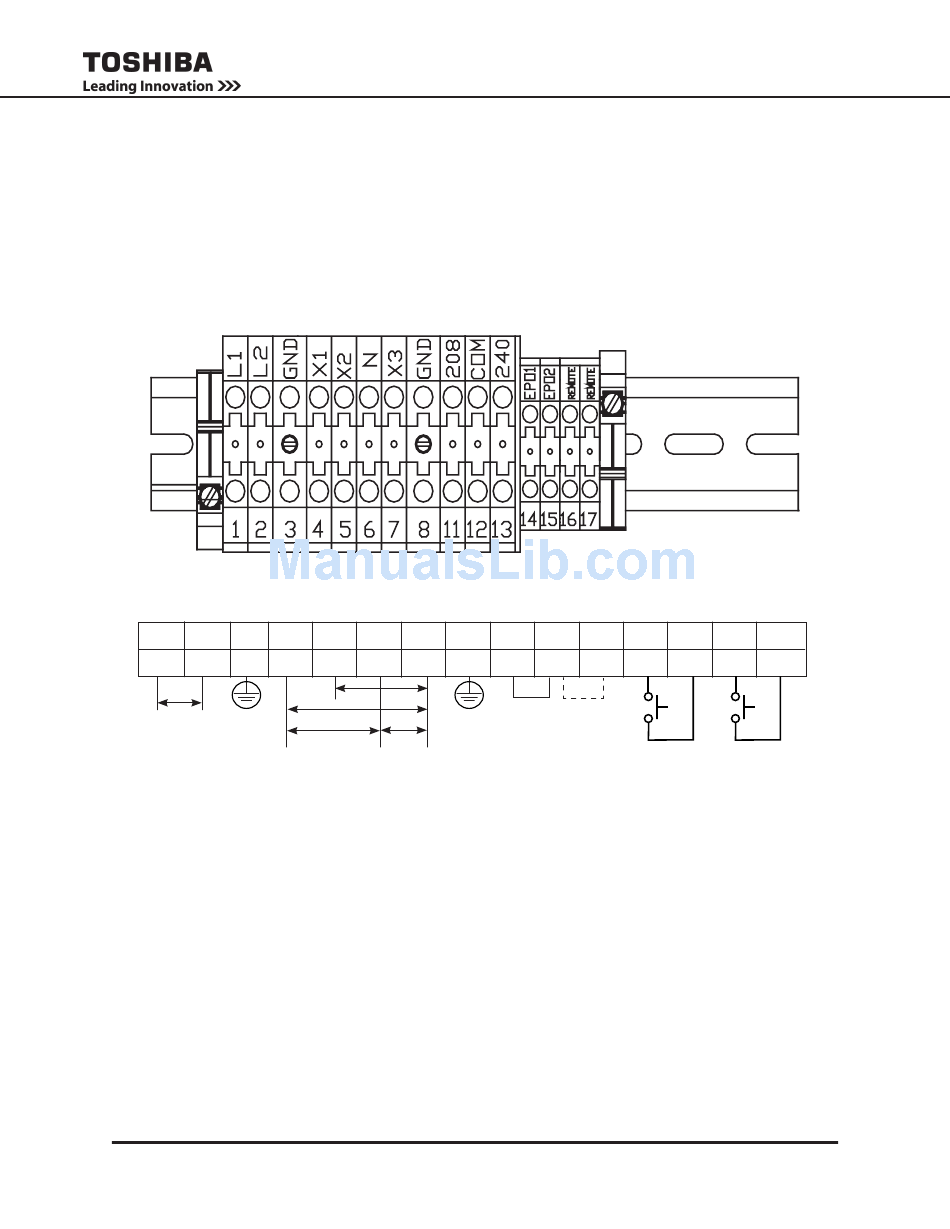

the following illustration is a detail view of the terminal block and wiring connections used for 208/240
volt units (see pages 65-66 for terminal block location).
1 2 3 4
g X1
l2 (n*)
l1 (l*)
208/240 V
in
inpUt
* – if only one input line is hot, connect hot line to terminal 1 (l), and connect the neutral line to terminal 2 (n).
note 1 – if AC input power is 208 Vac rated, short terminals 11 and 12 with a jumper wire. do not jumper terminal 13 to 12 or
11. Factory Setting is 208Vac. Use the jumper wire provided by Toshiba. DO NOT add any additional jumpers.
note 2 – if AC input power is 240 Vac rated, short terminals 12 and 13 with a jumper wire. do not jumper terminal 11 to 12 or
13. Use the jumper wire provided by Toshiba. DO NOT add any additional jumpers.
1600Xp Series installation and operation manual
5 6 7 8
X2 X3 g
n (0V)
208 V
240 V
120 V 120 V
oUtpUt
11 12 13 14
COM 240
EPO1 EPO2
208
208V 240V
Jumper selection
See notes 1&2
15 16 17
REMOTE1 REMOTE2
13
