Installation For Surface Water - Simer 3325E Owner's Manual

New Shallow Well Installation

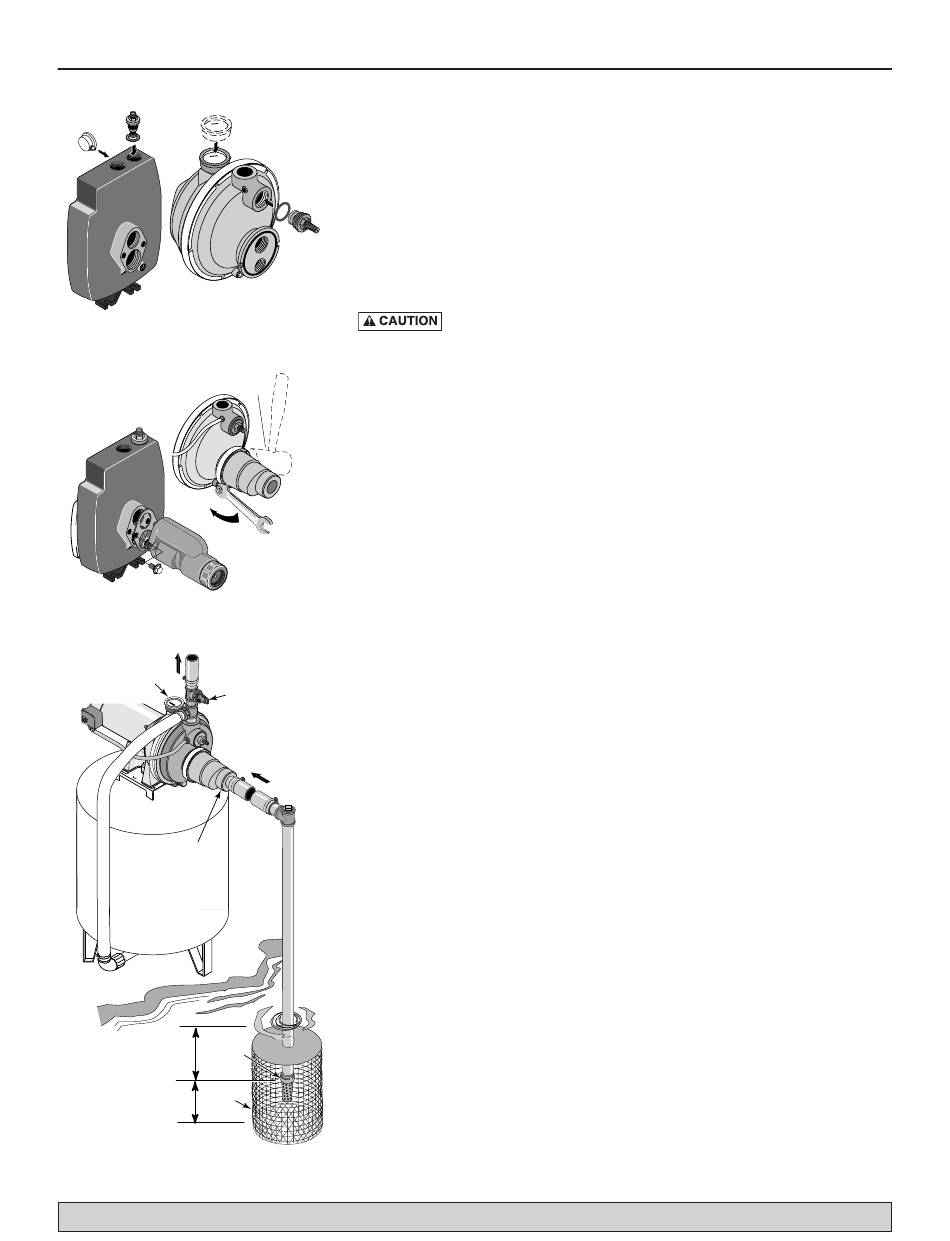

Figure 7: Install Control Valve and
Pressure Gauge
Tap clamp
to seat it
Figure 8: Install Ejector
To Household
Water System
Pressure Gauge
and Priming Port
Relief Valve
Suction Pipe
From Well
Built-in
Check
Valve
257 0395
Not
At least
Foot
10'
Valve
to
Scale
Screen
5 to 10'
Figure 9: Surface Water Installation
For parts or assistance, call Simer Customer Service at 1-800-468-7867
so that it slopes slightly upward from the well to the pump (high spots
can cause air pockets which can air lock the pump). Seal the suction
pipe joints with Teflon™ tape or a Teflon™ based pipe joint compound.
Joints must be air- and water-tight. If the suction pipe can suck air, the
pump cannot pull water from the well.
You have just completed the suction piping for your new shallow well jet
pump. Please go to Page 8 for discharge pipe and tank connections.
4182 0502

Installation for Surface Water

The installation shown could be used for sprinkler applications.
1. Install the control valve and pressure gauge in the pump body (see
Figure 7).
2. Install ejector kit FP4855 or kit FP4875 (kits are sold separately). Follow
the instructions provided with the kit. Align the venturi with the top
hole on the front of the pump (see Figure 8).
3. The pump should be installed as close to the water as possible, with
the fewest possible fittings (especially elbows) in the suction pipe. The
suction pipe should be at least as large as the suction port on the pump.
4. Assemble a foot valve and suction pipe (see Figure 9). Make sure that
the foot valve works freely. Use Teflon™ tape or a Teflon™-based
pipe joint compound on threaded pipe joints. Protect the foot valve
assembly from fish, trash, etc, by installing a screen around it (see
4183 0502
Figure 9).
5. Lower the pipe into the water until the strainer is five feet above the
bottom. It should also be at least 10 feet below the water level in order
to prevent the pump from sucking air.
6. Install a priming tee, priming plug, and suction pipe to the pump (see
Figure 9). Support the pipe so that there are no dips or sags in the pipe,
so it doesn't strain the pump body, and so that it slopes slightly upward
from the well to the pump (high spots can cause air pockets which can
air lock the pump). Seal the suction pipe joints with Teflon™ tape or
a Teflon™ based pipe joint compound. Joints must be air- and water-
tight. If the suction pipe can suck air, the pump cannot pull water from
the well.
You have just completed the plumbing for your new shallow well jet pump.
Please go to Page 8 for discharge pipe and tank connections.
Possible contamination . Do not use surface water for drinking.
6
