ASSEMBLY
To hire an authorized service technician to assemble the treadmill, call 1-800-445-2480. Assembly re-
quires two persons. Set the treadmill in a cleared area and remove the packing materials; do not dispose of
the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated
with high-performance lubricant. During shipping, some lubricant may be transferred to the top of the walking belt
or to the shipping carton. This is normal and does not affect treadmill performance. If there is lubricant on top of
the walking belt, simply wipe it off with a soft cloth and mild, non-abrasive cleaner.
Assembly requires the included hex keys
mallet
, adjustable wrench

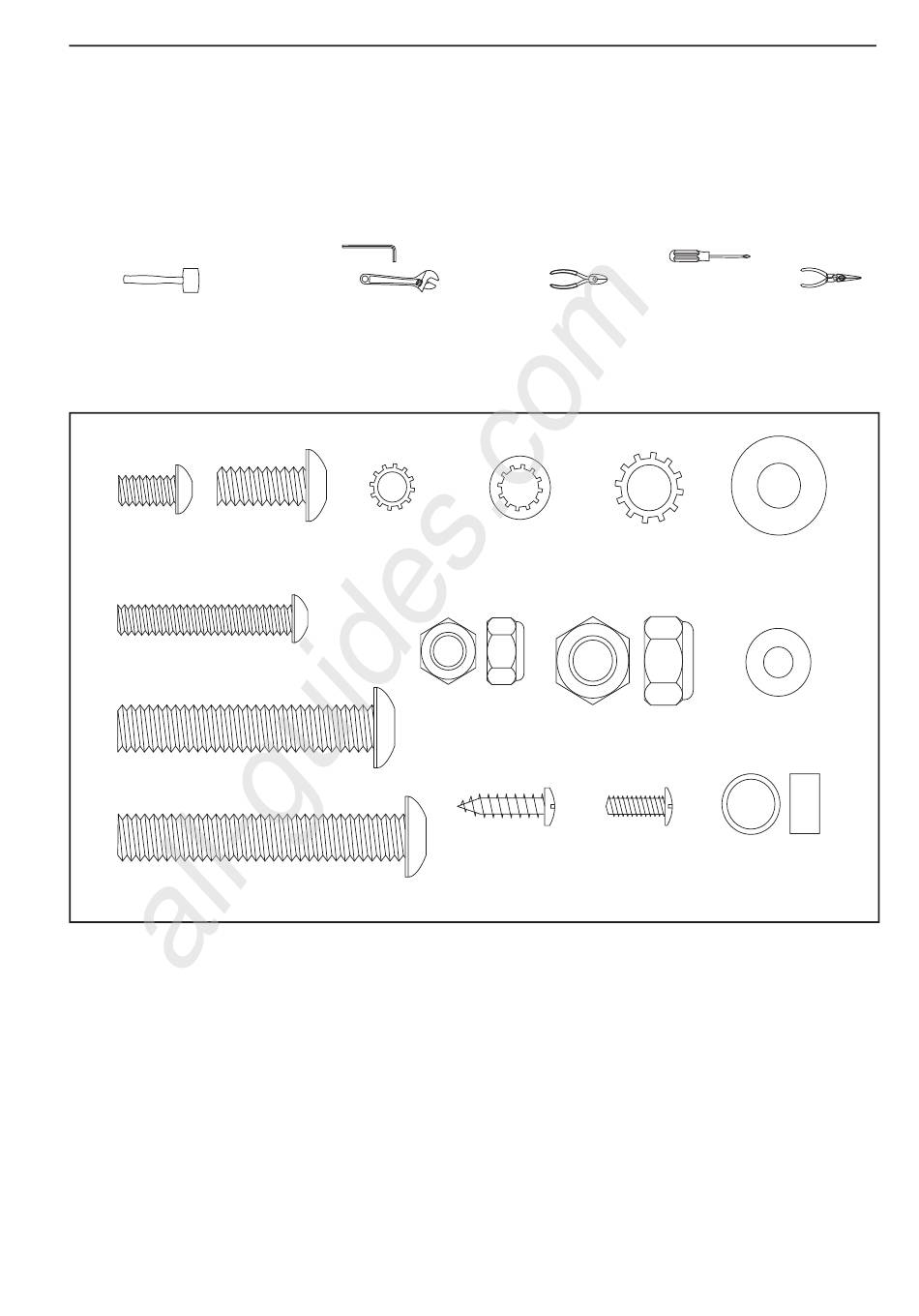

Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses
is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it is preat-
tached. To avoid damaging parts, do not use power tools for assembly. Extra hardware may be included.
1/4" x 1/2"
5/16" x 3/4"
Screw (6)–4
Screw (2)–4
1/4" x 1 1/2" Bolt (3)–6
3/8" x 2 1/4" Bolt (8)–6
3/8" x 2 1/2" Bolt (1)–2
All manuals and user guides at all-guides.com
and your own Phillips screwdriver
, wire cutters
1/4" Star
Washer (11)–6
Washer (5)–4
1/4" Nut (4)–4
#8 x 3/4"
Screw (7)–6
6
, and needlenose pliers
3/8" Star
5/16" Star
Washer (9)–4
3/8" Nut (13)–4
#8 x 1/2" Screw
(12)–1
, rubber
.
3/8" Washer
(10)–2
1/4" Washer
(31)–2
Wheel Spacer
(83)–4
