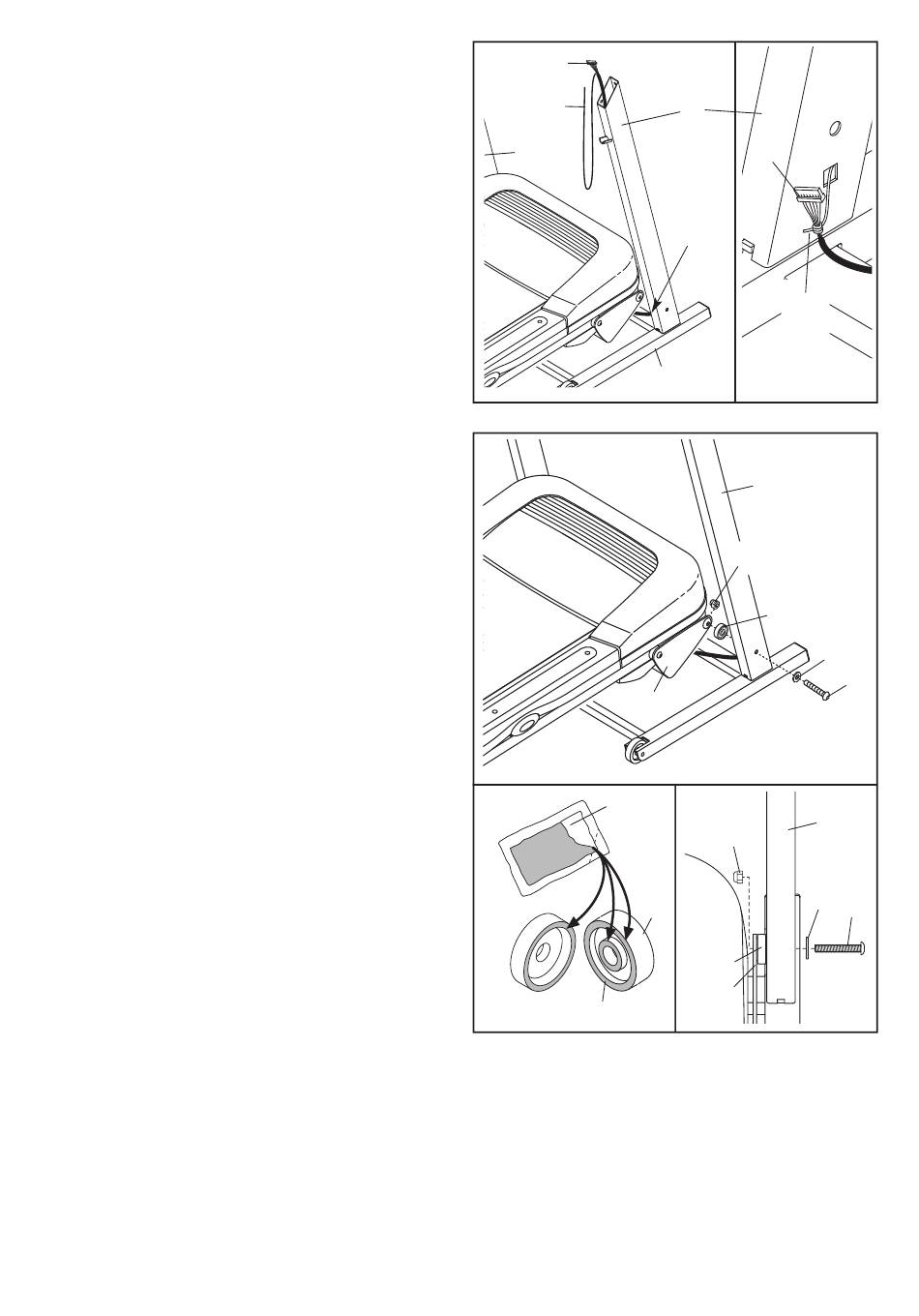

4. Raise the Uprights (77, 78) so that the Base (85)
is flat on the floor and positioned as shown.
See the far right drawing. Tie the wire tie in the
Right Upright (78) around the end of the Upright
Wire (74). Then, pull the other end of the wire tie
until the Upright Wire is extending from the
upper end of the Right Upright.
Make sure that the end of the Upright Wire
(74) does not fall into the Right Upright (78).
5. See the left inset drawing. Identify the two
Frame Spacers (79). Open the included packet
of grease, and apply grease to both sides of
both Frame Spacers. Then, identify the outer
side of each Frame Spacer.
Hold a Frame Spacer (79) between the Right
Upright (78) and the Lift Frame (65), with the
outer side of the Frame Spacer facing the
Right Upright. Attach the Right Upright to the
Lift Frame with a 3/8" x 2 1/2" Bolt (1), a 3/8"
Washer (10), and a 3/8" Nut (13); do not
tighten the Bolt yet.
