Pro-Form ZT3 User Manual page 7

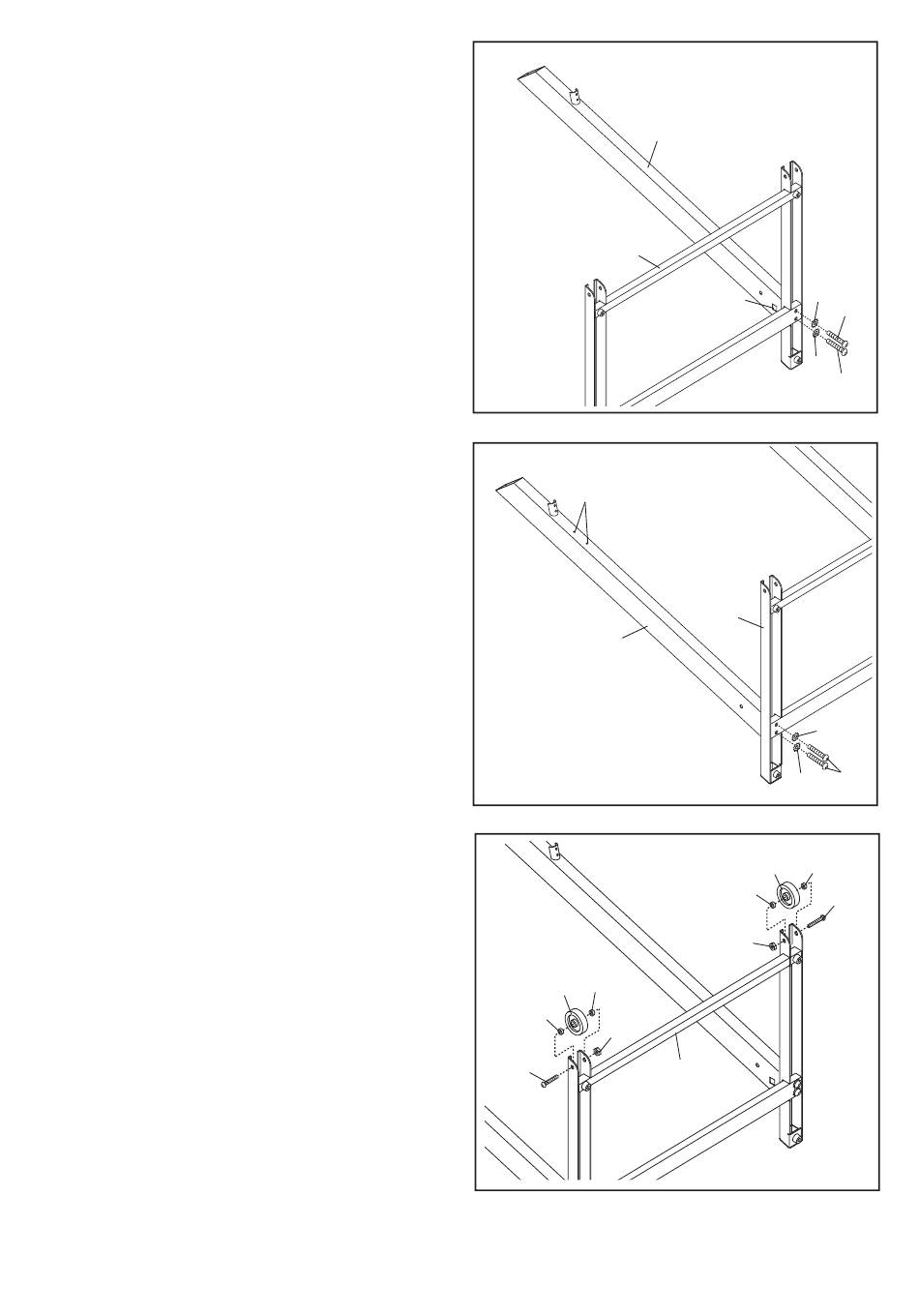

1. Orient the Base (85) as shown.
Identify the Right Upright (78), which has a
square hole near the lower end.
Orient the Right Upright (78) as shown, and
attach it to the Base (85) with two 3/8" x 2 1/4"
Bolts (8) and two 3/8" Star Washers (9); do not
tighten the Bolts yet.
2. Orient the Left Upright (77) as shown, and at-
tach it to the Base (85) with two 3/8" x 2 1/4"
Bolts (8) and two 3/8" Star Washers (9); do not
tighten the Bolts yet.
3. Attach a Wheel (84) to each side of the Base
(85) with a 3/8" x 2 1/4" Bolt (8), two Wheel
Spacers (83), and a 3/8" Nut (13) as shown. Do
not overtighten the Bolts; the Wheels should
turn freely.
