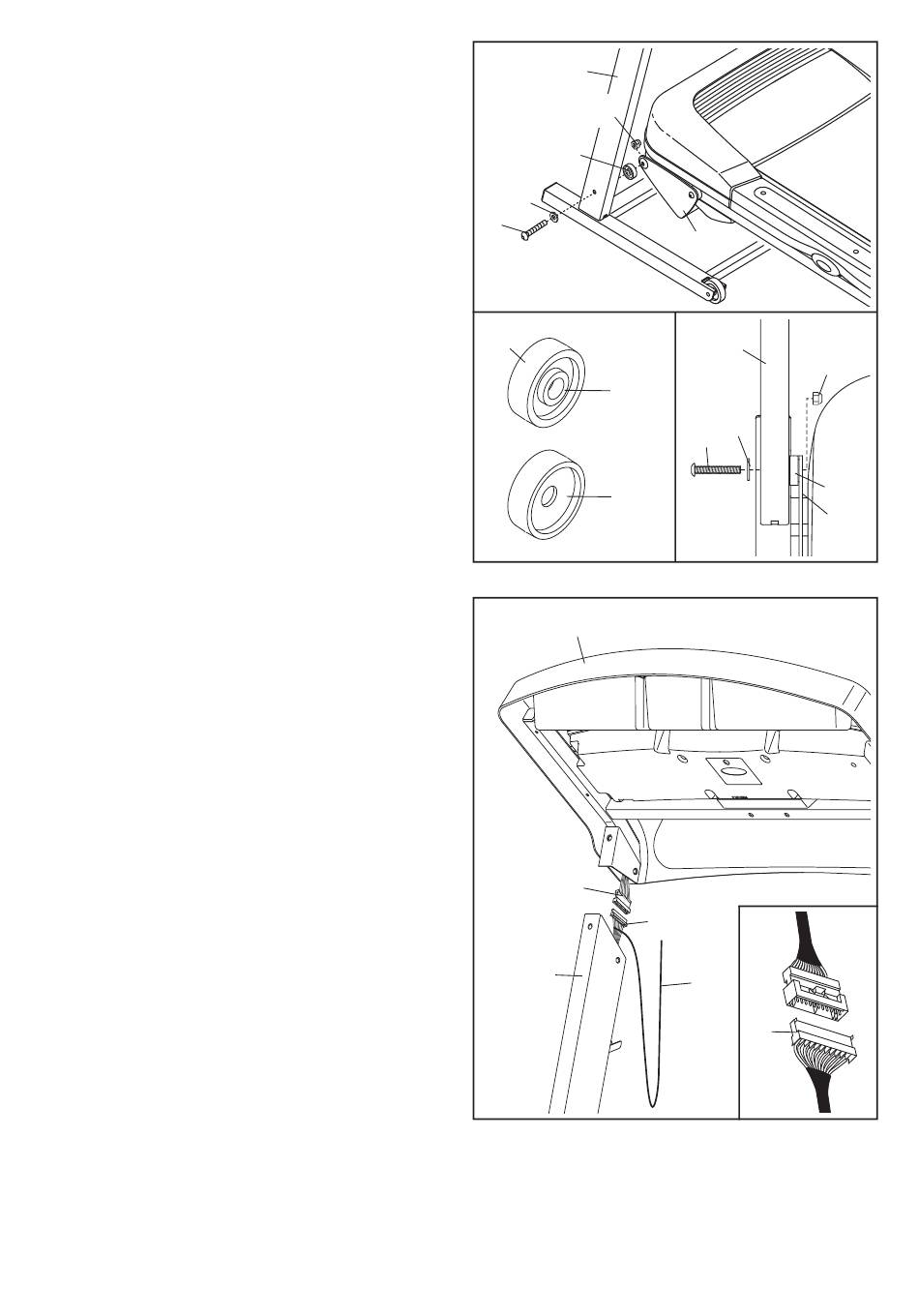

6. See the left inset drawing. Identify the outer
side of the remaining Frame Spacer (79).
Hold the Frame Spacer (79) between the Left
Upright (77) and the Lift Frame (65), with the
outer side of the Frame Spacer facing the
Left Upright. Attach the Left Upright to the Lift
Frame with a 3/8" x 2 1/2" Bolt (1), a 3/8"
Washer (10), and a 3/8" Nut (13); do not
tighten the Bolt yet.
7. Have a second person hold the console assem-
bly near the Right Upright (78).
Connect the wire harness on the console as-
sembly to the Upright Wire (74) as shown in the
inset drawing. The connectors should slide to-
gether easily and snap into place. If they do
not, turn one connector and try again. IF YOU
DO NOT CONNECT THE CONNECTORS
PROPERLY, THE CONSOLE MAY BECOME
DAMAGED WHEN YOU TURN ON THE
POWER.
Remove the wire tie from the Upright Wire (74).
All manuals and user guides at all-guides.com
9
6
77
13
79
10
1
79
Outer
Side
Inner
Side
7
Console Assembly
Wire
Harness
74
78
65
77
13
10
1
79
65
Wire
Tie
74
