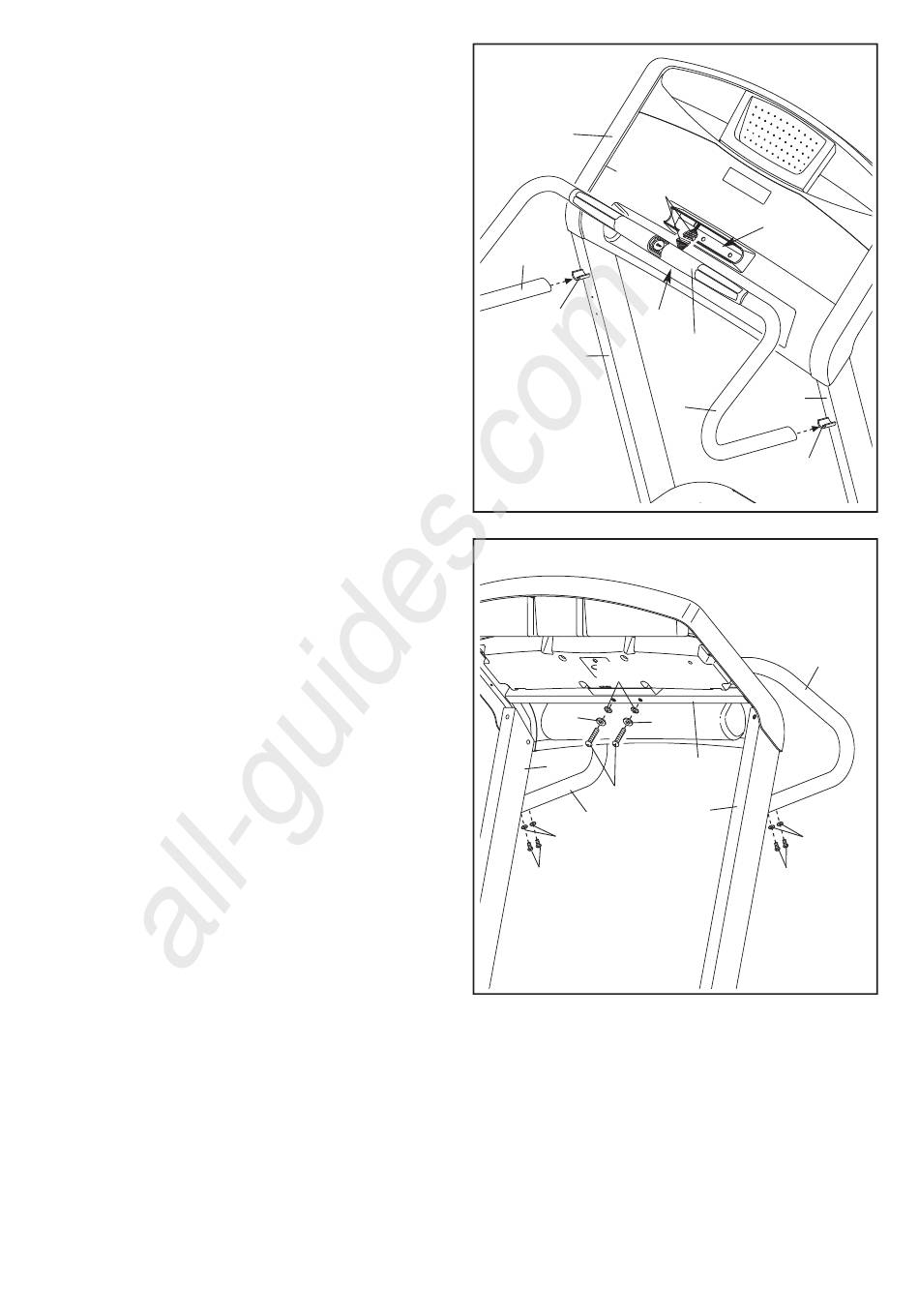

11. Hold the handrail assembly near the console as-
sembly. Connect the wire harness extending
from the console assembly to the wire harness
extending from the handrail assembly. See the
inset drawing in step 7. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF YOU DO NOT CONNECT THE CON-
NECTORS PROPERLY, THE CONSOLE MAY
BECOME DAMAGED WHEN YOU TURN ON
THE POWER.
Set the Handrail Bracket (70) into the slot on the
console assembly as you slide the ends of the
Handrails (69, 71) onto the brackets on the
Uprights (77, 78). Be careful not to pinch any
wires.
12. Start two 1/4" x 1 1/2" Bolts (3) with two 1/4"
Washers (31) and two 1/4" Star Washers (11)
into the Console Frame (92) and Handrail
Bracket (not shown). Do not fully tighten the
Bolts yet.
Start four 1/4" x 1/2" Screws (6) with four 1/4"
Star Washers (11) into the lower ends of the
Handrails (69, 71).
Press the lower end of the Handrails (69, 71)
against the Uprights (77, 78) as you tighten the
four 1/4" x 1/2" Screws (6). Then, tighten the
1/4" x 1 1/2" Bolts (3).
All manuals and user guides at all-guides.com
11
11
Console
Assembly
Wire
Harnesses
69
Bracket
70
77
12
11
31
31
78
3
71
11
6
Slot
Handrail
Assembly
78
71
Bracket
69
92
77
11
6
