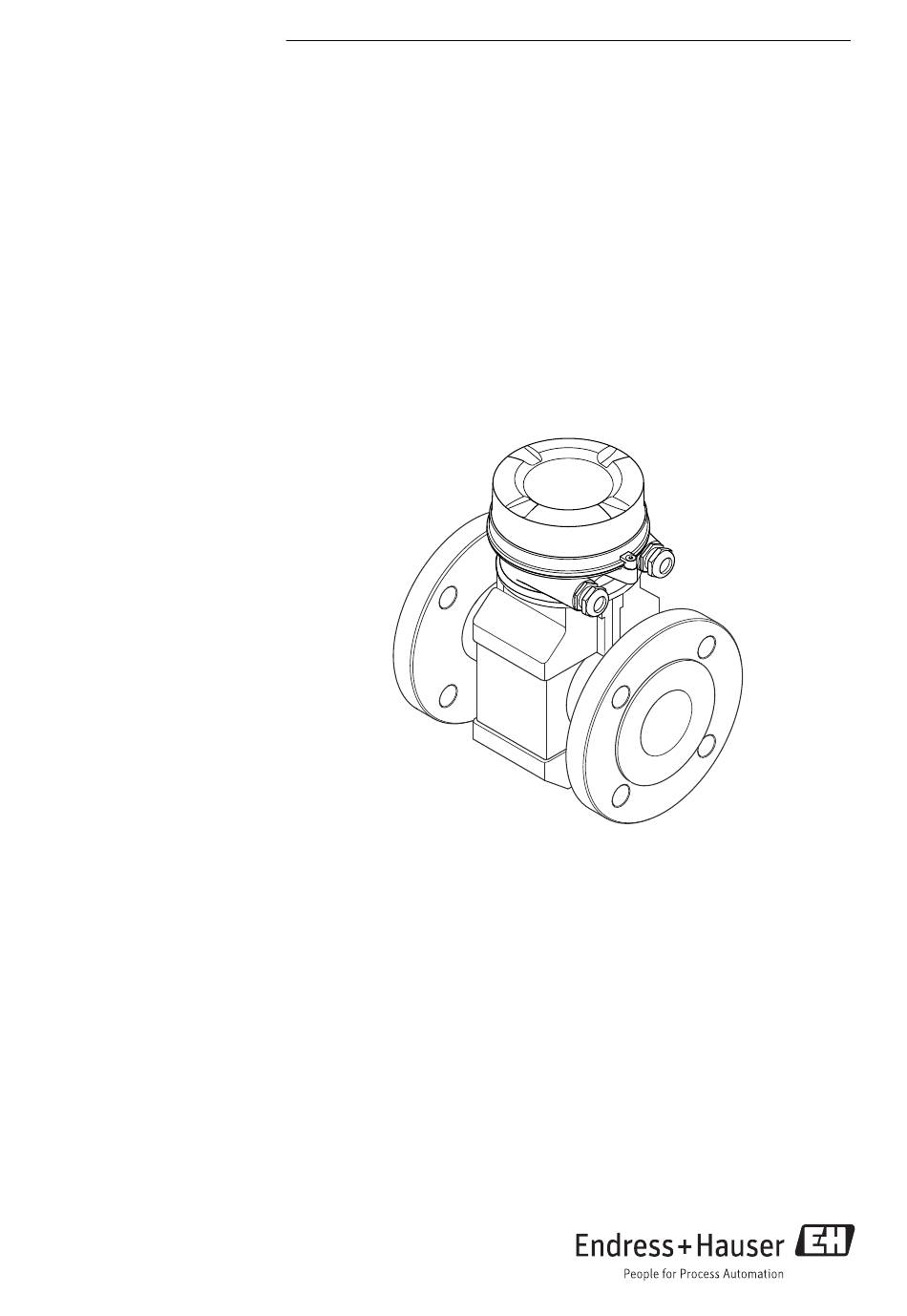

KA01143D/06/EN/02.13
71233376
Products
Brief Operating Instructions
Proline Promag P 100
Electromagnetic flowmeter
These Instructions are Brief Operating Instructions; they do not
replace the Operating Instructions included in the scope of
supply.
For detailed information, refer to the Operating Instructions
and other documentation on the CD-ROM provided or visit
"www.endress.com/deviceviewer".
Solutions
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Proline Promag P 100

Summary of Contents for Endress+Hauser Proline Promag P 100

  • Page 1 Solutions Services KA01143D/06/EN/02.13 71233376 Brief Operating Instructions Proline Promag P 100 Electromagnetic flowmeter These Instructions are Brief Operating Instructions; they do not replace the Operating Instructions included in the scope of supply. For detailed information, refer to the Operating Instructions and other documentation on the CD-ROM provided or visit "www.endress.com/deviceviewer".

  • Page 2: Table Of Contents

    Table of contents Proline Promag P 100 Table of contents Document information ............3 Symbols used .

  • Page 3: Document Information

    Proline Promag P 100 Document information Document information Symbols used 1.1.1 Safety symbols Symbol Meaning DANGER! DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. A0011189-EN WARNING! WARNING This symbol alerts you to a dangerous situation.
  • Page 4 Document information Proline Promag P 100 1.1.3 Tool symbols Symbol Meaning Allen key A0011221 Open-ended wrench A0011222 1.1.4 Symbols for certain types of information Symbol Meaning Allowed Indicates procedures, processes or actions that are allowed. A0011182 Preferred Indicates procedures, processes or actions that are preferred.

  • Page 5: Basic Safety Instructions

    Proline Promag P 100 Basic safety instructions Symbol Meaning Flow direction A0013441 Hazardous area Indicates a hazardous area. A0011187 Safe area (non-hazardous area) Indicates a non-hazardous area. A0011188 Basic safety instructions Requirements for the personnel The personnel must fulfill the following requirements for its tasks: ‣...

  • Page 6: Workplace Safety

    Verification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability as minute changes in the temperature, concentration or level of contamination in the process can alter the corrosion resistance properties.

  • Page 7: Security

    Proline Promag P 100 Basic safety instructions It meets general safety standards and legal requirements. It also complies with the EC directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the device. IT security We only provide a warranty if the device is installed and used as described in the Operating Instructions.

  • Page 8: Product Description

    Product description Proline Promag P 100 Product description Product design 3.1.1 Device version with HART, Modbus RS485 and PROFIBUS DP communication types A0017609  1 Important components of a measuring device Transmitter housing cover Main electronics module Transmitter housing Sensor...
  • Page 9 Proline Promag P 100 Product description 3.1.2 Device version with EtherNet/IP communication type A0017257  2 Important components of a measuring device Transmitter housing cover I/O electronics module for EtherNet/IP Main electronics module Transmitter housing Sensor Endress+Hauser...

  • Page 10: Incoming Acceptance And Product Identification

    Incoming acceptance and product identification Proline Promag P 100 Incoming acceptance and product identification Incoming acceptance A0015502 A0013843 A0013695 A0015502 A0013698 A0015502 A0013699 Endress+Hauser...

  • Page 11: Product Identification

    Proline Promag P 100 Incoming acceptance and product identification A0015502 A0013697 If one of the conditions is not satisfied, contact your Endress+Hauser Sales Center. Product identification The following options are available for identification of the measuring device: • Nameplate specifications •...

  • Page 12: Storage And Transport

    Storage and transport Proline Promag P 100 Storage and transport Storage conditions Observe the following notes for storage: • Store in original packaging. • Do not remove protective covers or protective caps installed on process connections. • Protect from direct sunlight.
  • Page 13 Proline Promag P 100 Storage and transport A0015604 A0015605 Endress+Hauser...

  • Page 14: Installation

    Installation Proline Promag P 100 Installation Installation conditions No special measures such as supports are necessary. External forces are absorbed by the construction of the device. 6.1.1 Mounting position Mounting location h ≥ 2 × DN A0017061 Installation in down pipes Install a siphon or a vent valve downstream of the sensor in down pipes whose length h ≥...
  • Page 15 Proline Promag P 100 Installation Installation in partially filled pipes A partially filled pipe with a gradient necessitates a drain-type configuration. The empty pipe detection (EPD) function offers additional protection by detecting empty or partially filled pipes. • Do not install the sensor at the lowest point in the drain: risk of solids accumulating.
  • Page 16 Installation Proline Promag P 100 A0016260  5 Horizontal orientation EPD electrode for empty pipe detection Measuring electrodes for signal detection Reference electrode for potential equalization Inlet and outlet runs 5 × DN ³ 2 × DN ³ A0016275 For the dimensions and installation lengths of the device, see the "Technical Information"...
  • Page 17 Proline Promag P 100 Installation If operating outdoors: • Install the measuring device in a shady location. • Avoid direct sunlight, particularly in warm climatic regions. • Avoid direct exposure to weather conditions. Temperature tables SI units [°C] [85 °C] [100 °C]...
  • Page 18 Installation Proline Promag P 100 Vibrations A0016266  6 Measures to prevent vibration of the device > 10 m (33 ft) Adapters [mbar] 8 m/s 7 m/s 6 m/s 5 m/s 4 m/s max. 8° 3 m/s 2 m/s 1 m/s...

  • Page 19: Mounting The Measuring Device

    Proline Promag P 100 Installation Mounting the measuring device 6.2.1 Required tools For sensor For flanges and other process connections: • Screws, nuts, seals etc. are not included in the scope of supply and must be provided by the customer.

  • Page 20: Post-Installation Check

    Installation Proline Promag P 100 Mounting the seals CAUTION An electrically conductive layer could form on the inside of the measuring tube! Risk of measuring signal short circuit. ‣ Do not use electrically conductive sealing compounds such as graphite. Comply with the following instructions when installing seals: •...

  • Page 21: Electrical Connection

    Proline Promag P 100 Electrical connection Electrical connection The measuring device does not have an internal circuit breaker. For this reason, assign the measuring device a switch or power-circuit breaker so that the power supply line can be easily disconnected from the mains.
  • Page 22 Electrical connection Proline Promag P 100 Cable type Twisted pairs Loop resistance ≤110 Ω/km Signal damping Max. 9 dB over the entire length of the cable cross-section Shielding Copper braided shielding or braided shielding with foil shield. When grounding the cable shield, observe the grounding concept of the plant.
  • Page 23 Proline Promag P 100 Electrical connection 7.1.3 Terminal assignment 7.1.4 Pin assignment, device plug Supply voltage Supply voltage for all communication types (on the device side) Assignment Coding Plug/socket DC24 V Plug DC24 V Grounding/shielding A0016809 4-20 mA HART with pulse/frequency/switch output...
  • Page 24 Electrical connection Proline Promag P 100 Modbus RS485, non-hazardous area and Zone 2/Div. 2 (on the device side) Assignment Coding Plug/socket Socket Modbus RS485 Modbus RS485 Grounding/shielding A0016811 EtherNet/IP EtherNet/IP (on the device side) Assignment Coding Plug/socket Socket A0016812 7.1.5...

  • Page 25: Connecting The Measuring Device

    Proline Promag P 100 Electrical connection 7.1.6 Preparing the measuring device Remove dummy plug if present. NOTICE! Insufficient sealing of the housing! Operational reliability of the measuring device could be compromised. Use suitable cable glands corresponding to the degree of protection.
  • Page 26 Electrical connection Proline Promag P 100 3 mm 10 (0.4) mm (in) A0019823  8 Device versions with connection examples Cable Device plug for signal transmission Device plug for supply voltage ‣ Connect the cable in accordance with the terminal assignment or the device plug pin assignment (→...
  • Page 27 Proline Promag P 100 Electrical connection Connection examples for standard situations Metal, grounded pipe A0016315  9 Potential equalization via measuring tube Connection example in special situations Unlined and ungrounded metal pipe This connection method also applies in situations where: •...
  • Page 28 Electrical connection Proline Promag P 100 Plastic pipe or pipe with insulating liner This connection method also applies in situations where: • The customary potential equalization is not used • Equalizing currents are present A0016318  11 Potential equalization via ground terminal and ground disks...

  • Page 29: Hardware Settings

    Proline Promag P 100 Electrical connection Ground cable Copper wire, at least 6 mm (0.0093 in Hardware settings 7.3.1 Setting the device address EtherNet/IP The IP address of the measuring device can be configured for the network via DIP switches.
  • Page 30 Electrical connection Proline Promag P 100 Set the desired IP address using the corresponding DIP switches on the I/O electronics module.  Hardware addressing with the configured IP address is enabled after 10 s. Disable software addressing via DIP switch 8 (OFF).
  • Page 31 Proline Promag P 100 Electrical connection • If the device is operated with a baud rate of 1.5 MBaud and under: For the last transmitter on the bus, terminate via DIP switch 2 (bus termination) and DIP switch 1 and 3 (Bus polarisation). Setting: ON – ON – ON (→  14,  31).

  • Page 32: Ensuring The Degree Of Protection

    Electrical connection Proline Promag P 100 If the transmitter is used in the non-hazardous area or Zone 2/Div. 2 4 - Bus termination 3 - Not used 220 W 2 - Not used 1 - Write protection A0017610  15...

  • Page 33: Post-Connection Check

    Proline Promag P 100 Electrical connection Insert dummy plugs into unused cable entries. Post-connection check Are cables or the device undamaged (visual inspection)?  Do the cables comply with the requirements (→  21)?  Do the cables have adequate strain relief? ...

  • Page 34: Operation Options

    Operation options Proline Promag P 100 Operation options Structure and function of the operating menu 8.1.1 Structure of the operating menu Operating menu for operators and maintenances Language Operation Setup Diagnostics Operating menu for experts Expert A0014058-EN 8.1.2 Operating philosophy The individual parts of the operating menu are assigned to certain user roles.
  • Page 35 Proline Promag P 100 Operation options 8.2.2 Prerequisites Hardware Connecting cable Standard Ethernet cable with RJ45 connector Computer RJ45 interface Measuring device Web server must be enabled; factory setting: ON Software of the computer Web browsers supported • Microsoft Internet Explorer 7.x, 8.x, 9.x •...
  • Page 36 Operation options Proline Promag P 100 Device tag Webserv.language English Ent. access code Access stat.tool Maintenance A0017362 Device tag (→  42) Picture of device 8.2.4 Logging on Access code 0000 (factory setting); can be changed by customer (→  43) 8.2.5...

  • Page 37: Access To The Operating Menu Via The Operating Tool

    Proline Promag P 100 Operation options Header The following information appears in the header: • Device tag (→  42) • Device status with status signal • Current measured values Function row Functions Meaning Measured values The measured values of the device are displayed...
  • Page 38 Operation options Proline Promag P 100 A0016925 Service interface (CDI) of the measuring device Commubox FXA291 Computer with "FieldCare" operating tool with COM DTM "CDI Communication FXA291" 8.3.2 Via service interface (CDI-RJ45) A0016926  16 Connection for the order code for "Output", option B: 4-20 mA HART, pulse/frequency/switch...
  • Page 39 Proline Promag P 100 Operation options A0021270  17 Connection for order code for "Output", option L: PROFIBUS DP Service interface (CDI -RJ45) of the measuring device with access to the integrated Web server Computer with Web browser (e.g. Internet Explorer) for accessing the integrated device Web server or with "FieldCare"...
  • Page 40 Operation options Proline Promag P 100 8.3.3 Via Ethernet network This communication interface is present in the following device version: Order code for "Output", option N: EtherNet/IP A0016961 Ethernet network Automation system, e.g. "RSLogix" (Rockwell Automation) Workstation for measuring device operation: with Add-on Profile Level 3 for "RSLogix 5000" (Rockwell Automation) or with Electronic Data Sheet (EDS) Computer with Web browser (e.g.

  • Page 41: System Integration

    Proline Promag P 100 System integration the I/O electronics module to ON, restart the device and enter the default setting for the IP address 192.168.1.212. Establish the online connection to the device. For device version with Modbus RS485 communication type Via service interface (CDI) and "FieldCare"...

  • Page 42: Establishing A Connection Via Fieldcare

    Commissioning Proline Promag P 100 10.2 Establishing a connection via FieldCare • For FieldCare connection (→  37) • For establishing a connection via FieldCare (→  40) 10.3 Configuring the device address via software Applies only to device version with EtherNet/IP communication type Software addressing is carried out in the Communication submenu.

  • Page 43: Protecting Settings From Unauthorized Access

    Proline Promag P 100 Commissioning Navigation "Setup" menu → Device tag Parameter overview with brief description Parameters Description User entry Factory setting Device tag Enter tag for measuring Max. 32 characters, such as Promag point. letters, numbers or special characters (e.g. @, %, /).
  • Page 44 Commissioning Proline Promag P 100 10.6.2 Write protection via write protection switch The write protection switch makes it possible to block write access to the entire operating menu with the exception of the following parameters: • External pressure • External temperature •...
  • Page 45 Proline Promag P 100 Commissioning OFF ON - Write protection - Default Ethernet network settings IP 192.168.1.212 A0017915 For device version with PROFIBUS DP communication type OFF ON - Software addressing - Write protection - Not used A0021262 ‣ Setting the write protection switch on the electronics module to the ON position enables the hardware write protection.

  • Page 46: Diagnostic Information

    Diagnostic information Proline Promag P 100 Diagnostic information Any faults detected by the measuring device are displayed on the home page of the operating tool once the connection has been established and on the home page of the web browser once the user has logged on.
