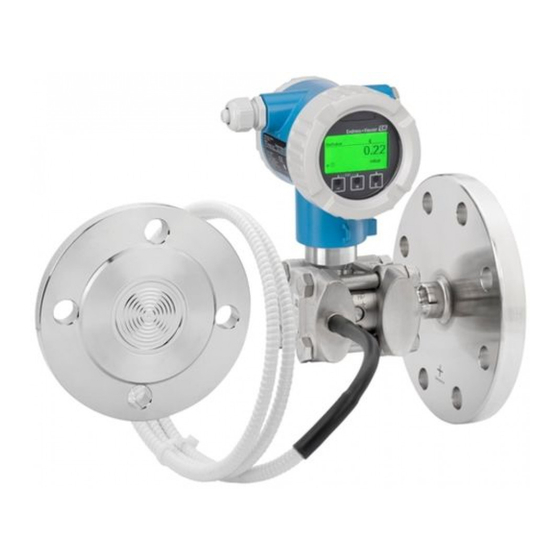

  • Page 1 Products Solutions Services BA02015P/00/EN/03.21 71521430 2021-03-30 01.00.zz (Device firmware) Operating Instructions Deltabar PMD78B Differential pressure measurement HART...
  • Page 2 The manufacturer reserves the right to modify technical data without prior notice. The Endress+Hauser sales organization will supply you with current information and updates to these instructions. Endress+Hauser...

  • Page 3: Table Of Contents

    Deltabar PMD78B HART Table of contents Table of contents About this document ....5 System integration ....38 Document function .
  • Page 4 Table of contents Deltabar PMD78B HART 15.2 Environment ......77 15.3 Process ......80 Index .

  • Page 5: About This Document

    Deltabar PMD78B HART About this document About this document Document function These Operating Instructions contain all the information that is required in various phases of the life cycle of the device: from product identification, incoming acceptance and storage, to mounting, connection, operation and commissioning through to troubleshooting, maintenance and disposal.
  • Page 6 About this document Deltabar PMD78B HART Additional information: Reference to documentation: Reference to page: Series of steps: Result of an individual step: 1.2.4 Symbols in graphics Item numbers: 1, 2, 3 ... Series of steps: Views: A, B, C, ...

  • Page 7: List Of Abbreviations

    Deltabar PMD78B HART About this document List of abbreviations A0029505 OPL: The OPL (over pressure limit = sensor overload limit) for the measuring device depends on the lowest- rated element, with regard to pressure, of the selected components, i.e. the process connection has to be taken into consideration in addition to the measuring cell.

  • Page 8: Documentation

    Registered trademark of the FieldComm Group, Austin, Texas, USA Bluetooth® The Bluetooth® wordmark and logos are registered trademarks of Bluetooth SIG, Inc. and any use of these trademarks by Endress+Hauser is licensed. Other trademarks and trade names are those of their respective owners. Apple®...

  • Page 9: Basic Safety Instructions

    The manufacturer is not liable for damage caused by improper or non-designated use. Verification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability.

  • Page 10: Product Safety

    IT security Endress+Hauser can only provide a warranty if the device is installed and used as described in the Operating Instructions. The device is equipped with security mechanisms to protect it against any inadvertent changes to the device settings. IT security measures in line with operators' security standards and designed to provide additional protection for the device and device data transfer must be implemented by the operators themselves.

  • Page 11: Product Description

    Deltabar PMD78B HART Product description Product description Product design 3.1.1 Measuring cell for differential pressure with metal process isolating diaphragm A0043081  1 Capillary on the second side (P1) is optional Measuring element Middle diaphragm Fill fluid Internal process isolating diaphragm...
  • Page 12 Product description Deltabar PMD78B HART Applications for diaphragm seals Diaphragm seal systems are used if the process and the device need to be separated. Diaphragm seal systems offer clear advantages in the following instances: • In the case of extreme process temperatures - through the use of temperature isolators or capillaries •...
  • Page 13 Deltabar PMD78B HART Product description Advantages: • Volume and mass measurements in any vessel shape with a freely programmable characteristic curve • Has a wide range of uses, e.g.: • For level measurement in vessels with pressure overlay • For foam formation •...

  • Page 14: Incoming Acceptance And Product

    • Do the data on the nameplate correspond to the order specifications and the delivery note? • Is the documentation provided? • If required (see nameplate): are the Safety Instructions (XA) provided? If you can answer "no" to any of these questions, please contact Endress+Hauser. 4.1.1 Scope of delivery The scope of delivery comprises: •...

  • Page 15: Storage And Transport

    Deltabar PMD78B HART Incoming acceptance and product identification 4.2.2 Nameplates Different nameplates are used depending on the device version. Order code: Ser. no.: Ext. ord. cd.: Cal./Adj.: Dev.Rev.: MWP: Fill Fluid: Mat.: Date: Ord.cd.: Ser. no.: Ext.ord.cd.: Cal./Adj.: MWP: Mat.:...

  • Page 16: Installation

    Installation instructions • To ensure optimum readability of the onsite display, align the housing and onsite display • Endress+Hauser offers a mounting bracket for installing the measuring device on pipes or walls • Use flushing rings for flanges, flange and cell diaphragm seals if buildup or clogging can be expected at the process isolating diaphragm •...
  • Page 17 Deltabar PMD78B HART Installation 5.1.3 Installation instructions for devices with diaphragm seals NOTICE Incorrect handling! Damage to the device! ‣ The diaphragm seal and pressure transmitter form a closed, calibrated system which has been filled with diaphragm seal fill fluid. Never open any of the holes for filling fluid.
  • Page 18 (empty vessel). Cleaning instructions Endress+Hauser offers flushing rings as accessories to clean process isolating diaphragms without taking the transmitters out of the process. For more information, contact the Endress+Hauser sales office.
  • Page 19 Deltabar PMD78B HART Installation 5.1.5 Orientation Diaphragm seal on one side or both sides with temperature isolator A0038658 Design HP side: Transmitter horizontal, temperature isolator long Design HP side: Transmitter vertical, temperature isolator long Design HP side: Transmitter horizontal, temperature isolator short...

  • Page 20: Mounting The Measuring Device

    Installation Deltabar PMD78B HART Diaphragm seal on one side or both sides with capillary For vacuum applications, mount the pressure transmitter below the lower diaphragm seal. A0039528 "Sizing Diaphragm Seal" for the installation check. Mounting the measuring device 5.2.1 Level measurement...
  • Page 21 Deltabar PMD78B HART Installation Level measurement in a closed vessel, diaphragm seal on one side with temperature isolator – max. min. A0038703 Shutoff valve Separator Drain valve Measuring device • Mount the measuring device directly on the vessel • Always connect the piping on the negative side above the maximum level...
  • Page 22 Installation Deltabar PMD78B HART Level measurement in a closed vessel with superimposed vapor, diaphragm seal on one side with temperature isolator – max. min. A0038707 Condensate trap Shutoff valve Separator Drain valve Measuring device • Mount the measuring device directly on the vessel •...
  • Page 23 Deltabar PMD78B HART Installation 5.2.3 Oxygen applications (gaseous) Oxygen and other gases can react explosively to oils, grease and plastics. The following precautions must be taken: • All components of the plant, such as the measuring devices, must be cleaned according to national requirements.
  • Page 24 Installation Deltabar PMD78B HART 100 (3.94) 77 (3.03) 53 (2.09) 30 (1.18) [°F] [°C] +752 +400 +662 +350 +572 +300 +482 +250 +392 +200 +302 +150 +212 +100 +122 C, D -148 -100 [°C] [°F] +104 +140 +176 A0039331 Insulation material...
  • Page 25 Deltabar PMD78B HART Installation Item –50 °C (–58 °F) 50 °C (122 °F) –35 °C (–31 °F) –70 °C (–94 °F) 60 °C (140 °F) 200 °C (392 °F) 85 °C (185 °F) 85 °C (185 °F) –50 °C (–58 °F) 10 °C (50 °F)
  • Page 26 Installation Deltabar PMD78B HART • Bracket for wall and pipe mounting including retaining bracket for pipe mounting and two nuts • The material of the screws used to secure the device depends on the order code For technical data (e.g. materials, dimensions or order numbers), see the accessory document SD01553P.
  • Page 27 Deltabar PMD78B HART Installation 5.2.9 Turning the display module 4 mm A0038224 WARNING Supply voltage switched on! Risk of electric shock and/or explosion! ‣ Switch off the supply voltage before opening the measuring device. CAUTION When opening the terminal compartment cover of the dual compartment housing, your finger can get caught between the cover and pressure compensation filter.

  • Page 28: Post-Installation Check

    Installation Deltabar PMD78B HART A0043807 Locking screw NOTICE The housing cannot be unscrewed fully. ‣ Loosen the external locking screw by a maximum of 1.5 turns. If the screw is unscrewed too much or completely (beyond the screw anchor point), small parts (counter disk) can become loose and fall out.

  • Page 29: Electrical Connection

    Deltabar PMD78B HART Electrical connection Electrical connection Connection conditions 6.1.1 Potential equalization The protective ground on the device must not be connected. If necessary, the potential matching line can be connected to the outer ground terminal of the transmitter before the device is connected.
  • Page 30 Overvoltage protection Devices without optional overvoltage protection Equipment from Endress+Hauser fulfills the requirements of the product standard IEC / DIN EN 61326-1 (Table 2 Industrial Environment). Depending on the type of port (DC power supply, input/output port) different testing levels...
  • Page 31 Deltabar PMD78B HART Electrical connection 6.2.6 Wiring WARNING Supply voltage might be connected! Risk of electric shock and/or explosion! ‣ If the device is used in hazardous areas, make sure to comply with national standards and the specifications in the Safety Instructions (XAs). The specified cable gland must be used.
  • Page 32 Electrical connection Deltabar PMD78B HART 6.2.8 Cable entries A0045414 Cable entry Dummy plug A0045413 The type of cable entry depends on the device version ordered. Always route connecting cables downwards so that moisture cannot penetrate the connection compartment. If necessary, create a drip loop or use a weather protection cover.

  • Page 33: Ensuring The Degree Of Protection

    Deltabar PMD78B HART Electrical connection Ensuring the degree of protection 6.3.1 Cable entries • Gland M20, plastic, IP66/68 TYPE 4X/6P • Gland M20, brass nickel plated, IP66/68 TYPE 4X/6P • Gland M20, 316L, IP66/68 TYPE 4X/6P • Thread M20, IP66/68 TYPE 4X/6P •...

  • Page 34: Operation Options

    • Operation via Bluetooth® wireless technology (with optional Bluetooth device display) with SmartBlue App or FieldXpert, DeviceCare • Operation via operating tool (Endress+Hauser FieldCare/DeviceCare or AMS, PDM, etc.) • Operation via handheld, Fieldcare, DeviceCare, AMS and PDM Operating keys and DIP switches on the electronic...

  • Page 35: Access To The Operating Menu Via The Local Display

    Deltabar PMD78B HART Operation options Access to the operating menu via the local display 7.4.1 Device display (optional) Functions: • Display of measured values and fault and notice messages • Background lighting, which switches from green to red in the event of an error •...
  • Page 36 Prerequisite • Measuring device with Bluetooth display • Smartphone or tablet with Endress+Hauser SmartBlue App or PC with DeviceCare, version 1.07.00 and higher, or FieldXpert SMT70 The connection range is up to 25 m (82 ft). The range can vary depending on ambient conditions such as fixtures, walls or ceilings.

  • Page 37: Access To The Operating Menu Via The Operating Tool

    Access to the operating menu via the operating tool Access via the operating tool is possible: • Via HART communication • Via Endress+Hauser Commubox FXA291 With the Commubox FXA291, a CDI connection can be established between the measuring device interface and a Windows PC/notebook with a USB port...

  • Page 38: System Integration

    System integration Deltabar PMD78B HART System integration Overview of device description files • Manufacturer ID: 17 (0x0011) • Device type ID: 0x1131 • HART specification: 7.6 • DD files, information and files can be found at: • www.endress.com • www.fieldcommgroup.org...
  • Page 39 Deltabar PMD78B HART System integration Device variable Device variable code Loop current Not used The device variables can be queried by a HART ® master using HART ® command 9 or 8.2.2 System units The following table describes the supported pressure measuring units.

  • Page 40: Commissioning

    Commissioning Deltabar PMD78B HART Commissioning Preparatory steps The measuring range and the unit in which the measured value is transmitted correspond to the data on the nameplate. WARNING The settings of the current output are relevant for safety! This can result in product overflow.

  • Page 41: Switching On The Measuring Device

    A0039148 Computer with FieldCare/DeviceCare operating tool Commubox FXA291 Service interface (CDI) of the measuring device (= Endress+Hauser Common Data Interface) At least 22 mA is required to update (flash) the device firmware. Configuring the device address via software See the HART address parameter.

  • Page 42: Setting The Operating Language

    Commissioning Deltabar PMD78B HART Menu path: Application → HART output → Configuration → HART address Setting the operating language 9.6.1 Local display • In the main menu, select the Language parameter Press the  key • Select the desired language with the  or  key Press the ...

  • Page 43: Configuring The Measuring Device

    Deltabar PMD78B HART Commissioning Configuring the measuring device 9.7.1 Clean the piping if necessary Differential pressure measurement Before the device is adjusted, the pressure piping must be cleaned, where necessary, and filled with fluid. – – – I I I –...
  • Page 44 Commissioning Deltabar PMD78B HART 4. Vent the measuring device.  Open 2 and 4 (introduce fluid). Close 4 (low-pressure side). Open 3 (balance high-pressure and low-pressure side). Open 6 and 7 briefly, then close them again (fill the measuring device completely with fluid and remove air).
  • Page 45 Deltabar PMD78B HART Commissioning Top diagram: preferred installation for gases Bottom diagram: preferred installation for liquids 1. Close 3. 2. Fill measuring system with fluid.  Open A, B, 2, 4 (fluid flows in). 3. Clean the pressure piping if it is blocked (for arrangements with 5 valves).
  • Page 46 Commissioning Deltabar PMD78B HART Level measurement Open vessel Before the device is adjusted, the pressure piping must be cleaned, where necessary, and filled with fluid. – A0030038 Measuring device Separator Vent valve on measuring device Shutoff valve Drain valve 1. Fill vessel to a level above the lower tap.
  • Page 47 Deltabar PMD78B HART Commissioning Closed vessel Before the device is adjusted, the pressure piping must be cleaned, where necessary, and filled with fluid. – I I I – A0030039 Measuring device Three-valve manifold Separator 1, 5 Drain valves 2, 4 Inlet valves...
  • Page 48 Commissioning Deltabar PMD78B HART Closed vessel with superimposed vapor Before the device is adjusted, the pressure piping must be cleaned, where necessary, and filled with fluid. – I I I – A0030040 Measuring device Three-valve manifold Separator 1, 5 Drain valves...
  • Page 49 Deltabar PMD78B HART Commissioning 9.7.2 Commissioning with keys on the electronic insert The following functions are possible by means of the keys on the electronic insert: • Position adjustment (zero point correction) The orientation of the measuring device may cause a pressure shift This pressure shift can be corrected by a position adjustment •...
  • Page 50 Commissioning Deltabar PMD78B HART 9.7.3 Commissioning with the commissioning wizard In FieldCare, DeviceCare , SmartBlue and the display, the Commissioning wizard is available that guides the user through the initial commissioning process. 1. Connect the device with FieldCare or DeviceCare.
  • Page 51 Deltabar PMD78B HART Commissioning Example: Outputting of the pressure value at the current output Pressure and temperature units are converted automatically. Other units are not converted. In the following example, the pressure value should be measured in a tank and output on the current output.
  • Page 52 Commissioning Deltabar PMD78B HART 9.7.4 Commissioning without the commissioning wizard Example: Commissioning a volume measurement in the tank Pressure and temperature units are converted automatically. Other units are not converted. In the following example, the volume in a tank should be measured in liters. The maximum volume of 1 000 l (264 gal) corresponds to a pressure of 450 mbar (6.75 psi).

  • Page 53: Simulation" Submenu

    Deltabar PMD78B HART Commissioning Low flow cut off (square root extraction) Measured value suppression can be set in the lower measuring range with the Low cutoff parameter. Prerequisites: • Measured variable with square root extraction in relation to pressure • In the Output current transfer function parameter, set the Square option.
  • Page 54 Commissioning Deltabar PMD78B HART If operation is locked by means of the operating menu, you can only unlock operation again by means of the operating menu. If operation is locked via the DIP switch, the key symbol  appears on the local display.

  • Page 55: Operation

    Deltabar PMD78B HART Operation Operation 10.1 Reading the device locking status Display of active write protection: • In the Locking status parameter Menu path of local display: at the top operating level Menu path of operating tool: System → Device management •...
  • Page 56 Operation Deltabar PMD78B HART 10.3.1 Sensor calibration In the course of their life cycle, pressure sensors can deviate, or drift, from the original pressure characteristic curve. This deviation is caused by physical factors and can be corrected with a sensor calibration.

  • Page 57: Diagnostic And Troubleshooting

    Deltabar PMD78B HART Diagnostic and troubleshooting Diagnostic and troubleshooting 11.1 General troubleshooting 11.1.1 General errors Device does not respond • Possible cause: Supply voltage does not match the specification on the nameplate Remedial action: Apply the correct voltage • Possible cause: The polarity of the supply voltage is wrong Remedial action: Correct the polarity •...
  • Page 58 Remedial action: The standard user name is "admin" and the password is the device serial number indicated on the device nameplate (only if the password was not changed by the user beforehand) If the password has been forgotten, contact Endress+Hauser Service (www.addresses.endress.com) Connection via SmartBlue not possible...
  • Page 59 Deltabar PMD78B HART Diagnostic and troubleshooting 11.1.3 Additional tests If no clear cause of the error can be identified or the source of the problem can be both the device and the application, the following additional tests can be performed: 1.
  • Page 60 Diagnostic and troubleshooting Deltabar PMD78B HART 11.1.4 Response of current output to errors The response of the current output to errors is defined by the Failure behavior current output parameter. Parameter overview with brief description Parameter Description Selection / User entry Failure behavior current output Defines which current the output assumes in the case of an •...

  • Page 61: Diagnostic Information On Local Display

    Deltabar PMD78B HART Diagnostic and troubleshooting 11.2 Diagnostic information on local display 11.2.1 Diagnostic message Measured value display and diagnostic message in alarm condition Faults detected by the self-monitoring system of the measuring device are displayed as a diagnostic message in alternation with the unit.
  • Page 62 Diagnostic and troubleshooting Deltabar PMD78B HART Diagnostic event and event text The fault can be identified by means of the diagnostic event. The event text helps you by providing information about the fault. In addition, the corresponding status symbol is displayed before the diagnostic event.

  • Page 63: Diagnostic Event In The Operating Tool

    Deltabar PMD78B HART Diagnostic and troubleshooting 11.3 Diagnostic event in the operating tool If a diagnostic event is present in the device, the status signal appears in the top left status area of the operating tool along with the corresponding symbol for the event level in accordance with NAMUR NE 107: •...
  • Page 64 Diagnostic and troubleshooting Deltabar PMD78B HART 11.6.1 List of diagnostic events Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Diagnostic of sensor Sensor connection faulty Check sensor connection Alarm Sensor initialization 1. Restart device...
  • Page 65 Deltabar PMD78B HART Diagnostic and troubleshooting Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Failure mode simulation Deactivate simulation Alarm active Process variable Deactivate simulation Warning simulation active Current output Deactivate simulation...

  • Page 66: Event Logbook

    Diagnostic and troubleshooting Deltabar PMD78B HART 11.7 Event logbook 11.7.1 Event history The Event list submenu provides a chronological overview of the event messages that have occurred Navigation path Diagnostics → Event logbook A maximum of 100 event messages can be displayed in chronological order.

  • Page 67: Resetting The Measuring Device

    Deltabar PMD78B HART Diagnostic and troubleshooting Info number Info name I1155 Reset electronics temperature I1157 Memory error event list I1256 Display: access status changed I1264 Safety sequence aborted I1335 Firmware changed I1397 Fieldbus: access status changed I1398 CDI: access status changed...

  • Page 68: 11.10 Firmware History

    Diagnostic and troubleshooting Deltabar PMD78B HART 11.10 Firmware history The firmware version can explicitly be ordered via the product structure. This makes it possible to ensure the compatibility of the firmware version with an existing or planned system integration. 11.10.1 Version 01.00.zz...

  • Page 69: Maintenance

    12.1.1 Flushing rings By using flushing rings, the process isolating diaphragm can be cleaned without removing the measuring device from the process. For more information: contact the Endress+Hauser sales office. 12.1.2 Exterior cleaning Notes on cleaning • The cleaning agents used should not corrode the surfaces and the seals •...

  • Page 70: Repair

    General notes 13.1.1 Repair concept Under the Endress+Hauser repair concept, devices have a modular design and repairs can be carried out by Endress+Hauser Service or by properly trained customers. Spare parts are grouped into logical kits with the associated replacement instructions.
  • Page 71 Deltabar PMD78B HART Repair 13.3.1 HistoROM It is not necessary to perform a new device calibration after replacing the display or transmitter electronics. The parameters are saved in the HistoROM. After replacing the transmitter electronics, remove the HistoROM and insert it into the new replacement part.

  • Page 72: Return

    Endress+Hauser is required to follow certain procedures when handling returned products that have been in contact with a medium. To ensure swift, safe and professional device returns, please read the return procedures and conditions on the Endress+Hauser website www.services.endress.com/return-material ‣...

  • Page 73: Accessories

    Deltabar PMD78B HART Accessories Accessories 14.1 Device-specific accessories 14.1.1 Mechanical accessories • Mounting bracket for housing • Flushing rings • Weather protection covers For technical data (e.g. materials, dimensions or order numbers), see the accessory document SD01553P. 14.1.2 Plug connectors •...

  • Page 74: Technical Data

    Technical data Deltabar PMD78B HART Technical data 15.1 Output Output signal Current output 4 to 20 mA with superimposed digital communication protocol HART, 2-wire The current output offers a choice of three different operating modes: • 4.0 to 20.5 mA •...
  • Page 75 Deltabar PMD78B HART Technical data Linearization The device' s linearization function allows the user to convert the measured value to any units of height or volume. User-defined linearization tables of up to 32 value pairs can be entered if necessary.
  • Page 76 Technical data Deltabar PMD78B HART Wireless HART data • Minimum starting voltage: 10.5 V • Start-up current: >3.6 mA • Starting time: <5 s • Minimum operating voltage: 10.5 V • Multidrop current: 4 mA Endress+Hauser...
  • Page 77 DIN EN 60721-3-4. Condensation is possible. Atmosphere Operation in very corrosive environment For corrosive environments (e.g. maritime environment / coastal areas), Endress+Hauser recommends the use of a PVC-coated capillary armor or a PTFE capillary armor for Endress+Hauser...
  • Page 78 Technical data Deltabar PMD78B HART capillaries. The transmitter can be additionally protected by a special coating (Technical Special Product (TSP)). Degree of protection Test as per IEC 60529 and NEMA 250-2014 Housing and process connection IP66/68, TYPE 4X/6P (IP68: (1.83 mH...
  • Page 79 For applications with very high temperatures, either a measuring device with a temperature isolator or with a capillary can be used. If vibrations also occur in the application, Endress+Hauser recommends using a measuring device with a capillary. If a measuring device with a temperature isolator or capillary is used, it must be mounted with a mounting bracket.
  • Page 80 Technical data Deltabar PMD78B HART 15.3 Process Process temperature range NOTICE The permitted process temperature depends on the process connection, the ambient temperature and the type of approval. ‣ All the temperature data in this document must be taken into consideration when selecting the measuring device.
  • Page 81 Deltabar PMD78B HART Technical data Oxygen applications (gaseous) Oxygen and other gases can react explosively to oils, grease and plastics. The following precautions must be taken: • All components of the plant, such as the measuring devices, must be cleaned according to national requirements.
  • Page 82 Technical data Deltabar PMD78B HART [psi p ] [bar p ] 3625 2900 2175 1450 -40 25 50 75 100 125 150 175 200 [°C] -40 77 122 167 212 257 302 347 392 [°F] A0045213 For vacuum applications: p ≤...
  • Page 83 Deltabar PMD78B HART Technical data • EPDM: –40 to +85 °C (–40 to +185 °F) • PTFE, cleaned for oxygen applications: –20 to +60 °C (–4 to +140 °F) For pressures > 160 bar (2 320 psi): process temperature is limited to –20 °C (–4 °F) •...
  • Page 84 Technical data Deltabar PMD78B HART 100 (3.94) 77 (3.03) 53 (2.09) 30 (1.18) [°F] [°C] +752 +400 +662 +350 +572 +300 +482 +250 +392 +200 +302 +150 +212 +100 +122 C, D -148 -100 [°C] [°F] +104 +140 +176 A0039331...
  • Page 85 Process temperature: max. +400 °C (+752 °F), depending on the diaphragm seal fill fluid used Ultrapure gas applications Endress+Hauser also offers measuring devices for special applications, such as for ultrapure gas, which are cleaned from oil and grease. No special restrictions regarding the process conditions apply to these measuring devices.
  • Page 86 Index Deltabar PMD78B HART Index Access authorization to parameters Nameplates ....... . 15 Read access .
