TI01102D/06/EN/02.13
71233384
The flowmeter for highest medium temperatures with an ultra-compact
transmitter
Application
• The electromagnetic measuring principle is unaffected by
pressure, temperature and flow profile
• Dedicated for chemical and process applications with
corrosive liquids and high medium temperatures
Device properties
• Nominal diameter: max. DN 600 (24")
• All common Ex approvals
• Liner made of PTFE or PFA
• Robust, ultra-compact transmitter housing
• Pre-configured plug connector
Products
Technical Information
Proline Promag P 100
Electromagnetic flowmeter
Solutions
Your benefits
• Versatile applications – wide variety of wetted materials
• Energy-saving flow measurement – no pressure loss due to
cross-section constriction
• Maintenance-free – no moving parts
• Space-saving transmitter – full functionality on smallest
footprint
• Time-saving local operation without additional software and
hardware – integrated web server
• Integrated verification – Heartbeat Technology™
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Proline Promag P 100

Summary of Contents for Endress+Hauser Proline Promag P 100

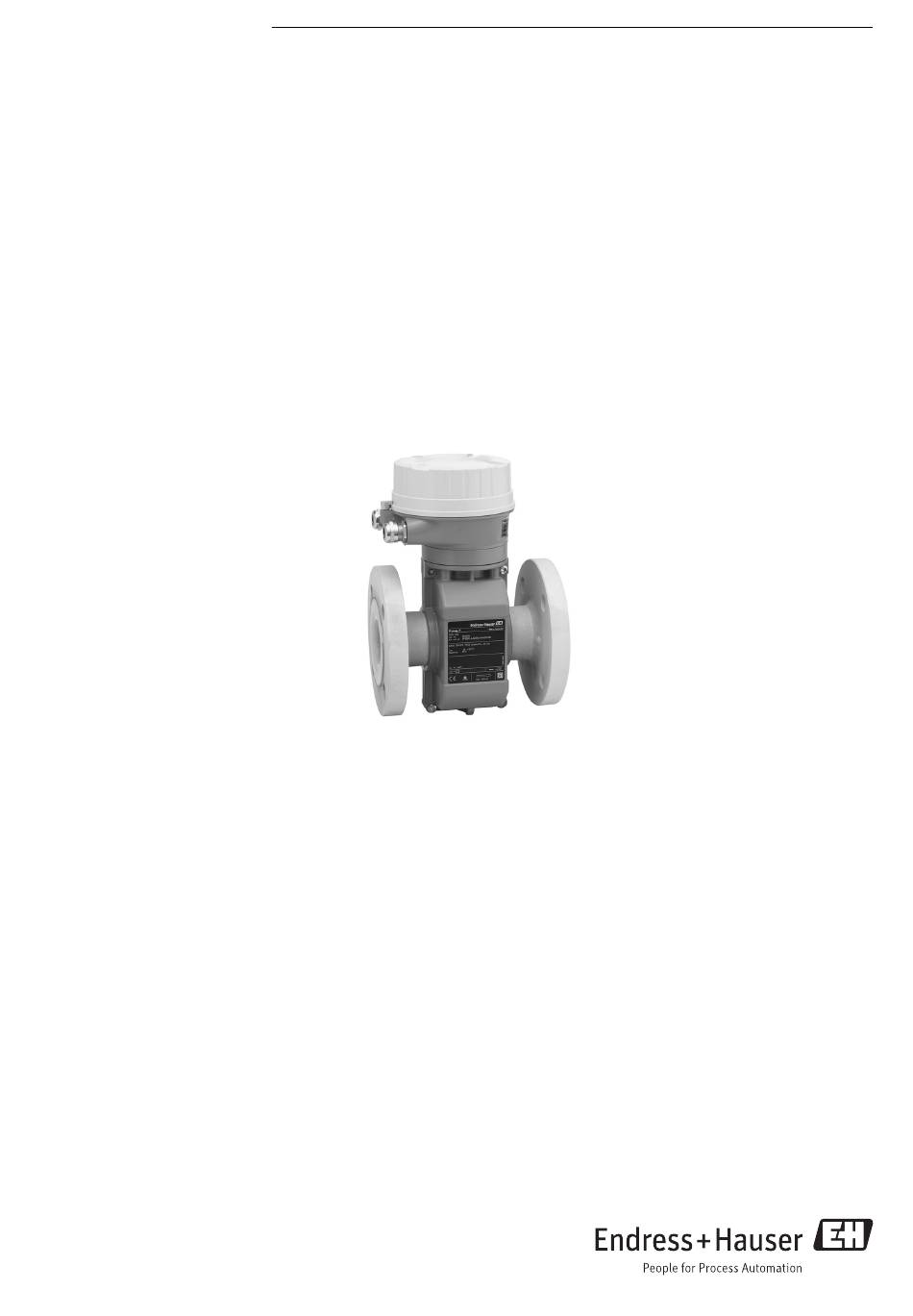

  • Page 1 Products Solutions Services TI01102D/06/EN/02.13 71233384 Technical Information Proline Promag P 100 Electromagnetic flowmeter The flowmeter for highest medium temperatures with an ultra-compact transmitter Application Your benefits • The electromagnetic measuring principle is unaffected by • Versatile applications – wide variety of wetted materials pressure, temperature and flow profile •...

  • Page 2: Table Of Contents

    Proline Promag P 100 Table of contents Document information ..... . . 3 Process ........36 Symbols used .

  • Page 3: Document Information

    Proline Promag P 100 Document information Symbols used Electrical symbols Symbol Meaning Direct current A terminal to which DC voltage is applied or through which direct current flows. A0011197 Alternating current A terminal to which alternating voltage is applied or through which alternating current flows.

  • Page 4: Function And System Design

    Proline Promag P 100 Symbol Meaning Hazardous area Indicates a hazardous area. A0011187 Safe area (non-hazardous area) Indicates a non-hazardous area. A0011188 Function and system design Measuring principle Following Faraday' s law of magnetic induction, a voltage is induced in a conductor moving through a magnetic field.

  • Page 5: Measuring System

    Proline Promag P 100 Measuring system One device version is available: compact version, transmitter and sensor form a mechanical unit. Transmitter Promag 100 Device versions and materials: Compact, aluminum coated: Coated aluminum AlSi10Mg Configuration: • Via operating tools (e.g. FieldCare) •...

  • Page 6: Safety

    IT security measures in line with operators' security standards and designed to provide additional protection for the device and device data transfer must be implemented by the operators themselves. Endress+Hauser can be contacted to provide support in performing this task. Input...

  • Page 7: Operable Flow Range

    Proline Promag P 100 Nominal Recommended Factory settings diameter flow Current output full scale min./max. full scale value Pulse value Low flow cut off value (v ~ 0.3/10 m/s) (~ 2 pulse/s) (v ~ 0.04 m/s) (v ~ 2.5 m/s)

  • Page 8: Output

    Proline Promag P 100 Various pressure transmitters and temperature measuring devices can be ordered from Endress +Hauser: see "Accessories" section (→  56) Output Output signal Current output Current output 4-20 mA HART (active) Maximum output values • DC 24 V (when idle) •...

  • Page 9: Signal On Alarm

    Proline Promag P 100 Number of switching Unlimited cycles Assignable functions • Off • On • Diagnostic behavior • Limit value: – Off – Volume flow – Mass flow – Corrected volume flow – Flow velocity – Conductivity – Corrected conductivity –...
  • Page 10 Proline Promag P 100 Frequency output Failure mode Choose from: • Actual value • Defined value: 0 to 12 500 Hz • 0 Hz Switch output Failure mode Choose from: • Current status • Open • Closed PROFIBUS DP Status and alarm Diagnostics in accordance with PROFIBUS PA Profile 3.02...

  • Page 11: Galvanic Isolation

    Proline Promag P 100 Galvanic isolation The following connections are galvanically isolated from each other: • Outputs • Power supply Protocol-specific data HART Manufacturer ID 0x11 Device type ID 0x3A HART protocol revision Device description files Information and files under: (DTM, DD) www.endress.com...
  • Page 12 Proline Promag P 100 Output values Analog input 1 to 8 (from measuring device to • Mass flow automation system) • Volume flow • Corrected volume flow • Target mass flow • Carrier mass flow • Density • Reference density •...
  • Page 13 Proline Promag P 100 Broadcast address range Function codes • 03: Read holding register • 04: Read input register • 06: Write single registers • 08: Diagnostics • 16: Write multiple registers • 23: Read/write multiple registers Broadcast messages Supported by the following function codes: •...
  • Page 14 Proline Promag P 100 Fix Input 5 ms to 10 s (factory setting: 20 ms) Exclusive Owner Multicast Instance Size [byte] Instance configuration: 0x68 O → T configuration: 0x66 T → O configuration: 0x64 Exclusive Owner Multicast Instance Size [byte]...
  • Page 15 Proline Promag P 100 Configurable Input Assembly • Volume flow • Temperature • Corrected volume flow • Mass flow • Totalizer 1 to 3 • Flow velocity • Volume flow unit • Temperature unit • Corrected volume flow unit • Mass flow unit •...

  • Page 16: Power Supply

    Proline Promag P 100 Power supply Terminal assignment Overview: housing version - terminals/device plugs 1.1 1.2 1.3 2.1 2.2 A0019825 Housing version: compact, aluminum coated Connection version: 4-20 mA HART, pulse/frequency/switch output 1.1 Signal transmission: pulse/frequency/switch output 1.2 Signal transmission: 4-20 mA HART 1.3 Supply voltage...
  • Page 17 Proline Promag P 100 Transmitter Connection version 4-20 mA HART with pulse/frequency/switch output Order code for "Output", option B Depending on the housing version, the transmitters can be ordered with terminals or device plugs. Connection methods available Order code for...
  • Page 18 Proline Promag P 100 PROFIBUS DP connection version for use in non-hazardous areas and Zone 2/Div. 2 Order code for "Output", option L Depending on the housing version, the transmitters can be ordered with terminals or device plugs. Connection methods available...
  • Page 19 Proline Promag P 100 Connection version Modbus RS485, for use in non-hazardous areas and Zone 2/Div. 2 Order code for "Output", option M Depending on the housing version, the transmitters can be ordered with terminals or device plugs. Connection methods available...

  • Page 20: Pin Assignment, Device Plug

    Proline Promag P 100 EtherNet/IP connection version Order code for "Output", option N Depending on the housing version, the transmitters can be ordered with terminals or device plugs. Connection methods available Order code for Possible options for order code Power "Housing"...
  • Page 21 Proline Promag P 100 The following is recommended as a socket: • Binder, series 763, part no. 79 3440 35 05 • Alternatively: Phoenix part no. 1669767 SAC-5P-M12MS – With the order code for "Output", option B: 4-20 mA HART, pulse/frequency/switch output –...

  • Page 22: Power Consumption

    Proline Promag P 100 EtherNet/IP EtherNet/IP (on the device side) Assignment Coding Plug/socket Socket A0016812 Recommended plug: • Binder, series 763, part no. 99 3729 810 04 • Phoenix, part no. 1543223 SACC-M12MSD-4Q • When using the device in a hazardous location: Use a suitably certified plug.

  • Page 23: Electrical Connection

    Proline Promag P 100 Electrical connection Connecting the transmitter A0019824 Housing version: compact, aluminum coated Cable entry or device plug for signal transmission Cable entry or device plug for supply voltage • Terminal assignment (→  17) • Pin assignment, device plug (→  20) In the case of device versions with a connector, the transmitter housing does not need to be opened to connect the signal cable or power supply cable.
  • Page 24 Proline Promag P 100 Pulse/frequency output – – 12345 A0016801  7 Connection example for pulse/frequency output (passive) Automation system with pulse/frequency input (e.g. PLC) Power supply Transmitter: observe input values (→  8) Switch output A0016802  8 Connection example for switch output (passive) Automation system with switch input (e.g.
  • Page 25 Proline Promag P 100 PROFIBUS DP A0021429  9 Connection example for PROFIBUS DP, non-hazardous area and Zone 2/Div. 2 Control system (e.g. PLC) Cable shield: the cable shield must be grounded at both ends to comply with EMC requirements; observe cable specifications (→...
  • Page 26 Proline Promag P 100 EtherNet/IP A0016805  11 Connection example for EtherNet/IP Control system (e.g. PLC) Ethernet switch Observe cable specifications (→  30) Device plug Transmitter HART input 4...20 mA A0019828  12 Connection example for HART input (burst mode) via current output (active) Cable shield, observe cable specifications (→...

  • Page 27: Potential Equalization

    Proline Promag P 100 4...20 mA 4...20 mA A0019830  13 Connection example for HART input (master mode) via current output (active) Automation system with current input (e.g. PLC). Prerequisite: automation system with HART version 6, HART commands 113 and 114 can be processed.
  • Page 28 The ground disks must be connected to the ground terminal via the ground cable and be connected to ground potential. Ground cable Copper wire, at least 6 mm (0.0093 in The ground cable and ground disks can be ordered from Endress+Hauser (→  54). Endress+Hauser...

  • Page 29: Cable Entries

    Install the sensor in the pipe in a way that provides electrical insulation. Connect the two flanges of the pipe to one another via a ground cable. Guide the shield of the signal lines through a capacitor. The necessary ground cable can be ordered from Endress+Hauser . Transmitter Terminals Spring terminals for wire cross-sections0.5 to 2.5 mm...

  • Page 30: Performance Characteristics

    Proline Promag P 100 PROFIBUS DP The IEC 61158 standard specifies two types of cable (A and B) for the bus line which can be used for every transmission rate. Cable type A is recommended. Cable type Characteristic impedance 135 to 165 Ωat a measuring frequency of 3 to 20 MHz Cable capacitance <30 pF/m...

  • Page 31: Maximum Measured Error

    Proline Promag P 100 Maximum measured error Error limits under reference operating conditions o.r. = of reading Volume flow • ±0.5 % o.r. ± 1 mm/s (0.04 in/s) • Optional: ±0.2 % o.r. ± 2 mm/s (0.08 in/s) Fluctuations in the supply voltage do not have any effect within the specified range.

  • Page 32: Installation

    Proline Promag P 100 Pulse/frequency output Temperature coefficient Max. ±50 ppm o.r./100 °C Installation No special measures such as supports are necessary. External forces are absorbed by the construction of the device. Mounting location Preferably install the sensor in an ascending pipe, and ensure a sufficient distance to the next pipe elbow: h ≥...

  • Page 33: Orientation

    Proline Promag P 100 A0017063 The direction of the arrow on the sensor nameplate helps you to install the sensor according to the Orientation flow direction (direction of medium flow through the piping). An optimum orientation position helps avoid gas and air accumulations and deposits in the measuring tube.

  • Page 34: Adapters

    Proline Promag P 100 5 × DN ³ 2 × DN ³ A0016275 Adapters Suitable adapters to DIN EN 545 (double-flange reducers) can be used to install the sensor in larger- diameter pipes. The resultant increase in the rate of flow improves measuring accuracy with very slow-moving fluids.

  • Page 35: Storage Temperature

    Proline Promag P 100 If operating outdoors: • Install the measuring device in a shady location. • Avoid direct sunlight, particularly in warm climatic regions. • Avoid direct exposure to weather conditions. Temperature tables The following interdependencies between the permitted ambient and fluid temperatures apply when...

  • Page 36: Process

    Proline Promag P 100 Process Medium temperature range • –20 to +150 °C (–4 to +302 °F) for PFA, DN 25 to 200 (1 to 8") • –20 to +180 °C (–4 to +356 °F) for PFA high-temperature, DN 25 to 200 (1 to 8") •...
  • Page 37 Proline Promag P 100 Flange connection according to EN 1092-1 (DIN 2501) [psi] [bar] PN 40 PN 25 PN 16 PN 10 PN 6 -40 -20 0 20 40 60 80 100120140160180 [°C] 360 [°F] A0021188-EN  21 Materials C22, FE 410W B and S235JRG2...
  • Page 38 Proline Promag P 100 Flange connection according to ASME B16.5 [psi] [bar] Class 300 Class 150 -40 -20 0 20 40 60 80 100120140 160180 [°C] 360 [°F] A0021182-EN  23 Material A105 Flange connection according to ASME B16.5 [psi]...

  • Page 39: Pressure Tightness

    Proline Promag P 100 Flange connection according to AS 2129 (Table E) or AS 4087 (PN 16) [psi] [bar] PN 16 Table E -40 -20 0 20 40 60 80 100120140 160 [°C] [°F] A0021189-EN  26 Materials A105, S235JRG2, S275JR "–"...

  • Page 40: Flow Limit

    Proline Promag P 100 Nominal diameter Limit values for absolute pressure in [mbar] ([psi]) for fluid temperatures: [mm] [in] +25 °C (+77 °F) +80 °C (+176 °F) +100 °C (+212 °F) +130 °C (+266 °F) 400 (5.80) – 500 (7.25) 630 (9.14)

  • Page 41: Mechanical Construction

    Proline Promag P 100 Mechanical construction Design, dimensions Compact version Order code for "Housing", option A "Compact, coated aluminum" with DN 15 to 300 (½ to 12") A0019491 Dimensions in SI units [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]...
  • Page 42 Proline Promag P 100 [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] 7.87 5.35 5.81 3.68 2.13 8.74 4.29 13.0 7.09 3.70 9.84 5.35 5.81 3.68 2.13 8.74 4.29 13.0 7.09 3.70 11.8 5.35 5.81 3.68 2.13 10.3...
  • Page 43 Proline Promag P 100 [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] 25.6 5.35 5.81 3.68 2.13 17.7 13.1 30.8 26.2 11.5 25.6 5.35 5.81 3.68 2.13 18.7 14.1 32.9 28.2 11.5 30.7 5.35 5.81 3.68 2.13 20.8...

  • Page 44: Weight

    Proline Promag P 100 EN (DIN), JIS, AS PFA, PTFE [mm] [mm] [mm] [mm] [mm] [mm] [mm] Ground disks DN 15 to 250 (½ to 10") can be used for all available flange standards/pressure ratings. For flanges to AS, only DN 25 and DN 50 are available.

  • Page 45: Measuring Tube Specification

    Proline Promag P 100 Nominal diameter EN (DIN), AS ASME [mm] [in] Pressure rating [kg] Pressure rating [kg] Pressure rating [kg] – PN 16 Class 150 – PN 16 Class 150 10.5 PN 16 Class 150 12.7 – PN 16 19.5...

  • Page 46: Materials

    Proline Promag P 100 Nominal Pressure rating Process connection internal diameter diameter ASME PTFE (DIN) 2129 4087 [mm] [in] [bar] [psi] [bar] [bar] [bar] [mm] [in] [mm] [in] 1 ½ PN 40 Class 150 – – 1.42 1.61 PN 40...
  • Page 47 Proline Promag P 100 Order code for "Housing", option A "Compact, coated aluminum" The various cable entries are suitable for hazardous and non-hazardous areas. Cable entry/cable gland Material Cable gland M20 × 1.5 Nickel-plated brass Adapter for cable entry with internal thread G ½"...

  • Page 48: Fitted Electrodes

    Proline Promag P 100 Fitted electrodes Measuring electrodes, reference electrodes and electrodes for empty pipe detection: • Standard: 1.4435 (316L), Alloy C22, platinum, tantalum • Optional: only measuring electrodes made from platinum or tantalum Process connections • EN 1092-1 (DIN 2501): DN ≤ 300 (12") form A, DN ≥ 350 (14") flat face; dimensions as per DIN 2501, DN 65 PN 16 and DN 600 (24") PN 16 only as per EN 1092-1...
  • Page 49 Proline Promag P 100 A0016948  29 Options for remote operation via HART protocol Control system (e.g. PLC) Field Communicator 475 Computer with operating tool (e.g. FieldCare, AMS Device Manager, SIMATIC PDM) Commubox FXA195 (USB) Field Xpert SFX100 VIATOR Bluetooth modem with connecting cable...
  • Page 50 Proline Promag P 100 A0021270  31 Connection for order code for "Output", option L: PROFIBUS DP Service interface (CDI -RJ45) of the measuring device with access to the integrated Web server Computer with Web browser (e.g. Internet Explorer) for accessing the integrated device Web server or with "FieldCare"...
  • Page 51 Proline Promag P 100 A0016925 Service interface (CDI) of the measuring device Commubox FXA291 Computer with "FieldCare" operating tool with COM DTM "CDI Communication FXA291" Via Ethernet network This communication interface is present in the following device version: Order code for "Output", option N: EtherNet/IP...

  • Page 52: Certificates And Approvals

    Directives. These are listed in the corresponding EC Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. The measuring system meets the EMC requirements of the "Australian Communications and Media C-Tick symbol Authority (ACMA)".

  • Page 53: Certification Profibus

    Directive equal to DN 25 (1"), this is neither possible nor necessary. • With the PED/G1/x (x = category) marking on the sensor nameplate, Endress+Hauser confirms compliance with the "Essential Safety Requirements" specified in Annex I of the Pressure Equipment Directive 97/23/EC.

  • Page 54: Ordering Information

    The application packages can be ordered from Endress+Hauser either directly with the device or subsequently. Detailed information on the order code in question is available from your local Endress +Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.

  • Page 55: Communication-Specific Accessories

    HART For details, see "Technical Information" TI00404F Commubox FXA291 Connects Endress+Hauser field devices with a CDI interface (= Endress+Hauser Common Data Interface) and the USB port of a computer or laptop. For details, see "Technical Information" TI00405C HART Loop Converter...

  • Page 56: System Components

    For details, see "Technical Information" TI00133R and Operating Instructions BA00247R Documentation The following document types are available: • On the CD-ROM supplied with the device • In the Download Area of the Endress+Hauser Internet site: www.endress.com → Download Standard documentation Communication Document type Documentation code...
  • Page 57 Registered trademark of SCHNEIDER AUTOMATION, INC. EtherNet/IP Trademark of ODVA, Inc. Microsoft ® Registered trademark of the Microsoft Corporation, Redmond, Washington, USA Applicator ® , FieldCare ® , Field Xpert , HistoROM ® , Heartbeat Technology Registered or registration-pending trademarks of the Endress+Hauser Group Endress+Hauser...
