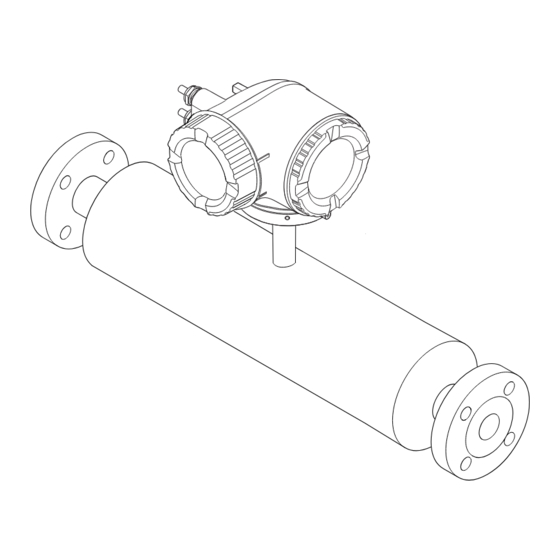

Page 1 Products Solutions Services BA01859D/06/EN/01.18 71402671 Valid as of version 01.00.zz (Device firmware) Operating Instructions Proline Promass I 300 PROFIBUS DP Coriolis flowmeter...
Page 2 • The manufacturer reserves the right to modify technical data without prior notice. Your Endress+Hauser Sales Center will supply you with current information and updates to these instructions. Endress+Hauser...
Page 3: Table Of Contents
Proline Promass I 300 PROFIBUS DP Table of contents Table of contents About this document ....6 Installation ..... . . 22 Document function .
Page 4 Table of contents Proline Promass I 300 PROFIBUS DP 8.3.10 User roles and related access 10.6.3 Selecting and setting the medium . . . authorization ....59 10.6.4 Configuring communication...
Page 5 13.2 Measuring and test equipment ... 222 13.3 Endress+Hauser services ....222 Repairs ......223 14.1 General notes .
Page 6: About This Document
About this document Proline Promass I 300 PROFIBUS DP About this document Document function These Operating Instructions contain all the information that is required in various phases of the life cycle of the device: from product identification, incoming acceptance and storage, to mounting, connection, operation and commissioning through to troubleshooting, maintenance and disposal.
Page 7: Tool Symbols
Proline Promass I 300 PROFIBUS DP About this document Symbol Meaning Light emitting diode is on. Light emitting diode is flashing. 1.2.4 Tool symbols Symbol Meaning Flat blade screwdriver Allen key Open-ended wrench 1.2.5 Symbols for certain types of information...
Page 8: Documentation
• W@M Device Viewer (www.endress.com/deviceviewer): Enter the serial number from nameplate • Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2D matrix code (QR code) on the nameplate Detailed list of the individual documents along with the documentation code →...
Page 9 Proline Promass I 300 PROFIBUS DP About this document TRI-CLAMP® Registered trademark of Ladish & Co., Inc., Kenosha, USA Endress+Hauser...
Page 10: Basic Safety Instructions
Basic safety instructions Proline Promass I 300 PROFIBUS DP Basic safety instructions Requirements for the personnel The personnel for installation, commissioning, diagnostics and maintenance must fulfill the following requirements: ‣ Trained, qualified specialists must have a relevant qualification for this specific function and task.
Page 11: Workplace Safety
Verification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability as minute changes in the temperature, concentration or level of contamination in the process can alter the corrosion resistance properties.
Page 12: Security
Proline Promass I 300 PROFIBUS DP It meets general safety standards and legal requirements. It also complies with the EU directives listed in the device-specific EU Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the device.
Page 13: Access Via Web Server
Proline Promass I 300 PROFIBUS DP Basic safety instructions • User-specific access code Protect write access to the device parameters via the local display, Web browser or operating tool (e.g. FieldCare, DeviceCare). Access authorization is clearly regulated through the use of a user-specific access code.
Page 14: Access Via Service Interface (Cdi-Rj45)
Basic safety instructions Proline Promass I 300 PROFIBUS DP 2.7.4 Access via service interface (CDI-RJ45) The device can be connected to a network via the service interface (CDI-RJ45). Device- specific functions guarantee the secure operation of the device in a network.
Page 15: Product Description
Proline Promass I 300 PROFIBUS DP Product description Product description The device consists of a transmitter and a sensor. The device is available as a compact version: The transmitter and sensor form a mechanical unit. Product design N ic te r e rg ö...
Page 16: Incoming Acceptance And Product
Technical Documentation present? • If one of the conditions is not satisfied, contact your Endress+Hauser Sales Center. • Depending on the device version, the CD-ROM might not be part of the delivery! The Technical Documentation is available via the Internet or via the Endress+Hauser Operations App, see the "Product identification"...
Page 17: Transmitter Nameplate
 8 sections • The W@M Device Viewer: enter the serial number from the nameplate (www.endress.com/deviceviewer) • The Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2-D matrix code (QR code) on the nameplate. 4.2.1...
Page 18: Sensor Nameplate
Incoming acceptance and product identification Proline Promass I 300 PROFIBUS DP 4.2.2 Sensor nameplate Order code: Ser. no.: Ext. ord. cd.: Date: A0029199  3 Example of a sensor nameplate Name of the sensor Manufacturing location Order code Serial number (ser. no.) Extended order code (Ext.
Page 19: Symbols On Measuring Device
Proline Promass I 300 PROFIBUS DP Incoming acceptance and product identification 4.2.3 Symbols on measuring device Symbol Meaning WARNING! This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury. Reference to documentation Refers to the corresponding device documentation.
Page 20: Storage And Transport
Storage and transport Proline Promass I 300 PROFIBUS DP Storage and transport Storage conditions Observe the following notes for storage: ‣ Store in the original packaging to ensure protection from shock. ‣ Do not remove protective covers or protective caps installed on process connections.
Page 21: Measuring Devices With Lifting Lugs
Proline Promass I 300 PROFIBUS DP Storage and transport 5.2.2 Measuring devices with lifting lugs CAUTION Special transportation instructions for devices with lifting lugs ‣ Only use the lifting lugs fitted on the device or flanges to transport the device.
Page 22: Installation
Installation Proline Promass I 300 PROFIBUS DP Installation Installation conditions No special measures such as supports are necessary. External forces are absorbed by the construction of the device. 6.1.1 Mounting position Mounting location A0028772 To prevent measuring errors arising from accumulation of gas bubbles in the measuring tube, avoid the following mounting locations in the pipe: •...
Page 23 Proline Promass I 300 PROFIBUS DP Installation Ø orifice plate, pipe restriction [mm] [in] [mm] [in] ³⁄₈ 0.24 ½ 0.40 15 FB ½ FB 0.60 0.55 25 FB 1 FB 0.95 1½ 0.87 40 FB 1½ FB 1.38 1.10 50 FB 2 FB 2.13...
Page 24: Requirements From Environment And Process
If operating outdoors: Avoid direct sunlight, particularly in warm climatic regions. You can order a weather protection cover from Endress+Hauser. →  225. System pressure It is important that cavitation does not occur, or that gases entrained in the liquids do not outgas.
Page 25 Proline Promass I 300 PROFIBUS DP Installation NOTICE Electronics overheating on account of thermal insulation! ‣ Recommended orientation: horizontal orientation, transmitter housing pointing downwards. ‣ Do not insulate the transmitter housing . ‣ Maximum permissible temperature at the lower end of the transmitter housing: 80 °C (176 °F)
Page 26: Special Mounting Instructions
Installation Proline Promass I 300 PROFIBUS DP Vibrations The high oscillation frequency of the measuring tubes ensures that the correct operation of the measuring system is not influenced by plant vibrations. 6.1.3 Special mounting instructions Ensuring complete drainability When the sensor is installed in a horizontal line, eccentric clamps can be used to ensure complete drainability.
Page 27 Proline Promass I 300 PROFIBUS DP Installation [mm] [in] [mm] [in] [mm] [in] [mm] [in] 21.22 1.18 44.5 1.75 25 FB 25 FB 26.3 2.36 26.3 2.36 40 FB 40 FB 30.71 1.38 3.15 30.71 1.38 3.15 50 FB 50 FB 1 152 45.35...
Page 28: Mounting The Measuring Device
Installation Proline Promass I 300 PROFIBUS DP SW 2.5 5 (0.2) min. 15 (0.6) A0029800 Cover borehole for the securing screw Securing screw to lock the cover Mounting the measuring device 6.2.1 Required tools For sensor For flanges and other process connections: Corresponding mounting tools 6.2.2...
Page 29: Turning The Transmitter Housing
Proline Promass I 300 PROFIBUS DP Installation 2. Install the measuring device or turn the transmitter housing so that the cable entries do not point upwards.  A0029263 6.2.4 Turning the transmitter housing To provide easier access to the connection compartment or display module, the transmitter housing can be turned.
Page 30: Post-Installation Check
Installation Proline Promass I 300 PROFIBUS DP – – – 3 mm A0030035 1. Depending on the device version: Loosen the securing clamp of the connection compartment cover. 2. Unscrew the connection compartment cover. 3. Turn the display module to the desired position: max. 8 × 45° in each direction.
Page 31: Electrical Connection
Proline Promass I 300 PROFIBUS DP Electrical connection Electrical connection NOTICE The measuring device does not have an internal circuit breaker. ‣ For this reason, assign the measuring device a switch or power-circuit breaker so that the power supply line can be easily disconnected from the mains.
Page 32 Electrical connection Proline Promass I 300 PROFIBUS DP Signal damping Max. 9 dB over the entire length of the cable cross-section Shield Copper braided shielding or braided shielding with foil shield. When grounding the cable shield, observe the grounding concept of the plant.
Page 33 Proline Promass I 300 PROFIBUS DP Electrical connection Standard cable - customer-specific cable No cable is supplied, and it must be provided by the customer (up to max. 300 m (1 000 ft)) for the following order option: Order code for DKX001: Order code 040 for "Cable", option 1 "None, provided by customer, max 300 m"...
Page 34: Terminal Assignment
Electrical connection Proline Promass I 300 PROFIBUS DP 7.1.3 Terminal assignment Transmitter: supply voltage, input/outputs The terminal assignment of the inputs and outputs depends on the individual order version of the device. The device-specific terminal assignment is documented on an adhesive label in the terminal cover.
Page 35: Preparing The Measuring Device
Proline Promass I 300 PROFIBUS DP Electrical connection A0036639 Controller (e.g. PLC) Cable shield T-box Measuring device Local grounding Bus terminator Potential matching line 7.1.5 Preparing the measuring device NOTICE Insufficient sealing of the housing! Operational reliability of the measuring device could be compromised.
Page 36: Connecting The Transmitter
Electrical connection Proline Promass I 300 PROFIBUS DP 7.2.1 Connecting the transmitter A0026781 Terminal connection for supply voltage Terminal connection for signal transmission, input/output Terminal connection for signal transmission, input/output or terminal connection for network connection via service interface (CDI-RJ45); optional: connection for external WLAN antenna or remote display and...
Page 37 Proline Promass I 300 PROFIBUS DP Electrical connection 10 (0.4) mm (in) – A0029815 7. Push the cable through the cable entry . To ensure tight sealing, do not remove the sealing ring from the cable entry. 8. Strip the cable and cable ends. In the case of stranded cables, also fit ferrules.
Page 38 Electrical connection Proline Promass I 300 PROFIBUS DP Removing a cable 3 (0.12) A0029598  6 Engineering unit mm (in) 1. To remove a cable from the terminal, use a flat-blade screwdriver to push the slot between the two terminal holes 2.
Page 39: Connecting The Remote Display And Operating Module Dkx001
Proline Promass I 300 PROFIBUS DP Electrical connection 7.2.2 Connecting the remote display and operating module DKX001 The remote display and operating module DKX001 is available as an optional extra →  225. • The remote display and operating module DKX001 is only available for the following housing versions, order code for "Housing":...
Page 40: Special Connection Instructions
Electrical connection Proline Promass I 300 PROFIBUS DP Special connection instructions 7.4.1 Connection examples PROFIBUS DP A0028765  7 Connection example for PROFIBUS DP, non-hazardous area and Zone 2/Div. 2 Control system (e.g. PLC) Cable shield: the cable shield must be grounded at both ends to comply with EMC requirements; observe cable...
Page 41 Proline Promass I 300 PROFIBUS DP Electrical connection 4...20 mA A0028759  9 Connection example for 4-20 mA current output (passive) Automation system with current input (e.g. PLC) Active barrier for power supply (e.g. RN221N) Analog display unit: observe maximum load...
Page 42 Electrical connection Proline Promass I 300 PROFIBUS DP Relay output A0028760  12 Connection example for relay output (passive) Automation system with relay input (e.g. PLC) Power supply Transmitter: Observe input values →  233 Current input A0028915  13...
Page 43: Hardware Settings
Proline Promass I 300 PROFIBUS DP Electrical connection Hardware settings 7.5.1 Setting the device address The address must always be configured for a PROFIBUS DP/PA device. The valid address range is between 1 and 126. In a PROFIBUS DP/PA network, each address can only be assigned once.
Page 44: Activating The Default Ip Address
Electrical connection Proline Promass I 300 PROFIBUS DP • If the device is operated with a baud rate of 1.5 MBaud and under: For the last transmitter on the bus, terminate by setting DIP switch 3 (bus termination) to ON.
Page 45: Post-Connection Check
Proline Promass I 300 PROFIBUS DP Electrical connection To guarantee IP66/67 degree of protection, Type 4X enclosure, carry out the following steps after the electrical connection: 1. Check that the housing seals are clean and fitted correctly. 2. Dry, clean or replace the seals if necessary.
Page 46: Operation Options
Operation options Proline Promass I 300 PROFIBUS DP Operation options Overview of operation options A0034513 Local operation via display module Computer with Web browser (e.g. Internet Explorer) or with operating tool (e.g. FieldCare, DeviceCare, AMS Device Manager, SIMATIC PDM) Field Xpert SFX350 or SFX370...
Page 47: Structure And Function Of The Operating Menu
Proline Promass I 300 PROFIBUS DP Operation options Structure and function of the operating menu 8.2.1 Structure of the operating menu For an overview of the operating menu for experts: "Description of Device Parameters" document supplied with the device→  257...
Page 48: Operating Philosophy
Operation options Proline Promass I 300 PROFIBUS DP 8.2.2 Operating philosophy The individual parts of the operating menu are assigned to certain user roles (operator, maintenance etc.). Each user role contains typical tasks within the device lifecycle. Menu/parameter User role and tasks...
Page 49: Display
Proline Promass I 300 PROFIBUS DP Operation options Menu/parameter User role and tasks Content/meaning Expert function-oriented Tasks that require detailed Contains all the parameters of the device and makes it possible to access these knowledge of the function of the parameters directly using an access code.
Page 50 Operation options Proline Promass I 300 PROFIBUS DP Display area In the display area, each measured value is prefaced by certain symbol types for further description: Measured variable Measurement channel Diagnostic behavior number ↓ ↓ ↓ Example Appears only if a diagnostics event is present for this measured variable.
Page 51: Navigation View
Proline Promass I 300 PROFIBUS DP Operation options 8.3.2 Navigation view In the submenu In the wizard /../Operation 0091-1 /../Select medium Access stat.disp Select medium Operator Liquid Locking status Display A0013993-EN A0013995-EN Navigation view Navigation path to current position Status area Display area for navigation Operating elements →...
Page 52 Operation options Proline Promass I 300 PROFIBUS DP Display area Menus Symbol Meaning Operation Appears: • In the menu next to the "Operation" selection • At the left in the navigation path in the Operation menu Setup Appears: • In the menu next to the "Setup" selection •...
Page 53: Editing View
Proline Promass I 300 PROFIBUS DP Operation options 8.3.3 Editing view Numeric editor +0.000 Xx – A0034250  16 For entering values in parameters (e.g. limit values) Entry display area Input screen Confirm, delete or reject entry Operating elements Text editor...
Page 54 Operation options Proline Promass I 300 PROFIBUS DP Operating key(s) Meaning Enter key • Press the key briefly: confirm your selection. • Press the key for 2 s: confirm the entry. Escape key combination (press keys simultaneously) Close the editing view without accepting the changes.
Page 55: Operating Elements
Proline Promass I 300 PROFIBUS DP Operation options 8.3.4 Operating elements Operating key(s) Meaning Minus key In a menu, submenu Moves the selection bar upwards in a picklist. With a Wizard Confirms the parameter value and goes to the previous parameter.
Page 56 Operation options Proline Promass I 300 PROFIBUS DP Calling up and closing the context menu The user is in the operational display. 1. Press the  and  keys for longer than 3 seconds.  The context menu opens. XXXXXXXXXX Setup Conf.backup...
Page 57: Navigating And Selecting From List
Proline Promass I 300 PROFIBUS DP Operation options 8.3.6 Navigating and selecting from list Different operating elements are used to navigate through the operating menu. The navigation path is displayed on the left in the header. Icons are displayed in front of the individual menus.
Page 58: Calling Up Help Text
Operation options Proline Promass I 300 PROFIBUS DP The direct access code consists of a 5-digit number (at maximum) and the channel number, which identifies the channel of a process variable: e.g. 00914-2. In the navigation view, this appears on the right-hand side in the header of the selected parameter.
Page 59: User Roles And Related Access Authorization
Proline Promass I 300 PROFIBUS DP Operation options Ent. access code Invalid or out of range input value Min:0 Max:9999 A0014049-EN For a description of the editing view - consisting of the text editor and numeric editor - with symbols →  53, for a description of the operating elements →  55 8.3.10...
Page 60: Enabling And Disabling The Keypad
Operation options Proline Promass I 300 PROFIBUS DP 2. Enter the access code.  The -symbol in front of the parameters disappears; all previously write- protected parameters are now re-enabled. 8.3.12 Enabling and disabling the keypad lock The keypad lock makes it possible to block access to the entire operating menu via local operation.
Page 61: Prerequisites
Proline Promass I 300 PROFIBUS DP Operation options 8.4.2 Prerequisites Computer hardware Hardware Interface CDI-RJ45 WLAN Interface The computer must have an RJ45 The operating unit must have a interface. WLAN interface. Connection Standard Ethernet cable with RJ45 Connection via Wireless LAN.
Page 62: Establishing A Connection
Operation options Proline Promass I 300 PROFIBUS DP Measuring device: Via CDI-RJ45 service interface Device CDI-RJ45 service interface Measuring device The measuring device has an RJ45 interface. Web server Web server must be enabled; factory setting: ON  For information on enabling the Web server →  66...
Page 63 Proline Promass I 300 PROFIBUS DP Operation options Via WLAN interface Configuring the Internet protocol of the mobile terminal NOTICE If the WLAN connection is lost during the configuration, settings made may be lost. ‣ Make sure that the WLAN connection is not disconnected while configuring the device.
Page 64: Logging On
Operation options Proline Promass I 300 PROFIBUS DP 2. Enter the IP address of the Web server in the address line of the Web browser: 192.168.1.212  The login page appears. 2 3 4 A0029417 Picture of device Device name...
Page 65: User Interface
Proline Promass I 300 PROFIBUS DP Operation options 8.4.5 User interface A0029418 Function row Local display language Navigation area Header The following information appears in the header: • Device name • Device tag • Device status with status signal →  159 •...
Page 66: Disabling The Web Server
Operation options Proline Promass I 300 PROFIBUS DP Navigation area If a function is selected in the function bar, the submenus of the function open in the navigation area. The user can now navigate through the menu structure. Working area...
Page 67: Access To The Operating Menu Via The Operating Tool
Proline Promass I 300 PROFIBUS DP Operation options Access to the operating menu via the operating tool The structure of the operating menu in the operating tools is the same as for operation via the local display. 8.5.1 Connecting the operating tool Via PROFIBUS DP network This communication interface is available in device versions with PROFIBUS DP.
Page 68 Operation options Proline Promass I 300 PROFIBUS DP A0027563  20 Connection via service interface (CDI-RJ45) Computer with Web browser (e.g. Microsoft Internet Explorer, Microsoft Edge) for accessing the integrated device Web server or with "FieldCare", "DeviceCare" operating tool with COM DTM "CDI Communication TCP/IP"...
Page 69: Fieldcare
FieldCare Function scope FDT-based plant asset management tool from Endress+Hauser. It can configure all smart field devices in a system and helps you manage them. By using the status information, it is also a simple but effective way of checking their status and condition.
Page 70 Operation options Proline Promass I 300 PROFIBUS DP Typical functions: • Configuring parameters of transmitters • Loading and saving device data (upload/download) • Documentation of the measuring point • Visualization of the measured value memory (line recorder) and event logbook...
Page 71: Devicecare
DeviceCare Function scope Tool to connect and configure Endress+Hauser field devices. The fastest way to configure Endress+Hauser field devices is with the dedicated "DeviceCare" tool. Together with the device type managers (DTMs) it presents a convenient, comprehensive solution. For details, see Innovation Brochure IN01047S Source for device description files See information →...
Page 72: System Integration
System integration Proline Promass I 300 PROFIBUS DP System integration Overview of device description files 9.1.1 Current version data for the device Firmware version 01.00.zz • On the title page of the Operating instructions • On the transmitter nameplate • Firmware version Diagnostics →...
Page 73: Manufacturer-Specific Gsd
Proline Promass I 300 PROFIBUS DP System integration 9.2.1 Manufacturer-specific GSD This GSD guarantees the unrestricted functionality of the measuring device. Device-specific process parameters and functions are therefore available. Manufacturer-specific GSD ID number File name PROFIBUS DP 0x156F EH3x156F.gsd The fact that the manufacturer-specific GSD should be used is specified in the Ident number selector parameter by selecting the Manufacturer option.
Page 74: Manual Setting
System integration Proline Promass I 300 PROFIBUS DP 9.3.2 Manual setting The manual setting is made in the Ident number selector parameter via the Promass 83 (0x1529) option. Afterwards the Promass 300 PROFIBUS DP makes the same input and output data and measured value status information →...
Page 75: Using The Control_Block Module
Proline Promass I 300 PROFIBUS DP System integration 9.4.1 Using the CONTROL_BLOCK module in the previous model If the CONTROL_BLOCK module is used in the previous model, the control variables are processed further if relevant functionalities can be assigned for the Promass 300.
Page 76: Cyclic Data Transmission
System integration Proline Promass I 300 PROFIBUS DP Cyclic data transmission Cyclic data transmission when using the device master file (GSD). 9.5.1 Block model The block model shows which input and output data the measuring device makes available for cyclic data exchange. Cyclic data exchange takes place with a PROFIBUS master (Class 1), e.g.
Page 77 Proline Promass I 300 PROFIBUS DP System integration AI module (Analog Input) Transmit an input variable from the measuring device to the PROFIBUS master (Class 1). The selected input variable, along with the status, is cyclically transmitted to the PROFIBUS Master (Class 1) via the AI module. The input variable is depicted in the first four bytes in the form of a floating point number as per the IEEE 754 standard.
Page 78 System integration Proline Promass I 300 PROFIBUS DP Factory setting Function block Factory setting AI 1 Mass flow AI 2 Volume flow AI 3 Corrected volume flow AI 4 Density AI 5 Mass flow AI 6 Temperature AI 7 Mass flow...
Page 79 Proline Promass I 300 PROFIBUS DP System integration SETTOT_TOTAL module The module combination consists of the SETTOT and TOTAL functions: • SETTOT: Control the totalizers via the PROFIBUS master. • TOTAL: Transmit totalizer value, along with the status, to the PROFIBUS master.
Page 80 System integration Proline Promass I 300 PROFIBUS DP Data structure Output data of SETTOT and MODETOT Byte 1 Byte 2 Control variable 1: SETTOT Control variable 2: MODETOT Input data of TOTAL Byte 1 Byte 2 Byte 3 Byte 4...
Page 81 Proline Promass I 300 PROFIBUS DP System integration Selection: device function Device function Factory setting: Status (meaning) Empty pipe detection • 0 (device function not active) • 1 (device function active) Low flow cut off • Bit 0: Verification status - Check not done •...
Page 82 System integration Proline Promass I 300 PROFIBUS DP Function block Device function Values: control (meaning) DO 6 Is not used. Assignment of medium type DO 7 Concentration (see the following table) Only available with the Heartbeat Verification application package Only available with the Concentration application package...
Page 83: Address Shifting Configuration
Proline Promass I 300 PROFIBUS DP System integration modules. The GSD file contains a description of the individual modules along with their individual properties. The modules are permanently assigned to the slots. When configuring the modules, it is absolutely essential to observe the sequence/arrangement of the modules. Any gaps between the configured modules must be filled with the EMPTY_MODULE.
Page 84: Configuring Address Shifting
1001 : °C 1002 : °F 1000 : K 1003 : °R For more information on the "slot/index table", please contact the Endress+Hauser Sales Center. 9.6.4 Accessing data via PROFIBUS DP The PROFIBUS master uses the indexes 230 to 245 in slot 0 to access the address shifting data area.
Page 85 Proline Promass I 300 PROFIBUS DP System integration parameter via address shifting, the master can read out the current volume flow measured value in slot 0 and index 230. The data type (integer/float) and data access (read/write) depend on the parameter entered in the configuration area.
Page 86: Commissioning
Commissioning Proline Promass I 300 PROFIBUS DP Commissioning 10.1 Function check Before commissioning the measuring device: ‣ Make sure that the post-installation and post-connection checks have been performed. • "Post-installation check" checklist→  30 • "Post-connection check" checklist →  45 10.2...
Page 87: Configuring The Measuring Device
Proline Promass I 300 PROFIBUS DP Commissioning X X X X X X X 20.50 Main menu 0104-1 Display language English Operation Setup Display language 0104-1 English Ã Deutsch Español Français Display language 0104-1 Ã English Deutsch Español Français Hauptmenü...
Page 88: Defining The Tag Name
Commissioning Proline Promass I 300 PROFIBUS DP Navigation "Setup" menu  Setup →  89 Device tag ‣ →  89 System units ‣ Medium selection →  92 ‣ Communication →  93 ‣ Analog inputs →  95 ‣...
Page 89: Setting The System Units
Proline Promass I 300 PROFIBUS DP Commissioning XXXXXXXXX A0029422  23 Header of the operational display with tag name Tag name Enter the tag name in the "FieldCare" operating tool →  71 Navigation "Setup" menu → Device tag Parameter overview with brief description...
Page 90 Commissioning Proline Promass I 300 PROFIBUS DP Temperature unit →  91 Pressure unit →  91 Parameter overview with brief description Parameter Description Selection Factory setting Mass flow unit Select mass flow unit. Unit choose list Country-specific: • kg/h Result •...
Page 91 Proline Promass I 300 PROFIBUS DP Commissioning Parameter Description Selection Factory setting Temperature unit Select temperature unit. Unit choose list Country-specific: • °C Result • °F The selected unit applies for: • Electronic temperature parameter (6053) • Maximum value parameter (6051) •...
Page 92: Selecting And Setting The Medium
Commissioning Proline Promass I 300 PROFIBUS DP 10.6.3 Selecting and setting the medium The Select medium wizard submenu contains parameters that must be configured in order to select and set the medium. Navigation "Setup" menu → Select medium ‣ Medium selection →...
Page 93: Configuring Communication
Proline Promass I 300 PROFIBUS DP Commissioning Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry / User interface Select medium – Select medium type. • Liquid Liquid • Gas Select gas type The Gas option is selected in Select measured gas type.
Page 94 Commissioning Proline Promass I 300 PROFIBUS DP Navigation "Setup" menu → Communication ‣ Communication →  94 Device address Parameter overview with brief description Parameter Description User entry Factory setting Device address Enter device address. 0 to 126 Endress+Hauser...
Page 95: Configuring The Analog Inputs
Proline Promass I 300 PROFIBUS DP Commissioning 10.6.5 Configuring the analog inputs The Analog inputs submenu guides the user systematically to the individual Analog input 1 to n submenu. From here you get to the parameters of the individual analog input.
Page 96 Commissioning Proline Promass I 300 PROFIBUS DP Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry Channel – Select the process variable. • Mass flow Mass flow • Volume flow • Corrected volume flow • Density • Reference density •...
Page 97: Displaying The I/O Configuration
Proline Promass I 300 PROFIBUS DP Commissioning Parameter Prerequisite Description Selection / User Factory setting entry • NSV flow alternative • S&W volume flow • Oil density • Water density • Water cut • Oil mass flow • Water mass flow • Oil volume flow •...
Page 98: Configuring The Current Input
Commissioning Proline Promass I 300 PROFIBUS DP Parameter overview with brief description Parameter Description User interface / Selection / Factory setting User entry I/O module 1 to n terminal numbers Shows the terminal numbers used by the I/O • Not used – module.
Page 99: Configuring The Status Input
Proline Promass I 300 PROFIBUS DP Commissioning Parameter overview with brief description Parameter Prerequisite Description User interface / Factory setting Selection / User entry Terminal number – Shows the terminal numbers • Not used – used by the current input • 24-25 (I/O 2) module.
Page 100: Configuring The Current Output
Commissioning Proline Promass I 300 PROFIBUS DP Parameter overview with brief description Parameter Description User interface / Selection / Factory setting User entry Terminal number Shows the terminal numbers used by the • Not used – status input module. • 24-25 (I/O 2) •...
Page 101 Proline Promass I 300 PROFIBUS DP Commissioning Parameter overview with brief description Parameter Prerequisite Description User interface / Factory setting Selection / User entry Terminal number – Shows the terminal numbers • Not used – used by the current output • 24-25 (I/O 2) module.
Page 102 Commissioning Proline Promass I 300 PROFIBUS DP Parameter Prerequisite Description User interface / Factory setting Selection / User entry Assign current output 1 to n – Select process variable for • Off Mass flow current output. • Mass flow • Volume flow • Corrected volume flow •...
Page 103 Proline Promass I 300 PROFIBUS DP Commissioning Parameter Prerequisite Description User interface / Factory setting Selection / User entry 0/4 mA value One of the following options is Enter 4 mA value. Signed floating-point Country-specific: selected in the Current span number • 0 kg/h parameter (→...
Page 104: 10.6.10 Configuring The Pulse/Frequency/Switch Output
Commissioning Proline Promass I 300 PROFIBUS DP 10.6.10 Configuring the pulse/frequency/switch output The Pulse/frequency/switch output wizard guides you systematically through all the parameters that can be set for configuring the selected output type. Navigation "Setup" menu → Advanced setup → Pulse/frequency/switch output ‣...
Page 105 Proline Promass I 300 PROFIBUS DP Commissioning Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting interface / User entry Operating mode – Define the output as a pulse, • Pulse Pulse frequency or switch output. • Frequency • Switch Terminal number –...
Page 106 Commissioning Proline Promass I 300 PROFIBUS DP Terminal number →  106 Signal mode →  106 Assign frequency output →  107 Minimum frequency value →  108 →  108 Maximum frequency value Measuring value at minimum →  108...
Page 107 Proline Promass I 300 PROFIBUS DP Commissioning Parameter Prerequisite Description Selection / User Factory setting interface / User entry Assign frequency output The Frequency option is Select process variable for • Off selected in the Operating frequency output. • Mass flow mode parameter (→  104) •...
Page 108 Commissioning Proline Promass I 300 PROFIBUS DP Parameter Prerequisite Description Selection / User Factory setting interface / User entry Minimum frequency value The Frequency option is Enter minimum frequency. 0.0 to 10 000.0 Hz 0.0 Hz selected in the Operating mode parameter (→  104)
Page 109 Proline Promass I 300 PROFIBUS DP Commissioning Configuring the switch output Navigation "Setup" menu → Pulse/frequency/switch output ‣ Pulse/frequency/switch output 1 to n Operating mode →  109 Terminal number →  109 Signal mode →  109 →  110...
Page 110 Commissioning Proline Promass I 300 PROFIBUS DP Parameter Prerequisite Description Selection / User Factory setting interface / User entry Switch output function The Switch option is selected Select function for switch • Off in the Operating mode output. • On parameter. • Diagnostic behavior •...
Page 111: 10.6.11 Configuring The Relay Output
Proline Promass I 300 PROFIBUS DP Commissioning Parameter Prerequisite Description Selection / User Factory setting interface / User entry Switch-on value • In the Operating mode Enter measured value for the Signed floating-point Country-specific: parameter, the Switch switch-on point. number • 0 kg/h option is selected.
Page 112 Commissioning Proline Promass I 300 PROFIBUS DP Switch-on value →  113 Failure mode →  113 Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting interface / User entry Relay output function – Select the function for the • Closed Closed relay output.
Page 113: 10.6.12 Configuring The Local Display
Proline Promass I 300 PROFIBUS DP Commissioning Parameter Prerequisite Description Selection / User Factory setting interface / User entry Assign status In the Relay output function Select device status for switch • Partially filled pipe Partially filled pipe parameter, the Digital Output output. detection detection option is selected.
Page 114 Commissioning Proline Promass I 300 PROFIBUS DP Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry Format display A local display is provided. Select how measured values • 1 value, max. size 1 value, max. size are shown on the display.
Page 115 Proline Promass I 300 PROFIBUS DP Commissioning Parameter Prerequisite Description Selection / User Factory setting entry Value 1 display A local display is provided. Select the measured value that • Mass flow Mass flow is shown on the local display. • Volume flow •...
Page 116 Commissioning Proline Promass I 300 PROFIBUS DP Parameter Prerequisite Description Selection / User Factory setting entry 0% bargraph value 1 A local display is provided. Enter 0% value for bar graph Signed floating-point Country-specific: display. number • 0 kg/h • 0 lb/min 100% bargraph value 1 A local display is provided.
Page 117: 10.6.13 Configuring The Low Flow Cut Off
Proline Promass I 300 PROFIBUS DP Commissioning 10.6.13 Configuring the low flow cut off The Low flow cut off wizard systematically guides the user through all the parameters that must be set to configure low flow cut off. Navigation "Setup" menu → Low flow cut off ‣...
Page 118: Configuring The Partial Filled Pipe
Commissioning Proline Promass I 300 PROFIBUS DP 10.6.14 Configuring the partial filled pipe detection The Partial filled pipe detection wizard guides you systematically through all parameters that have to be set for configuring the monitoring of the pipe filling. Navigation "Setup"...
Page 119: Advanced Settings
Proline Promass I 300 PROFIBUS DP Commissioning 10.7 Advanced settings The Advanced setup submenu together with its submenus contains parameters for specific settings. Navigation to the "Advanced setup" submenu X X X X X X X 20.50 0104-1 Main menu...
Page 120: Calculated Values
Commissioning Proline Promass I 300 PROFIBUS DP ‣ WLAN settings →  128 ‣ Viscosity ‣ Concentration ‣ Heartbeat setup ‣ →  130 Configuration backup ‣ Administration →  131 10.7.1 Calculated values The Calculated values submenu contains parameters for calculating the corrected volume flow.
Page 121: Carrying Out A Sensor Adjustment
Proline Promass I 300 PROFIBUS DP Commissioning Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting interface / User entry Corrected volume flow calculation – Select reference density for • Fixed reference Calculated reference calculating the corrected density density volume flow.
Page 122: Configuring The Totalizer
Commissioning Proline Promass I 300 PROFIBUS DP Parameter overview with brief description Parameter Description Selection Factory setting Installation direction Set sign of flow direction to match the • Flow in arrow direction Flow in arrow direction direction of the arrow on the sensor.
Page 123 Proline Promass I 300 PROFIBUS DP Commissioning Control Totalizer 1 to n →  147 Failure mode →  123 Parameter overview with brief description Parameter Description Selection Factory setting Assign process variable Select process variable for totalizer. • Mass flow Mass flow •...
Page 124: Carrying Out Additional Display Configurations
Commissioning Proline Promass I 300 PROFIBUS DP 10.7.4 Carrying out additional display configurations In the Display submenu you can set all the parameters associated with the configuration of the local display. Navigation "Setup" menu → Advanced setup → Display ‣...
Page 125 Proline Promass I 300 PROFIBUS DP Commissioning Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry Format display A local display is provided. Select how measured values • 1 value, max. size 1 value, max. size are shown on the display.
Page 126 Commissioning Proline Promass I 300 PROFIBUS DP Parameter Prerequisite Description Selection / User Factory setting entry Value 1 display A local display is provided. Select the measured value that • Mass flow Mass flow is shown on the local display. • Volume flow •...
Page 127 Proline Promass I 300 PROFIBUS DP Commissioning Parameter Prerequisite Description Selection / User Factory setting entry 0% bargraph value 1 A local display is provided. Enter 0% value for bar graph Signed floating-point Country-specific: display. number • 0 kg/h • 0 lb/min 100% bargraph value 1 A local display is provided.
Page 128: Wlan Configuration
Commissioning Proline Promass I 300 PROFIBUS DP Parameter Prerequisite Description Selection / User Factory setting entry Display language A local display is provided. Set display language. • English English • Deutsch (alternatively, the • Français ordered language is • Español preset in the device) •...
Page 129 Proline Promass I 300 PROFIBUS DP Commissioning Navigation "Setup" menu → Advanced setup → WLAN Settings ‣ WLAN settings →  129 WLAN IP address →  129 Security type WLAN passphrase →  129 Assign SSID name →  129 SSID name →...
Page 130: Configuration Management
Commissioning Proline Promass I 300 PROFIBUS DP 10.7.6 Configuration management After commissioning, you can save the current device configurationor restore the previous device configuration. You can do so using the Configuration management parameter and the related options found in the Configuration backup submenu.
Page 131: Using Parameters For Device Administration
Proline Promass I 300 PROFIBUS DP Commissioning Function scope of the "Configuration management" parameter Options Description Cancel No action is executed and the user exits the parameter. Execute backup A backup copy of the current device configuration is saved from the HistoROM backup to the memory of the device.
Page 132: Simulation
Commissioning Proline Promass I 300 PROFIBUS DP Parameter overview with brief description Parameter Description User entry Define access code Restrict write-access to parameters to protect the configuration Max. 16-digit character string comprising of the device against unintentional changes. numbers, letters and special characters Confirm access code Confirm the entered access code.
Page 133 Proline Promass I 300 PROFIBUS DP Commissioning Navigation "Diagnostics" menu → Simulation ‣ Simulation Assign simulation process variable →  134 Process variable value →  134 Status input simulation →  134 Input signal level →  134 Current input 1 to n simulation →...
Page 134 Commissioning Proline Promass I 300 PROFIBUS DP Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry / User interface Assign simulation process variable – Select a process variable for • Off the simulation process that is • Mass flow activated.
Page 135 Proline Promass I 300 PROFIBUS DP Commissioning Parameter Prerequisite Description Selection / User Factory setting entry / User interface Pulse output simulation 1 to n In the Operating mode Set and switch off the pulse • Off parameter, the Pulse option is output simulation.
Page 136: 10.9 Protecting Settings From Unauthorized
Commissioning Proline Promass I 300 PROFIBUS DP 10.9 Protecting settings from unauthorized access The following write protection options exist in order to protect the configuration of the measuring device from unintentional modification: • Protect access to parameters via access code →  136 •...
Page 137: Write Protection Via Write Protection
Via Web browser, FieldCare, DeviceCare (via CDI-RJ45 service interface), fieldbus For a reset code, contact your Endress+Hauser service organization. 1. Navigate to the Reset access code parameter (→  132). 2. Enter the reset code.
Page 138 Commissioning Proline Promass I 300 PROFIBUS DP A0029630 Setting the write protection (WP) switch on the main electronics module to the ON position enables hardware write protection.  In the Locking status parameter the Hardware locked option is displayed →  139. In addition, on the local display the -symbol appears in front of the parameters in the header of the operational display and in the navigation view.
Page 139: Operation
Proline Promass I 300 PROFIBUS DP Operation Operation 11.1 Reading the device locking status Device active write protection: Locking status parameter Operation → Locking status Function scope of the "Locking status" parameter Options Description None The access status displayed in the Access status parameter applies →  59. Only appears on local display.
Page 140: Measured Variables" Submenu
Operation Proline Promass I 300 PROFIBUS DP 11.4.1 "Measured variables" submenu The Measured variables submenu contains all the parameters needed to display the current measured values for each process variable. Navigation "Diagnostics" menu → Measured values → Measured variables ‣...
Page 141 Proline Promass I 300 PROFIBUS DP Operation Parameter Prerequisite Description User interface Corrected volume flow – Displays the corrected volume flow Signed floating-point currently calculated. number Dependency The unit is taken from the Corrected volume flow unit parameter (→  90).
Page 142: Totalizer
Operation Proline Promass I 300 PROFIBUS DP Parameter Prerequisite Description User interface Concentration For the following order code: Displays the concentration currently Signed floating-point Order code for "Application package", calculated. number option ED "Concentration" Dependency  The software options currently...
Page 143: Input Values" Submenu
Proline Promass I 300 PROFIBUS DP Operation Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry / User interface Assign process variable – Select process variable for • Mass flow Mass flow totalizer. • Volume flow • Corrected volume flow •...
Page 144 Operation Proline Promass I 300 PROFIBUS DP Navigation "Diagnostics" menu → Measured values → Input values ‣ Input values ‣ →  144 Current input 1 to n ‣ →  144 Status input 1 to n Input values of current input The Current input 1 to n submenu contains all the parameters needed to display the current measured values for every current input.
Page 145: Output Values
Proline Promass I 300 PROFIBUS DP Operation 11.4.4 Output values The Output values submenu contains all the parameters needed to display the current measured values for every output. Navigation "Diagnostics" menu → Measured values → Output values ‣ Output values ‣...
Page 146 Operation Proline Promass I 300 PROFIBUS DP Navigation "Diagnostics" menu → Measured values → Output values → Pulse/frequency/switch output 1 to n ‣ Pulse/frequency/switch output 1 to n Output frequency 1 to n →  146 Pulse output 1 to n →...
Page 147: Adapting The Measuring Device To The Process
Proline Promass I 300 PROFIBUS DP Operation 11.5 Adapting the measuring device to the process conditions The following are available for this purpose: • Basic settings using theSetup menu (→  87) • Advanced settings using theAdvanced setup submenu (→  119) 11.6...
Page 148 Operation Proline Promass I 300 PROFIBUS DP Function range • A total of 1000 measured values can be stored • 4 logging channels • Adjustable logging interval for data logging • Display of the measured value trend for each logging channel in the form of a chart / ../XXXXXXXX...
Page 149 Proline Promass I 300 PROFIBUS DP Operation ‣ Display channel 3 ‣ Display channel 4 Endress+Hauser...
Page 150 Operation Proline Promass I 300 PROFIBUS DP Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry / User interface Assign channel 1 The Extended HistoROM Assign process variable to • Off application package is logging channel. • Mass flow available.
Page 151 Proline Promass I 300 PROFIBUS DP Operation Parameter Prerequisite Description Selection / User Factory setting entry / User interface Assign channel 2 The Extended HistoROM Assign process variable to Picklist, see Assign application package is logging channel. channel 1 parameter available. (→  150) ...
Page 152: Diagnostics And Troubleshooting
Diagnostics and troubleshooting Proline Promass I 300 PROFIBUS DP Diagnostics and troubleshooting 12.1 General troubleshooting For local display Error Possible causes Solution Local display dark and no output Supply voltage does not match the Apply the correct supply voltage signals value indicated on the nameplate.
Page 153 Proline Promass I 300 PROFIBUS DP Diagnostics and troubleshooting For access Error Possible causes Solution No write access to parameters Hardware write protection enabled Set the write protection switch on main electronics module to the OFF position →  137.
Page 154 Diagnostics and troubleshooting Proline Promass I 300 PROFIBUS DP Error Possible causes Solution No or incomplete display of • JavaScript not enabled 1. Enable JavaScript. contents in the Web browser • JavaScript cannot be enabled 2. Enter http://XXX.XXX.X.XXX/ basic.html as the IP address.
Page 155: Diagnostic Information Via Light Emitting
Proline Promass I 300 PROFIBUS DP Diagnostics and troubleshooting 12.2 Diagnostic information via light emitting diodes 12.2.1 Transmitter Different LEDs in the transmitter provide information on the device status. 1 2 3 4 5 A0029629 Supply voltage Device status Not used...
Page 156: Diagnostic Information On Local Display
Diagnostics and troubleshooting Proline Promass I 300 PROFIBUS DP 12.3 Diagnostic information on local display 12.3.1 Diagnostic message Faults detected by the self-monitoring system of the measuring device are displayed as a diagnostic message in alternation with the operational display.
Page 157 Proline Promass I 300 PROFIBUS DP Diagnostics and troubleshooting Diagnostic behavior Symbol Meaning Alarm • Measurement is interrupted. • Signal outputs and totalizers assume the defined alarm condition. • A diagnostic message is generated. Warning Measurement is resumed. The signal outputs and totalizers are not affected. A diagnostic message is generated.
Page 158: Calling Up Remedial Measures
Diagnostics and troubleshooting Proline Promass I 300 PROFIBUS DP 12.3.2 Calling up remedial measures X X X X X X X X X X X X X X 20.50 S801 Supply voltage Menu Diagnostic list Diagnostics 1 S801 Supply voltage...
Page 159: Calling Up Remedy Information
Proline Promass I 300 PROFIBUS DP Diagnostics and troubleshooting A0031056 Status area with status signal Diagnostic information→  157 Remedy information with Service ID In addition, diagnostic events which have occurred can be shown in the Diagnostics menu: • Via parameter •...
Page 160: Calling Up Remedy Information
Diagnostics and troubleshooting Proline Promass I 300 PROFIBUS DP Xxxxxx/…/…/ Device name: Xxxxxxx Mass flow: kg/h 12.34 Device tag: Xxxxxxx Volume flow: 12.34 m /h ³ Status signal: Function check (C) Xxxxxx Diagnostics 1: C485 Simu... Remedy information: Deactivate... Failure (F)
Page 161: Adapting The Diagnostic Information
Proline Promass I 300 PROFIBUS DP Diagnostics and troubleshooting The user is in the Diagnostics menu. 1. Call up the desired parameter. 2. On the right in the working area, mouse over the parameter.  A tool tip with remedy information for the diagnostic event appears.
Page 162 Diagnostics and troubleshooting Proline Promass I 300 PROFIBUS DP Coding Measuring value (hex) Byte 5 Quality Quality Substatus Limits A0032228-EN  26 Structure of the coding byte The content of the coding byte depends on the configured failsafe mode in the particular function block.
Page 163 Proline Promass I 300 PROFIBUS DP Diagnostics and troubleshooting Diagnostic information pertaining to the electronics: diagnostic number 200 to 399 Diagnostic number 200 to 301, 303 to 399 Measured value status (fixed assignment) Diagnostic behavior Device diagnosis Quality Coding Category...
Page 164: Overview Of Diagnostic Information
Diagnostics and troubleshooting Proline Promass I 300 PROFIBUS DP 12.7 Overview of diagnostic information The amount of diagnostic information and the number of measured variables affected increase if the measuring device has one or more application packages. In the case of some items of diagnostic information, the diagnostic behavior can be changed.
Page 165 Proline Promass I 300 PROFIBUS DP Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 046 Sensor limit exceeded 1. Inspect sensor 2. Check process condition Measured variable status [from the factory] Quality Good Quality substatus Maintenance demanded Coding (hex)
Page 166 Diagnostics and troubleshooting Proline Promass I 300 PROFIBUS DP Diagnostic information Remedy instructions Short text 062 Sensor connection faulty 1. Check or replace sensor electronic module (ISEM) 2. If available: Check connection cable between sensor and transmitter Measured variable status 3.
Page 167 Proline Promass I 300 PROFIBUS DP Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 082 Data storage 1. Check module connections 2. Contact service Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27 Status signal...
Page 168 Diagnostics and troubleshooting Proline Promass I 300 PROFIBUS DP Diagnostic information Remedy instructions Short text 083 Memory content 1. Restart device 2. Restore HistoROM S-DAT backup (' D evice reset' parameter) Measured variable status 3. Replace HistoROM S-DAT Quality Quality substatus...
Page 169 Proline Promass I 300 PROFIBUS DP Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 140 Sensor signal asymmetrical 1. Check or replace sensor electronic module (ISEM) 2. If available: Check connection cable between sensor and transmitter Measured variable status [from the factory] 3.
Page 170 Diagnostics and troubleshooting Proline Promass I 300 PROFIBUS DP Diagnostic information Remedy instructions Short text 144 Measuring error too high 1. Check or change sensor 2. Check process conditions Measured variable status [from the factory] Quality Quality substatus Maintenance alarm...
Page 171: Diagnostic Of Electronic
Proline Promass I 300 PROFIBUS DP Diagnostics and troubleshooting 12.7.2 Diagnostic of electronic Diagnostic information Remedy instructions Short text 201 Device failure 1. Restart device 2. Contact service Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27...
Page 172 Diagnostics and troubleshooting Proline Promass I 300 PROFIBUS DP Diagnostic information Remedy instructions Short text 242 Software incompatible 1. Check software 2. Flash or change main electronics module Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27...
Page 173 Proline Promass I 300 PROFIBUS DP Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 252 Modules incompatible 1. Check electronic modules 2. Check if correct modules are available (e.g. NEx, Ex) Measured variable status 3. Replace electronic modules Quality...
Page 174 Diagnostics and troubleshooting Proline Promass I 300 PROFIBUS DP Diagnostic information Remedy instructions Short text 262 Sensor electronic connection faulty 1. Check or replace connection cable between sensor electronic module (ISEM) and main electronics Measured variable status 2. Check or replace ISEM or main electronics...
Page 175 Proline Promass I 300 PROFIBUS DP Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 270 Main electronic failure Change main electronic module Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27 Status signal Diagnostic behavior...
Page 176 Diagnostics and troubleshooting Proline Promass I 300 PROFIBUS DP Diagnostic information Remedy instructions Short text 271 Main electronic failure 1. Restart device 2. Change main electronic module Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27...
Page 177 Proline Promass I 300 PROFIBUS DP Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 272 Main electronic failure 1. Restart device 2. Contact service Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27 Status signal...
Page 178 Diagnostics and troubleshooting Proline Promass I 300 PROFIBUS DP Diagnostic information Remedy instructions Short text 273 Main electronic failure Change electronic Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27 Status signal Diagnostic behavior Alarm Influenced measured variables •...
Page 179 Proline Promass I 300 PROFIBUS DP Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 276 I/O module 1 to n faulty 1. Restart device 2. Change I/O module Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27...
Page 180 Diagnostics and troubleshooting Proline Promass I 300 PROFIBUS DP Diagnostic information Remedy instructions Short text 302 Device verification active Device verification active, please wait. Measured variable status Quality Good Quality substatus Function check Coding (hex) 0xBC to 0xBF Status signal...
Page 181 Proline Promass I 300 PROFIBUS DP Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 311 Electronic failure 1. Do not reset device 2. Contact service Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27 Status signal...
Page 182 Diagnostics and troubleshooting Proline Promass I 300 PROFIBUS DP Diagnostic information Remedy instructions Short text 332 Writing in HistoROM backup failed Replace user interface board Ex d/XP: replace transmitter Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27...
Page 183 Proline Promass I 300 PROFIBUS DP Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 372 Sensor electronic (ISEM) faulty 1. Restart device 2. Check if failure recurs Measured variable status 3. Replace sensor electronic module (ISEM) Quality Quality substatus...
Page 184 Diagnostics and troubleshooting Proline Promass I 300 PROFIBUS DP Diagnostic information Remedy instructions Short text 373 Sensor electronic (ISEM) faulty 1. Transfer data or reset device 2. Contact service Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27...
Page 185 Proline Promass I 300 PROFIBUS DP Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 375 I/O- 1 to n communication failed 1. Restart device 2. Check if failure recurs Measured variable status 3. Replace module rack inclusive electronic modules...
Page 186 Diagnostics and troubleshooting Proline Promass I 300 PROFIBUS DP Diagnostic information Remedy instructions Short text 382 Data storage 1. Insert T-DAT 2. Replace T-DAT Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27 Status signal Diagnostic behavior...
Page 187 Proline Promass I 300 PROFIBUS DP Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 383 Memory content 1. Restart device 2. Delete T-DAT via ' R eset device' parameter Measured variable status 3. Replace T-DAT Quality Quality substatus Maintenance alarm...
Page 188: Diagnostic Of Configuration
Diagnostics and troubleshooting Proline Promass I 300 PROFIBUS DP Diagnostic information Remedy instructions Short text 387 HistoROM backup failed Contact service organization Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27 Status signal Diagnostic behavior Alarm Influenced measured variables •...
Page 189 Proline Promass I 300 PROFIBUS DP Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 331 Firmware update failed 1. Update firmware of device 2. Restart device Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27...
Page 190 Diagnostics and troubleshooting Proline Promass I 300 PROFIBUS DP Diagnostic information Remedy instructions Short text 410 Data transfer 1. Check connection 2. Retry data transfer Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27 Status signal...
Page 191 Proline Promass I 300 PROFIBUS DP Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 412 Processing download Download active, please wait Measured variable status Quality Uncertain Quality substatus Initial value Coding (hex) 0x4C to 0x4F Status signal Diagnostic behavior...
Page 192 Diagnostics and troubleshooting Proline Promass I 300 PROFIBUS DP Diagnostic information Remedy instructions Short text 437 Configuration incompatible 1. Restart device 2. Contact service Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27 Status signal Diagnostic behavior...
Page 193 Proline Promass I 300 PROFIBUS DP Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 438 Dataset 1. Check data set file 2. Check device configuration Measured variable status 3. Up- and download new configuration Quality Uncertain Quality substatus Maintenance demanded...
Page 194 Diagnostics and troubleshooting Proline Promass I 300 PROFIBUS DP Diagnostic information Remedy instructions Short text 442 Frequency output 1 to n 1. Check process 2. Check frequency output settings Measured variable status [from the factory] Quality Good Quality substatus Function check...
Page 195 Proline Promass I 300 PROFIBUS DP Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 453 Flow override Deactivate flow override Measured variable status Quality Good Quality substatus Function check Coding (hex) 0xBC to 0xBF Status signal Diagnostic behavior Warning Influenced measured variables •...
Page 196 Diagnostics and troubleshooting Proline Promass I 300 PROFIBUS DP Diagnostic information Remedy instructions Short text 482 FB not Auto/Cas Set Block in AUTO mode Measured variable status Quality Good Quality substatus Coding (hex) 0x80 to 0x83 Status signal Diagnostic behavior...
Page 197 Proline Promass I 300 PROFIBUS DP Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 485 Measured variable simulation Deactivate simulation Measured variable status Quality Good Quality substatus Function check Coding (hex) 0xBC to 0xBF Status signal Diagnostic behavior Warning Influenced measured variables •...
Page 198 Diagnostics and troubleshooting Proline Promass I 300 PROFIBUS DP Diagnostic information Remedy instructions Short text 491 Current output 1 to n simulation Deactivate simulation Measured variable status Quality Good Quality substatus Function check Coding (hex) 0xBC to 0xBF Status signal...
Page 199 Proline Promass I 300 PROFIBUS DP Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 494 Switch output simulation 1 to n Deactivate simulation switch output Measured variable status Quality Good Quality substatus Function check Coding (hex) 0xBC to 0xBF...
Page 200 Diagnostics and troubleshooting Proline Promass I 300 PROFIBUS DP Diagnostic information Remedy instructions Short text 497 Simulation block output Deactivate simulation Measured variable status Quality Good Quality substatus Coding (hex) 0x80 to 0x83 Status signal Diagnostic behavior Warning Influenced measured variables –...
Page 201 Proline Promass I 300 PROFIBUS DP Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 529 Concentration settings faulty 1. Check concentration settings 2. Check input values e.g. pressure, temperature Measured variable status Quality Quality substatus Function check Coding (hex)
Page 202: Diagnostic Of Process
Diagnostics and troubleshooting Proline Promass I 300 PROFIBUS DP 12.7.4 Diagnostic of process Diagnostic information Remedy instructions Short text 803 Current loop 1. Check wiring 2. Change I/O module Measured variable status Quality Quality substatus Process related Coding (hex) 0x28 to 0x2B...
Page 203 Proline Promass I 300 PROFIBUS DP Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 831 Sensor temperature too low Increase ambient temp. around the sensor housing Measured variable status [from the factory] Quality Uncertain Quality substatus Process related Coding (hex)
Page 204 Diagnostics and troubleshooting Proline Promass I 300 PROFIBUS DP Diagnostic information Remedy instructions Short text 832 Electronic temperature too high Reduce ambient temperature Measured variable status [from the factory] Quality Quality substatus Process related Coding (hex) 0x28 to 0x2B Status signal...
Page 205 Proline Promass I 300 PROFIBUS DP Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 833 Electronic temperature too low Increase ambient temperature Measured variable status [from the factory] Quality Quality substatus Process related Coding (hex) 0x28 to 0x2B Status signal...
Page 206 Diagnostics and troubleshooting Proline Promass I 300 PROFIBUS DP Diagnostic information Remedy instructions Short text 834 Process temperature too high Reduce process temperature Measured variable status [from the factory] Quality Uncertain Quality substatus Process related Coding (hex) 0x78 to 0x7B...
Page 207 Proline Promass I 300 PROFIBUS DP Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 835 Process temperature too low Increase process temperature Measured variable status [from the factory] Quality Uncertain Quality substatus Process related Coding (hex) 0x78 to 0x7B...
Page 208 Diagnostics and troubleshooting Proline Promass I 300 PROFIBUS DP Diagnostic information Remedy instructions Short text 842 Process limit Low flow cut off active! 1. Check low flow cut off configuration Measured variable status [from the factory] Quality Uncertain Quality substatus...
Page 209 Proline Promass I 300 PROFIBUS DP Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 882 Input signal 1. Check input configuration 2. Check external device or process conditions Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27...
Page 210 Diagnostics and troubleshooting Proline Promass I 300 PROFIBUS DP Diagnostic information Remedy instructions Short text 910 Tubes not oscillating 1. Check electronic 2. Inspect sensor Measured variable status Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27 Status signal...
Page 211 Proline Promass I 300 PROFIBUS DP Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 912 Medium inhomogeneous 1. Check process cond. 2. Increase system pressure Measured variable status [from the factory] Quality Uncertain Quality substatus Process related Coding (hex)
Page 212 Diagnostics and troubleshooting Proline Promass I 300 PROFIBUS DP Diagnostic information Remedy instructions Short text 913 Medium unsuitable 1. Check process conditions 2. Check electronic modules or sensor Measured variable status [from the factory] Quality Uncertain Quality substatus Process related...
Page 213 Proline Promass I 300 PROFIBUS DP Diagnostics and troubleshooting Diagnostic information Remedy instructions Short text 942 API density out of specification 1. Check process density with selected API commodity group 2. Check API related parameters Measured variable status Quality Quality substatus...
Page 214 Diagnostics and troubleshooting Proline Promass I 300 PROFIBUS DP Diagnostic information Remedy instructions Short text 944 Monitoring failed Check process conditions for Heartbeat Monitoring Measured variable status [from the factory] Quality Quality substatus Maintenance alarm Coding (hex) 0x24 to 0x27...
Page 215: Pending Diagnostic Events
Proline Promass I 300 PROFIBUS DP Diagnostics and troubleshooting 12.8 Pending diagnostic events The Diagnostics menu allows the user to view the current diagnostic event and the previous diagnostic event separately. To call up the measures to rectify a diagnostic event: •...
Page 216: Event Logbook
Diagnostics and troubleshooting Proline Promass I 300 PROFIBUS DP / ../Diagnose list Diagnostics F273 Main electronic Diagnostics 2 Diagnostics 3 A0014006-EN  27 Taking the example of the local display To call up the measures to rectify a diagnostic event: •...
Page 217: 12.10.2 Filtering The Event Logbook
Proline Promass I 300 PROFIBUS DP Diagnostics and troubleshooting 12.10.2 Filtering the event logbook Using the Filter options parameter you can define which category of event message is displayed in the Events list submenu. Navigation path Diagnostics → Event logbook → Filter options Filter categories •...
Page 218: 12.11 Resetting The Measuring Device
Diagnostics and troubleshooting Proline Promass I 300 PROFIBUS DP Info number Info name I1451 Monitoring on I1457 Measured error verification failed I1459 I/O module verification failed I1460 HBSI verification failed I1461 Sensor verification failed I1462 Sensor electronic module verific. failed...
Page 219: 12.11.1 Function Scope Of The "Device Reset" Parameter
Proline Promass I 300 PROFIBUS DP Diagnostics and troubleshooting 12.11.1 Function scope of the "Device reset" parameter Options Description Cancel No action is executed and the user exits the parameter. To delivery settings Every parameter for which a customer-specific default setting was ordered is reset to this customer-specific value.
Page 220 Diagnostics and troubleshooting Proline Promass I 300 PROFIBUS DP Parameter overview with brief description Parameter Description User interface Factory setting Device tag Shows name of measuring point. Max. 32 characters, such as Promass_300 letters, numbers or special characters (e.g. @, %, /).
Page 221: 12.13 Firmware History
"Manufacturer' s information" document. The manufacturer' s information is available: • In the Download Area of the Endress+Hauser web site: www.endress.com → Downloads • Specify the following details: –...
Page 222: Maintenance
Observe the inside diameter of the measuring tube and process connection. 13.2 Measuring and test equipment Endress+Hauser offers a wide variety of measuring and test equipment, such as W@M or device tests. Your Endress+Hauser Sales Center can provide detailed information on the services.
Page 223: Repairs
• The measuring devices have a modular design. • Spare parts are grouped into logical kits with the associated Installation Instructions. • Repairs are carried out by Endress+Hauser Service or by appropriately trained customers. • Certified devices can only be converted to other certified devices by Endress+Hauser Service or at the factory.
Page 224: Disposal
Repairs Proline Promass I 300 PROFIBUS DP 14.5 Disposal 14.5.1 Removing the measuring device 1. Switch off the device. WARNING Danger to persons from process conditions. ‣ Beware of hazardous process conditions such as pressure in the measuring device, high temperatures or aggressive fluids.
Page 225: Accessories
Various accessories, which can be ordered with the device or subsequently from Endress +Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.
Page 226: For The Sensor
Is used to stabilize the temperature of the fluids in the sensor. Water, water vapor and other non-corrosive liquids are permitted for use as fluids.  If using oil as a heating medium, please consult with Endress+Hauser. • If ordered together with the measuring device: order code for "Enclosed accessories"...
Page 227: System Components
Proline Promass I 300 PROFIBUS DP Accessories 15.3 System components Accessories Description Memograph M graphic The Memograph M graphic data manager provides information on all the relevant data manager measured variables. Measured values are recorded correctly, limit values are monitored and measuring points analyzed. The data are stored in the 256 MB internal memory and also on a SD card or USB stick.
Page 228: Technical Data
Technical data Proline Promass I 300 PROFIBUS DP Technical data 16.1 Application The measuring device is suitable for flow measurement of liquids and gases only. Depending on the version ordered, the measuring device can also measure potentially explosive, flammable, poisonous and oxidizing media.
Page 229: Input
Proline Promass I 300 PROFIBUS DP Technical data 16.3 Input Measured variable Direct measured variables • Mass flow • Density • Temperature • Viscosity Calculated measured variables • Volume flow • Corrected volume flow • Reference density Measuring range Measuring ranges for liquids Measuring range full scale values ...
Page 230 • Operating pressure to increase accuracy (Endress+Hauser recommends the use of a pressure measuring device for absolute pressure, e.g. Cerabar M or Cerabar S) •...
Page 231 Proline Promass I 300 PROFIBUS DP Technical data Current input 0/4 to 20 mA Current input 0/4 to 20 mA (active/passive) Current span • 4 to 20 mA (active) • 0/4 to 20 mA (passive) Resolution 1 µA Voltage drop Typically: 0.6 to 2 V for 3.6 to 22 mA (passive)
Page 232: Output
Technical data Proline Promass I 300 PROFIBUS DP 16.4 Output Output signal PROFIBUS DP Signal encoding NRZ code Data transfer 9.6 kBaud…12 MBaud Current output 0/4 to 20 mA Current output 0/4 to 20 mA Maximum output values 22.5 mA...
Page 233 Proline Promass I 300 PROFIBUS DP Technical data Maximum pulse rate 10 000 Impulse/s Pulse value Adjustable Assignable measured • Mass flow variables • Volume flow • Corrected volume flow Frequency output Maximum input values DC 30 V, 250 mA (passive) Maximum output current 22.5 mA (active)
Page 234 Technical data Proline Promass I 300 PROFIBUS DP Switching behavior Can be set to: • NO (normally open), factory setting • NC (normally closed) Maximum switching • DC 30 V, 0.1 A capacity (passive) • AC 30 V, 0.5 A Assignable functions •...
Page 235 Proline Promass I 300 PROFIBUS DP Technical data 0 to 20 mA Failure mode Choose from: • Maximum alarm: 22 mA • Freely definable value between: 0 to 20.5 mA Pulse/frequency/switch output Pulse output Failure mode Choose from: • Actual value •...
Page 236: Power Supply
Technical data Proline Promass I 300 PROFIBUS DP Light emitting diodes (LED) Status information Status indicated by various light emitting diodes The following information is displayed depending on the device version: • Supply voltage active • Data transmission active • Device alarm/error has occurred ...
Page 237: Performance Characteristics
Proline Promass I 300 PROFIBUS DP Technical data Current consumption Transmitter • Max. 400 mA (24 V) • Max. 200 mA (110 V, 50/60 Hz; 230 V, 50/60 Hz) Power supply failure Depending on the device version, the configuration is retained in the device memoryor in the pluggable data memory (HistoROM DAT).
Page 238 Technical data Proline Promass I 300 PROFIBUS DP Density (liquids) Under Standard density Wide-range 2) 3) reference operating conditions calibration Density specification [g/cm³] [g/cm³] [g/cm³] ±0.0005 ±0.02 ±0.004 Valid over the entire temperature and density range Valid range for special density calibration: 0 to 2 g/cm³, +10 to +80 °C (+50 to +176 °F) Order code for "Application package", option EE "Special density"...
Page 239 Proline Promass I 300 PROFIBUS DP Technical data 1:10 1:20 1:50 1:100 1:500 [mm] [kg/h] [kg/h] [kg/h] [kg/h] [kg/h] [kg/h] 180 000 18 000 9 000 3 600 1 800 FB = Full bore US units 1:10 1:20 1:50 1:100...
Page 240 Technical data Proline Promass I 300 PROFIBUS DP Temperature ±0.25 °C ± 0.0025 · T °C (±0.45 °F ± 0.0015 · (T–32) °F) Response time The response time depends on the configuration (damping). Influence of ambient Current output temperature Temperature coefficient Max.
Page 241 Proline Promass I 300 PROFIBUS DP Technical data Influence of medium The table below shows the effect on accuracy of mass flow due to a difference between pressure calibration pressure and process pressure. o.r. = of reading It is possible to compensate for the effect by: •...
Page 242: Installation
Technical data Proline Promass I 300 PROFIBUS DP Example for maximum measured error E [%] 100 Q [%] A0030296 Maximum measured error in % o.r. (example) Flow rate in % of maximum full scale value 16.7 Installation "Mounting requirements" →  22 16.8...
Page 243: Process
Proline Promass I 300 PROFIBUS DP Technical data Shock resistance Shock, half-sine according to IEC 60068-2-27 6 ms 50 g Shock resistance Shock due to rough handling following IEC 60068-2-31 Mechanical load Never use the transmitter housing as a ladder or climbing aid.
Page 244 Technical data Proline Promass I 300 PROFIBUS DP Not insulated Insulated 60 °C (140 °F) 150 °C (302 °F) – – 60 °C (140 °F) 120 °C (248 °F) 55 °C (131 °F) 150 °C (302 °F) Density 0 to 5 000 kg/m...
Page 245: 16.10 Mechanical Construction
Proline Promass I 300 PROFIBUS DP Technical data Sensor housing nominal Sensor housing burst pressure pressure (designed with a safety factor ≥ 4) [mm] [in] [bar] [psi] [bar] [psi] 6 670 FB = Full bore For information on the dimensions: see the "Mechanical construction" section of the "Technical Information"...
Page 246 Technical data Proline Promass I 300 PROFIBUS DP Weight in SI units Weight [kg] [mm] 15 FB 25 FB 40 FB 50 FB FB = Full bore Weight in US units Weight [lbs] [in] ½ ½ FB 1 FB 1½...
Page 247 Proline Promass I 300 PROFIBUS DP Technical data Cable entries/cable glands A0020640  30 Possible cable entries/cable glands Female thread M20 × 1.5 Cable gland M20 × 1.5 Adapter for cable entry with internal thread G ½" or NPT ½"...
Page 248 Technical data Proline Promass I 300 PROFIBUS DP Cable entry/cable gland Material Adapter for cable entry with internal thread NPT ½" Device plug Plug M12 × 1 • Socket: Stainless steel, 1.4404 (316L) • Contact housing: Polyamide • Contacts: Gold-plated brass Sensor housing •...
Page 249: 16.11 Operability
Proline Promass I 300 PROFIBUS DP Technical data Process connections • Fixed flange connections: – EN 1092-1 (DIN 2501) flange – EN 1092-1 (DIN 2512N) flange – ASME B16.5 flange – JIS B2220 flange – DIN 11864-2 Form A flange, DIN 11866 series A, flange with notch •...
Page 250 Technical data Proline Promass I 300 PROFIBUS DP Display elements • 4-line, illuminated, graphic display • White background lighting; switches to red in event of device errors • Format for displaying measured variables and status variables can be individually configured •...
Page 251 Proline Promass I 300 PROFIBUS DP Technical data Material The housing material of the display and operating module DKX001 depends on the choice of transmitter housing material. Transmitter housing Remote display and operating module Order code for "Housing" Material Material Option A "Aluminum, coated"...
Page 252 Technical data Proline Promass I 300 PROFIBUS DP Web server Thanks to the integrated Web server, the device can be operated and configured via a Web browser and via a service interface (CDI-RJ45) or via a WLAN interface. The structure of the operating menu is the same as for the local display.
Page 253: 16.12 Certificates And Approvals
Proline Promass I 300 PROFIBUS DP Technical data Data backup Automatic • The most important device data (sensor and transmitter) are automatically saved in the DAT modules • If the transmitter or measuring device is replaced: once the T-DAT containing the...
Page 254 The device meets the legal requirements of the applicable EU Directives. These are listed in the corresponding EU Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. C-Tick symbol The measuring system meets the EMC requirements of the "Australian Communications...
Page 255: 16.13 Application Packages
The application packages can be ordered with the device or subsequently from Endress+Hauser. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.
Page 256 Technical data Proline Promass I 300 PROFIBUS DP Diagnostics functions Package Description Extended HistoROM Comprises extended functions concerning the event log and the activation of the measured value memory. Event log: Memory volume is extended from 20 message entries (standard version) to up to 100 entries.
Page 257: 16.14 Accessories
For an overview of the scope of the associated Technical Documentation, refer to the following: • W@M Device Viewer (www.endress.com/deviceviewer): Enter the serial number from nameplate • Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2D matrix code (QR code) on the nameplate Standard documentation Brief Operating Instructions...
Page 258 Technical data Proline Promass I 300 PROFIBUS DP Contents Documentation code cCSAus Ex d/ Ex de XA01372D cCSAus Ex nA XA01507D INMETRO Ex d/Ex de XA01468D INMETRO Ex ec XA01470D NEPSI Ex d/Ex de XA01469D NEPSI Ex nA XA01471D Remote display and operating module DKX001...
Page 259: Index
Proline Promass I 300 PROFIBUS DP Index Index 0 … 9 Closing ....... . . 55 Explanation .
Page 260 Index Proline Promass I 300 PROFIBUS DP Display area Firmware For operational display ..... 50 Release date ......72 In the navigation view .
Page 261 Proline Promass I 300 PROFIBUS DP Index Transmitter ......17 Navigation path (navigation view) ....51 Main electronics module .
Page 262 Index Proline Promass I 300 PROFIBUS DP Pulse/frequency/switch output (Wizard) 104, 105, Safety ........10 Pulse/frequency/switch output 1 to n (Submenu) 145 Sanitary compatibility .
Page 263 Proline Promass I 300 PROFIBUS DP Index Submenu Temperature range Administration ..... . 131, 132 Ambient temperature range for display ..249 Advanced setup .
Page 264 Index Proline Promass I 300 PROFIBUS DP Define access code ..... . . 131 Display ....... . 113 Low flow cut off .
Page 266 www.addresses.endress.com...
