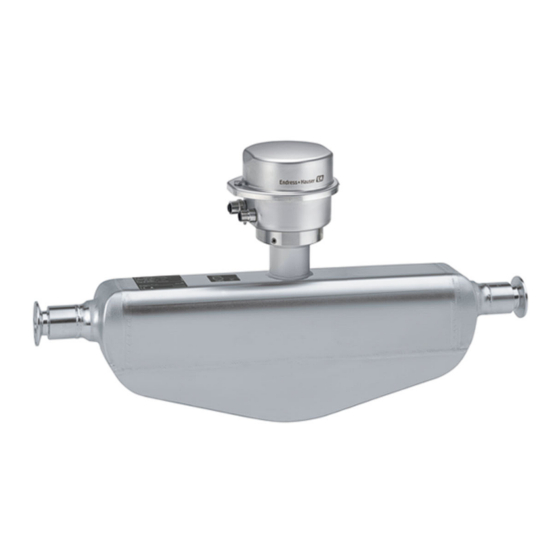

Coriolis mass flow measuring system
Hide thumbs Also See for Proline Promass P 100:
Table of Contents

Advertisement

Quick Links

Download this manual
Brief Operating Instructions
Proline Promass P 100
Coriolis Mass Flow Measuring System
These Instructions are Brief Operating Instructions; they do not replace the
Operating Instructions included in the scope of supply.
For detailed information, refer to the Operating Instructions and other
documentation on the CD-ROM provided or visit "www.endress.com/
deviceviewer".
KA01118D/06/EN/01.12
71185340

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Proline Promass P 100

Summary of Contents for Endress+Hauser Proline Promass P 100

  • Page 1 Brief Operating Instructions Proline Promass P 100 Coriolis Mass Flow Measuring System These Instructions are Brief Operating Instructions; they do not replace the Operating Instructions included in the scope of supply. For detailed information, refer to the Operating Instructions and other documentation on the CD-ROM provided or visit "www.endress.com/...

  • Page 2: Table Of Contents

    Table of contents Proline Promass P 100 Table of contents 1 Document information ........3 1.1 Symbols used .

  • Page 3: Document Information

    Proline Promass P 100 Document information Document information Symbols used 1.1.1 Safety symbols Symbol Meaning DANGER! DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. A0011189-EN WARNING! WARNING This symbol alerts you to a dangerous situation.
  • Page 4 Document information Proline Promass P 100 Open-ended wrench A0011222 1.1.4 Symbols for certain types of information Symbol Meaning Allowed Indicates procedures, processes or actions that are allowed. A0011182 Preferred Indicates procedures, processes or actions that are preferred. A0011183 Forbidden Indicates procedures, processes or actions that are forbidden.

  • Page 5: Basic Safety Instructions

    Observe the specified maximum process pressure. ► Verification for borderline cases: For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in ► verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability.

  • Page 6: Workplace Safety

    ► Conversions to the device Unauthorized modifications to the device are not permitted and can lead to unforeseeable dangers. If, despite this, modifications are required, consult with Endress+Hauser. ► Repair To ensure continued operational safety and reliability, Carry out repairs on the device only if they are expressly permitted.

  • Page 7: Product Safety

    It fulfills general safety requirements and legal requirements. It also conforms to the EC directives listed in the device-specific EC declaration of conformity. Endress+Hauser confirms this fact by applying the CE mark. Product description...
  • Page 8 Product description Proline Promass P 100 In the case of the device version with Modbus RS485 intrinsically safe, the Safety Barrier Promass 100 forms part of the scope of supply. A0017257 å 2 Important components of a measuring device Transmitter housing cover...

  • Page 9: Incoming Acceptance And Product Identification

    Proline Promass P 100 Incoming acceptance and product identification Incoming acceptance and product identification Incoming acceptance A0015502 A0013843 A0013695 A0015502 A0013698 A0015502 A0013699 Endress+Hauser...

  • Page 10: Product Identification

    Incoming acceptance and product identification Proline Promass P 100 A0015502 A0013697 If one of the conditions is not satisfied, contact your Endress+Hauser Sales Center. Product identification The following options are available for identification of the measuring device: • Nameplate specifications •...

  • Page 11: Storage And Transport

    Proline Promass P 100 Storage and transport Storage and transport Storage conditions Observe the following notes for storage: • Store in original packaging. • Do not remove protective covers or protective caps installed on process connections. • Protect from direct sunlight.
  • Page 12 Storage and transport Proline Promass P 100 A0015604 A0015605 Endress+Hauser...

  • Page 13: Mounting

    Proline Promass P 100 Mounting Mounting Mounting requirements No special measures such as supports are necessary. External forces are absorbed by the construction of the device. 6.1.1 Mounting position Mounting location A0015595 Installation in down pipes However, the following installation suggestion allows for installation in an open vertical pipeline.
  • Page 14 Mounting Proline Promass P 100 A0015596 å 4 Installation in a down pipe (e.g. for batching applications) Supply tank Sensor Orifice plate, pipe restriction Valve Batching tank Æ Orifice plate, pipe restriction [mm] [in] [mm] [in] 0.24 ½ 0.40 0.55 1½...
  • Page 15 Proline Promass P 100 Mounting Orientation The direction of the arrow on the sensor nameplate helps you to install the sensor according to the flow direction. Orientation Recommendation Vertical orientation A0015591 Horizontal orientation, transmitter head Exception: A0015589 Horizontal orientation, transmitter head...
  • Page 16 Mounting Proline Promass P 100 Inlet and outlet runs No special precautions need to be taken for fittings which create turbulence, such as valves, elbows or T-pieces, as long as no cavitation occurs (® ä 16). A0015597 A0015598 For the dimensions and installation lengths of the device, see the "Technical Information"...
  • Page 17 Proline Promass P 100 Mounting Heating options If a fluid requires that no heat loss should occur at the sensor, users can avail of the following heating options: • Electrical heating, e.g. with electric band heaters • Via pipes carrying hot water or steam •...
  • Page 18 Mounting Proline Promass P 100 21 mm/m (¼ in/ft) ~2% A0016583 Eccentric clamp connection Line on the underside indicates the lowest point of the eccentric process connection. "This side up" label indicates which side is up Slope the device in accordance with the hygiene guidelines. Slope: approx. 2 % or 21mm/m (0.24...

  • Page 19: Mounting The Measuring Device

    Proline Promass P 100 Mounting A0016588 [mm] [in] ½ ¾ 1 ½ 1 019 36.5 44.1 Mounting the measuring device 6.2.1 Required tools For sensor For flanges and other process connections: Corresponding mounting tools 6.2.2 Preparing the measuring device 1. Remove all remaining transport packaging.

  • Page 20: Post-Mounting Check

    Mounting Proline Promass P 100 2. Install the measuring device or turn the transmitter housing so that the cable entries do not point upwards. Ã A0013964 Post-mounting check Is the device damaged (visual inspection)? Does the measuring device conform to the measuring point specifications? For example: •...

  • Page 21: Electrical Connection

    Proline Promass P 100 Electrical connection Electrical connection Connection conditions 7.1.1 Required tools • For cable entries: Use corresponding tools • For securing clamp (on aluminum housing): Allen screw3 mm • For securing screw (for stainless steel housing): open-ended wrench 8 mm •...
  • Page 22 Electrical connection Proline Promass P 100 EtherNet/IP The standard ANSI/TIA/EIA-568-B.2 Annex specifies CAT 5 as the minimum category for a cable used for EtherNet/IP. CAT 5e and CAT 6 are recommended. For more information on planning and installing EtherNet/IP networks, please refer to the "Media Planning and Installation Manual.
  • Page 23 Proline Promass P 100 Electrical connection Transmitter A0017083 Connection version: Modbus RS485 for use in non-hazardous areas and Zone 2/Div. 2 1.1 Supply voltage: DC 24 V 1.2 Output 1: Modbus RS485 Connection version: Modbus RS485 for use in intrinsically safe areas (connection via Safety Barrier Promass 100) 2.1 Supply voltage: power supply via Safety Barrier Promass 100...
  • Page 24 Electrical connection Proline Promass P 100 Safety Barrier Promass 100 Power Modbus supply RS485 Safe area Power Lift panel for bus termination Communication Safety Barrier Promass 100 Hazardous area Power Modbus supply RS485 A0016922 å 5 Safety Barrier Promass 100 with terminals Non-hazardous area and zone 2/div.
  • Page 25 Proline Promass P 100 Electrical connection Modbus RS485 intrinsically safe with supply voltage (on the device side) Assignment Coding Connector/ socket Supply voltage, intrinsically Connector safe Modbus RS485 intrinsically safe Supply voltage, intrinsically safe Grounding/shielding A0016809 Modbus RS485, non-hazardous areas and zone 2/Div. 2 (on the device side)

  • Page 26: Connecting The Measuring Device

    Electrical connection Proline Promass P 100 NOTICE In systems without potential matching, the multiple grounding of the cable shield causes mains frequency equalizing currents! Damage to the bus cable shield. Only ground the bus cable shield to either the local ground or the protective ground at one ►...
  • Page 27 Proline Promass P 100 Electrical connection Depending on the device version, the following connection versions are available: Connection method For supply voltage For output Terminals Device plug Terminals Terminals Device plug Device plug Device plug 8 mm 8 mm 3 mm 10 (0.4)

  • Page 28: Hardware Settings

    Electrical connection Proline Promass P 100 7.2.2 Connecting the Safety Barrier Promass 100 In the case of the device version with Modbus RS485 intrinsically safe, the transmitter must be connected to the Safety Barrier Promass 100. L- L+ A0016804 å 8 Electrical connection between the transmitter and Safety Barrier Promass 100 Control system (e.g.
  • Page 29 Proline Promass P 100 Electrical connection IP address range 1 to 254 (4th octet) IP address broadcast Addressing mode ex works Software addressing; all DIP switches for hardware addressing are set to OFF. IP address ex works 192.168.1.212 (= software addressing) For device addressing via software (®...
  • Page 30 Electrical connection Proline Promass P 100 If the transmitter is used in the non-hazardous area or Zone 2/Div. 2 4 - Bus termination 3 - Not used 220 W 2 - Not used 1 - Write protection A0017610 å 9...

  • Page 31: Ensuring The Degree Of Protection

    Proline Promass P 100 Electrical connection If the transmitter is used in the intrinsically safe area 220 W A0017791 å 10 Terminating resistor can be enabled via DIP switch in the Safety Barrier Promass 100 Ensuring the degree of protection The measuring device fulfills all the requirements for the IP66/67 degree of protection, Type 4X enclosure.

  • Page 32: Post-Connection Check

    Electrical connection Proline Promass P 100 Ã A0013960 5. Insert dummy plugs into unused cable entries. Post-connection check Are cables or the device undamaged (visual inspection)? Do the cables comply with the requirements (® ä 21)? Do the cables have adequate strain relief? Are all the cable glands installed, firmly tightened and leak-tight? Cable run with "water trap"...

  • Page 33: Operation Options

    Proline Promass P 100 Operation options Operation options Structure and function of the operating menu 8.1.1 Structure of the operating menu Operating menu for operators and maintenances Display/operat. Setup Diagnostics Operating menu for experts Expert A0016725-EN 8.1.2 Operating philosophy The individual parts of the operating menu are assigned to certain user roles. Each user role corresponds to typical tasks within the device lifecycle.
  • Page 34 Operation options Proline Promass P 100 8.2.2 Prerequisites Hardware Connecting cable Standard Ethernet cable with RJ45 connector Computer RJ45 interface Measuring device Web server must be enabled; factory setting: ON Software of the computer Web browsers supported • Microsoft Internet Explorer 7.x, 8.x, 9.x •...
  • Page 35 Proline Promass P 100 Operation options Device tag Webserv.language English Ent. access code Access stat.tool Maintenance A0017362 Device tag (® ä 40) Picture of device 8.2.4 Logging on Access code 0000 (factory setting); can be changed by customer (® ä 41) 8.2.5...

  • Page 36: Access To The Operating Menu Via The Operating Tool

    Operation options Proline Promass P 100 Header The following information appears in the header: • Device tag (® ä 40) • Device status with status signal • Current measured values Function row Functions Meaning Measured values The measured values of the device are displayed...
  • Page 37 Computer with "FieldCare" operating tool with COM DTM "CDI Communication FXA291" 8.3.2 Via service interface (CDI-RJ45) This communication interface (CDI = Endress+Hauser Common Data Interface) is present in the following device version: Order code for "Output", option N: EtherNet/IP A0016940...
  • Page 38 Operation options Proline Promass P 100 8.3.3 Via Ethernet network This communication interface is present in the following device version: Order code for "Output", option N: EtherNet/IP A0016961 Ethernet network Automation system, e.g. "RSLogix" (Rockwell Automation) Workstation for measuring device operation: with Add-on Profile Level 3 for "RSLogix 5000"...

  • Page 39: System Integration

    Proline Promass P 100 System integration module to ON, restart the device and enter the default setting for the IP address 192.168.1.212. 7. Establish the online connection to the device. For device version with Modbus RS485 communication type Via service interface (CDI) and "FieldCare" operating tool 1.

  • Page 40: Establishing A Connection Via Fieldcare

    Commissioning Proline Promass P 100 10.2 Establishing a connection via FieldCare • For FieldCare connection (® ä 36) • For establishing a connection via FieldCare (® ä 38) 10.3 Configuring the device address via software Applies only to device version with EtherNet/IP communication type Software addressing is carried out in the Communication submenu.

  • Page 41: Protecting Settings From Unauthorized Access

    Proline Promass P 100 Commissioning 10.5.1 Parameter overview with brief description Parameter Description User entry Factory setting Device tag Enter the name for the Max. 32 characters, such as Promass measuring point. letters, numbers or special characters (e.g. @, %, /) 10.6...
  • Page 42 Commissioning Proline Promass P 100 10.6.2 Write protection via write protection switch The write protection switch makes it possible to block write access to the entire operating menu with the exception of the following parameters. • External pressure • External temperature •...

  • Page 43: Diagnostic Information

    Proline Promass P 100 Diagnostic information Setting the write protection switch on the electronics module to the ON position enables ► the hardware write protection. Ã If hardware write protection is enabled, the Hardware locked option is displayed in the Locking status parameter.
