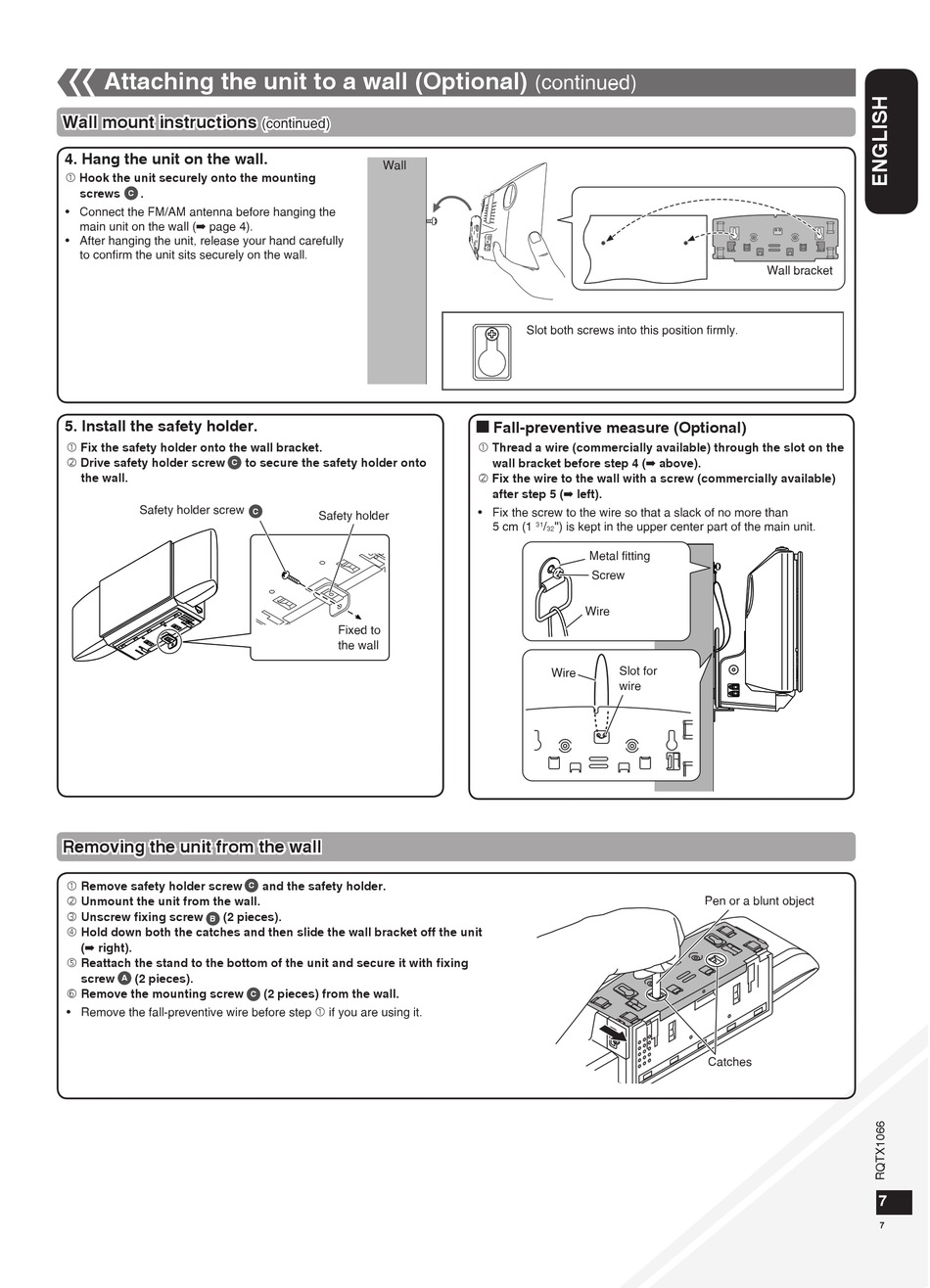

Attaching the unit to a wall (Optional)
Wall mount instructions
4. Hang the unit on the wall.
 Hook the unit securely onto the mounting
screws .
C
• Connect the FM/AM antenna before hanging the
main unit on the wall (➡ page 4).
• After hanging the unit, release your hand carefully
to confirm the unit sits securely on the wall.
5. Install the safety holder.
 Fix the safety holder onto the wall bracket.
 Drive safety holder screw
C
the wall.
Safety holder screw
Removing the unit from the wall
 Remove safety holder screw
 Unmount the unit from the wall.
 Unscrew fixing screw (2 pieces).
B
 Hold down both the catches and then slide the wall bracket off the unit
(➡ right).
 Reattach the stand to the bottom of the unit and secure it with fixing
screw (2 pieces).
A
 Remove the mounting screw
• Remove the fall-preventive wire before step  if you are using it.
(continued)
Wall
to secure the safety holder onto
C
Safety holder
Fixed to
the wall
and the safety holder.
C
(2 pieces) from the wall.
C
(continued)
Slot both screws into this position firmly.
g Fall-preventive measure (Optional)
 Thread a wire (commercially available) through the slot on the
wall bracket before step 4 (➡ above).
 Fix the wire to the wall with a screw (commercially available)
after step 5 (➡ left).
• Fix the screw to the wire so that a slack of no more than
5 cm (1 / ") is kept in the upper center part of the main unit.
31
32
Metal fitting
Screw
Wire
Slot for
Wire
wire
Wall bracket
Pen or a blunt object
Catches
