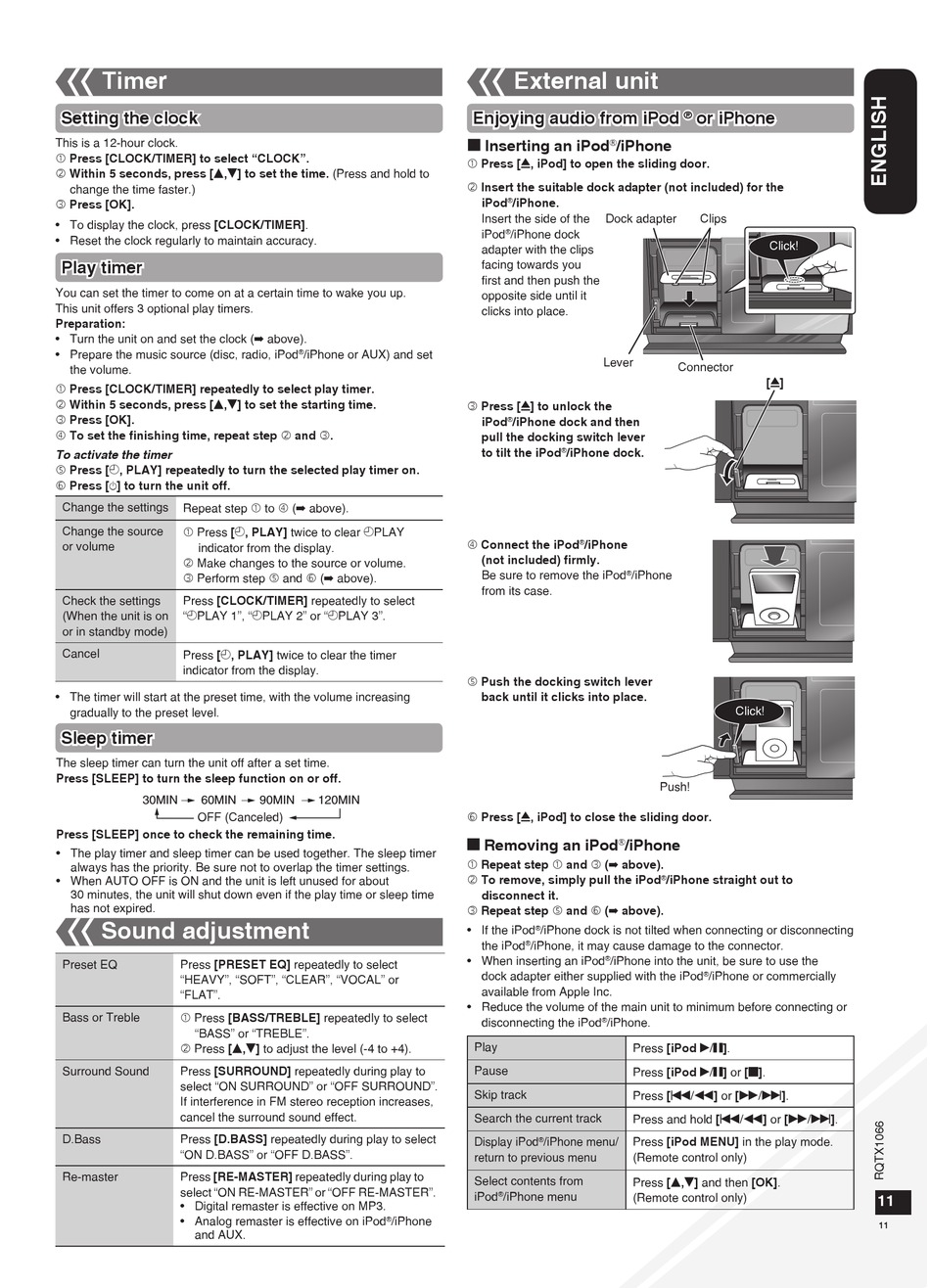

Timer; Sound Adjustment; External Unit - Panasonic SC-HC30 Operating Instructions Manual

Timer

Setting the clock
This is a 12-hour clock.
 Press [CLOCK/TIMER] to select "CLOCK".
 Within 5 seconds, press [e,r] to set the time. (Press and hold to
change the time faster.)
 Press [OK].
• To display the clock, press [CLOCK/TIMER].
• Reset the clock regularly to maintain accuracy.
Play timer
You can set the timer to come on at a certain time to wake you up.
This unit offers 3 optional play timers.
Preparation:
• Turn the unit on and set the clock (➡ above).
• Prepare the music source (disc, radio, iPod
the volume.
 Press [CLOCK/TIMER] repeatedly to select play timer.
 Within 5 seconds, press [e,r] to set the starting time.
 Press [OK].
 To set the finishing time, repeat step  and .
To activate the timer
 Press [z, PLAY] repeatedly to turn the selected play timer on.
 Press [^] to turn the unit off.
Change the settings
Repeat step  to  (➡ above).
Change the source
 Press [z, PLAY] twice to clear zPLAY
or volume
indicator from the display.
 Make changes to the source or volume.
 Perform step  and  (➡ above).
Check the settings Press [CLOCK/TIMER] repeatedly to select
(When the unit is on "zPLAY 1", "zPLAY 2" or "zPLAY 3".
or in standby mode)
Cancel
Press [z, PLAY] twice to clear the timer
indicator from the display.
• The timer will start at the preset time, with the volume increasing
gradually to the preset level.
Sleep timer
The sleep timer can turn the unit off after a set time.
Press [SLEEP] to turn the sleep function on or off.
30MIN 60MIN
OFF (Canceled)
Press [SLEEP] once to check the remaining time.
• The play timer and sleep timer can be used together. The sleep timer
always has the priority. Be sure not to overlap the timer settings.
• When AUTO OFF is ON and the unit is left unused for about
30 minutes, the unit will shut down even if the play time or sleep time
has not expired.

Sound adjustment

Press [PRESET EQ] repeatedly to select
Preset EQ
"HEAVY", "SOFT", "CLEAR", "VOCAL" or
"FLAT".
Bass or Treble  Press [BASS/TREBLE] repeatedly to select
"BASS" or "TREBLE".
 Press [e,r] to adjust the level (-4 to +4).
Press [SURROUND] repeatedly during play to
Surround Sound
select "ON SURROUND" or "OFF SURROUND".
If interference in FM stereo reception increases,
cancel the surround sound effect.
Press [D.BASS] repeatedly during play to select
D.Bass
"ON D.BASS" or "OFF D.BASS".
Re-master Press [RE-MASTER] repeatedly during play to
select "ON RE-MASTER" or "OFF RE-MASTER".
• Digital remaster is effective on MP3.
• Analog remaster is effective on iPod
and AUX.
/iPhone or AUX) and set
®
90MIN 120MIN
/iPhone
®

External unit

Enjoying audio from iPod
g Inserting an iPod /iPhone
®
 Press [;, iPod] to open the sliding door.
 Insert the suitable dock adapter (not included) for the
iPod /iPhone.
®
Insert the side of the Dock adapter
iPod /iPhone dock
®
adapter with the clips
facing towards you
first and then push the
opposite side until it
clicks into place.
Lever
 Press [;] to unlock the
iPod /iPhone dock and then
®
pull the docking switch lever
to tilt the iPod /iPhone dock.
®
 Connect the iPod /iPhone
®
(not included) firmly.
Be sure to remove the iPod /iPhone
®
from its case.
 Push the docking switch lever
back until it clicks into place.
 Press [;, iPod] to close the sliding door.
g Removing an iPod /iPhone
®
 Repeat step  and  (➡ above).
 To remove, simply pull the iPod
disconnect it.
 Repeat step  and  (➡ above).
• If the iPod /iPhone dock is not tilted when connecting or disconnecting
®
the iPod ® /iPhone, it may cause damage to the connector.
• When inserting an iPod /iPhone into the unit, be sure to use the
®
dock adapter either supplied with the iPod
available from Apple Inc.
• Reduce the volume of the main unit to minimum before connecting or
disconnecting the iPod /iPhone.
®
Play
Press [iPod q/h].
Pause
Press [iPod q/h] or [g].
Skip track
Press [u/t] or [y/i].
Search the current track
Press and hold [u/t] or [y/i].
Display iPod /iPhone menu/ Press [iPod MENU] in the play mode.
®
return to previous menu (Remote control only)
Select contents from
Press [e,r] and then [OK].
iPod /iPhone menu
® (Remote control only)
or iPhone
®
Clips
Click!
Connector
[;]
Click!
Push!
/iPhone straight out to
®
/iPhone or commercially
®
11
11
