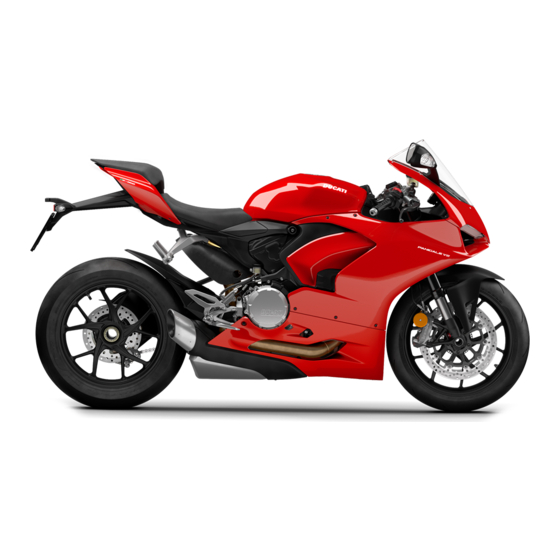

Ducati PANIGALE Owner's Manual

Hide thumbs Also See for PANIGALE:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Ducati PANIGALE

Summary of Contents for Ducati PANIGALE

  • Page 2 Owner’s manual ENGLISH...
  • Page 3 While the information contained in this manual is current at the time of going to print, Ducati Motor Holding S.p.A. reserves the right to make changes at any time without notice and without any obligations. For this reason, the illustrations in this manual might differ from your motorcycle.

  • Page 4: Table Of Contents

    Table of contents Instrument panel Acronyms and abbreviations used in the Manual Technological Dictionary Information statement on UE directive 2014/53/UE Navigation and function buttons Parameter setting and displaying Main and auxiliary functions Introduction Engine rpm indication Safety guidelines Motorcycle speed Warning symbols used in the manual Gear Intended use...
  • Page 5 TRIP TIME 1 SETTING MENU - Service T AIR SETTING MENU - Tire Calibration TRIP FUEL SETTING MENU - DRL TRIP 2 SETTING MENU - Bluetooth CONS. SETTING MENU - DDA PLAYER (OFF / ON) SETTING MENU - Turn indicators LAST CALLS SETTING MENU - Info HEATING GRIPS...
  • Page 6 Right-hand switch Anti-Lock Braking System (ABS) Throttle twistgrip Stopping the motorcycle Front brake lever Parking Rear brake pedal Refuelling Gear change pedal Tool kit and accessories Adjusting the position of the gearchange pedal and rear brake pedal Main use and maintenance operations Main components and devices Removing the fairing...
  • Page 7 Cleaning the motorcycle Tyres Cleaning and replacing the spark plugs Suspension Storing the motorcycle Exhaust system Important notes Available colours Electric system Scheduled maintenance chart Routine maintenance record Scheduled maintenance chart: operations to be carried out by the dealer Routine maintenance record Scheduled maintenance chart: operations to be carried out by the customer Technical data...

  • Page 8: Introduction

    221. Our highly skilled staff have access to special implements and appropriate equipment required to perform any servicing job at best, and use Ducati Safety guidelines original spare parts only as the best guarantee for full interchangeability, smooth running and long life.

  • Page 9: Warning Symbols Used In The Manual

    Warning symbols used in the manual Several kinds of warnings are used as an alert of the possible hazards for you or other persons such as: Safety labels on the motorcycle; Safety messages preceded by a warning symbol and either WARNING or IMPORTANT. Attention Failure to comply with these instructions may put you at risk, and could lead to severe injury or even...

  • Page 10: Intended Use

    Intended use Important This motorcycle must be ridden on asphalt or on flat Using the motorcycle under extreme and even surfaces, only. This motorcycle may not be conditions, such as very damp and muddy roads or used for riding on dirt trails or for off-road riding. dusty and dry environment, could cause above- average wear of components like the drive system, Attention...

  • Page 11: Rider's Obligations

    Rider's obligations Attention All riders must hold a valid licence. Check your state laws. Obtain insurance coverage and keep your insurance document secure Attention with the other motorcycle documents. Riding without a licence is illegal and is To protect rider and passenger safety, some states prosecuted by law.

  • Page 12: Rider's Training

    Rider's training Important Accidents are frequently due to inexperience. Never wear loose clothing, items or accessories Riding, manoeuvres and braking must be performed that may become tangled in motorcycle parts. in a different way than on the other vehicles. Important Attention For your safety, always wear suitable protective Untrained riders or a wrong use of the vehicle...

  • Page 13: Safety "Best Practices

    Important chapter "Riding the motorcycle" during the running- in period. Rider must hold the handlebar with both hands Failure to follow these instructions releases Ducati at ALL TIMES while riding. Motor Holding S.p.A. from any liability whatsoever Important for any engine damage or shorter engine life.
  • Page 14 Important Attention ALWAYS signal your intention to turn or pull to Always remove the key when you leave your the next lane in good time using the suitable turn motorcycle unattended and make sure it is not indicators. accessible to persons not authorised to use the motorcycle.

  • Page 15: Refuelling

    Refuelling Fuel label Fuel identification label Refuel outdoors with engine off. Do not smoke or use open flames while refuelling. Be careful not to spill fuel on engine or exhaust pipe. Never completely fill the tank when refuelling. Fuel should never be touching the rim of filler recess. When refuelling, avoid breathing the fuel vapours and prevent fuel from reaching your eyes, skin or clothes.

  • Page 16: Carrying The Maximum Load Allowed

    Carrying the maximum load allowed Important Your motorcycle is designed for long-distance riding, Be sure to secure the luggage to the supports carrying the maximum load allowed in full safety. provided on the motorcycle as firmly as possible. Even weight distribution is critical to preserving Improperly secured luggage may affect stability.

  • Page 17: Dangerous Products - Warnings

    Dangerous products - warnings Coolant Engine coolant contains ethylene glycol, which may Used engine oil ignite under particular conditions, producing Attention invisible flames. Although the flames from burning Prolonged or repeated contact with used ethylene glycol are not visible, they are still capable engine oil may cause skin cancer.
  • Page 18 Attention The battery gives off explosive gases; never cause sparks or allow naked flames and cigarettes near the battery. When charging the battery, ensure that the working area is properly ventilated.

  • Page 19: Vehicle Identification Number

    Vehicle identification number Note These numbers identify the motorcycle model and should always be indicated when ordering spare parts. It is recommended to record the frame number of your motorcycle in the space below. Frame number Fig 2...

  • Page 20: Engine Identification Number

    Engine identification number Note These numbers identify the motorcycle model and should always be indicated when ordering spare parts. The engine identification number is located in the motorcycle front side on the horizontal head cylinder lower side, near the starter motor and the generator cover.

  • Page 21: Instrument Panel (Dashboard)

    Proceed slowly, avoid 1) DISPLAY harsh acceleration and overtaking, take the 2) NEUTRAL LIGHT N (GREEN) vehicle to a Ducati authorised service centre to eliminate the malfunction. 3) GENERIC ERROR WARNING LIGHT (AMBER The warning light turns on flashing to warn...
  • Page 22 If the display shows the message Light steady ON: DTC intervention. “TRANSPORT MODE”, immediately contact your Ducati Dealer that will delete this message and 12) OVER REV SIDE LIGHTS (RED) ensure the full operation of the motorcycle. These warning lights turn on when the warning light 13 turns on and this indicates that the rev limiter kicked in.
  • Page 23 12:34 °C SPORT Gear km/h ABS 1 RPM X 1000 Fig 4...

  • Page 24: Acronyms And Abbreviations Used In The Manual

    Anti-lock Braking System (ABS) needing to do anything. Thanks to the built-in GPS The ABS system fitted to the Panigale V2 is a safety signal, it also shows the trajectories on track map system preventing wheel lockup while braking,...
  • Page 25 For the Panigale V2 there are three Power Modes, Ducati Wheelie Control (DWC) one for each Riding Mode: LOW, with 'soft' power delivery;...
  • Page 26 HIGH, with 'instant' power delivery. Riding Mode The rider of a Panigale V2 can choose from 3 different preset motorcycle configurations (Riding Modes) and pick the one that best suits his/her riding style or ground conditions. The Riding Modes allow user to instantly change the engine power delivery (Power Mode), ABS, DTC, DQS, EBC and DWC settings and instrument panel graphics.

  • Page 27: Information Statement On Ue Directive 2014/53/Ue

    Directive 2014/53/EU where required by law. The complete text of the EU declarations of conformity is available at the following web address: certifications.ducati.com Manufacturers' addresses All relevant components pursuant to 2014/53/EU must bear the manufacturer's address. For components...
  • Page 28 EGICON Via Posta Vecchia, 36, Mirandola (MO) - Italy TPMS LDL Technology S.A.S. Parc Technologique du Canal, 3 rue Giotto 31520 Ra‐ monville - France TPMS PACIFIC Industrial Co., Ltd. 1300-1 Yokoi, Godo-cho, Anpachi-gun, Gifu 503-2397, JAPAN Anti-theft system PATROLLINE Via Cesare Cantù, 15/C Albavilla (CO) - Italy Frequency band Max Transmission Power Bluetooth...
  • Page 29 Anti-theft system 433.92MHz (±75KHz) <0.6 mA...

  • Page 30: Navigation And Function Buttons

    Navigation and function buttons 1) UP CONTROL SWITCH " " 2) DOWN CONTROL SWITCH " " 3) HIGH-BEAM FLASH/LAP BUTTON 4) ENTER/TURN INDICATORS ACTIVATION BUTTON " 5) DRL BUTTON (accessory) 6) HAZARD BUTTON 7) LOW / HIGH BEAM BUTTON Fig 5 UP (1), DOWN (2) and ENTER (4) buttons are used for navigating and for interacting with the functions and menus available in the instrument panel.

  • Page 31: Parameter Setting And Displaying

    Parameter setting and displaying 12:34 °C Upon key-on, the instrument panel displays the DUCATI Logo and runs a sequential check of the LED warning lights. At the end of this routine the instrument panel displays the main screen in either RACE...
  • Page 32 Data displayed on all types of main screen are as Warning/Alarm indication (Warning) follows (Fig 8): Side stand status (Side Stand) Motorcycle speed SERVICE warning Engine Coolant temperature Set Riding Mode Gear indication Rev counter Clock Parameter indicators also showing the values associated with the set riding mode Function menu Lap time (if activated) or music player (if...

  • Page 33: Sport Gear

    12:34 °C 01’35.27 Lap 1 SPORT Gear km/h ABS 1 RPM X 1000 Fig 8...

  • Page 34: Main And Auxiliary Functions

    Main and auxiliary functions LAST CALLS – Call Management - only if the BT module (accessory) is present and at least one The functions displayed in the main screen are the smartphone is connected following: HEATING GRIPS - Heated handgrips Main information: management, present only if installed Motorcycle speed...
  • Page 35 Tire Calibration - drive ratio and tyre calibration DRL - mode setting (accessory) Bluetooth - Bluetooth device management (accessory) DDA - data management Turn indicators - turn indicator mode setting Info - information...

  • Page 36: Engine Rpm Indication

    Engine rpm indication 12:34 °C The engine rpm is displayed using a rev counter featuring a coloured wake: grey in DAY mode and white in NIGHT mode When the wake becomes amber yellow, the instrument panel is warning the rider to shift up. SPORT Gear The red wake flashes when the limiter kicks in and...

  • Page 37: Motorcycle Speed

    Motorcycle speed 12:34 °C Speed indication is displayed increased by 5% and together with the set unit of measurement (km/h or mph). A string of three dashes "- - -" is displayed with the set unit of measurement if: SPORT Gear speed is above 299 km/h (186 mph);...

  • Page 38: Gear

    Gear 12:34 °C The gear engaged (1– 6) is displayed at the centre of the rev counter. If gear is in neutral, the letter "N" is displayed and the Neutral warning light (2, Fig 4) turns on. In case of gear sensor error, a dash "-" will be SPORT Gear displayed together with the Neutral warning light...

  • Page 39: Clock

    Clock 12:34 °C The instrument panel displays the time in the format HH:MM (hours:minutes), followed by “AM” or “PM” indication. In case of a power off (Battery Off), upon the following Key-On, the instrument panel displays 4 SPORT Gear dashes "- - : - -" steadily, with flashing colon and km/h “AM”.

  • Page 40: Engine Coolant Temperature

    Engine Coolant temperature 12:34 °C The temperature is displayed followed by the set unit of measurement (°C or °F). The temperature display range goes from 40 °C to +120 °C (+104 °F ÷ +248 °F). If reading is: SPORT Gear equal to or lower than -40 °F (-40 °C), a string of km/h three flashing dashes "- - -"...

  • Page 41: Riding Mode (Riding Mode)

    ENGINE, DTC, ABS, km/h DWC, EBC, DQS. ABS 3 The parameters of each Riding Mode are preset by RPM X 1000 Ducati; it is still possible to customise them using the 12:34 °C SETTING MENU. STREET Gear...
  • Page 42 Change Riding Mode as follows: Hold ENTER button depressed for 1 second. Engine High System opens the page from which it is possible to scroll the available Riding Modes and view < Exit DTC 4 their parameters, together with the relevant ABS 3 settings.
  • Page 43 instrument panel will go back to displaying the main page and no settings will be changed.

  • Page 44: Dwc Indicator

    DWC is a rider aid that can be used on both the track and the road. The system is designed to make In case of system malfunction, contact a Ducati riding easier and to enhance safety, but in no way Dealer or Authorised Service Centre.
  • Page 45 elements help the rider control the motorcycle, making it as easy and safe to ride as possible. The presence of an active safety system should not encourage the rider to ride at speeds beyond the reasonable limits, not in accordance with the road conditions, the laws of physics, good riding standards and the requirements of the road traffic code.
  • Page 46 The following table indicates the most suitable level of DWC intervention for the various riding types as well as the default settings in the "Riding Mode" that can be selected by the rider: DWC LEVEL DEFAULT The DWC is disabled. HIGH PER‐...
  • Page 47 OE tyres and/or with the ones their own. Levels 1 and 2 require a great experience recommended by Ducati. The use of tyres of to ensure proper control. different size and characteristics to the original tyres...
  • Page 48 If changes occur in the circuit characteristics, and the level setting is no longer suitable, switch to the next level up or down and proceed to determine the best setting (e.g. if with level 2 the DWC intervention seems excessive, switch to level 1; alternatively, if on level 2 you cannot perceive any DWC intervention, switch to level 3).

  • Page 49: Abs Indicator

    Fig 4) Fig 17 Attention The Anti-Lock Braking System (ABS) has been In case of system malfunction, contact a Ducati developed to enable riders to use the motorcycle Dealer or Authorised Service Centre. braking force to the fullest possible amount in...
  • Page 50 The ABS system fitted to the Panigale V2 is a safety allowing vehicle yaw or slide, so as to permit a more system preventing wheel lockup while braking, sporty and faster corner entry.
  • Page 51 Attention brakes very gently and carefully when riding under these conditions. Any sudden manoeuvres may lead Using the two brake controls separately to loss of control. When tackling long, high-gradient reduces the motorcycle braking power. downhill road tracts, shift down gears to use engine Using just one of the two brake controls separately braking.
  • Page 52 SPORT This level is designed for use with good grip conditions. It is the default level ABS in this level controls both wheels and the cornering for the RACE riding function is active; while anti-lift-up control is not ac‐ mode tive.
  • Page 53 OE brake The choice of the correct level mainly depends system and with OE tyres and/or with the ones recommended by Ducati. In particular, OE tyres for on the following parameters: this motorcycle are:...

  • Page 54: Dtc Indicator

    (8, Fig 4) will turn on.( Fig 4) because it is less sensitive to slipping and Attention intervention is hence softer. In case of system malfunction, contact a Ducati Attention Dealer or Authorised Service Centre. DTC is a rider aid that can be used both on the The Ducati Traction Control system (DTC) supervises road and on the track.
  • Page 55 The rider must always be aware that active safety systems have a preventive function. The active elements help the rider control the motorcycle, making it as easy and safe to ride as possible. The presence of an active safety system should not encourage the rider to ride at speeds beyond the reasonable limits, not in accordance with the road conditions, the laws of physics, good riding...
  • Page 56 The following table indicates the most suitable level of DTC intervention for the various riding modes, as well as the default settings in the “Riding Mode” that can be selected by the rider: DTC LEVEL RIDING MODE OPERATION CHARACTERISTIC DEFAULT The DTC is disabled.
  • Page 57 RAIN This level is designed for track use, exclu‐ sively with Rain tyres when surface is wet. HEAVY RAIN This level is designed for road use, when surface is wet and very slippery. ENGINE LOW must be used for an opti‐ mum operation of this level.
  • Page 58 OE tyres and/or decreases from level 8 to level 1. with the ones recommended by Ducati and with the The use of this level with tyres having different OE final drive ratio. In particular, OE tyres for this...
  • Page 59 If the track/path features bends all taken at similar Tips for use on the road speeds, it will be easier to find a level suitable for all We recommend the level in order to get used to the bends; while a track/path with bends all requiring system.

  • Page 60: Dqs Indicator

    Once the gearshift has been completed, the lever has to be fully released in order to allow The Ducati Quick Shift takes the same shift lever another gearshift acted by Ducati Quick Shift. If operation as with vehicle not equipped with the the rider does not move the shift lever up to end Ducati Quick Shift.
  • Page 61 Ducati Quick Shift will shift down (downshifting) only when the throttle control is completely closed. If the Ducati Quick Shift strategy does not work it is always possible to complete the gear shifting using the clutch lever. If the gear lever is held pressed up or down for...

  • Page 62: Ebc Indication

    EBC indication 12:34 °C The instrument panel displays EBC current level. The level can be customised using the Riding Mode function present in the SETTING MENU. When in fault, the red "Err" message is displayed instead of the level. SPORT Gear The Engine Braking Control (EBC) system controls km/h...
  • Page 63 CHARACTERISTIC DEFAULT In this level the engine delivers the maximum engine It is the default level for the brake. RACE, SPORT and STREET Rid‐ ing Modes. In this level the engine delivers a low engine brake. This level is recommended to any rider requiring re‐ duced engine braking in deceleration.
  • Page 64 OE tyres and/or The choice of the correct level mainly depends on with the ones recommended by Ducati and with the the following parameters: OE final drive ratio. In particular, OE tyres for this...

  • Page 65: Dda Indication

    DDA indication 12:34 °C The instrument panel displays DDA current status. Using the DDA function present in the SETTING MENU, it is possible to either change its status or manage stored information. Note SPORT Gear This indication is only active if the DDA is km/h present on the bike.

  • Page 66: Function Menu

    Function menu 12:34 °C From the main screen, use the navigation buttons to scroll through menu functions. Available functions include: TOT - Odometer TRIP 1 - Trip meter 1 SPORT Gear CONS. AVG 1 - Average consumption km/h SPEED AVG 1 - Average speed TRIP TIME 1 - Trip time T AIR - External air temperature ABS 1...

  • Page 67: Tot

    Gear Note km/h If a string of flashing dashes " ----- " is displayed within odometer function, please contact a Ducati Dealer or Authorised Service Centre. ABS 1 RPM X 1000 Note Fig 23 When the instrument panel is switched on, this...

  • Page 68: Trip 1

    TRIP 1 12:34 °C TRIP 1 function displays partial distance covered by the vehicle. When the value exceeds the maximum value of 9999.9, it is automatically reset and the meter starts counting from 0.0 again. SPORT Gear Reset the function as follows: km/h view "TRIP 1"...

  • Page 69: Cons. Avg 1

    CONS. AVG 1 12:34 °C The CONS. AVG 1 function displays motorcycle average fuel consumption, calculated from last reset. Value is expressed in the set unit of measurement (km/L, l/100 km, mpg UK, mpg US). SPORT Gear Reset the function as follows: km/h view CONS.

  • Page 70: Speed Avg 1

    SPEED AVG 1 12:34 °C The SPEED AVG 1 function displays motorcycle average speed, calculated from last reset. Reset the function as follows: view "SPEED AVG 1" indication via the navigation buttons; SPORT Gear press ENTER button; km/h “RESET?” is displayed in place of the meter; press ENTER button to confirm, or press UP or DOWN button to cancel.

  • Page 71: Trip Time 1

    TRIP TIME 1 12:34 °C The TRIP TIME 1 function displays trip time in “hours:minutes”, calculated from the last reset. The value is automatically reset when it exceeds the maximum value of 511:00. Reset the function as follows: SPORT Gear view TRIP TIME 1 indication via the navigation km/h buttons;...

  • Page 72: T Air

    T AIR 12:34 °C The T AIR function displays the ambient temperature in °C or in °F. It is possible to change unit of measurement through the SETTING MENU. The temperature value is displayed when ranging SPORT Gear from -39 °C to +124 °C (or -38 °F to +255 °F). km/h For temperature values lower than -39 °C (-38 °F) or higher than +125 °C (+255 °F) a string of three...

  • Page 73: Trip Fuel

    TRIP FUEL 12:34 °C The TRIP FUEL function is only available when the bike starts using the fuel reserve and displays the distance run from the moment the low fuel warning light turns on. The function is disabled when the bike is no longer in SPORT Gear a low fuel condition.

  • Page 74: Trip 2

    TRIP 2 12:34 °C TRIP 2 indicator displays partial distance covered by the vehicle. When the reading exceeds the maximum value of 9999.9, distance is automatically reset and the meter starts counting from 0.0 again. SPORT Gear Reset meter as follows: km/h view TRIP 2 indication via the navigation buttons;...

  • Page 75: Cons

    CONS. 12:34 °C The CONS. function displays motorcycle instant fuel consumption. Value is expressed in the set unit of measurement (km/L, l/100 km, mpg UK, mpg US). Note SPORT Gear Instant fuel consumption is only calculated km/h when the motorcycle is running and moving. During the stages when the calculation is not made, 13.2 CONS.

  • Page 76: Player (Off / On)

    PLAYER (OFF / ON) 12:34 °C This function allows activating, deactivating and managing the music player. It is available only if the Bluetooth control unit is installed and a smartphone is connected. The function can be set to “OFF” or “ON”. SPORT Gear Important...
  • Page 77 Music player control enabling If the music player control is set to “OFF” (Fig 32), press ENTER button to activate it. 12:34 °C With the music player control active, the display SKIP PLAY TRACKNAME shows the title of the track currently being played on EXIT the connected smartphone (A), together with the available controls (B), and the “EXIT”...
  • Page 78 Music player controls 12:34 °C When the control is active, UP button, DOWN SKIP PLAY button and ENTER button are used by the TRACKNAME instrument panel only for the music player controls. EXIT In particular: Play/Pause, keep ENTER button pressed for 2 SPORT Gear seconds;...
  • Page 79 Quit the active music player control (ON) 12:34 °C To exit the music player control (Fig 34) and keep it active, for example with the track being played, press TRACKNAME DOWN button for 2 seconds. PLAYER CONTROL Then UP, DOWN and ENTER buttons go back to their “standard”...
  • Page 80 Music player control disabling To disable music player and also stop current track playing, select PLAYER ON function (Fig 35) and press ENTER button. The function is then shown as “PLAYER OFF” (Fig 32).

  • Page 81: Last Calls

    LAST CALLS 12:34 °C This function shows the list of the last missed, outgoing or incoming calls and is available only if the Bluetooth control unit is installed and a smartphone is connected. SPORT To display the list of calls, press ENTER button Gear (Fig 36).

  • Page 82: Heating Grips

    HEATING GRIPS 12:34 °C This function is available only if the heated handgrips have been installed, allowing their adjustment. To set the level: view HEATING GRIPS (Fig 38) indication via the SPORT Gear navigation buttons; km/h press ENTER button; current level (Fig 39) is displayed and rider can use the navigation buttons to scroll through the HEATING GRIPS ABS 1...
  • Page 83 When a level other than “OFF” is selected, the 12:34 heated handgrips symbol is displayed in the main °C page. The turning on of this symbol indicates that the heated handgrips are ready to be heated. The actual turning on (heating) of the heated handgrips occurs only with engine started, when a SPORT Gear...

  • Page 84: Setting Menu

    SETTING MENU 12:34 °C This menu allows enabling, disabling and setting some motorcycle functions. For safety reasons, you can enter this Menu only when the actual vehicle speed is lower than or equal to 5 km/h (3 mph). SPORT Gear If you are inside the SETTING MENU and the speed km/h exceeds 5 km/h (3 mph) the instrument panel...
  • Page 85 Once entered in the SETTING MENU the display changes the display mode. The options available inside the menu are: Riding Mode < Exit Pin Code Riding Mode Backlight Date and Clock Pin Code Units Service Tire Calibration DRL Control – present only if the DRL lights are Fig 42 installed Select "Exit"...

  • Page 86: Setting Menu - Riding Mode

    SETTING MENU - Riding Mode All settings of every riding mode can be customised. Enter the SETTING MENU. Use the navigation buttons to select "Riding < Exit Mode" option and press ENTER button. Riding Mode The following options will be displayed in this menu: “Race”, “Sport”, “Street”, “All Default”...

  • Page 87: Setting Menu - Riding Mode - Engine

    SETTING MENU - Riding Mode - Engine This function customises engine power associated with each riding mode. < Back Enter the SETTING MENU. Use the navigation buttons to select "Riding Engine Sport ..Mode" option and press ENTER button. Select the required Riding Mode and press ENTER button.

  • Page 88: Setting Menu - Riding Mode - Dtc

    When entering the function, the display shows available customised settings (level “1” to “8” and “Off”) on the left side and current setting on the right Sport > Ducati Traction Control side. The bike profile is also displayed with the trigger zone highlighted, and a chart containing reference information.

  • Page 89: Setting Menu - Riding Mode - Abs

    When entering the function, the display shows available customised settings (level “1” to “3”) on the left side and current setting on the right side. Sport > Ducati Traction Control The bike profile is also displayed with the trigger CORNERING zone highlighted, and a chart containing reference <...

  • Page 90: Setting Menu - Riding Mode - Dwc

    When entering the function, the display shows available customised settings (level “1” to “4” and “Off”) on the left side and current setting on the right Sport > Ducati Wheelie Control side. The bike profile is also displayed with the trigger zone highlighted, and a chart containing reference <...

  • Page 91: Setting Menu - Riding Mode - Ebc

    SETTING MENU - Riding Mode - This function sets EBC level for the selected riding mode. Enter the SETTING MENU. Use the navigation buttons to select "Riding Sport ..Mode" option and press ENTER button. Select the required Riding Mode and press ENTER button.

  • Page 92: Setting Menu - Riding Mode - Dqs

    When entering the function, the display shows available customised settings (“Up/Down” and “Off”) on the left side and current setting on the right side. Sport > Ducati Quick Shift The bike profile is also displayed, with the trigger zone highlighted.

  • Page 93: Setting Menu - Riding Mode - Default

    SETTING MENU - Riding Mode - Default This function restores all parameters for a single riding mode and is only available if one or more parameters have been previously modified, compared to factory settings. Default Sport ..Enter the SETTING MENU. Use the navigation buttons to select "Riding <...

  • Page 94: Setting Menu - Riding Mode - All Default

    SETTING MENU - Riding Mode - All Default This function restores all parameters for all riding modes and is only available if one or more < Exit parameters have been previously modified, in one or Riding Mode more riding modes, compared to factory settings. Enter the SETTING MENU.

  • Page 95: Setting Menu - Pin Code

    The Pin Code must be activated and stored by the already stored pin. the vehicle owner. If a Pin Code is already set, please contact your Ducati authorised dealer to reset it. The Ducati authorised dealer may ask you to demonstrate that you are the owner of the motorcycle.
  • Page 96 New Pin Enter the SETTING MENU. Select the "Pin Code" option and press ENTER button. < Back Select the "New Pin" option (Fig 61) and press New Pin ENTER button. The display shows the message “New Pin” and the spaces to enter the four digits of the new pin (Fig 62).
  • Page 97 Once the fourth and last digit is set, press ENTER and the orange message "Memory" will be displayed. Press again ENTER to store the entered code: green "Memorized" indication will be displayed for 2 seconds. < Back The instrument panel will display again the Pin Code New Pin Memory 7 8 4 6...
  • Page 98 Modify Pin Enter the SETTING MENU. Select the "Pin Code" option and press ENTER button. < Back Select the "Modify Pin" option (Fig 64) and press Modify Pin ENTER button. The display shows the message “Old Pin” and the spaces to enter the four digits of the old pin (Fig 62). The two arrows above and below the first digit give the possibility to set it.
  • Page 99 the new Pin Code. In this case, refer to description under “New Pin” sub-paragraph, to enter a new code.

  • Page 100: Setting Menu - Lap

    SETTING MENU - Lap This function allows enabling or disabling the LAP Riding Mode function and view the recorded lap times. Enter the SETTING MENU. Pine Code Use the navigation buttons to select "Lap" option and press ENTER button. Displayed items within this menu are “On” or “Off”, Backlight “Lap Data”, “Erase All”...
  • Page 101 Lap Data Enter the SETTING MENU. < Back Use the navigation buttons to select "Lap" option and press ENTER button. Select the "Lap Data" option and press ENTER Lap Data button. Stored lap and data concerning selected lap are Erase All listed.
  • Page 102 Erase All Enter the SETTING MENU. Use the navigation buttons to select "Lap" option and press ENTER button. Lap Data Select “Erase All” option and press ENTER button to delete all stored laps. The message Erase All “Wait...” is displayed for 1 second and then “Erase Ok”...

  • Page 103: Setting Menu - Backlight

    SETTING MENU - Backlight This function allows setting the display day or night Pin Code mode. Enter the SETTING MENU. Use the navigation buttons to select "Backlight" Backlight option and press ENTER button. Displayed items within this menu are "Day", "Night" Date and Clock and "Auto", while function current status is on the Units...

  • Page 104: Setting Menu - Date And Clock

    SETTING MENU - Date and Clock This function allows setting date and time. Enter the SETTING MENU. Use the navigation buttons to select "Date and Backlight Clock" option and press ENTER button. Date and Clock This menu includes “Date” and “Clock” options, while currently set date and time are displayed at the Units centre.
  • Page 105 Date (date setting) Enter the SETTING MENU. Use the navigation buttons to select "Date and Clock" option and press ENTER button. Select the "Date" option and press ENTER button. Date 2019 / 11 / 28 Set... “Set...” is displayed on the right side while the year flashes at the centre.
  • Page 106 Clock (time setting) Enter the SETTING MENU. Use the navigation buttons to select "Date and Clock" option and press ENTER button. Select the "Clock" option and press ENTER button. Clock 10 : 30 Set... “Set...” is displayed on the right side while “AM” or “PM”...

  • Page 107: Setting Menu - Units

    SETTING MENU - Units This function allows setting the units of measurement used by the instrument panel. Backlight Enter the SETTING MENU. Date and Clock Use the navigation buttons to select "Units" option and press ENTER button. Units The following options will be displayed in this menu: “Speed”, “Temperature”, “Consumption”, Service “All Default”...
  • Page 108 Speed Enter the SETTING MENU. Use the navigation buttons to select "Units" option and press ENTER button. < Back Select the "Speed" option and press ENTER button. km/h Speed km/h ..Options “km/h”, “mph” and “Default” are listed (visible only if currently set unit of measurement is not the default one).
  • Page 109 Temperature Enter the SETTING MENU. Use the navigation buttons to select "Units" option and press ENTER button. < Back Select the "Temperature" option and press ENTER button. °C Temperature °C ..Options “°C”, “°F” and “Default” are listed (visible only if currently set unit of measurement °F is not the default one).
  • Page 110 Consumption Enter the SETTING MENU. Use the navigation buttons to select "Consumption" option and press ENTER button. < Back Select the "Temperature" option and press ENTER button. l/100 Consumption l/100 ..Options “l/100”, “km/l”, “mpg UK”, “mpg US” and “Default”...

  • Page 111: Setting Menu - Service

    SETTING MENU - Service This function allows displaying next Services. Enter the SETTING MENU. Date and Clock Use the navigation buttons to select "Service" Units option and press ENTER button. The display shows the information concerning Service the following Service types: Oil Service (remaining mileage) Tire Calibration Desmo Service (remaining mileage)

  • Page 112: Setting Menu - Tire Calibration

    SETTING MENU - Tire Calibration This function allows the user to run the procedure for calibrating and teaching in the tyre rolling Units circumference and final drive ratio. Service Enter the SETTING MENU. Use the navigation buttons to select "Tire Tire Calibration Calibration"...
  • Page 113 Start Enter the SETTING MENU. Tire Setting Sport Use the navigation buttons to select "Tire Calibration" option and press ENTER button. Ready Select the "Start" option and press ENTER button. Keep Speed km/h 48 - 52 km/h When the calibration procedure starts, the instrument panel displays the message "Ready"...
  • Page 114 If the teach-in procedure is completed correctly, the instrument panel shows “Completed” followed by Tire Setting Sport the previous menu after a few seconds. If the calibration procedure is aborted by the user, Completed the instrument panel shows “Aborted” followed by the previous menu after a few seconds.

  • Page 115: Setting Menu - Drl

    SETTING MENU - DRL This function allows user to set the DRL lights in automatic or manual mode. Service Enter the SETTING MENU. Tire Calibration Use the navigation buttons to select "DRL" option and press ENTER button. Displayed items within this menu are "Auto" and Bluetooth "Manual", while function current status is on the RH side.

  • Page 116: Setting Menu - Bluetooth

    SETTING MENU - Bluetooth This function allows the user to manage any paired Bluetooth devices and add more. This function is Tire Calibration only available if the Bluetooth module is installed to the bike. Enter the SETTING MENU. Bluetooth Use the navigation buttons to select "Bluetooth"...
  • Page 117 Associated Devices This function allows viewing and erasing paired devices. Smartphone 1 Enter the SETTING MENU. Smartphone 2 Use the navigation buttons to select "Bluetooth" option and press ENTER button. Rider Ass. Device ..Select the "Associated Devices" option and press ENTER button.
  • Page 118 Pairing This function allows pairing a new Bluetooth device. The instrument panel manages 4 types of Bluetooth < Back devices and a maximum of 5 devices paired and/or Associated Devices connected: 2 smartphones, 1 rider earphone, 1 passenger earphone, 1 navigator. Pairing Note <...
  • Page 119 If device pairing is successful, the display will These changes are outside the control of show previous menu page. If not, the message Ducati and may result in Bluetooth Headset devices "Pairing Error" is displayed and user is allowed to functionality becoming impaired (sharing Music, repeat the pairing procedure.
  • Page 120 Attention In case of interference or noise due to particular conditions of the external environment, the Ducati earphone kit part no. 981029498 also allows sharing the music being played directly from rider helmet to passenger helmet (for further details please refer to the manual of the earphones coming with the Ducati kit part no.

  • Page 121: Setting Menu - Dda

    SETTING MENU - DDA This function allows you to enable and disable the DDA, view the percentage of memory used and to delete data stored in the DDA memory. Bluetooth Enter the SETTING MENU. Use the navigation buttons to select "DDA" option and press ENTER button.
  • Page 122 Memory This function allows viewing and erasing DDA stored information. Enter the SETTING MENU. < Back Use the navigation buttons to select "DDA" option and press ENTER button. DDA Memory Erase Memory ..100% Select the "Memory" option and press ENTER Full button.

  • Page 123: Setting Menu - Turn Indicators

    SETTING MENU - Turn indicators This function allows user to set the turn indicators to automatic mode or manual mode. Bluetooth The turn indicator automatic switch-off strategy is implemented based on calculation of leaning angle, vehicle speed and run distance. Turn indicators Enter the SETTING MENU.

  • Page 124: Setting Menu - Info

    SETTING MENU - Info This function allows viewing the vehicle battery voltage and the engine rpm digital indication. Enter the SETTING MENU. Turn indicators Use the navigation buttons to select "Info" option and press ENTER button. Info The display shows the information concerning the battery and engine rpm in a digital format.

  • Page 125: Lap Time

    LAP Time 12:34 °C To activate the Lap function, refer to chapter "SETTING MENU - Lap". 00’00.00 When the Lap function is activated, the timer is Lap - displayed on the main screen indicating 0’00.00 as well as the lap number. SPORT Gear A maximum of 30 laps can be recorded and for each...
  • Page 126 Lap time recording without GPS control unit 12:34 °C If there is no GPS control unit on the motorcycle, timer can be started after activating the LAP 01’35.27 function to record lap times by pressing the FLASH Lap 1 button: When pressing FLASH once, both timer (that SPORT Gear...
  • Page 127 Lap time recording with GPS control unit 12:34 °C If there is a GPS control unit on the motorcycle, time recording is managed automatically by the 00’00.00 instrument panel after activating the LAP function. Lap - The display shows GPS symbol (Fig 105) further to timer and lap number.
  • Page 128 Note As soon as the finish-line position is saved, it is not possible to manually delete it from GPS memory. If the LAP function is active, music player The only way is to move at least 15 km (9 mi) away activation (PLAYER ON) will stop the LAP functions from the memorised finish line.

  • Page 129: Infotainment

    6) rider and passenger helmet intercom Incoming call connected; Call in progress Ducati GPS navigator connected. Recall last number Missed call Icons are light blue if the corresponding device is Message/e-mail received connected. They are grey if the corresponding device...
  • Page 130 Incoming call 12:34 °C When there is an incoming call, the display shows: the message "ACCEPT" (A) the name/number of the person calling (B) the message "DECLINE" (C) When receiving a call, press the UP button to answer SPORT Gear or the DOWN button to reject it.
  • Page 131 Call in progress 12:34 °C During a call, the instrument panel will display: “ACTIVE” indication (A) the name/number of the person calling preceded by ">>>" (B) when receiving a call, or preceded by "<<<" when making a call SPORT Gear the message "END CALL"...
  • Page 132 Recall last number 12:34 °C When a phone call is ended, missed or rejected, the instrument panel activates the RECALL function for 5 seconds that allows recalling the last number. The display shows: the message “RECALL” (A) SPORT Gear the name/number of the person calling preceded by “<<<”...
  • Page 133 Missed call 12:34 °C In case of missed call, the display will show the symbol (A) for 60 seconds, flashing for the first 3 seconds. Note SPORT Gear The number of missed calls is not displayed. km/h Message/e-mail received In case of a received message or e-mail, the display will show the symbol (B) for 60 seconds, flashing for ABS 1 the first 3 seconds.

  • Page 134: Light Control

    Light control Low / High beam At Key-On, the high beam and low beam lights are off; only the parking lights are turned on. When the engine is started the low beam is automatically switched on. It is possible to switch from low to high beam and vice versa with button (7), positions (B) and (A), or flash with button (3).
  • Page 135 (5, Fig 6) to disable that mode and set manual light clouds, could impair safety. In this case Ducati management. Press again button (5, Fig 6) to re- recommends to manually activate the low beam.
  • Page 136 DRL in "Manual" mode – only for version with DRL lights If the DRL lights are in this mode, as set through the "DRL" function within the SETTING MENU, DRL lights will not change their status upon key-on. To switch on or off the DRL lights, it is necessary to press button (5, Fig 6).
  • Page 137 Turn indicators Hazard function (4 turn indicators) The instrument panel manages the turn indicators in The Hazard function turns all four turn indicators on manual or automatic mode according to the setting at the same time to signal an emergency condition. of the “Turn indicators”...
  • Page 138 Note The "Hazard" function has higher priority compared to normal operation of the single turn indicators, this means that, as long as it is active, it will not be possible to activate the single right or left turn indicators. Parking function Each time the key is turned off, it is possible to activate the parking lights by holding button (4, Fig 6) for a long time in the left turn indicator...

  • Page 139: Drl Light Mode Indication

    DRL light mode indication 12:34 °C This function is available only if the DRL lights are installed and indicates if the DRL lights are set to “AUTO”. Using the DRL function present within the SETTING MENU it is possible to change DRL lights control SPORT Gear mode (see "SETTING MENU - DRL").

  • Page 140: Side Stand Status Indication

    Side stand status indication 12:34 °C If side stand is down/open, the instrument panel shows icon "SIDE STAND on a red background. If instrument panel does not receive side stand status, "SIDE STAND" icon will flash to indicate an undefined status. SIDE SPORT Gear...

  • Page 141: Service Indication (Service)

    Service indication (SERVICE) 12:34 °C This indication shows the user that the motorcycle is due for service and must be taken to a Ducati Authorised Service Centre. The service warning indication can be reset only by the Ducati Authorised Service Centre during...
  • Page 142 OIL SERVICE countdown, ANNUAL SERVICE 12:34 °C countdown, DESMO SERVICE countdown When the set service thresholds are close, the instrument panel activates the following yellow warnings for 5 seconds upon every Key-ON: SPORT Gear The OIL SERVICE countdown warning (A) will km/h activate when 1000 km (621 miles) are left before SERVICE...
  • Page 143 OIL SERVICE (A); ANNUAL SERVICE (B); DESMO SERVICE (C). SERVICE Red service warning is displayed until reset by the Ducati authorised service centre, during maintenance. SERVICE It is possible to view the service deadlines through the "Service" function, within the SETTING MENU Fig 119 (see "SETTING MENU - Service").

  • Page 144: Error Indication

    During normal operation, when an error is triggered, ABS 1 RPM X 1000 the instrument panel turns on the "MIL" light (A) or the "Generic Error" light (B). Attention Fig 120 When one or more errors are displayed, always contact a Ducati Dealer or authorised Service Centre.

  • Page 145: Warnings And Alarms

    Warnings and alarms 12:34 °C The instrument panel manages a number of warnings and alarms, aimed at giving useful information to the rider during use. Upon key-on, if there are any active warnings, the instrument panel will display the messages for all SPORT Gear the present warnings of alarms: in a large size for the...
  • Page 146 This warning means that there might be ice on the road, due to a low temperature. Warning is activated when the instrument panel detects a temperature of 4°C (39°F) or lower than that. Warning will be disabled as soon as temperature rises up to 6°C (43°F).
  • Page 147 This warning indicates that the vehicle battery voltage is low. Warning is activated when battery voltage is lower than/equal to 11.0 Volt. BATTERY Note In this case, Ducati recommends charging the battery in the shortest delay using the relevant equipment. Fig 124...
  • Page 148 INSERT DATE This warning indicates that the date must be entered using the "Date and Clock" function present within INSERT the SETTING MENU (see “SETTING MENU - Date and Clock”). DATE DDA FULL This warning indicates that DDA memory is full and INSERT no more data can be stored (see “SETTING MENU - DDA”).
  • Page 149 This warning indicates that it is necessary to ride carefully because the ABS setting in use only FRONT controls the front wheel braking. ONLY Attention In this case, Ducati recommends paying particular attention to the riding style and the FRONT braking mode. ONLY NO KEY This warning indicates that the key was not acknowledged.

  • Page 150: Keys

    Duplicate keys Fig 129 When a customer needs spare keys, he/she shall contact a Ducati authorised service centre and bring all keys he/she still has. The Ducati authorised service centre will program all new and old keys. The Ducati authorised service centre may ask to the customer to prove to be the motorcycle owner.

  • Page 151: Immobilizer System

    Immobilizer system For improved anti-theft protection, the motorcycle is equipped with an IMMOBILIZER, an electronic system that inhibits engine operation whenever the ignition switch is turned off. Housed in the handgrip of each ignition key is an electronic device that modulates an output signal. When the ignition is turned on this signal is generated by a special antenna incorporated in the switch and changes every time.

  • Page 152: Restoring Motorcycle Operation Via The Pin Code

    If this procedure is necessary in order to start instrument panel displays “Error” for 2 seconds the motorcycle, contact an Authorised Ducati and then passes to the standard screen. Service Centre as soon as possible to fix the problem.

  • Page 153: Controls

    Controls Position of motorcycle controls Attention This section shows the position and function of the controls used to ride the motorcycle. Be sure to read this information carefully before you use the controls. 1) Instrument panel. 2) Key-operated ignition switch and steering lock. 3) Left-hand switch.

  • Page 154: Ignition Switch And Steering Lock

    Ignition switch and steering lock It is located in front of the fuel tank and has three positions: A) ON: enables lights and engine operation; B) OFF: disables lights and engine operation; C) LOCK: the steering is locked. Note To move the key to the last position, press it down before turning it.

  • Page 155: Left-Hand Switch

    Left-hand switch Dip switch, light dip switch, two positions: position = low beam on (A); position = high beam on (B); 2) Button = high-beam flasher (FLASH) and instrument panel control (C). Instrument panel control switch, position UP " " and DOWN " ";...

  • Page 156: Clutch Lever

    Clutch lever Lever (1) disengages the clutch. It features a dial adjuster (2) for lever distance from the twistgrip on handlebar. The lever distance can be adjusted through 10 clicks of the dial (2). Turn clockwise to increase lever distance from the handgrip. Turn the adjuster counter clockwise to decrease lever distance.

  • Page 157: Right-Hand Switch

    Right-hand switch 1) Red ON/OFF switch. 2) DRL light button. 3) Hazard button. The switch (1) has three positions: position up: KILL ENGINE; central position: ENGINE ENABLING; pushed down: ENGINE START. Fig 136 Fig 137...

  • Page 158: Throttle Twistgrip

    Throttle twistgrip The twistgrip (1) on the right handlebar opens the throttles. When released, it will spring back to the initial position (idling speed). Fig 138...

  • Page 159: Front Brake Lever

    Front brake lever Pull in the lever (1) towards the twistgrip to operate the front brake. The system is hydraulically operated and you just need to pull the lever gently. The brake lever (1) has a dial (2) for adjusting the distance between lever and twistgrip on the handlebar.

  • Page 160: Rear Brake Pedal

    Rear brake pedal Press pedal (1) down with your foot to operate the rear brake. The control system is of the hydraulic type. Fig 140...

  • Page 161: Gear Change Pedal

    Gear change pedal When released, the gear change pedal automatically returns to rest position N in the centre, between the first and the second gear. This is indicated by the instrument panel light N coming on. The pedal can be moved: down = press down the pedal to engage the 1 gear and to shift down.

  • Page 162: Adjusting The Position Of The Gearchange Pedal And Rear Brake Pedal

    Adjusting the position of the gearchange pedal and rear brake pedal The position of the gearchange and rear brake pedals in relation to the footrests can be adjusted to suit the requirements of the rider. Adjust the pedals as follows: Gear change pedal Hold linkage (1) using the special flat (A) and loosen nut (2).
  • Page 163 Operate the pedal (5) by hand to check that there is 1.5 to 2 mm of free play before the brake bites. If not, adjust the length of the master cylinder pushrod. Attention Have the pedal adjusted at a Ducati Dealer or authorised Service Centre. Fig 143 Fig 144...

  • Page 164: Main Components And Devices

    Main components and devices Position on the vehicle 1) Tank filler plug. 2) Seat lock. 3) Side stand. 4) Rear-view mirrors. 5) Front fork adjusters. 6) Rear shock absorber adjusters. 7) Catalytic converter. 8) Exhaust silencer. Fig 145...

  • Page 165: Tank Filler Plug

    Tank filler plug Opening Lift flap (1) and insert the key in the lock; Turn the key clockwise by 1/4 of a turn to release the lock; Lift the fuel tank plug (2). Closing Close the plug (2) with the key inserted and push it down into its seat;...

  • Page 166: Removing And Refitting The Seats

    Removing and refitting the seats Use lock (1) to remove the passenger seat (2) and reach the tail guard compartment. Removing the passenger seat Insert the key into the lock (1); Turn the key counter clockwise until the passenger seat (2) catch disengages with an audible click;...
  • Page 167 Removing the rider seat Using the Allen wrench present in the tail guard compartment, loosen the two screws (4) on both sides of the rider seat (5); Slide the seat towards the rear end of the vehicle. Refitting the rider seat Refit the rider seat (5) by first engaging the front end and then the rear end;...

  • Page 168: Side Stand

    Side stand Important Place the motorcycle on the side stand only when you are not going to use it for short periods of time. Before lowering the side stand, make sure that the bearing surface is hard and flat. Do not park on soft or pebbled ground or on asphalt melted by the sun, etc.

  • Page 169: Bluetooth Control Unit

    The Bluetooth control unit, which is not installed in types of Smartphones (depending on supported this vehicle, can be purchased at a Ducati Dealer or Bluetooth profiles). This is why Ducati cannot Authorised Service Centre.
  • Page 170 Note The Ducati kit part no. 981029498 can be purchased separately at a Ducati Dealer or Authorised Service Centre. Check that your Smartphone supports the following profiles: MAP profile: for a correct display of SMS and MMS notifications; PBAP profile: for a correct display of the Smartphone contact list.

  • Page 171: Steering Damper

    Steering damper It is located before the handlebar and is secured to the steering head. It provides stable and accurate steering, improving the motorcycle's handling response under any conditions. Fig 153...

  • Page 172: Front Fork Adjustment

    Front fork adjustment The front fork used on this motorcycle has rebound (return), compression and spring preload adjustment. Adjustment is done by external screw adjusters. For rebound adjustment (1); 2) for compression adjustment (2); for inner spring preload adjustment (3). Position the motorcycle on its side stand so that it is stable.
  • Page 173 rebound: open 5.5 turns counter clockwise from fully closed position on both fork legs; compression: open 7 turns counter clockwise from fully closed position on both fork legs; spring preload: 7 turns from fully open. Recommended setting for racing use: rebound: open 2.5 turns counter clockwise from fully closed position on both fork legs;...

  • Page 174: Adjusting The Rear Shock Absorber

    Adjusting the rear shock absorber The rear shock absorber has adjusters that enable you to suit the setting to the load on the motorcycle. The adjuster (1) located on the front connection holding the shock absorber to the crankcase half adjusts the damping during the rebound phase (return).
  • Page 175 spring preload: 14 mm (0.55 in) from fully needs), and is the best solution for a sport use of the uncompressed spring. motorcycle on the road. Recommended setting for racing use: rebound (1): open 8 clicks counter clockwise from fully closed position; compression (2): open 2 turns counter clockwise from fully closed position;...

  • Page 176: Riding The Motorcycle

    Riding the motorcycle For all mechanical parts of the motorcycle to adapt to one another and above all not to adversely affect the life of basic engine parts, it is advisable to avoid harsh accelerations and not to run the engine at high rpm for too long, especially uphill.
  • Page 177 During the whole running-in period, the maintenance and service rules recommended in the Warranty Card should be observed carefully. Failure to follow these instructions releases Ducati Motor Holding S.p.A. from any liability whatsoever for any engine damage or shorter engine life.

  • Page 178: Pre-Ride Checks

    Attention reservoirs (see "Checking brake and clutch fluid In case of malfunction, do not ride the level"). motorcycle and contact a Ducati Dealer or COOLANT authorised Service Centre. Check the level of coolant in the expansion To ensure trouble-free operation, the engine coolant reservoir;...
  • Page 179 When the motorcycle speed exceeds 5 km/h (3 mph) the warning light switches OFF to indicate the correct operation of the ABS system. Attention In case of malfunction, do not ride the motorcycle and contact a Ducati Dealer or authorised Service Centre.
  • Page 180 ABS device Check that the front (1) and rear (2) phonic wheels are clean. Attention Clogged reading slots would compromise system proper operation. It is recommended to disable ABS system in case of muddy road surface because under this condition the system might be subject to sudden failure.

  • Page 181: Engine Start

    Engine start Attention Before starting the engine, become familiar with the controls you will need to use when riding. Attention Never start or run the engine indoors. Exhaust gases are poisonous and may lead to loss of consciousness or even death within a short time. Set the ignition switch to position (B).
  • Page 182 Attention The side stand must be fully up (in a horizontal position) as its safety sensor prevents engine starting when down. Note It is possible to start the engine with side stand down and the gearbox in neutral. When starting the motorcycle with a gear engaged, pull the clutch lever (in this case the side stand must be up).

  • Page 183: Moving Off

    Moving off Attention Squeeze the control lever to disengage the Avoid harsh acceleration, as this may lead to clutch. misfiring and transmission snatching. The clutch 2) Push down on gear change lever sharply with the lever should not be held in longer than necessary tip of your foot to engage the first gear.

  • Page 184: Anti-Lock Braking System (Abs)

    Anti-Lock Braking System (ABS) The front and rear brakes use separate control systems, meaning that they operate independently. Using the brakes correctly under adverse conditions Likewise, the ABS is not an integral braking system is the hardest – and yet the most critical - skill to and does not control both the front and rear brake at master for a rider.

  • Page 185: Stopping The Motorcycle

    Stopping the motorcycle Reduce speed, shift down and release the throttle twistgrip. Shift down to engage first gear and then neutral. Apply the brakes and bring the motorcycle to a complete stop. To switch the engine off, simply turn the key to OFF; see "Ignition switch and steering lock".

  • Page 186: Parking

    Parking Stop the motorcycle, then put it on the side stand. To prevent theft, turn the handlebar fully left and turn the ignition key to the LOCK position. If you park in a garage or other indoor area, make sure that there is proper ventilation and that the motorcycle is not near a source of heat.

  • Page 187: Refuelling

    Refuelling Never overfill the tank when refuelling. Fuel should never be touching the rim of filler recess. Warning The fuel pressure inside the tank may, in extreme cases, cause fuel to “spray” when opening the fuel cap. Always open the fuel cap slowly and carefully during the refill.
  • Page 188 Attention The motorcycle is only compatible with fuel having a maximum content of ethanol of 10% (E10). Using fuel with ethanol content over 10% is forbidden. Using it could result in severe damage of the engine and motorcycle components. Using fuel with ethanol content over 10% will make the warranty null and void.
  • Page 189 Fuel label The label identifies the fuel recommended for this vehicle. 1) The E5 reference inside the label indicates the use of fuel with a maximum oxygen content of 2.7% by weight and a maximum ethanol content of 5% by volume, according to EN 228.

  • Page 190: Tool Kit And Accessories

    To gain access to the compartment, remove the passenger seat as described in "Removing and refitting the seats". Have the following parts (supplied as standard) installed by a Ducati Dealer or authorised Service Centre: - passenger seat; Fig 165 - right and left rear footpegs.

  • Page 191: Main Use And Maintenance Operations

    Important At every reassembly, to avoid damaging the painted areas and the Plexiglass windscreen, always place the nylon washers at the retaining screws. Important Have the fairing removal performed at a Ducati Dealer or Authorised Service Centre.

  • Page 192: Checking Coolant Level And Topping Up, If Necessary

    Top up if the level is below the MIN mark. Attention Place the motorcycle upright on a flat surface and make sure the engine is cold before proceeding. Fig 167 Important Have the top-up performed at a Ducati Dealer or Authorised Service Centre.

  • Page 193: Checking Brake And Clutch Fluid Level

    Fluid must be topped up and changed at the intervals specified in the scheduled maintenance table reported in the Warranty Booklet; please contact a Ducati Dealer or authorised Service Centre. Brake system Fig 168 If you find exceeding clearance on brake lever or...
  • Page 194 If the control lever has exceeding clearance and the transmission snatches or jams as you try to engage a gear, it means that there might be air in the circuit. Contact your Ducati Dealer or authorised Service Centre to have the system inspected and air drained out.

  • Page 195: Checking Brake Pads For Wear

    Friction material wear beyond this limit would lead to metal support contact with the brake disc thus compromising braking efficiency, disc integrity and rider safety. Important Fig 170 Have the brake pads replaced at a Ducati Dealer or authorised Service Centre. Fig 171...

  • Page 196: Charging The Battery

    Charging the battery Before charging the battery, it is best to remove it from the motorcycle. Removing the battery Remove the left-hand side fairing; undo the screw (1) and remove the battery mounting cover (2). remove battery (3) from its seat; always starting from the negative terminal (-), loosen the screws (4).
  • Page 197 Charging the battery Connect the battery charger leads to the battery terminals: the red one to the positive terminal (+), the black one to the negative terminal (-). Charge the battery at 0.9 A for 5÷10 hours. Attention The battery produces explosive gases: keep it away from heat sources Attention Keep the battery out of the reach of children.
  • Page 198 Refitting the battery Lay down the ABS positive cable (6), onto positive cable (5) and start screw (4) on these cables; Fig 174 Fig 175...
  • Page 199 lay down the engine ground cable (8), onto negative cable (7) and start screw (4) on these cables; tighten the terminal retaining screws (4); apply grease around the battery terminals to prevent oxidation. reinstall the battery (3) in the support, positioning the cables as shown in (Fig 173);...

  • Page 200: Charging And Maintenance Of The Battery During Winter Storage

    Charging and maintenance of the battery during winter storage Attention The electric system of this motorcycle is designed so as to ensure there is a very low power drain when the motorcycle is OFF. Nevertheless, the battery features a certain self-discharge rate that is normal and depends on ambient conditions as well as on vehicle "non-use"...
  • Page 201 Important Using charge maintainers or battery chargers Vehicles equipped with lithium batteries must for lithium batteries not approved by Ducati could never use devices such as Jump Starters or auxiliary damage motorcycle electric system and/or lithium batteries connected in parallel to the lithium battery battery;...

  • Page 202: Checking Drive Chain Tension

    Checking drive chain tension Important Have chain tension adjusted by a Ducati Dealer or authorised Service Centre. Make the rear wheel turn until you find the position where chain is tightest; with a finger, push down the chain at the point of measurement and release;...
  • Page 203 Attention Correct tightening of swinging arm screws (1) is critical to rider safety. Important Improper chain tension will lead to early wear of transmission parts. Important To ensure the best performance and long life of the chain, please follow the information related to chain cleaning, lubrication, inspection and tensioning.

  • Page 204: Lubricating The Drive Chain

    Lubricating the drive chain Important Have drive chain cleaned by a Ducati Dealer or authorised Service Centre. Cleaning and lubricating the drive chain The chain fitted on your motorcycle has O-rings that keep dirt out of and lubricant inside the sliding parts.
  • Page 205 Attention Avoid the use of steam, fuel, solvents, hard brushes or other methods that could damage the O- rings; also avoid direct contact with the battery acid as it could cause mini cracks in the links as shown in the figure. Attention In particular, in case of Off-Road use of the bike, it is possible that excessive wear of the links...
  • Page 206 Lubricating the drive chain Important Have drive chain cleaned by a Ducati Dealer or authorised Service Centre. Attention Use SHELL Advance Chain to lubricate the chain; the use of non-specific lubricants could damage the O-rings and therefore the entire drive system.
  • Page 207 Apply the lubricant jet (1) inside the chain between the inner and outer links, in point (2) immediately before the engagement point on the sprocket. Due to the centrifugal force, the lubricant, made fluid by the solvents contained in the spray, will expand in the working area between the pin and the bush, ensuring perfect lubrication.
  • Page 208 After lubrication, wait 10-15 minutes to allow the lubricant to act on the internal and external surfaces of the chain and then remove the excess lubricant with a clean cloth. Important Do not use the motorcycle immediately after lubricating the chain as the lubricant, still fluid, would be centrifuged outwards causing possible soiling of the rear tyre or the rider's footpeg.

  • Page 209: Replacing The High And Low Beam Bulbs

    The whole front LED headlight assembly is maintenance-free. Figure shows the locations of the high beam (HI), low beam (LO) and parking lights (1). Have the lights replaced at a Ducati Dealer or authorised Service Centre. Rear turn indicators LED turn indicator lights are maintenance-free.

  • Page 210: Aligning The Headlight

    Aligning the headlight Check correct headlight aiming. Position the motorcycle 10 metres from a wall or a screen, the motorcycle must be perfectly upright with the tires inflated to the correct pressure and with a rider seated, perfectly perpendicular to the longitudinal axis.
  • Page 211 Note This is the procedure specified by Italian regulations for checking the maximum height of the light beam. Please adapt said procedure to the provisions in force in your own country. To align the headlight beam, turn the screws (1) and (2) located at the front of the vehicle, on both sides.

  • Page 212: Adjusting The Rear-View Mirrors

    Adjusting the rear-view mirrors Manually adjust the rear-view mirror by pushing at point (A). Fig 192...

  • Page 213: Tubeless Tyres

    Note Attention Have the tyres replaced at a Ducati Dealer or Check and set tyre pressure when tyres are authorised Service Centre. Correct removal and cold. To avoid front wheel rim distortion, when riding installation of the wheels is essential. Some parts of on bumpy roads, increase tyre pressure by 0.2 ÷...
  • Page 214 Minimum tread depth Measure tread depth (S) at the point where tread is most worn down: it should not be less than 2 mm (0.08 in), and in any case not less than the legal limit. Important Visually inspect the tyres at regular intervals for detecting cracks and cuts, especially on the side walls, bulges or large spots that are indicative of internal damage.

  • Page 215: Check Engine Oil Level

    If the level is low, top up with engine oil. Remove the oil filler cap (2) and top up until the oil reaches the required level. Refit the filler plug (2). Ducati recommends you use Shell Advance 4T Ultra 15W-50 oil (JASO: MA2 and API: SN). Important UK VERSION: Ducati recommends you use Shell Advance DUCATI 15W-50 Fully Synthetic Oil.
  • Page 216 5) If the oil level is below the middle line between the MIN and MAX marks, add oil until reaching the maximum level indication. Attention Never exceed the MAX mark. Recommendations concerning oil It is recommended to use oil complying with the following specifications: viscosity grade SAE 15W-50;...

  • Page 217: Cleaning The Motorcycle

    Cleaning the motorcycle Important To preserve the finish of metal parts and paintwork, Do not wash your motorcycle right after use. wash and clean your motorcycle at regular intervals, When the motorcycle is still hot, water drops will anyway according to road conditions. Use specific evaporate faster and spot hot surfaces.
  • Page 218 Attention Note The headlight might fog up due to washing, Clean instrument panel lens using soft cloths rain or moisture. Switch headlight on for a short time with water and mild soap or detergents specific for to help and dry up any condensate. cleaning clear plastic parts.

  • Page 219: Cleaning And Replacing The Spark Plugs

    Cleaning and replacing the spark plugs Spark plugs are essential to smooth engine running and should be checked at regular intervals. Have the spark plug replaced by a Ducati Dealer or an authorised Service Centre. Fig 195...

  • Page 220: Storing The Motorcycle

    This will protect paintwork and let condensate breathe out. The canvas is available from Ducati Performance.

  • Page 221: Important Notes

    Britain, Europe, Switzerland, etc. have compulsory emission and noise standards that include mandatory inspections at regular intervals. Periodically carry out the required checks and renew parts as necessary, using Ducati original spare parts, in compliance with the regulations in the country concerned.

  • Page 222: Scheduled Maintenance Chart

    Scheduled maintenance chart: operations to be carried out by the dealer Attention This scheduled maintenance chart is designed for a road use of the Panigale V2. If it is used on the track, even if not during sport competitions, all parts of the motorcycle are more stressed so the routine maintenance operations must be carried out more frequently than indicated.
  • Page 223 List of operations and type of inter‐ Km. x1,000 vention Time [set mileage (km/mi) or time interval (months) mi. x1,000 0.6 22.5 Change engine oil mesh filter assembly Check and/or adjust valve clearance Change spark plugs Check and clean air filter Change air filter Check brake and clutch fluid level Change brake and clutch fluid...
  • Page 224 List of operations and type of inter‐ Km. x1,000 vention Time [set mileage (km/mi) or time interval (months) mi. x1,000 0.6 22.5 Check and lubricate the rear wheel shaft Check final drive (chain, front and rear sprocket) and sliding shoe wear Check final drive chain for stretch.
  • Page 225 List of operations and type of inter‐ Km. x1,000 vention Time [set mileage (km/mi) or time interval (months) mi. x1,000 0.6 22.5 Check that all gaiters and flexible hoses in view (e.g. flexible hoses for fuel, brake and clutch fluids, cooling system, bleeding, drainage, etc.) are not cracked, are properly sealing and positioned Visually check coolant level...
  • Page 226 List of operations and type of inter‐ Km. x1,000 vention Time [set mileage (km/mi) or time interval (months) mi. x1,000 0.6 22.5 Softly clean the motorcycle Fill out that the service was performed in on-board doc‐ umentation (Service Booklet) * Service operation to be carried out in accordance with the specified distance or time intervals (km, miles or months), whichever occurs first.

  • Page 227: Scheduled Maintenance Chart: Operations To Be Carried Out By The Customer

    Scheduled maintenance chart: operations to be carried out by the customer Important Using the motorcycle under extreme conditions, such as very damp and muddy roads or dusty and dry environment, could cause above-average wear of components like the drive system, the brakes or the air filter.

  • Page 228: Technical Data

    Technical data Weights Overall Weight 200 kg (440.92 lb). (in running order with 90% of fuel - 44/2014/EU Annex XI) Overall weight (without fluids and battery) 176 kg (388 lb). Maximum allowed weight (carrying full load) 400 kg (881.85 lb). Attention Failure to observe weight limits could result in poor handling and impair the performance of your motorcycle, and you may lose control of the motorcycle.

  • Page 229: Dimensions

    Dimensions 810 mm / 31.89 in 128 mm 5.04 in 1436 mm / 56.53 in 760 mm / 29.92 in 2090 mm / 82.28 in Fig 196...

  • Page 230: Fuel, Lubricants And Other Fluids

    Fuel, lubricants and other fluids TOP-UPS TYPE Fuel tank, including a reserve of 5 litres Ducati recommends SHELL V-Power un‐ 17 litres (1.10 UK gal) leaded premium fuel with a minimum of (3.74 UK gal) octane rating of RON 95...
  • Page 231 Attention The motorcycle is only compatible with fuel having a maximum content of ethanol of 10% (E10). Using fuel with ethanol content over 10% is forbidden. Using it could result in severe damage of the engine and motorcycle components. Using fuel with ethanol content over 10% will make the warranty null and void. Important These references indicate the fuel recommended for this vehicle as specified by the European regulation EN228.

  • Page 232: Engine

    Engine 94 Nm - 9.5 kgm at 8250 rpm Twin cylinder, four-stroke, 90° "L" type, longitudinal, Max. torque at crankshaft Regulation (EU) no. with deep sump die-cast crankcase. 134/2014 Annex X, for Russia version only: Bore: 100 mm (3.94 in) 103 Nm - 10.5 kgm at 9000 rpm Stroke: 60.8 mm (2.39 in) Maximum rpm: 11,500...

  • Page 233: Timing System

    Timing system Double overhead camshaft (DOHC) driven by chain and gearwheels, 4 valves per cylinder, desmodromic system. Desmodromic timing system Opening (or upper) rocker arm; 2) Opening rocker shim; Closing (or lower) rocker shim; 4) Return spring for lower rocker; 5) Closing (or lower) rocker;...

  • Page 234: Performance Data

    Using fuel Failure to follow these instructions releases with ethanol content over 10% will make the Ducati Motor Holding S.p.A. from any liability warranty null and void. whatsoever for any engine damage or shorter engine Brakes life.

  • Page 235: Transmission

    With fixed drilled stainless steel disc. Front chain sprocket/clutch gearwheel ratio: 30/53 Disc diameter: 245 mm (9.6 in). 6-gear gearbox with Ducati Quick Shift (DQS) up/ Disc braking surface: 190 sq. cm (29.45 in down EVO2, gear change pedal on left side of Brake disc thickness: 5 mm (0.2 in).

  • Page 236: Frame

    Ducati Motor Holding Tyres S.p.A. will be pleased to provide information about Front the special ratios available. Contact a Ducati Dealer Pirelli Diablo Rosso Corsa II "tubeless" radial type. or Authorised Service Centre. Size: 120/70 ZR17 M/C (58W).

  • Page 237: Exhaust System

    Suspension travel: 65 mm (2.5 in). Steering damper Non-adjustable Sachs steering damper. Exhaust system "2 into 1" system. Two Lambda sensors and two catalytic converters. Available colours DUCATI RED Primer: White Acriflex code L0040652; Varnish: Acriplast Red Stone SF code LMC06017; Wheel rim colour: Black.

  • Page 238: Electric System

    Electric system ELECTRONIC RECTIFIER, protected by a 30A fuse located on the solenoid starter, next to the battery. Basic electric items are: Starter motor: Headlight type: Denso 12V - 0.6 kW no.1 Luxeon Altilon LED + No.2 Luxeon F Plus LEDs (low beam);...
  • Page 239 Fuses There are fuses that protect the electric components, located inside the front fuse boxes, and one on the electric solenoid starter. There is a spare fuse in every box. Refer to the table below to identify the circuits protected by the various fuses and their ratings. The front left fuse box (A) and the front right one (B) are located above the battery.
  • Page 240 Front left fuse box (A) key Front right fuse box (B) key El. item Rat. Fuel pump relay 10 A EMS/ABS/IMU EMS powered relays 25 A DASH/BBS/SMEC 7.5 A Spare 15 A Spare Accessories (SW) Spare 25 A Injection relay 20 A Diagnostics/ 7.5 A...
  • Page 241 To access the main starter fuse, starter refer remove the left-hand side half-fairing. The 30A main starter fuse (C) is located next to the battery, on the right side of the fuse box. Remove the protection cover cap to reach it. The spare 30A fuses (D) are located on the solenoid starter(E);...
  • Page 242 A blown fuse can be identified by breakage of the inner filament (F). Important Switch the ignition key to OFF before replacing the fuse to avoid possible short-circuits. Attention Never use a fuse with a rating other than specified. Failure to observe this rule may damage the electric system or even cause fire.

  • Page 243: Routine Maintenance Record
