Connecting to Console Port for Local Management

What Is Needed

The following is a list of user‐supplied DTE interface cables that may be needed to connect
the DB9 male Console port connector on the switch. The cables are terminated by a DB9
female connector at one end, and by one of three type connectors at the other end,
depending on the type connection needed for the remote device. The cables that may be
needed are as follows:
• DB9 female‐to‐DB9 female
• DB9 female‐to‐DB25 female
• DB9 female‐to‐DB25 male
Using a DTE modem DB9 female‐to‐DB9 female cable, you can connect products
equipped with a DB9 DTE male console port to an IBM or compatible PC running a VT
series emulation software package.
Using a DTE modem DB9 female‐to‐DB25 female cable, you can connect products
equipped with a DB9 DTE male console port to a VT series terminal or VT type terminals
running emulation programs for the VT series.
Using a DTE modem DB9 female‐to‐DB25 male cable, you can connect products equipped
with a DB9 DTE male console port to a Hayes compatible modem that supports
9600 baud.
The cable used must connect the Console port Received Data, Pin 2 to the Transmitted
Data pin at the other end of the cable. The connection from the Console port Transmitted
Data, Pin 3 (must be connected) to the Received Data pin cable connection at the other end
of the cable. The DB9 Console port pin assignments are shown in Figure

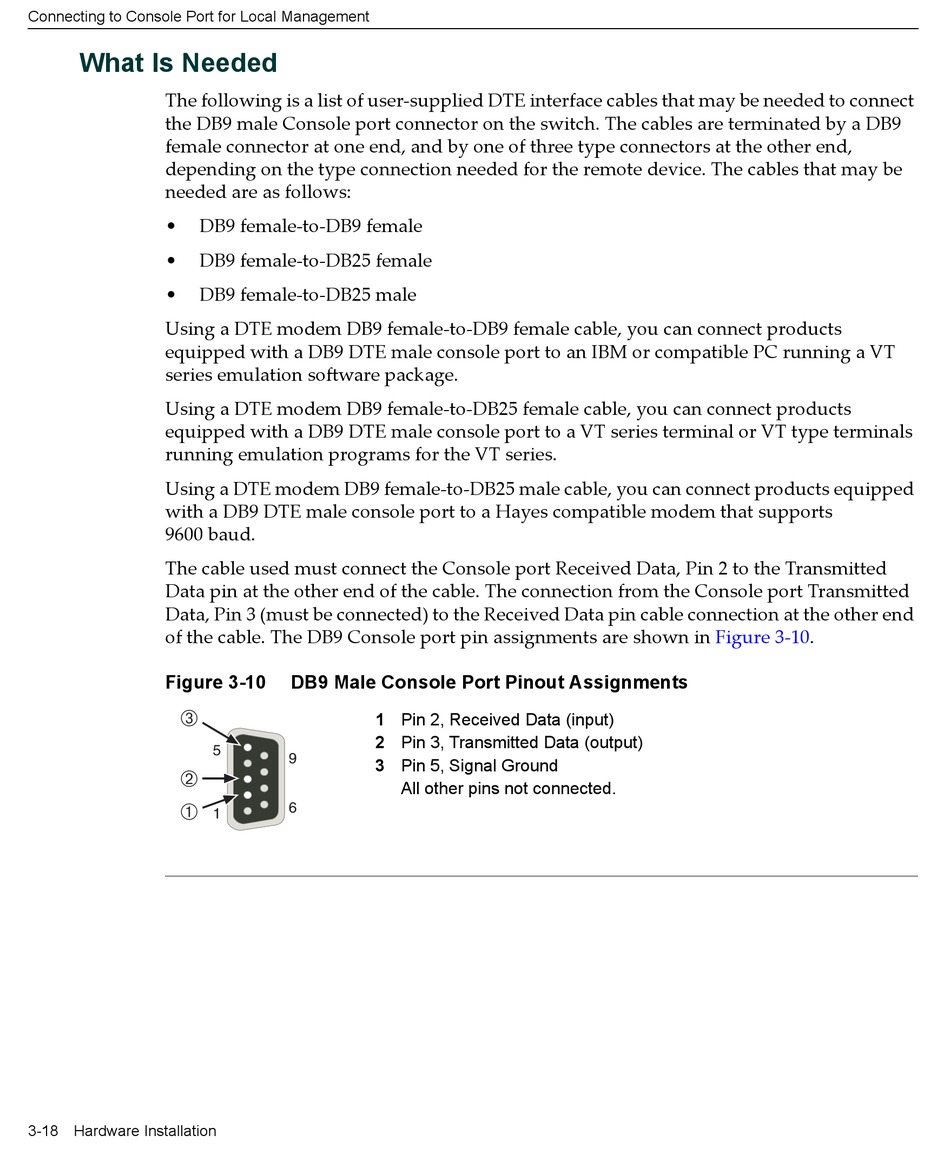

Figure 3-10
Â
Á
À
3-18 Hardware Installation

DB9 Male Console Port Pinout Assignments

1 Pin 2, Received Data (input)
2 Pin 3, Transmitted Data (output)
3 Pin 5, Signal Ground
All other pins not connected.
3‐10.
