EXTRACTING DATA AND SAVING A REPORT

® ®
The Bendix ACom Diagnostics tool and users guide is
available online at "ABS Software" link under "Services and
Support" on the Bendix home page. Use this manual for
specifi c instructions on extracting data from the Bendix
Wingman ® ACB system.
After a successful connection, the service technician will
be presented with the window shown in Figure 24.
Select "ACB Data Log" and click "Start ACB Data Log".
The service technician will be asked to enter the vehicle
ID and mileage. This data will be stored in the report. See
Figure 25.
The service technician can choose whether to Print, Print
Preview, E-mail, or Save the report to disk. See Figure
26. The data can be saved as a comma delimited fi le or
a Microsoft Excel spreadsheet.
®

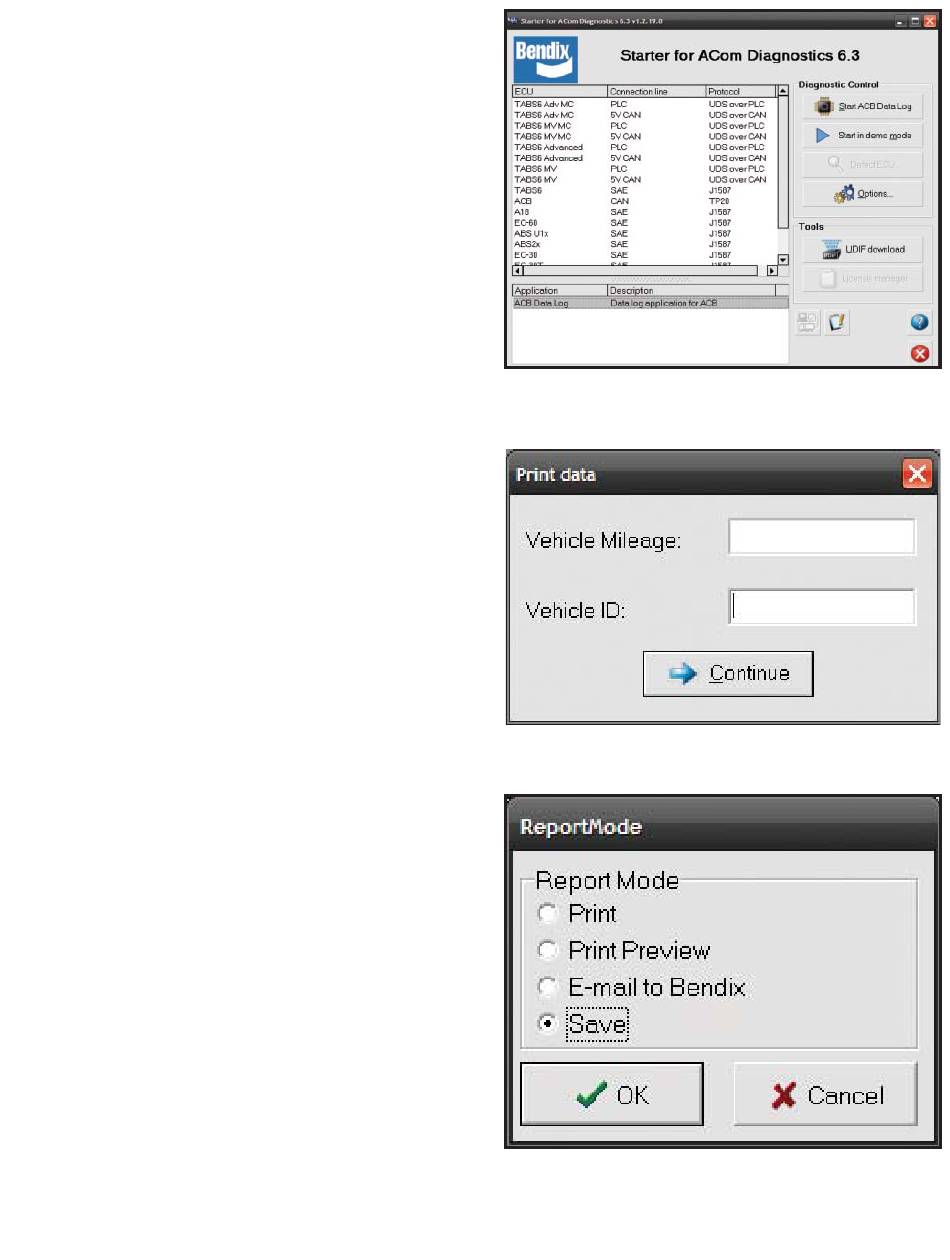

FIGURE 24 - STARTING ACOM
FIGURE 25 - PRINTING VEHICLE DATA
FIGURE 26 - SAVING VEHICLE DATA
® SOFTWARE
27
