Typical ACB Assembly
• Radar
• Adjustable Bracket
• Cover Fasteners – Plastic Tree Style

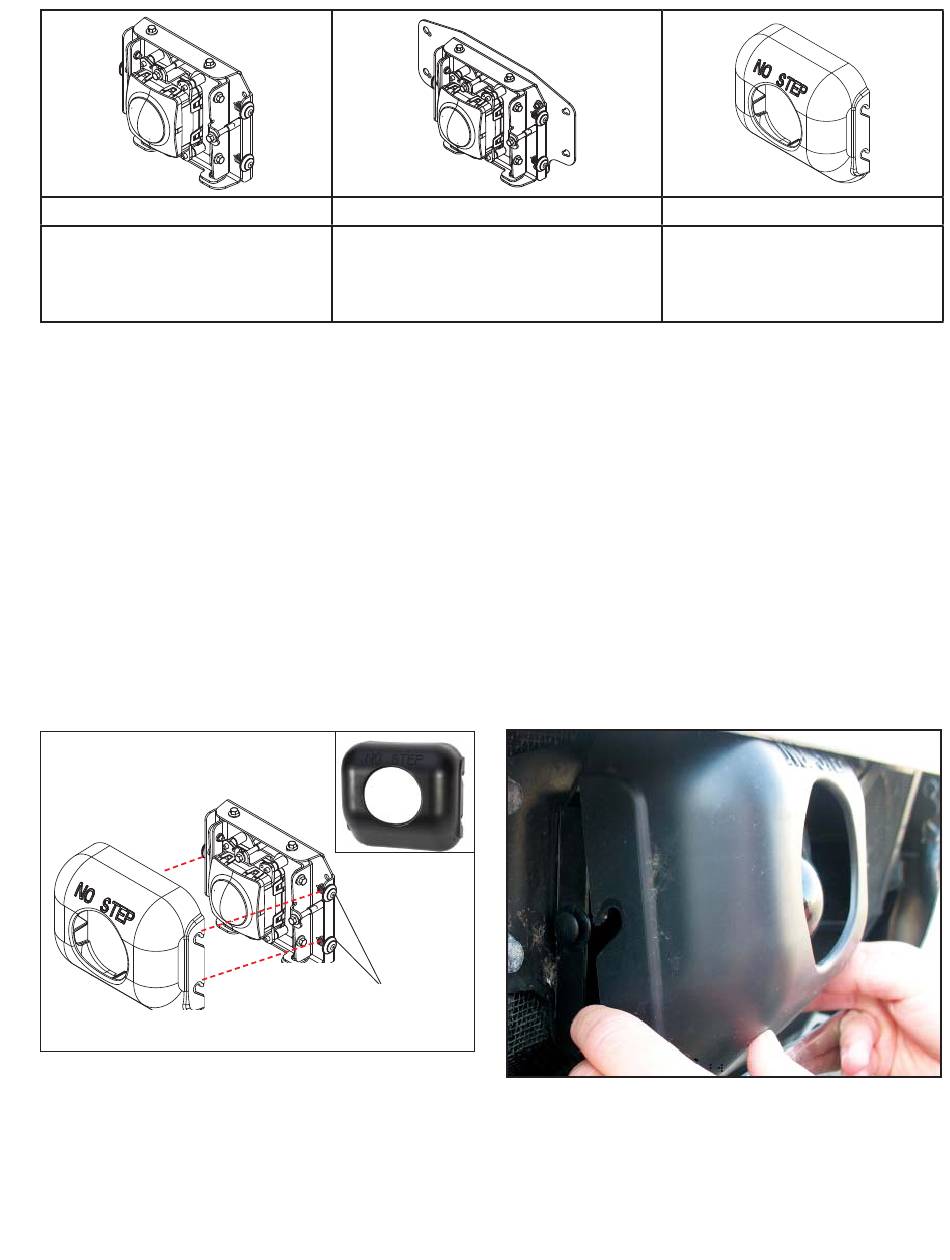

FIGURE 9 - TYPICAL ACB ASSEMBLIES AND COVER WITH SERVICE REPLACEMENT PARTS

REPLACEMENT PARTS

Replacement parts exist for all components shown in
Figure 9. Parts are available from any Bendix authorized
parts supplier.

ACB SENSOR ALIGNMENT

Accurate vertical and lateral alignment is critical for
proper operation of Bendix
alignment will cause false warnings, missed warnings and
a diagnostic trouble code in the system.
The ACB sensor is mounted to the front of the vehicle using
an adjustable bracket. Use the following procedures to
align the sensor in its adjustable bracket:
FIGURE 10 - ACB COVER AND PLACEMENT OVER
SENSOR ASSEMBLY
Typical ACB Assembly with Adaptor Plate
• Radar
• Adjustable Bracket
• Adaptor Plate
• Cover Fasteners – Plastic Tree Style
® ®
Wingman ACB. Improper
Cover Fasteners Plastic
Tree Style (3)
• Cover Fasteners – Plastic Tree Style

COVER REMOVAL

To remove the cover, use a slight force to pull the cover up
and away from the bracket. The three cover fasteners do
not need to be removed. See Figures 10 and 11.
FIGURE 11 - ACB COVER REMOVAL
ACB Cover
21
