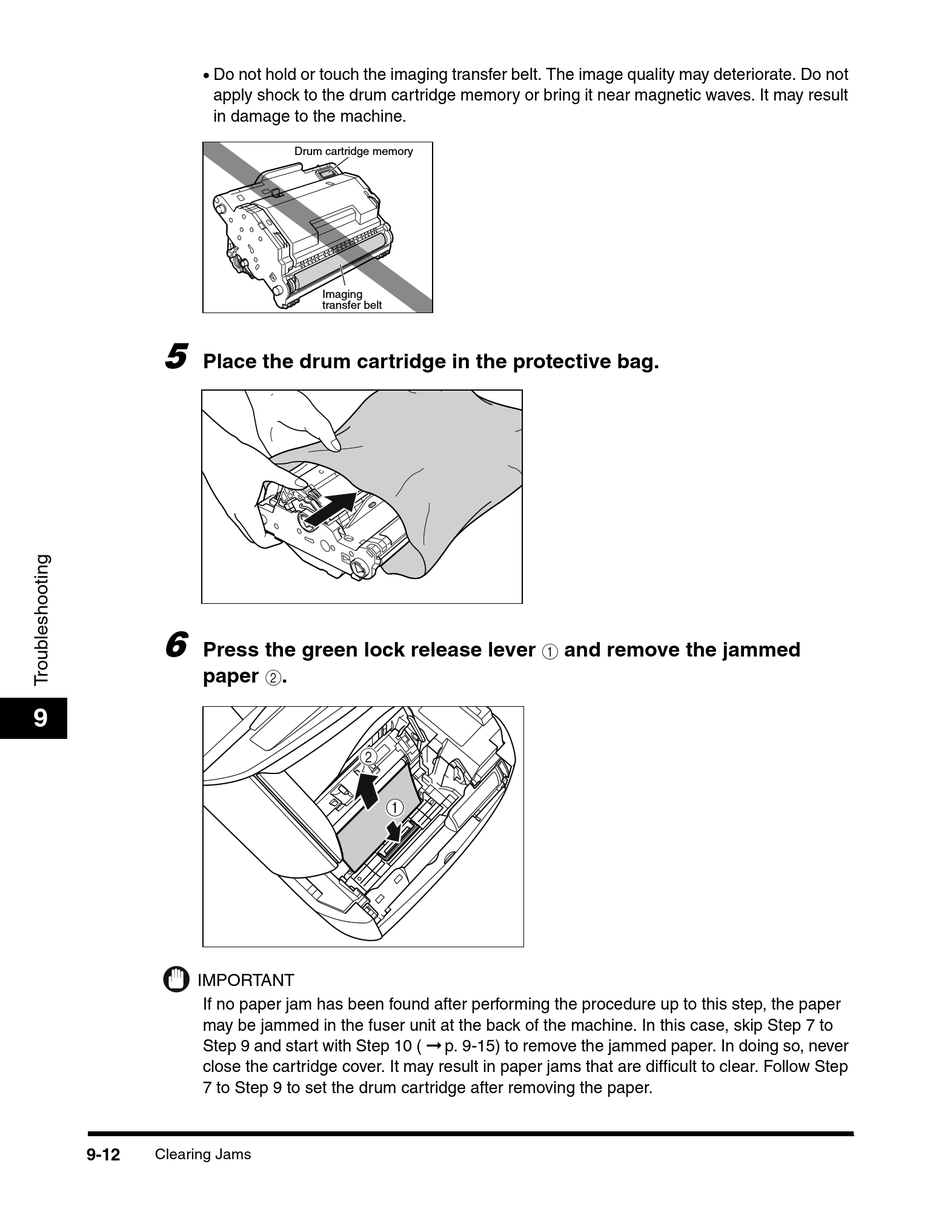

Place the drum cartridge in the protective bag.
Press the green lock release lever
paper
9
IMPORTANT
If no paper jam has been found after performing the procedure up to this step, the paper
may be jammed in the fuser unit at the back of the machine. In this case, skip Step 7 to
Step 9 and start with Step 10 ( ➞ p. 9-15) to remove the jammed paper. In doing so, never
close the cartridge cover. It may result in paper jams that are difficult to clear. Follow Step
7 to Step 9 to set the drum cartridge after removing the paper.
9-12 Clearing Jams
Do not hold or touch the imaging transfer belt. The image quality may deteriorate. Do not
apply shock to the drum cartridge memory or bring it near magnetic waves. It may result
in damage to the machine.
Drum cartridge memory
Imaging
transfer belt
.
b
b
and remove the jammed
a
